Cantilever glass canopies with brackets
€158.00 Tax excluded
€191.18 Tax included
€191.18 Tax included
Cantilever glass canopies are supported from below on wall-mounted brackets, with no overhead tension rods – the glass projects out over the entrance carried entirely by the brackets. Strofix offers two bracket types, truss and clamp, in AISI 304 stainless steel, for glass depths from 900 to 1300 mm. Complete kits on 2, 3 or 4 brackets come with 12.76 mm (66.2) toughened laminated glass in widths from 1400 to 3500 mm; brackets and glass panels can also be ordered separately.
An under-supported glass canopy is a wall-mounted entrance shelter in which diagonal stainless-steel brackets carry the glass panel from below, transferring load from the canopy back to the building façade.
The brackets project outward and downward from the wall, supporting the glass without any overhead tie-rods or hanging hardware, which makes this mounting style suited to entrances where a clean soffit and unobstructed overhead clearance are required.
Strofix supplies under-supported glass canopy brackets in AISI 304 stainless steel in two types – truss and clamp – for projection depths from 900 to 1300 mm. Truss-type brackets are painted in black (RAL 9005), anthracite (RAL 7016) or brown (RAL 8019); clamp-type brackets are satin or painted in the same colours.
Complete canopy kits on 2, 3 or 4 supports come with 12.76 mm (66.2) laminated toughened glass in widths from 1400 to 3500 mm, and glass panels for truss or clamp brackets can be ordered separately.
Choosing the correct configuration depends on canopy width, projection depth, bracket type and colour.
The total glass width determines how many bracket supports are needed.
Kits on 2 supports are available in widths of 1400, 1600 or 1800 mm, on 3 supports in 2000, 2300 or 2600 mm and on 4 supports in 2900, 3200 or 3500 mm.
For wider spans, additional supports distribute load more evenly across the glass.
Projection depth is how far the canopy extends from the wall.
Truss-type brackets come in two sizes – S for 900–1100 mm and M for 1200–1300 mm; clamp-type brackets in S for 1000 mm and M for 1200 mm.
Measure the required rain and wind coverage area at the entrance, then select the bracket depth that provides adequate shelter without exceeding the structural capacity of the wall fixing.

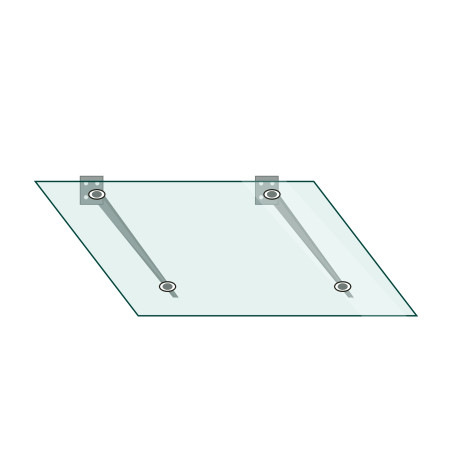

Truss-type brackets carry glass with drilled holes bolted to the bracket; clamp-type brackets grip the glass edge, so no holes are needed.
Complete kits use 12.76 mm (66.2) laminated toughened glass. Glass type and thickness must be verified by a structural calculation for each project.
All brackets are AISI 304 stainless steel. Truss-type brackets are painted in black, anthracite or brown; clamp-type brackets are also available with a satin finish.
Colour is a purely aesthetic choice and does not affect structural performance.
