Clamp type bracket for glass canopy S (Depth 1000)

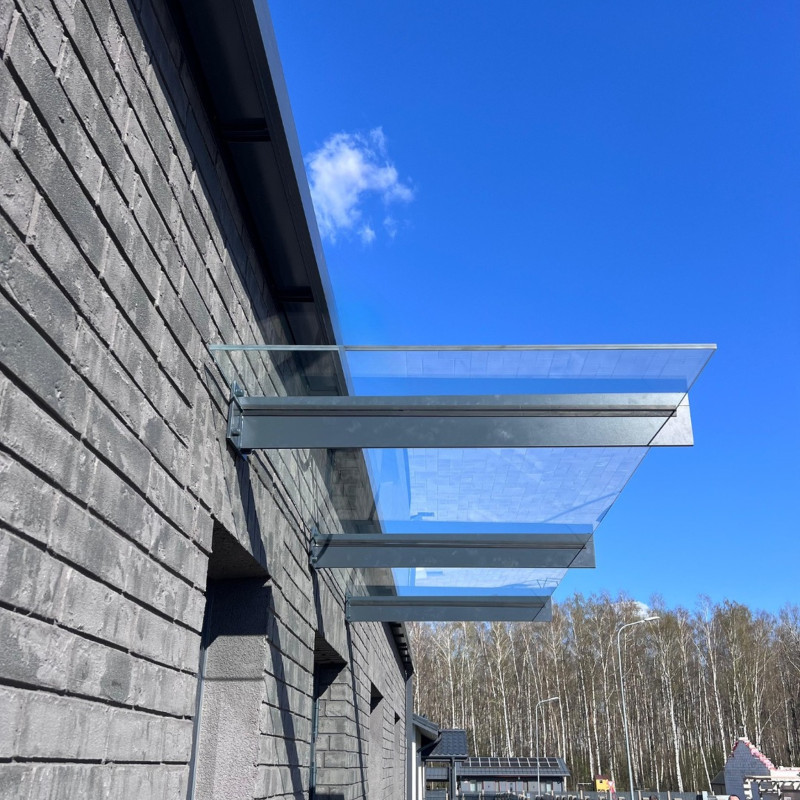

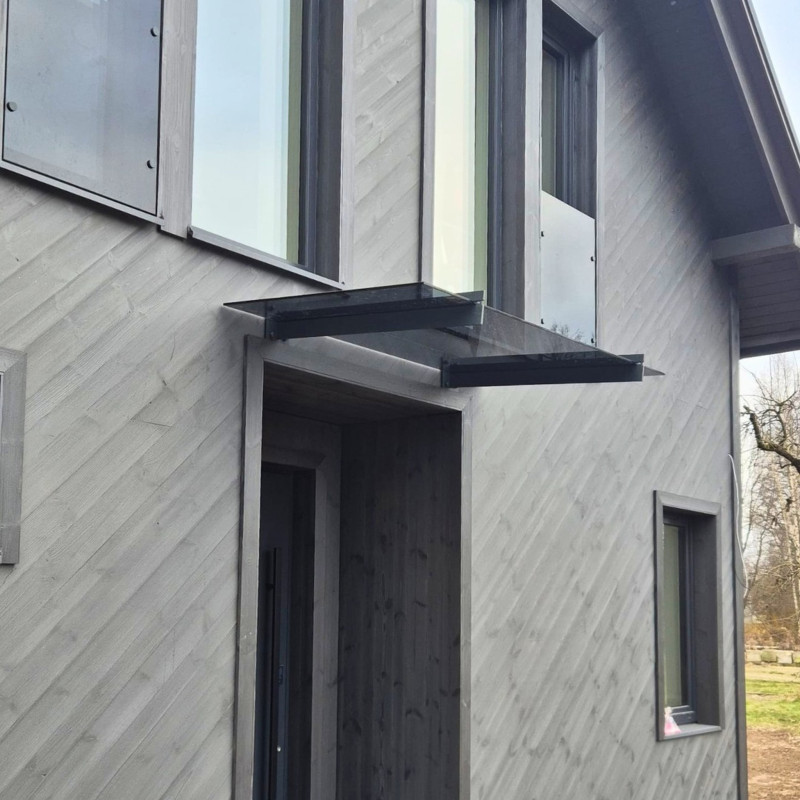

The Strofix clamp-type bracket for glass canopy S is an AISI 304 stainless-steel support that clamps the glass edge and carries a canopy panel from below, with a 1000 mm projection from the wall. Supplied with a satin finish and sold individually, it accepts 10 mm, 12.76 mm (66.2), or 16.76 mm (88.2) glass – for installations where an overhead tension rod cannot be fitted.

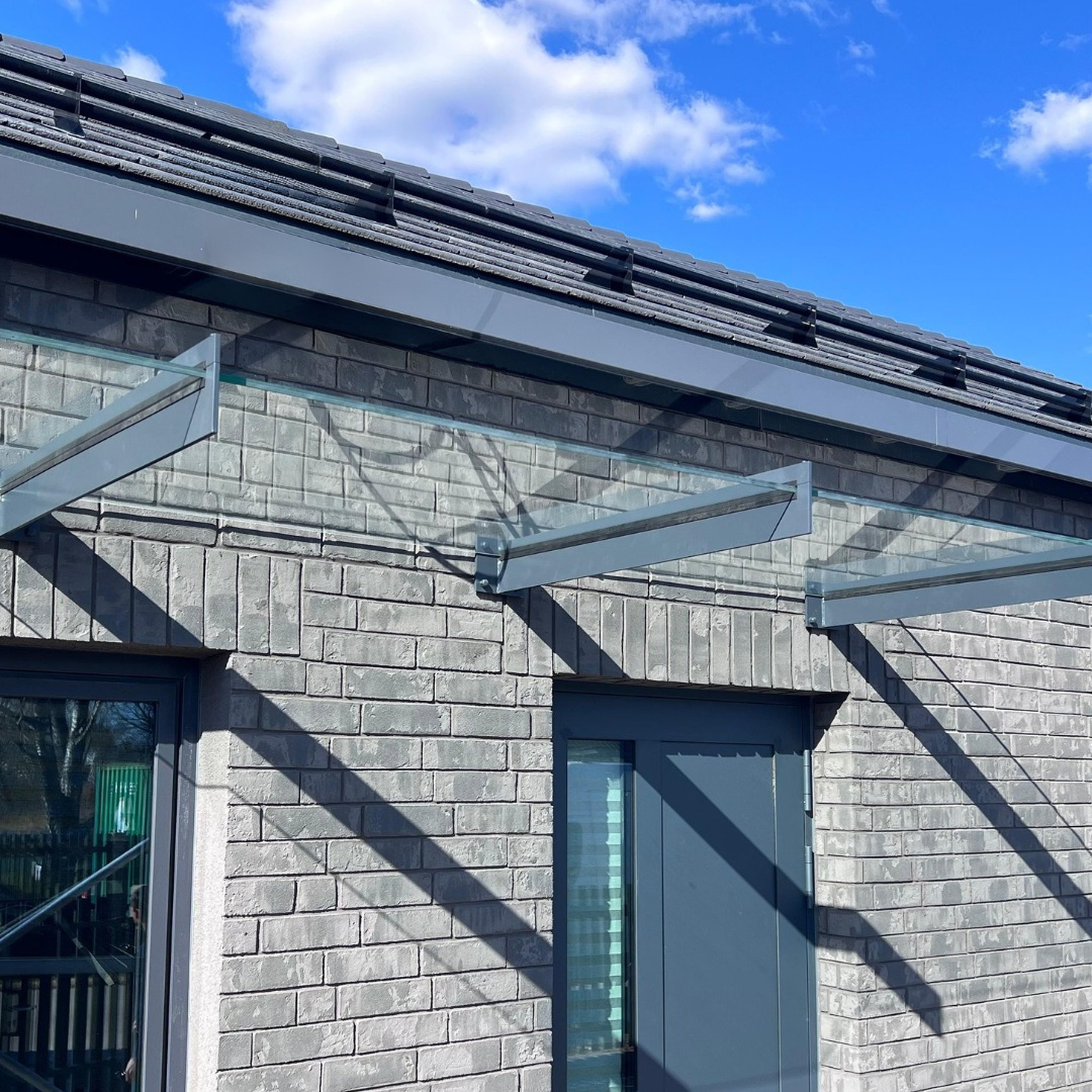

The bracket is manufactured from AISI 304 stainless steel with a satin surface finish. Two to four brackets carry a complete canopy depending on the glass length, paired with a separately ordered glass panel. No glass drilling is required – the bracket clamps the polished glass edge. Wall anchors are not included and must be matched to the substrate. For a 1200 mm projection, the M-size clamp bracket is available separately.

Material: AISI 304 stainless steel, satin finish. Projection: 1000 mm. Glass: 10 / 12.76 / 16.76 mm, edge-clamped (no holes).

Use cases:

• Entrance canopies where overhead tension-rod mounting is not possible

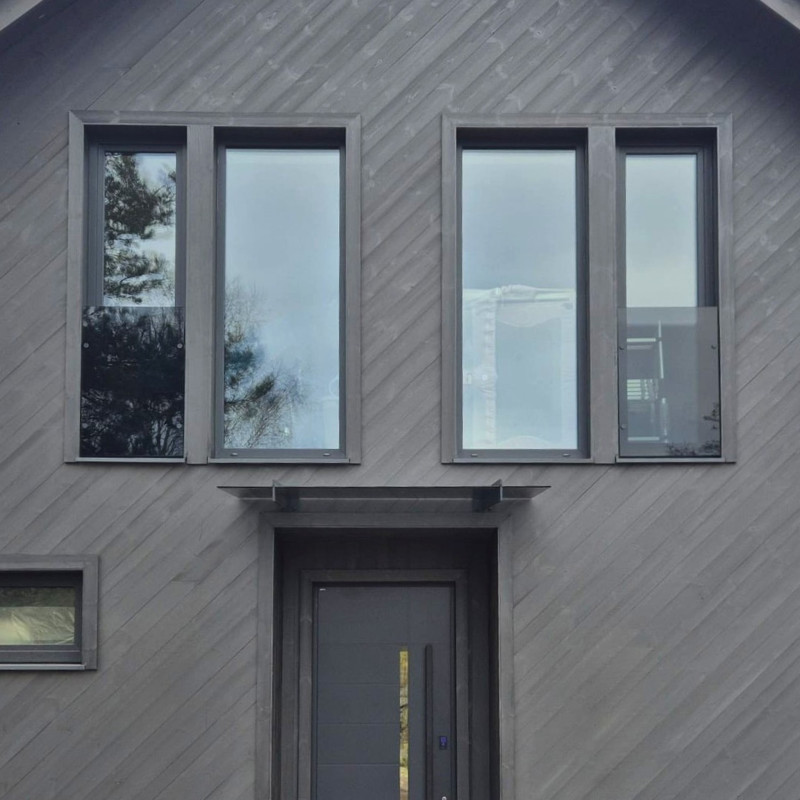

• Residential doorway and porch canopies
• Shopfront and office entrance awnings
• Side-door and service-entrance shelters

FAQ:

What is included with this product?

One AISI 304 stainless-steel clamp bracket with a satin finish. Glass panels and wall anchors are not included and must be ordered separately. The price shown is per single bracket.

How many brackets do I need?

Two to four, depending on the glass width – matching the 2, 3, or 4-bracket canopy kits.

What glass thickness does it take?

10 mm toughened, 12.76 mm laminated (66.2), or 16.76 mm laminated (88.2). The bracket clamps the glass edge, so no drilling is needed.
