French Balconies

Stainless steel fittings for French balconies – glass barriers at full-height window and door openings: D30 glass adaptors with a Ø16 mm rod (220 or 320 mm), D50 glass adaptors with a Ø20 mm rod (320 or 400 mm) and 50 × 60 mm glass clamps with a Ø16 mm rod (320 mm). AISI 304 or AISI 316, satin or painted RAL 7016, RAL 8019 and RAL 9005 MAT – choose by whether the glass is drilled (adaptors) or not (clamps).

Filter by
Price
€ €
Glass adaptor size
Glass clamp size
Steel grade
Surface finish
Spacer thickness
Glass thickness
Rod length
Diameter
Filter
There are 3 products.
Showing 1-3 of 3 item(s)

About French Balconies

A French balcony is a glass barrier fixed directly to the building façade at a full-height window or door opening without a projecting balcony slab. The glass panel is held by stainless-steel fittings on anchor rods fixed into the wall, creating a minimal, unobtrusive guardrail that keeps the view and daylight open.

Strofix offers three types of French balcony fitting: D30 glass adaptors with a Ø16 mm rod (220 or 320 mm), D50 glass adaptors with a Ø20 mm rod (320 or 400 mm) – both in AISI 304 or AISI 316 – and 50 × 60 mm AISI 316 glass clamps with a Ø16 mm rod (320 mm). All are available in satin; the AISI 304 adaptors and the clamp also come painted in RAL 7016, RAL 8019 and RAL 9005 MAT.

The right choice depends on whether the glass is drilled (adaptors) or not (clamps), on its thickness and on the rod length the wall build-up requires.

How to choose French balcony fittings

1. Drilled or undrilled glass

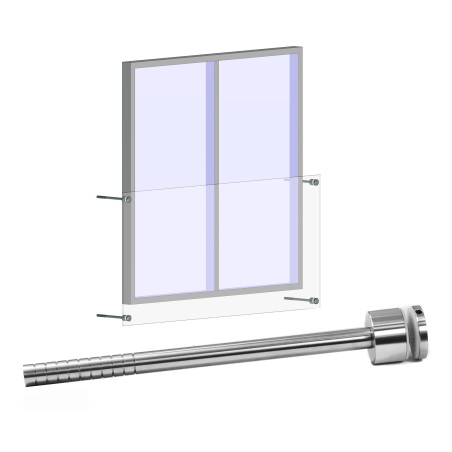

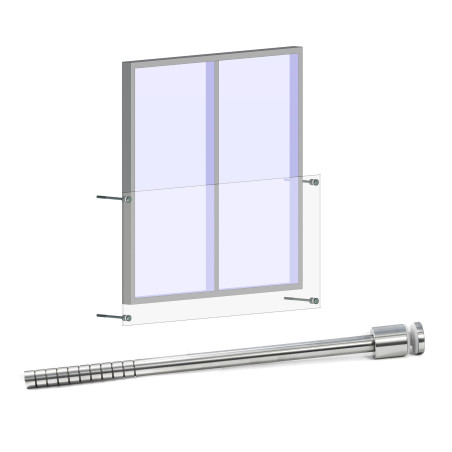

The D30 and D50 glass adaptors are point fixings for drilled glass. The 50 × 60 mm glass clamp holds undrilled glass at its edge.

2. Glass thickness

The D30 adaptor and the 50 × 60 mm clamp take glass 6–12.76 mm thick. The D50 adaptor takes thicker glass, 8–21.52 mm, including heavy laminated glass.

3. Rod diameter and length

The D30 adaptor has a Ø16 mm rod, 220 or 320 mm long. The D50 adaptor has a Ø20 mm rod, 320 or 400 mm long; the clamp has a Ø16 mm rod, 320 mm long. Choose the rod length to suit the wall build-up, such as insulation or render layers.

4. Steel grade and finish

The D30 and D50 adaptors are available in AISI 304 or AISI 316; the clamp is AISI 316. The AISI 304 adaptors and the clamp are also available painted in RAL 7016, RAL 8019 and RAL 9005 MAT; the AISI 316 adaptors come in satin.
