Glass canopy on 3 Truss type brackets S (Depth 900 – 1100)

The Strofix glass canopy on 3 truss-type brackets is a complete, ready-to-install undersupported glass canopy system for building entrances, doorways, and facade-mounted weather protection. The kit includes a 12.76 mm (66.2) laminated safety glass panel and 3 AISI 304 stainless-steel truss brackets that carry the glass from below – for entrances where an overhead tension rod cannot be fitted. Select the glass panel dimensions and finish at order time.

The glass panel is available in 3 widths (2000, 2300, or 2600 mm) and 3 depths (900, 1000, or 1100 mm), giving 9 size combinations to match the entrance width and desired projection from the facade. The bracket finish is one of three RAL painted colours – RAL 7016 (gray-anthracite), RAL 8019 (brown), or RAL 9005 MAT (matte black). The 12.76 mm glass is 66.2 laminated safety glass (two 6 mm tempered panes bonded with a 0.76 mm PVB interlayer), giving both structural strength and safety compliance – if the outer pane breaks, the fragments stay bonded to the PVB film. The glass is drilled for the bracket fixings (6 holes, two per bracket). This is a made-to-order product, typically shipped in 2–4 weeks. Wall anchors are not included and must be matched to the substrate.

Use cases

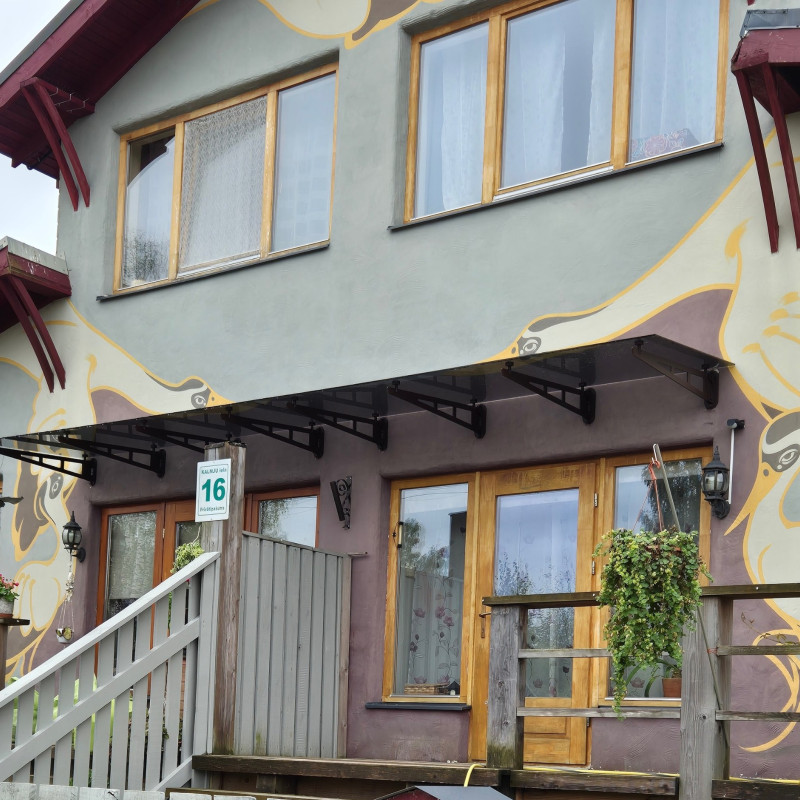

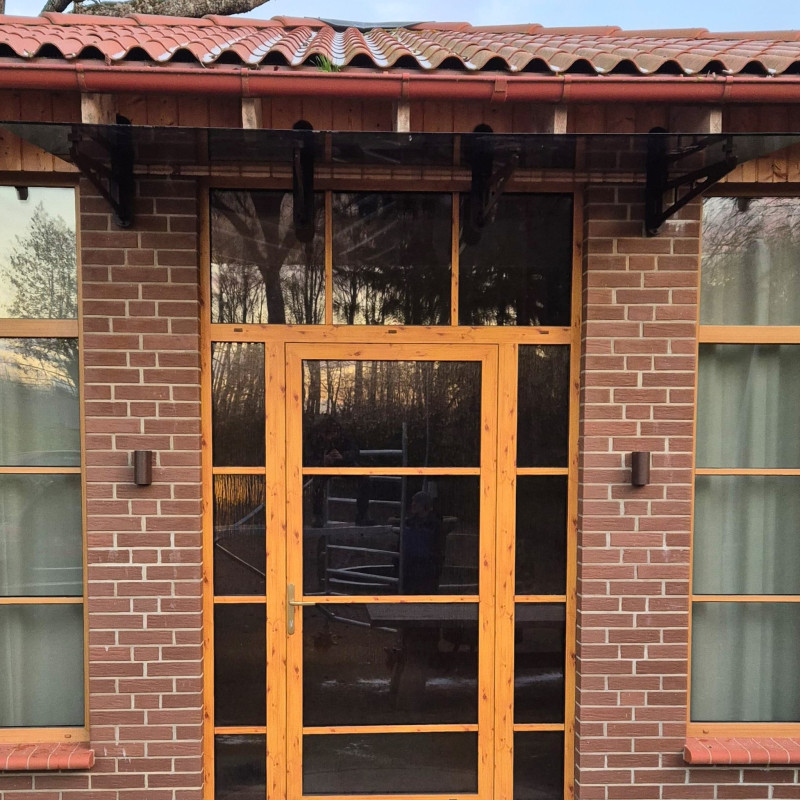

• Entrance canopy for front doors and side entrances where an overhead tension rod cannot be used

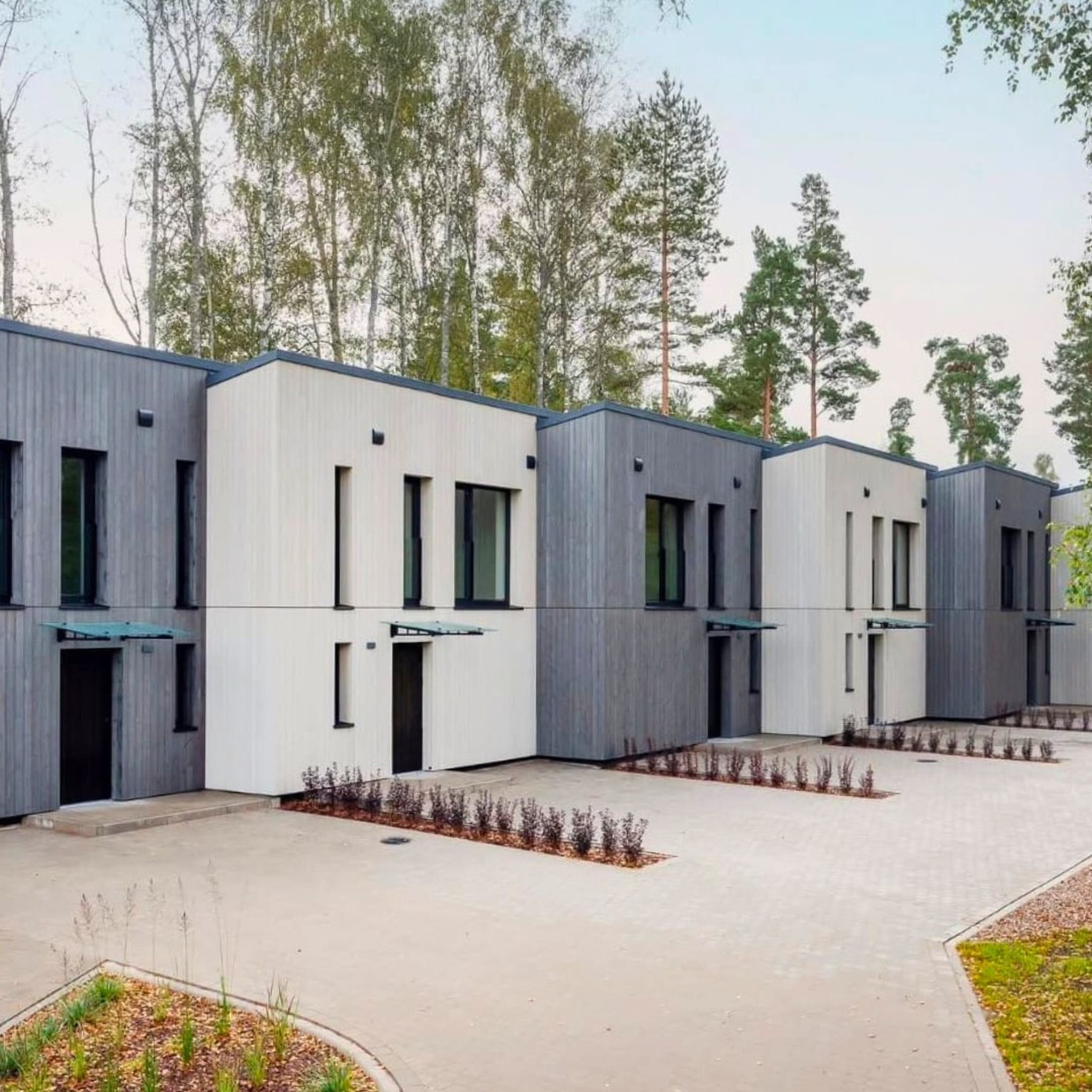

• Commercial entrance weather protection with architectural glass
• Ready-to-install undersupported canopy kit in a painted RAL finish to match the building
• Replacement for an existing bracket-supported glass canopy

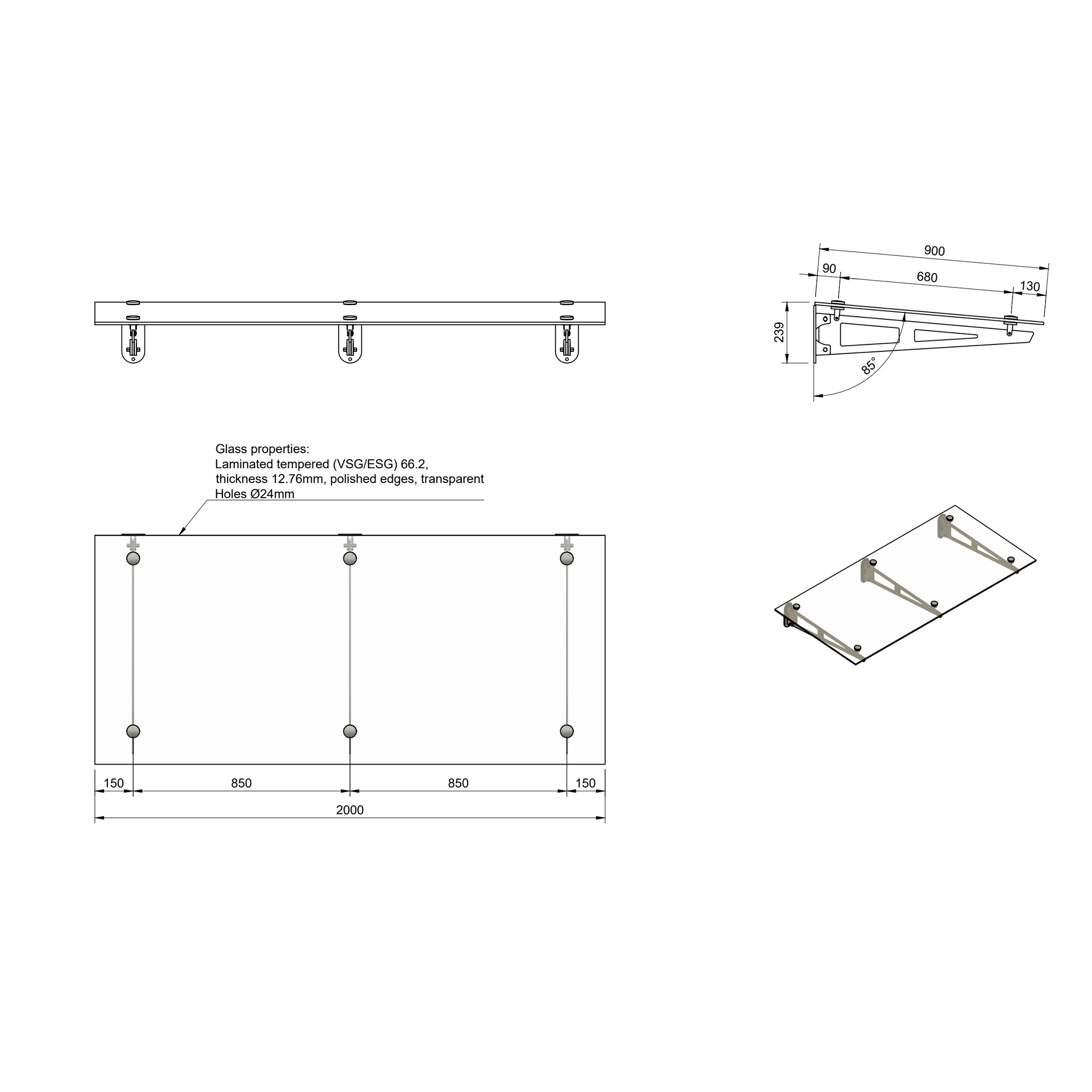

Glass: 12.76 mm (66.2) toughened (ESG) laminated safety glass, polished edges, drilled for the bracket fixings. Brackets: AISI 304 stainless steel, powder-coated RAL. Lead time: made to order, typically 2–4 weeks. Contact Strofix for custom sizes or colours.
