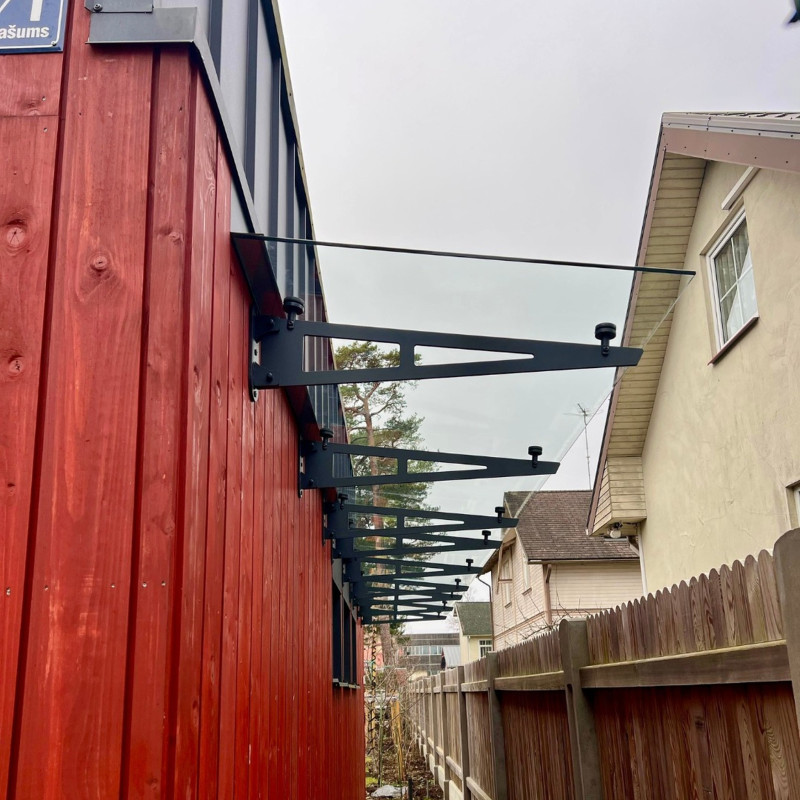

Truss type bracket for glass canopy S (Depth 900 – 1100)

The Strofix truss-type bracket for glass canopy S is an AISI 304 stainless-steel support arm that carries a glass canopy panel from below, for glass depths of 900–1100 mm from the wall. It is powder-coated in a RAL finish and sold individually at 7 kg per bracket, in three colours – black (RAL 9005), anthracite (RAL 7016), or brown (RAL 8019) – for installations where an overhead tension rod cannot be fitted.

The bracket is manufactured from AISI 304 stainless steel and powder-coated in the selected RAL colour. Two to four brackets carry a complete canopy depending on the glass length, paired with a separately ordered glass panel at the matching depth. Wall anchors are not included and must be matched to the substrate. For 1200–1300 mm projections, the M-size truss bracket is available separately.

Material: AISI 304 stainless steel, powder-coated RAL. Glass depth: 900–1100 mm. Weight: 7 kg per bracket. Finishes: black RAL 9005, anthracite RAL 7016, brown RAL 8019; custom RAL on request.

Use cases:

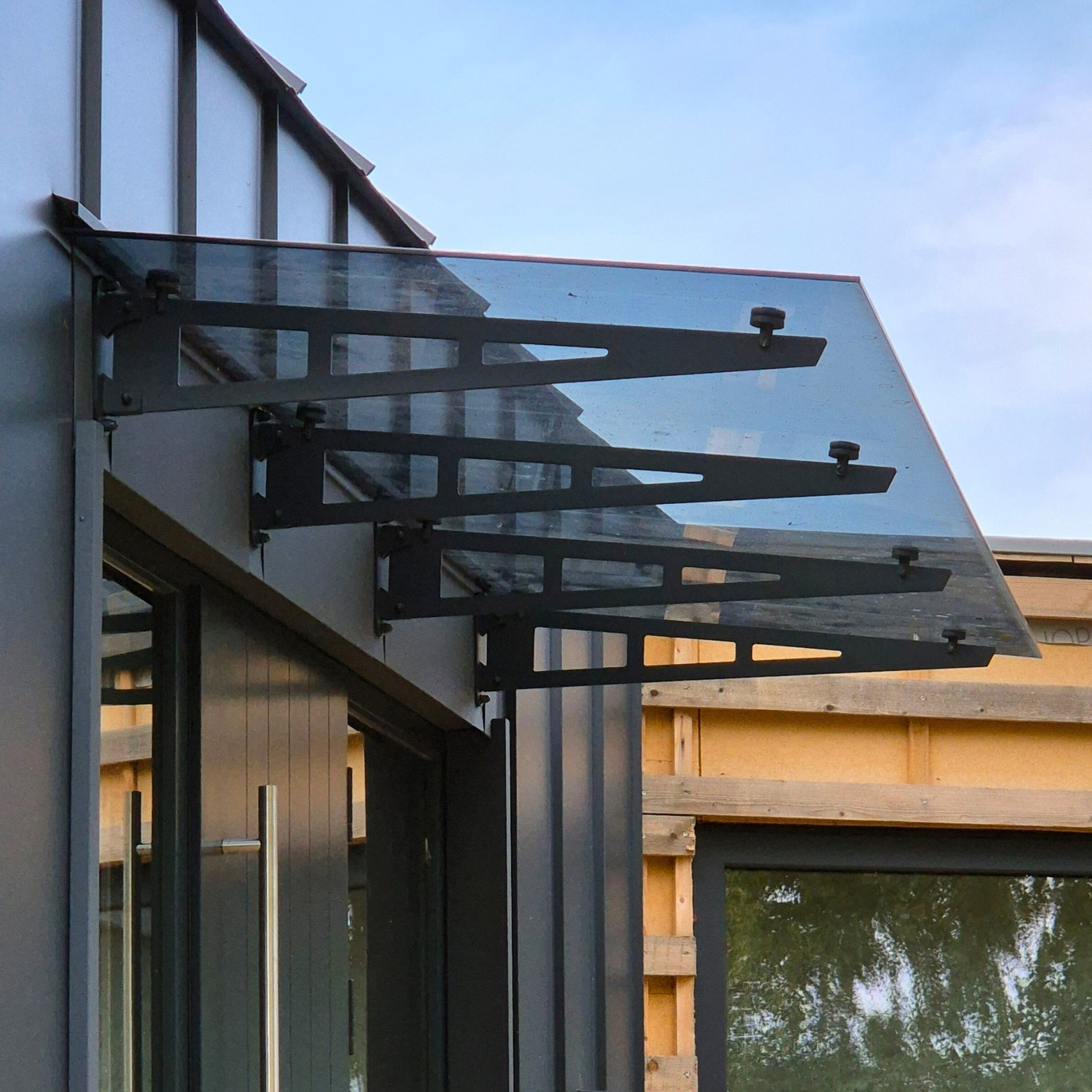

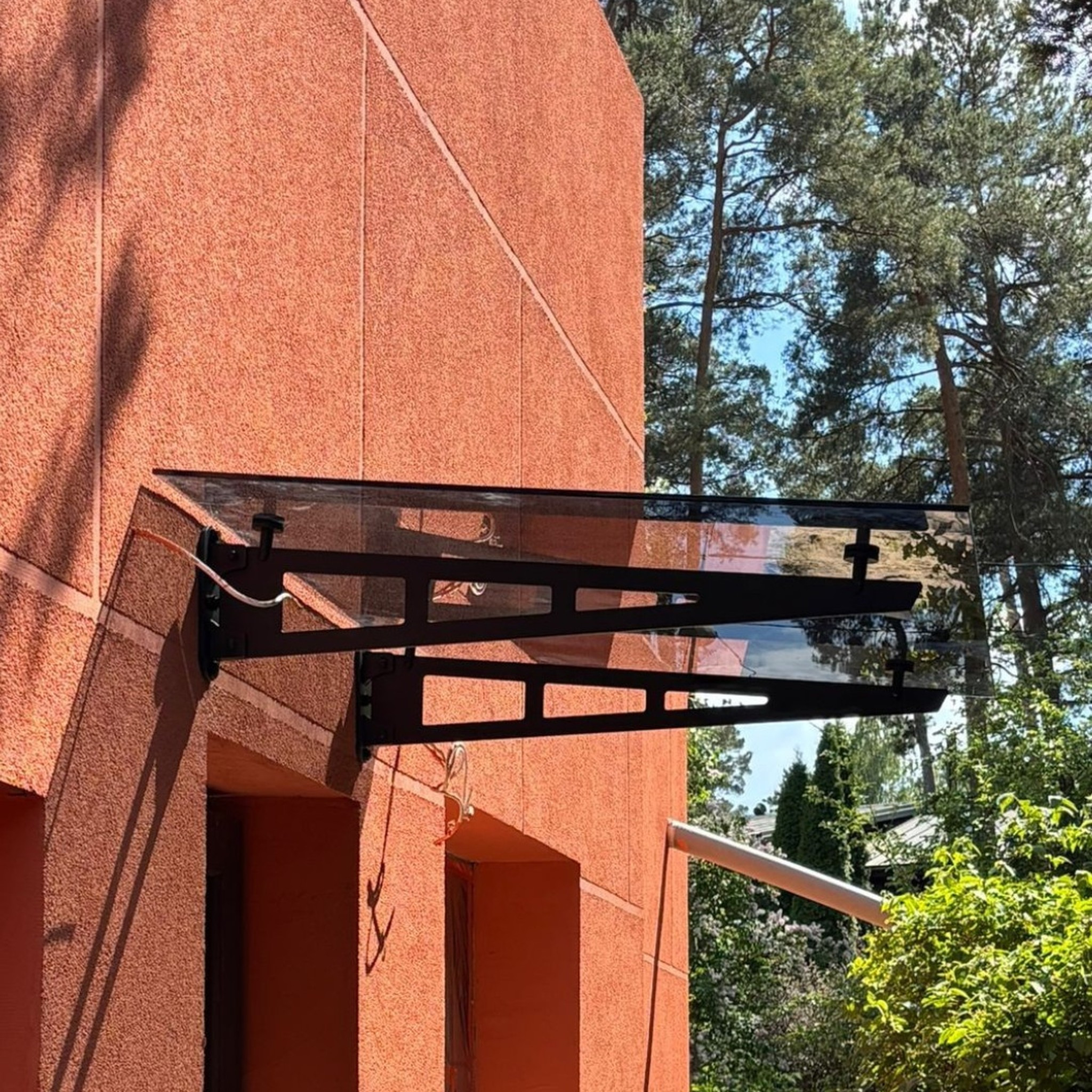

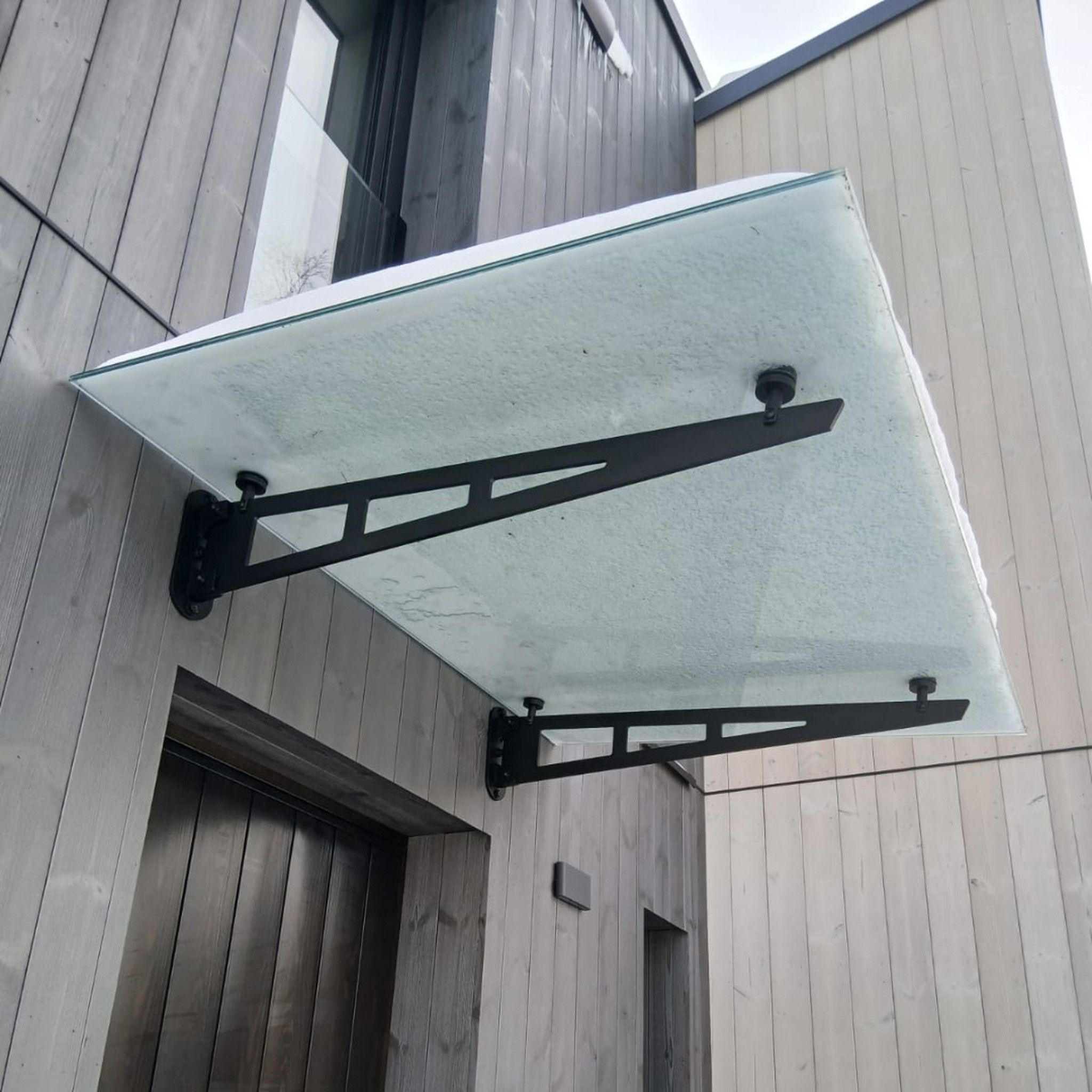

• Entrance canopies where overhead tension-rod mounting is not possible

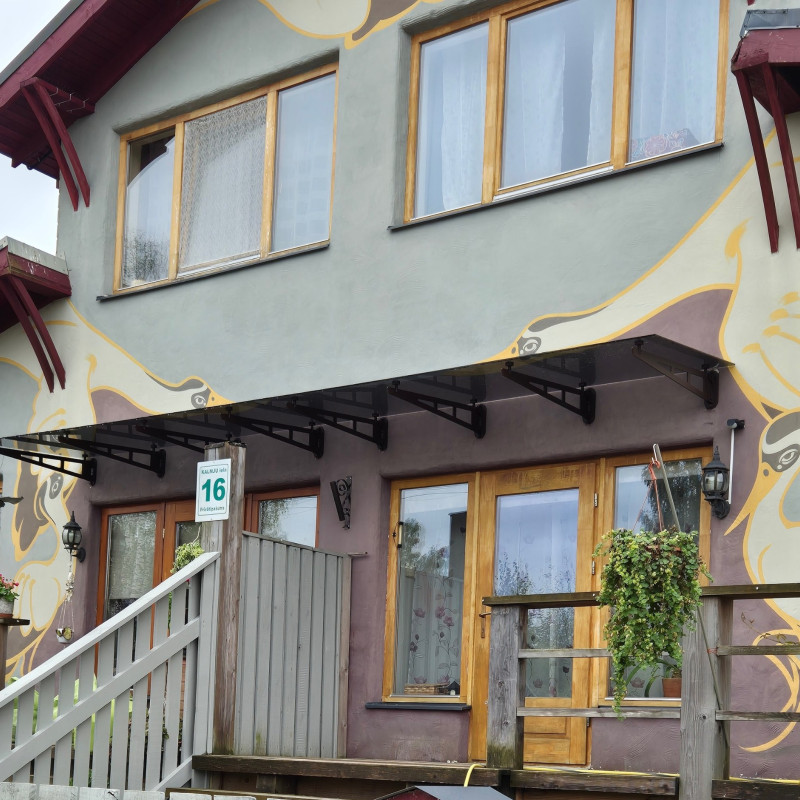

• Residential doorway and porch canopies

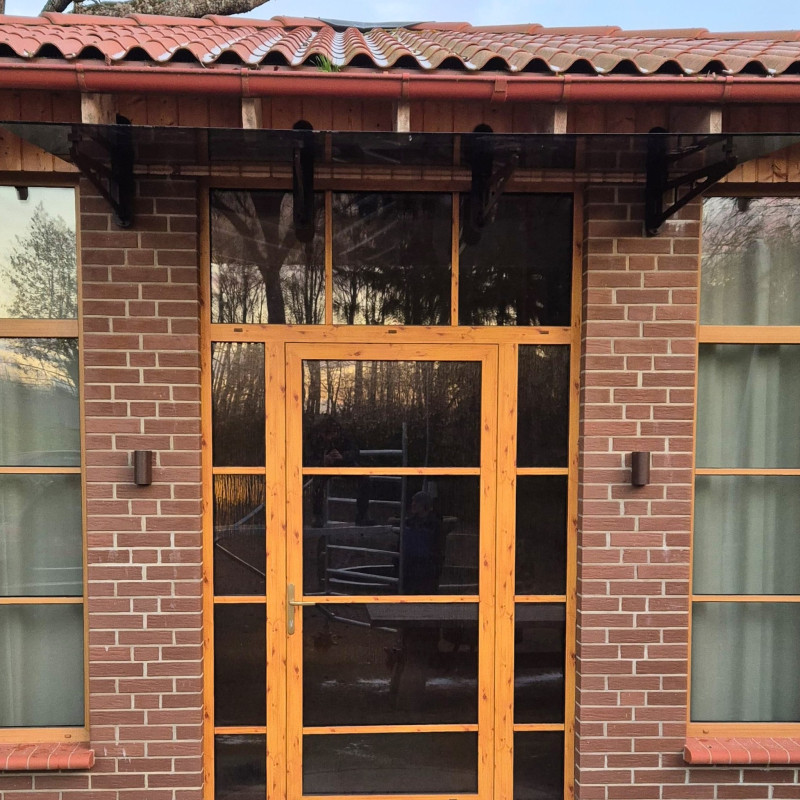

• Shopfront and office entrance awnings
• Side-door and service-entrance shelters

FAQ:

What is included with this product?

One AISI 304 stainless-steel bracket, powder-coated in the selected colour. Glass panels and wall anchors are not included and must be ordered separately. The price shown is per single bracket.

How many brackets do I need?

Two to four, depending on the glass width – matching the 2, 3, or 4-bracket canopy kits.

What is the difference between the S and M truss bracket?

The S bracket covers glass depths of 900–1100 mm; the M bracket covers 1200–1300 mm. Both are AISI 304 stainless steel – choose by the canopy projection you need.

Strofix supplies under-supported glass canopy brackets in AISI 304 stainless steel, powder-coated RAL, with projection depths from 900 to 1300 mm, in black, anthracite and brown. Complete canopy kits on 2, 3 or 4 supports are available with laminated toughened glass (66.2) in widths from 1400 to 3500 mm, and loose glass panels can be ordered separately.
