Glass adaptor D30 with 16mm rod, for French balcony

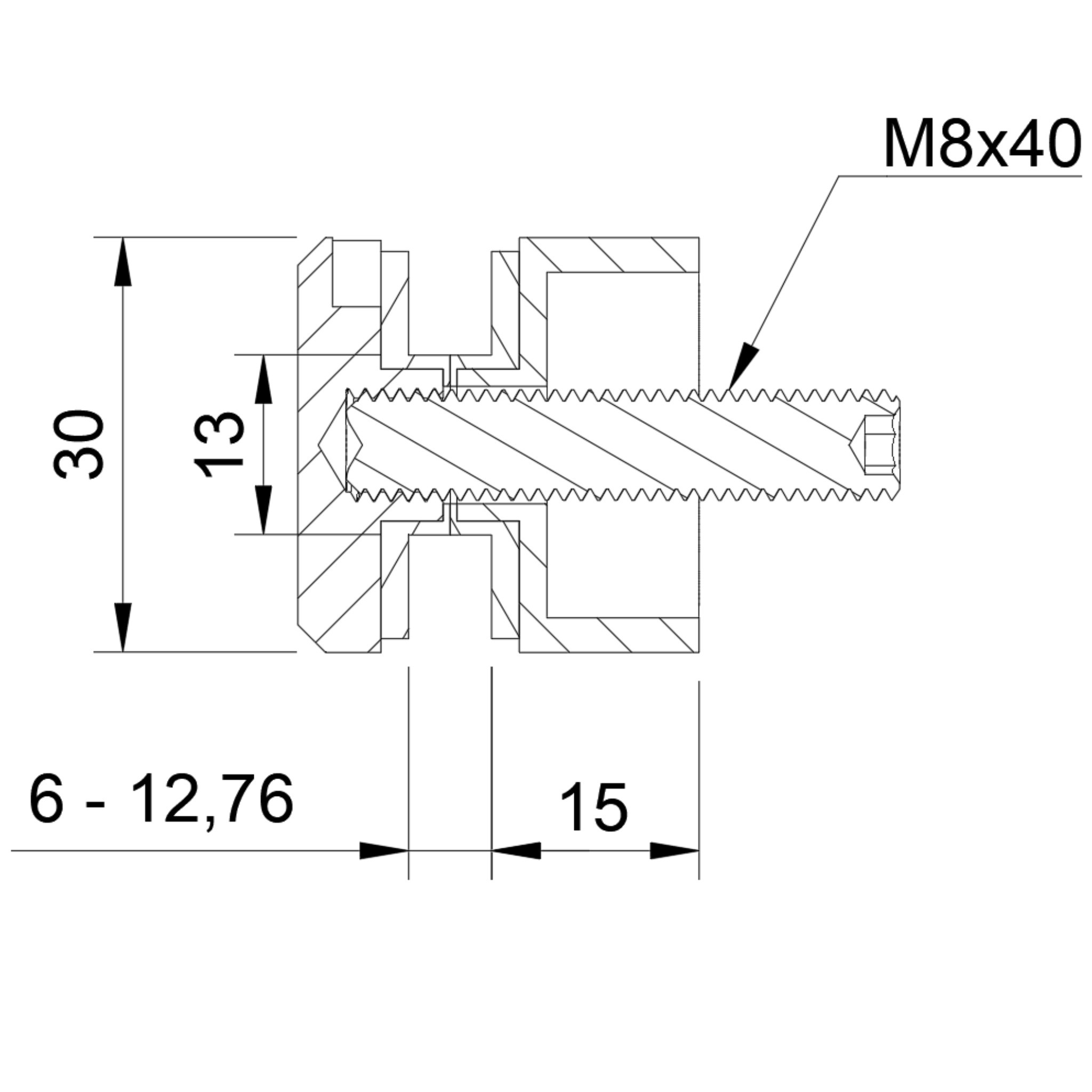

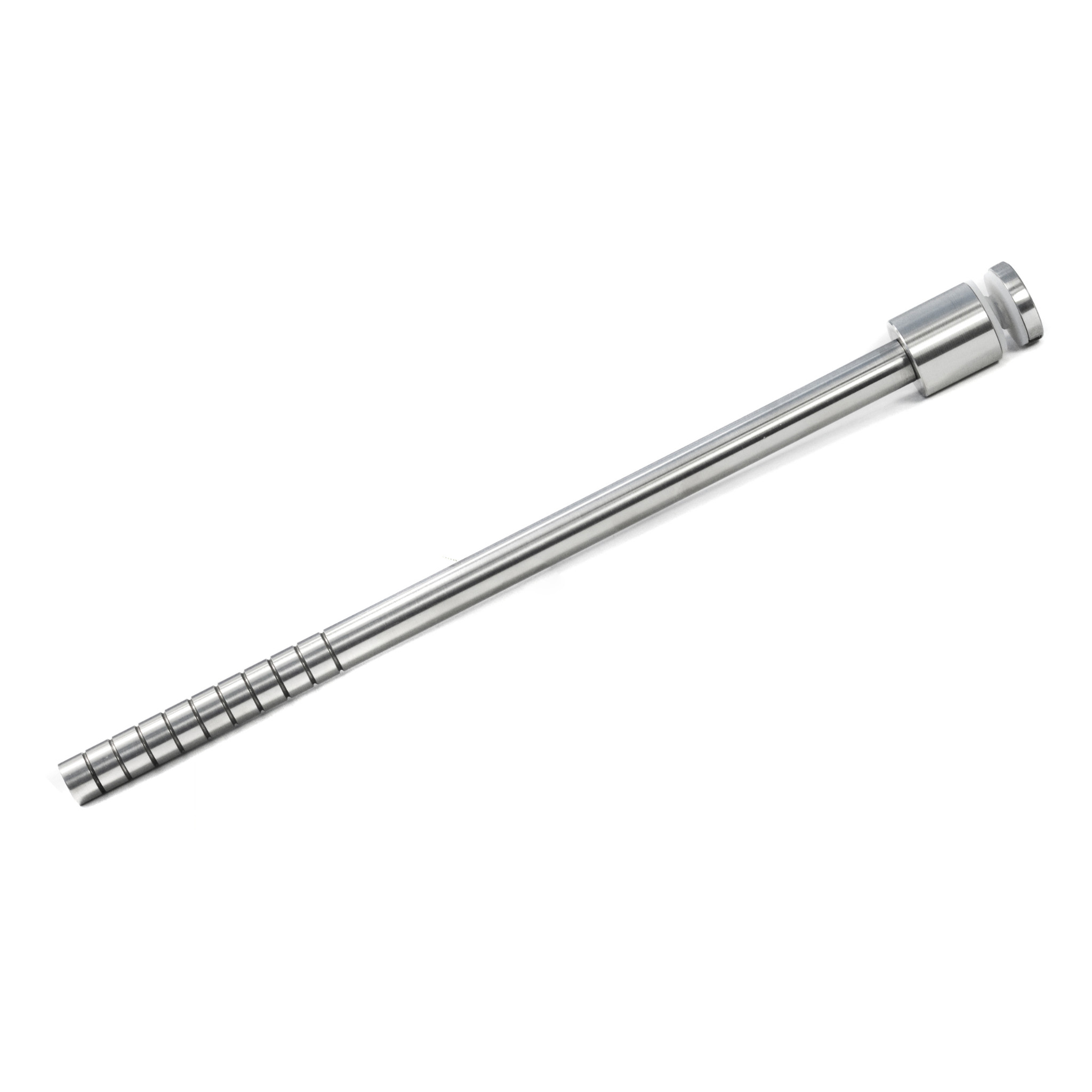

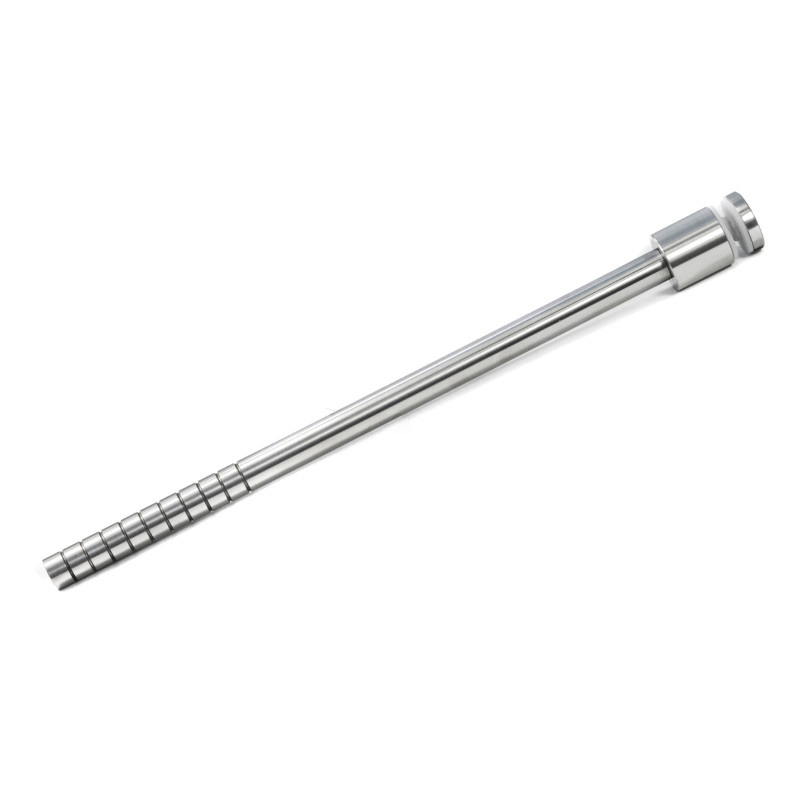

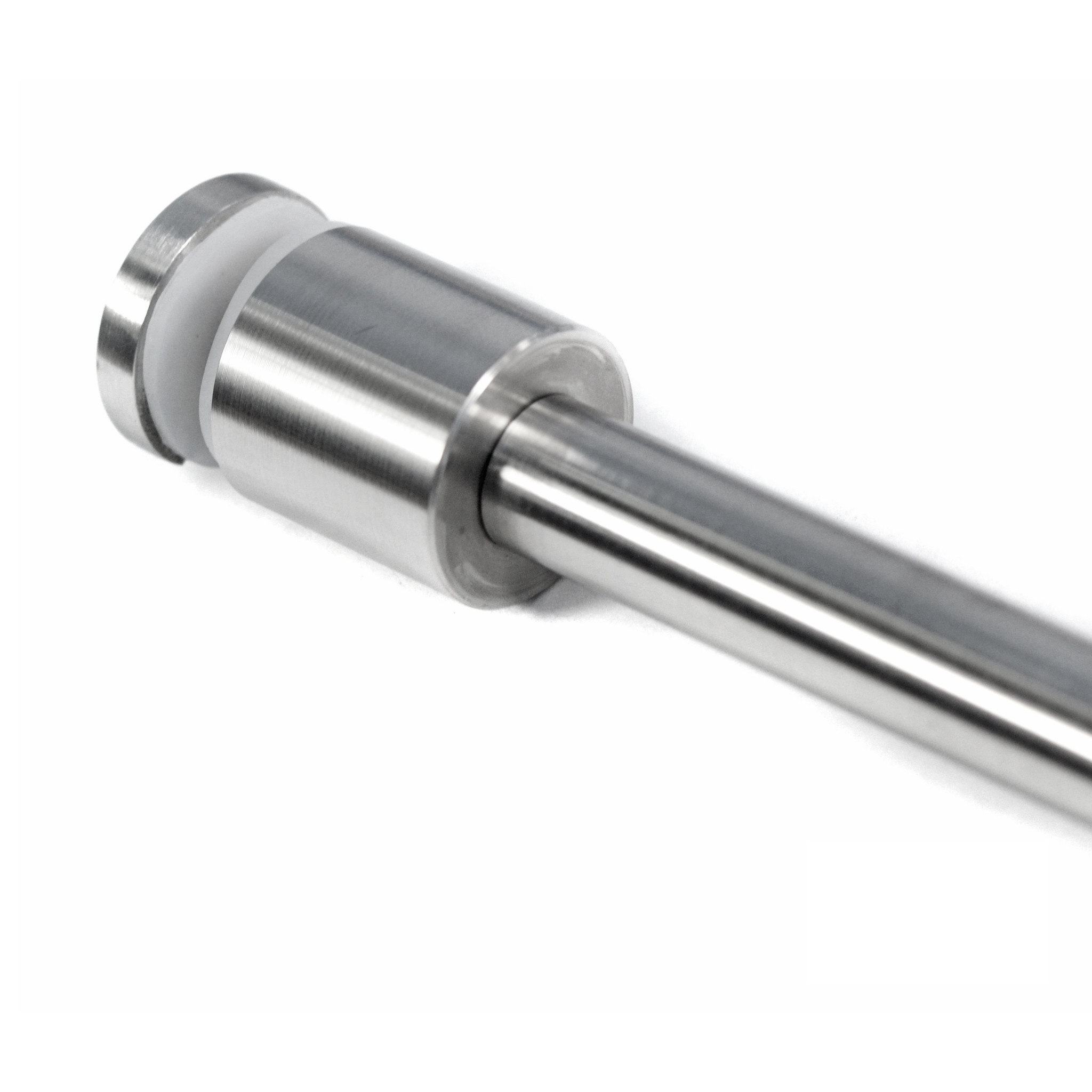

The Strofix glass adaptor D30 with 16mm rod, for French balcony is a stainless-steel point fixing with an integrated Ø16 mm anchor rod, available in AISI 304 or AISI 316. The Ø30 mm adaptor holds glass 6–12.76 mm thick at a 15 mm spacer thickness, and the rod anchors into the building façade. The rod is available in 220 mm or 320 mm lengths, and the finish can be satin or painted in RAL 7016 (grey-anthracite), RAL 8019 (brown), or RAL 9005 MAT (black).

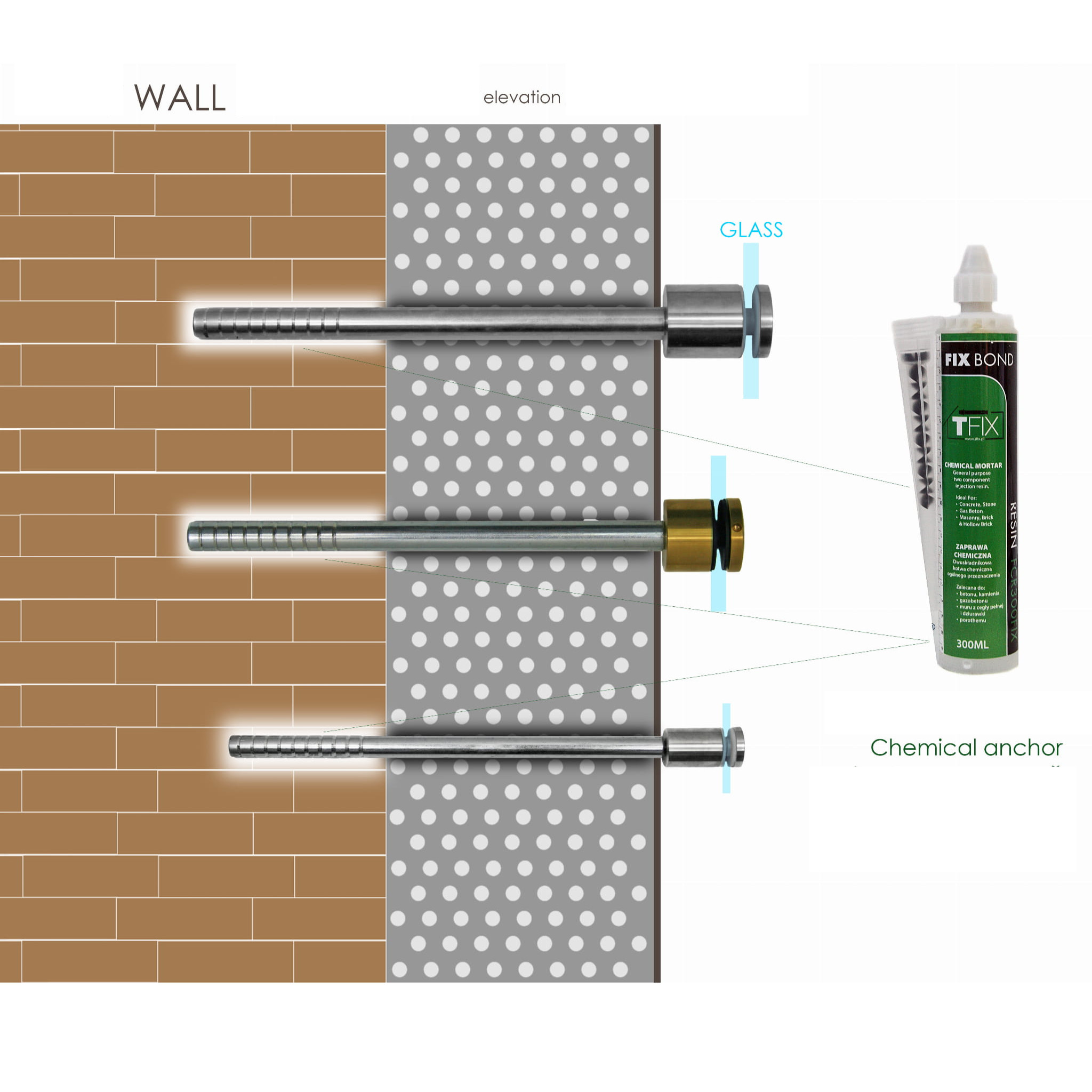

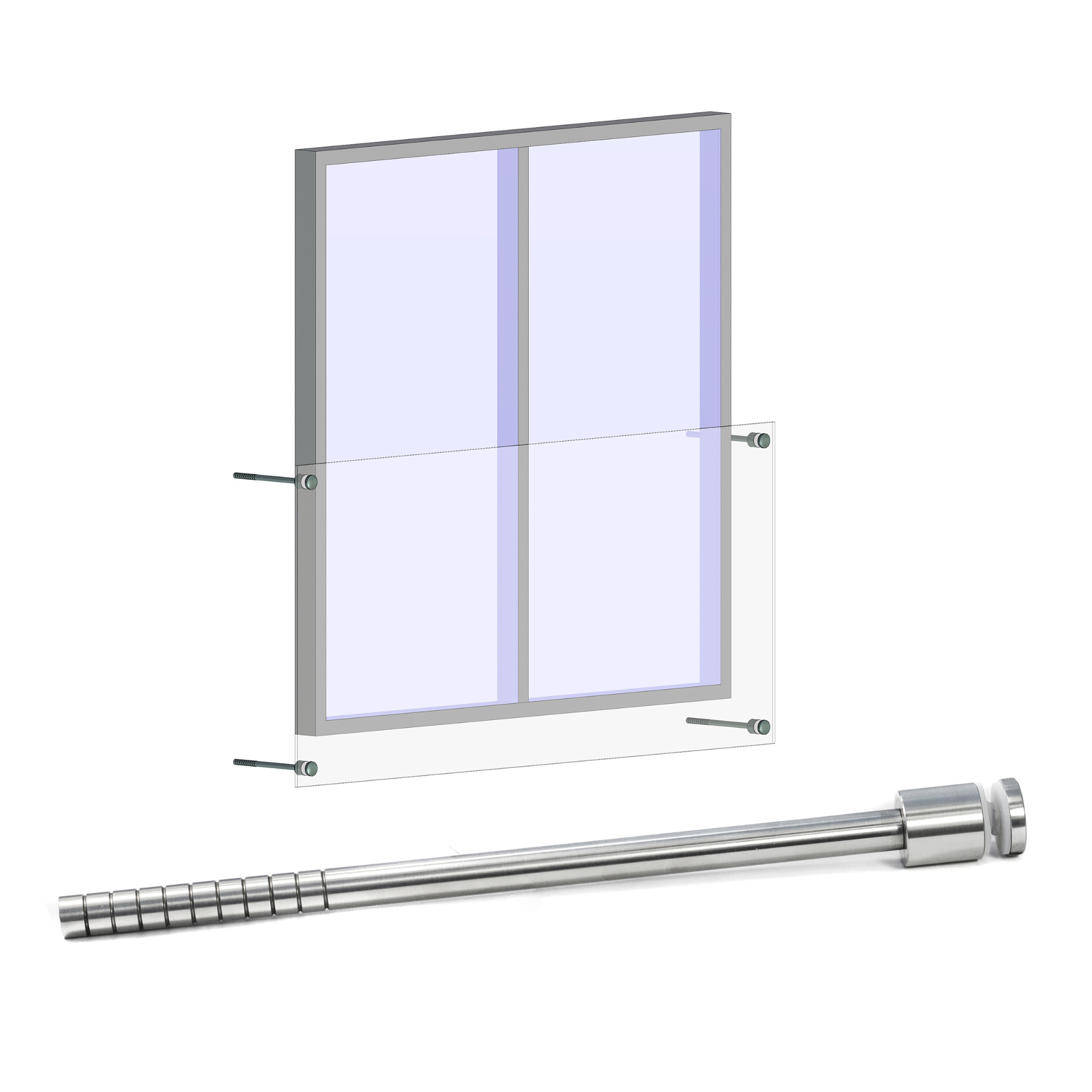

A French balcony is a glass barrier fixed directly to the façade at a full-height window or door opening, providing fall protection without a projecting balcony slab. Where the edge clamp grips the panel edge, this adaptor is a point fixing: it passes through a drilled hole in the glass and holds the panel through the Ø30 mm disc, with the 15 mm spacer standing the glass off the wall. The Ø16 mm rod runs back into the façade, giving a discreet fixing that keeps the view and daylight open. It is the smaller of the two adaptor sizes in the range, paired with the lighter Ø16 mm rod. Choose the steel grade, rod length, and finish at order time.

Use cases:

• Point-fixing a glass panel on a French balcony at a full-height window or door
• Fall protection at a façade opening without a projecting balcony slab
• Wall-anchored glass barrier with a discreet Ø30 mm disc fixing
• Glass 6–12.76 mm held at a 15 mm standoff from the façade
• Painted RAL hardware matched to window or façade colours

FAQ

What is a glass adaptor for a French balcony?

A point fixing that passes through a drilled hole in the glass panel and holds it via a disc, with an integrated rod that anchors into the façade.

How does it differ from the glass clamp?

The clamp grips the edge of the panel; this adaptor is a point fixing through a drilled hole in the glass, held by a Ø30 mm disc.

What glass thickness does it hold?

Glass 6–12.76 mm thick, at a 15 mm spacer thickness.

What rod lengths and diameter are available?

220 mm or 320 mm, in Ø16 mm diameter. A Ø50 mm adaptor with a Ø20 mm rod is also offered in the range.

Which steel grades are available?

AISI 304 or AISI 316. Choose AISI 316 for coastal, pool, or high-humidity façades.

What finishes are available?

Satin, or painted in RAL 7016 (grey-anthracite), RAL 8019 (brown), or RAL 9005 MAT (black).

About French Balconies

A French balcony is a glass barrier fixed directly to the building façade at a full-height window or door opening, providing fall protection without a projecting balcony slab. The glass panel is held in place by stainless-steel glass holders with integrated rods that anchor into the wall, creating a flush, minimal-hardware guardrail that preserves the open view and natural light.

Strofix supplies French balcony components in two rod sizes — Ø16 × 320 mm and Ø20 × 320 mm — in AISI 304 or AISI 316 stainless steel, with glass holders covering spacer heights from 4 to 30 mm and glass thicknesses from 6 to 12 mm.Individual glass holders and a complete component set (with left, right and bracket pieces) are available.

The correct configuration depends on glass thickness, required spacer height, rod diameter and whether the project needs individual parts or a full set.
