Glass clamp 82x55x34mm, 12-15mm, Satin, 90°

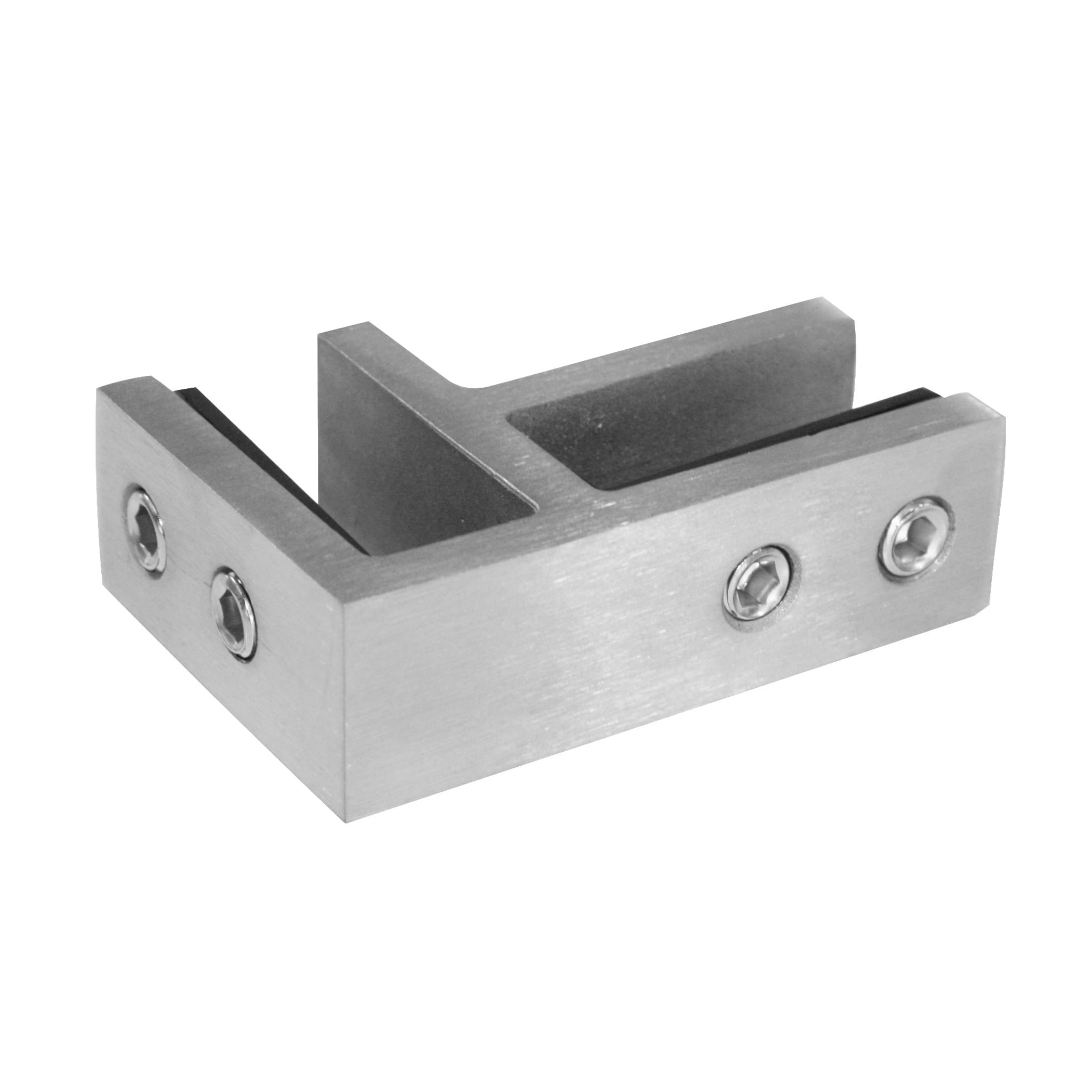

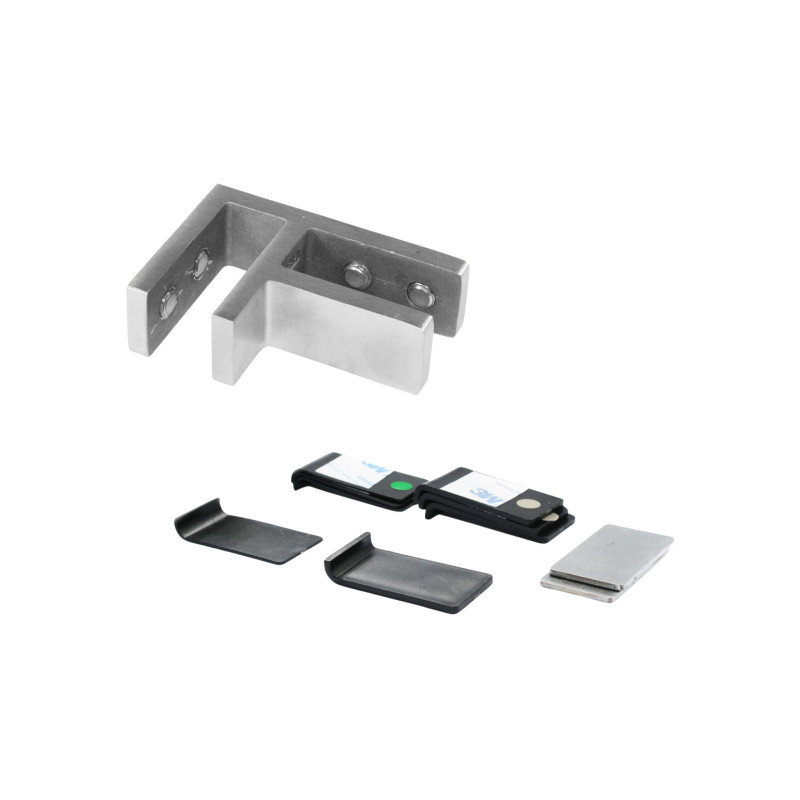

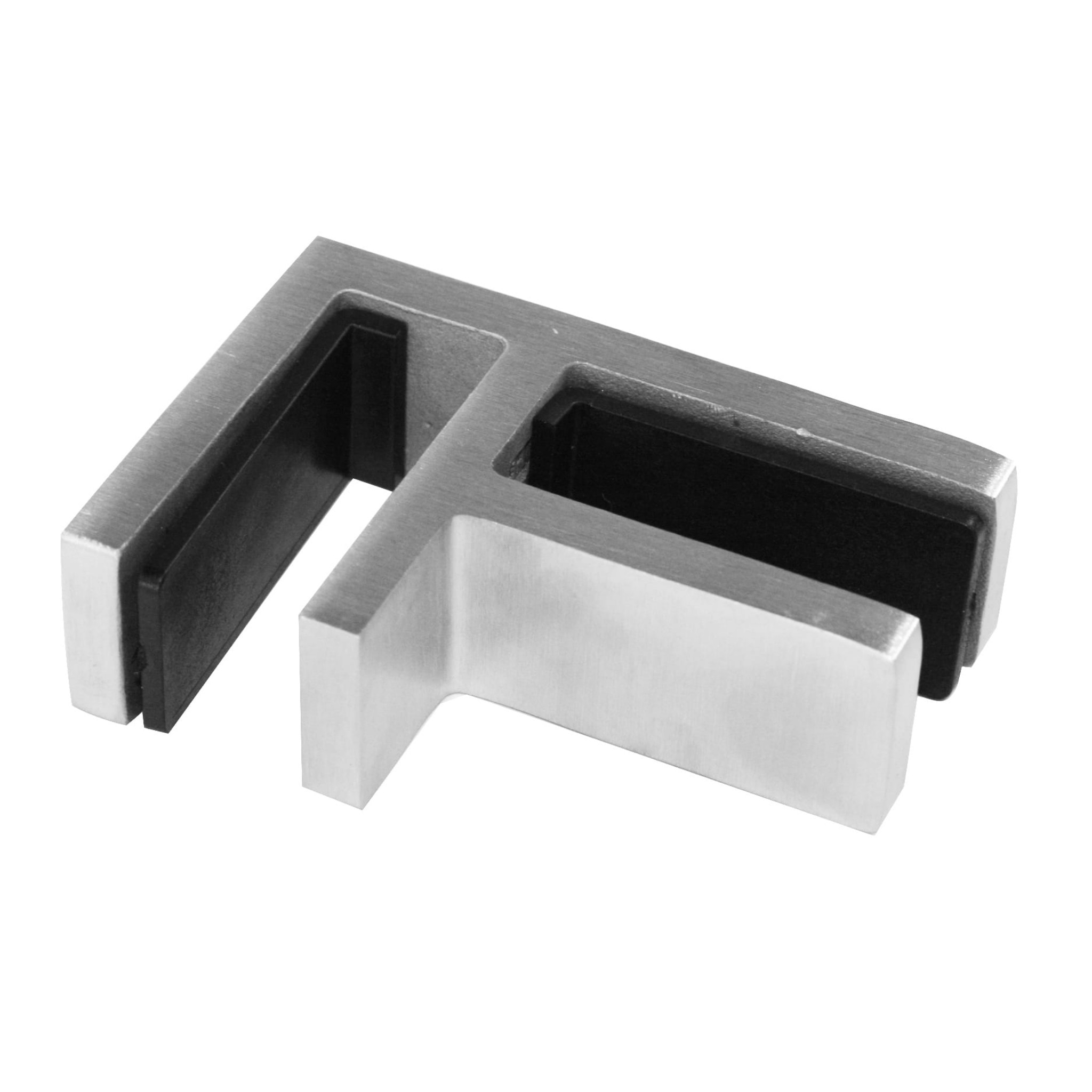

The Strofix glass clamp 82×55×34 mm, 90° is a stainless-steel glass-to-glass corner clamp for connecting two thick glass panels meeting at a right angle (90°) on flat mounting surfaces. The clamp measures 82 × 55 × 34 mm and holds glass panels from 12 to 15 mm thick. Manufactured from AISI 316 stainless steel with a satin finish. Flat mounting surface.

This is the heavy-glass version of the 90° corner clamp — the largest corner clamp body in the range, dedicated to thick glass (12–15 mm) and made from marine-grade AISI 316 stainless steel. It is used where a glass balustrade or enclosure turns a right-angle corner with thick structural glass. The 82 mm length and 55 mm height provide a substantial body to grip both thick panel edges at the corner, while the 34 mm depth accommodates the increased glass thickness. This clamp extends the 90° corner range beyond the 12.76 mm limit of the smaller corner clamps, into the 12–15 mm thick-glass band.

Use cases:

• 90° corner joint for thick structural glass (12–15 mm) in a balustrade or enclosure
• Glass balustrade runs turning a right-angle corner with heavy glass
• Glass enclosure corners requiring AISI 316 marine-grade steel and thick glass
• Heavy structural glass corner connections in commercial and public-access projects
• Coastal thick-glass corner joints requiring AISI 316

FAQ

What glass thicknesses are supported?

The clamp accepts glass from 12 to 15 mm, covering thick tempered and laminated configurations within that range. This is the thickest glass range among the 90° corner clamps.

How does this compare to the other 90° corner clamps?

The smaller corner clamps (45 × 53, 45 × 72, and the multi-dimension 45 × 82) handle glass up to 12.76 mm. This 82 × 55 × 34 mm clamp handles thicker 12–15 mm glass in AISI 316 with the largest corner clamp body. Choose this clamp for thick glass and marine-grade steel.

What does "90°" mean?

90° refers to the angle between the two glass panels — they meet at a right angle, forming a corner.

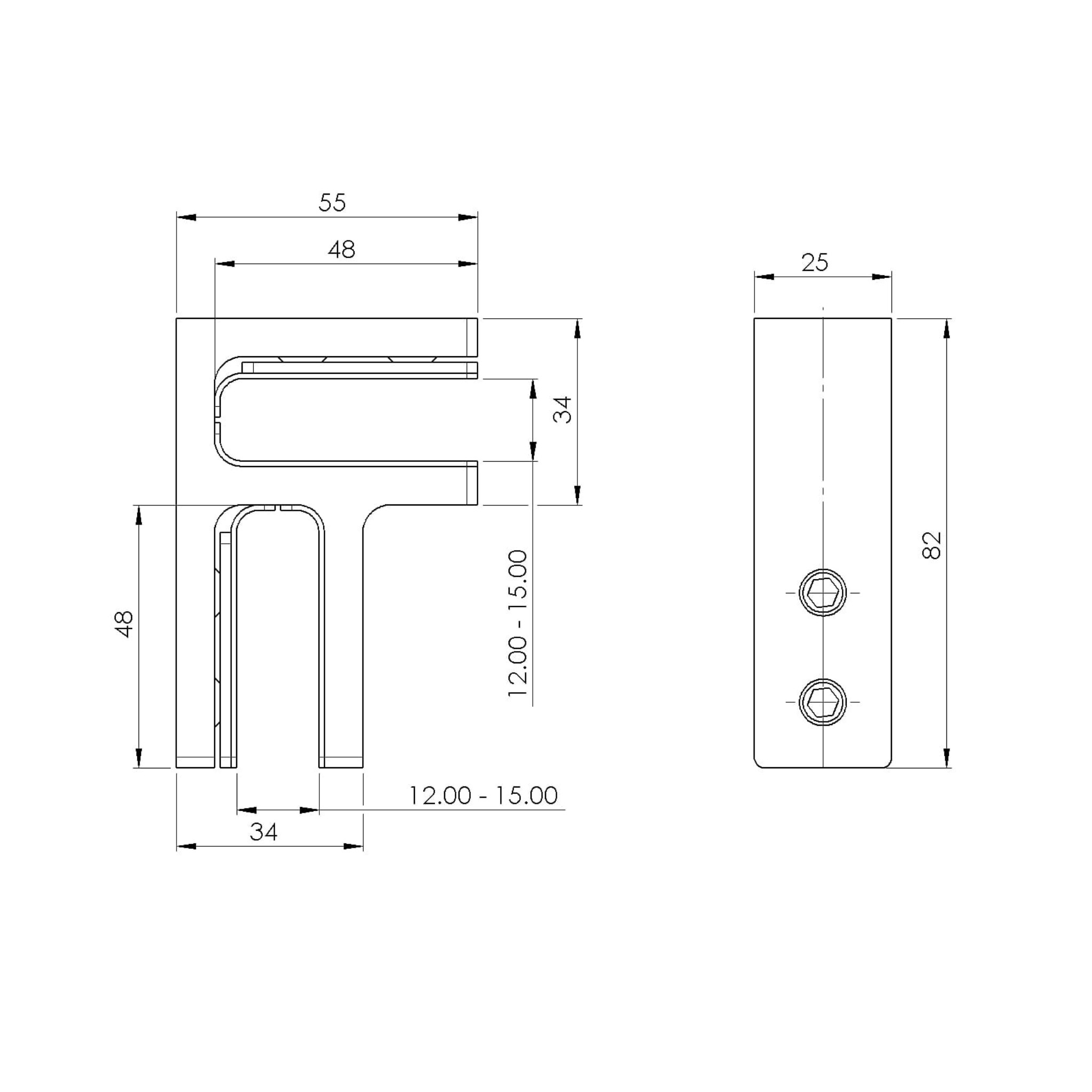

What are the clamp dimensions?

The clamp is 82 × 55 × 34 mm — the largest 90° corner clamp body in the Strofix range.

What steel grade is used?

AISI 316 stainless steel with a satin finish — marine grade, suitable for coastal and high-humidity installations.

What mounting surface does this fit?

The clamp has a flat back for mounting on walls, square posts, and flat-sided structural members.

About Connector Glass Clamps

A connector glass clamp is a stainless-steel bracket that joins two glass panels at a fixed angle without requiring an intermediate post between them. It clamps two panel edges simultaneously — either in a straight 180° inline configuration or at a 90° corner — creating a continuous glass run around corners or across panel joints.

Strofix supplies connector glass clamps in many variants: 180° inline clamps, 90° corner clamps, and wall clamps. Each clamp is available to suit different panel thicknesses and installation requirements.

The correct connector clamp depends on the angle between the two panels and the body style that matches the railing layout.
