Glass clamp 45x82mm, 6-12.76mm, Satin, 90°

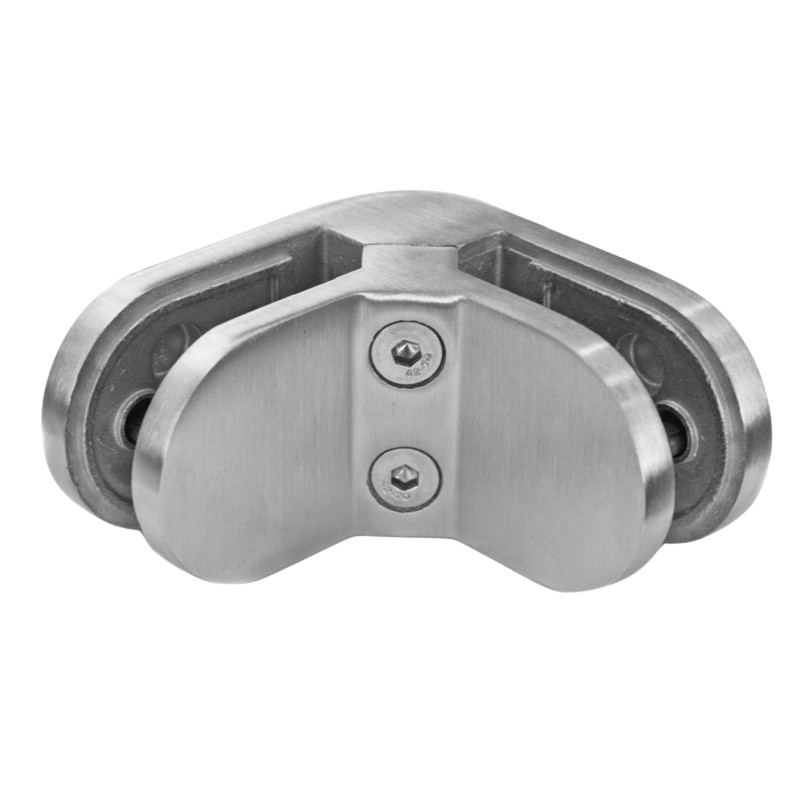

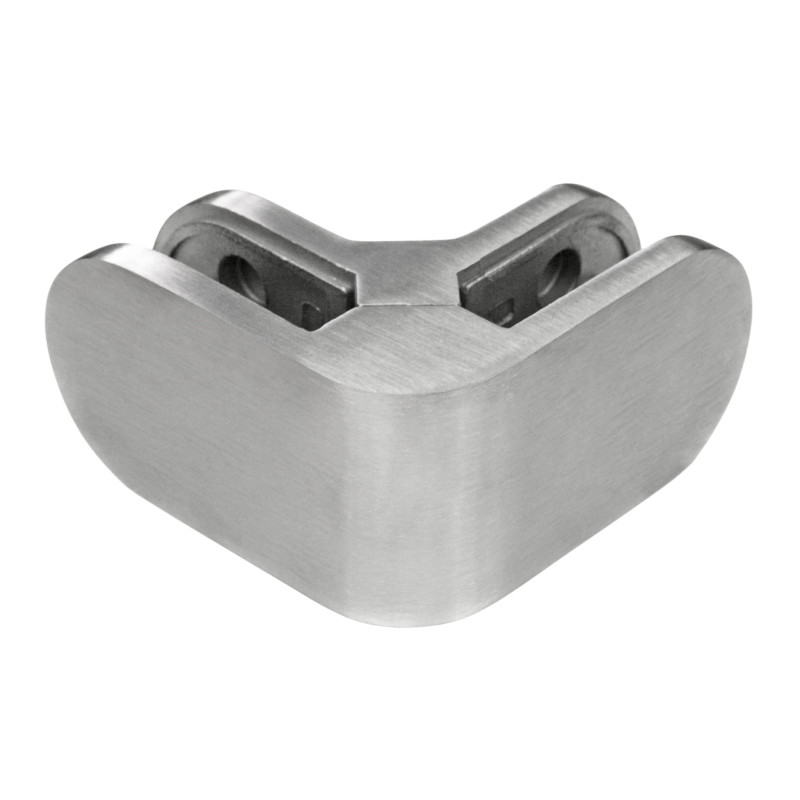

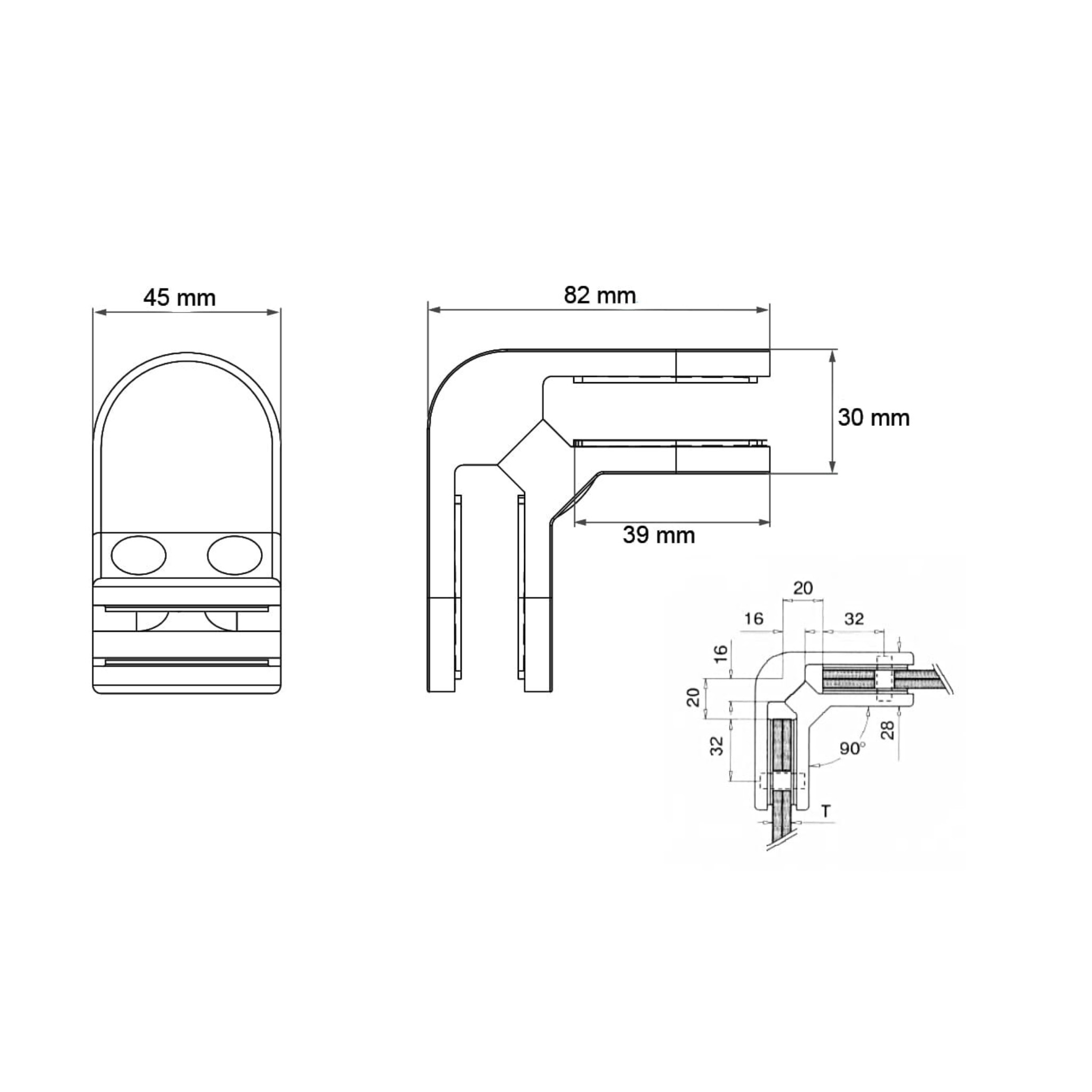

The Strofix glass clamp 90° (45 × 82 × 30 mm) is a stainless-steel glass-to-glass corner clamp for connecting two glass panels meeting at a right angle (90°) on flat mounting surfaces. The clamp holds glass panels from 6 to 12.76 mm thick. Available in AISI 304 or AISI 316 with a satin finish. Flat mounting surface.

This clamp creates a 90° corner joint between two glass panels — used where a glass balustrade or enclosure turns a right-angle corner. It offers the widest glass range of the 90° corner clamps (6–12.76 mm) and is the only 90° corner clamp available in both AISI 304 and AISI 316. The clamp grips both panel edges at the corner, maintaining the right-angle alignment. Glass thickness options include 6, 8, 10, and 12 mm single tempered glass and 8.76, 10.76, and 12.76 mm laminated safety glass (66.2). A "without rubbers" option is available for ordering the clamp body only.

Select the glass thickness and steel grade at order time.

Use cases:

• 90° corner joint covering the full 6–12.76 mm glass range in a balustrade or enclosure
• Glass balustrade runs that turn a right-angle corner with thin or thick glass
• Glass enclosure corners requiring AISI 316 marine-grade steel
• Connecting two glass panels at a right angle on flat-sided posts and walls
• Coastal glass corner connections requiring AISI 316

FAQ

What does "90°" mean?

90° refers to the angle between the two glass panels — they meet at a right angle, forming a corner. This contrasts with the 180° clamps, where two panels sit in the same plane (straight line).

How does this compare to the other 90° corner clamps?

The 45 × 53 handles 6–10.76 mm glass; the 45 × 72 handles 8–12.76 mm glass (AISI 304). This clamp covers the full 6–12.76 mm range and is the only 90° corner clamp offering both AISI 304 and AISI 316. Choose this clamp for the widest glass compatibility or when AISI 316 is required.

What glass thicknesses are supported?

The clamp accepts glass from 6 to 12.76 mm: single tempered glass (6, 8, 10, 12 mm) and laminated safety glass (8.76, 10.76, 12.76 mm / 66.2). Both joined panels must be the same thickness.

Which steel grades are available?

AISI 304 and AISI 316. Choose AISI 316 for coastal, pool, or high-humidity installations.

What mounting surface does this fit?

The clamp has a flat back for mounting on walls, square posts, and flat-sided structural members.

About Connector Glass Clamps

A connector glass clamp is a stainless-steel bracket that joins two glass panels at a fixed angle without requiring an intermediate post between them. It clamps two panel edges simultaneously — either in a straight 180° inline configuration or at a 90° corner — creating a continuous glass run around corners or across panel joints.

Strofix supplies connector glass clamps in many variants: 180° inline clamps, 90° corner clamps, and wall clamps. Each clamp is available to suit different panel thicknesses and installation requirements.

The correct connector clamp depends on the angle between the two panels and the body style that matches the railing layout.
