Glass clamp 45x95x30mm, 8-12.76mm, Satin, 180°

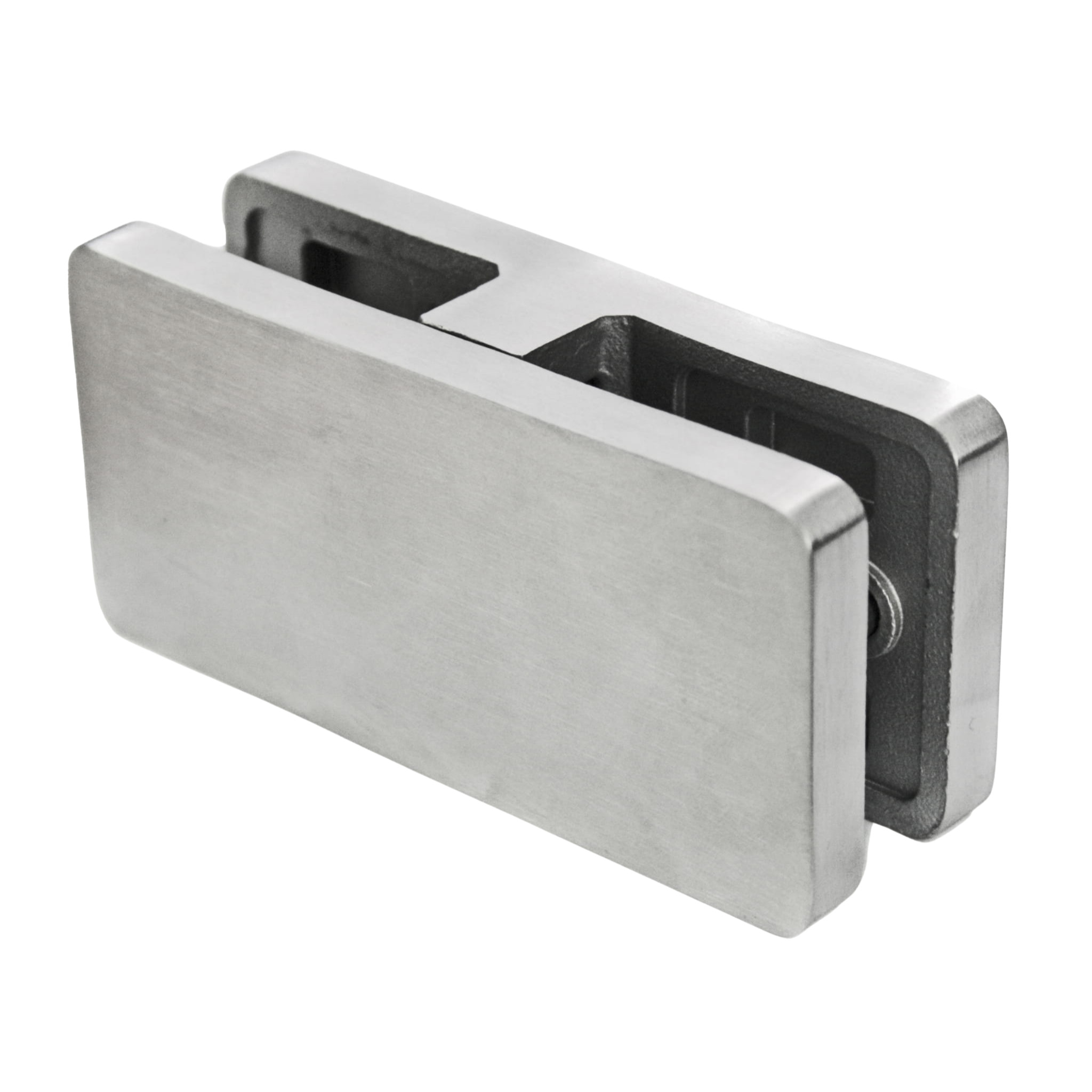

The Strofix glass clamp 45×95×30 mm, 180° is a stainless-steel glass-to-glass joint clamp with a wide bar profile for connecting two glass panels in a straight line (180° alignment) on flat mounting surfaces. The clamp measures 95 × 45 × 30 mm (L × H × depth) and holds glass panels from 8 to 12.76 mm thick. Manufactured from AISI 304 stainless steel with a satin finish. Flat mounting surface.

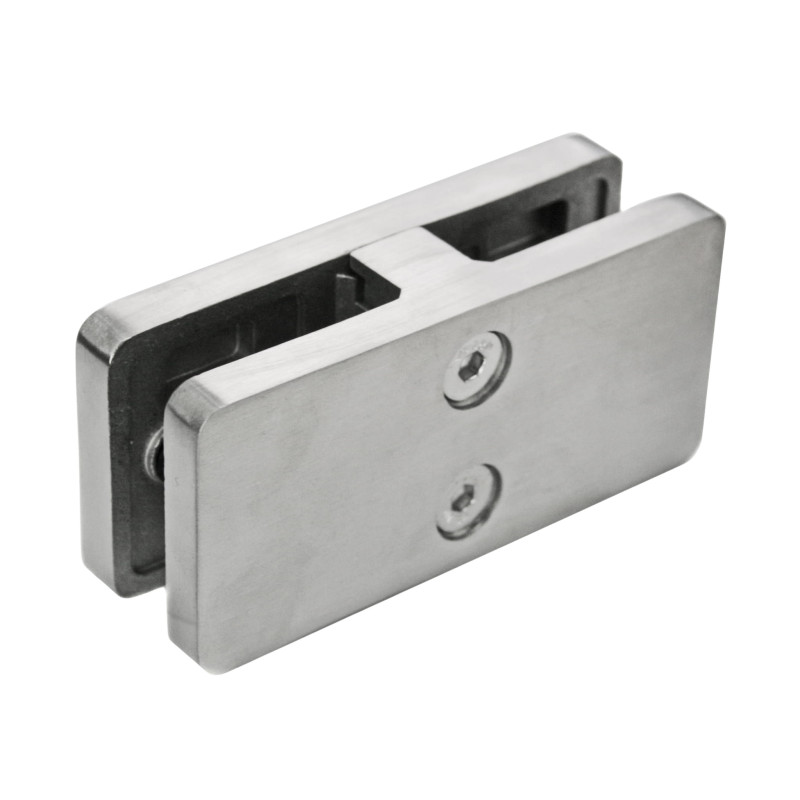

The 95 mm length creates a wide horizontal bar across the glass-to-glass joint, distributing the clamping load over a large area along both panel edges. The glass range starts at 8 mm, making this clamp focused on thicker glass joints — 8, 10, and 12 mm single tempered glass and 8.76, 10.76, and 12.76 mm laminated safety glass (66.2). This sits between the 45 × 90 mm wide bar (6–10.76 mm) and the 45 × 106 mm widest bar (6–12.76 mm) in the wide-profile 180° range. A "without rubbers" option is available for ordering the clamp body only.

Select the glass thickness at order time.

Use cases:

• Wide-profile glass-to-glass inline joint for thicker glass panels (8–12.76 mm)
• Joining two glass panels in a straight line (180°) where a wide bar body is preferred
• Design-led glass balustrade installations with thick glass and prominent joint clamps
• Flat-mount 180° glass joints requiring 8 mm or thicker glass capacity
• Continuous glass balustrade runs with laminated glass on walls and square posts

FAQ

How does this compare to the other wide-bar 180° clamps?

The 45 × 90 mm handles 6–10.76 mm glass (AISI 316). The 45 × 106 mm handles 6–12.76 mm glass (AISI 304). This 45 × 95 mm handles 8–12.76 mm glass (AISI 304) — focused on thicker glass with a slightly narrower bar than the 106 mm version. All are flat-mount satin 180° joint clamps.

What glass thicknesses are supported?

Six options: 8, 10, 12 mm single tempered glass and 8.76, 10.76, 12.76 mm laminated safety glass (66.2). Glass below 8 mm is not supported in this clamp — for 6 mm glass joints, use the 45 × 90 or 45 × 106 mm 180° clamp.

What are the clamp dimensions?

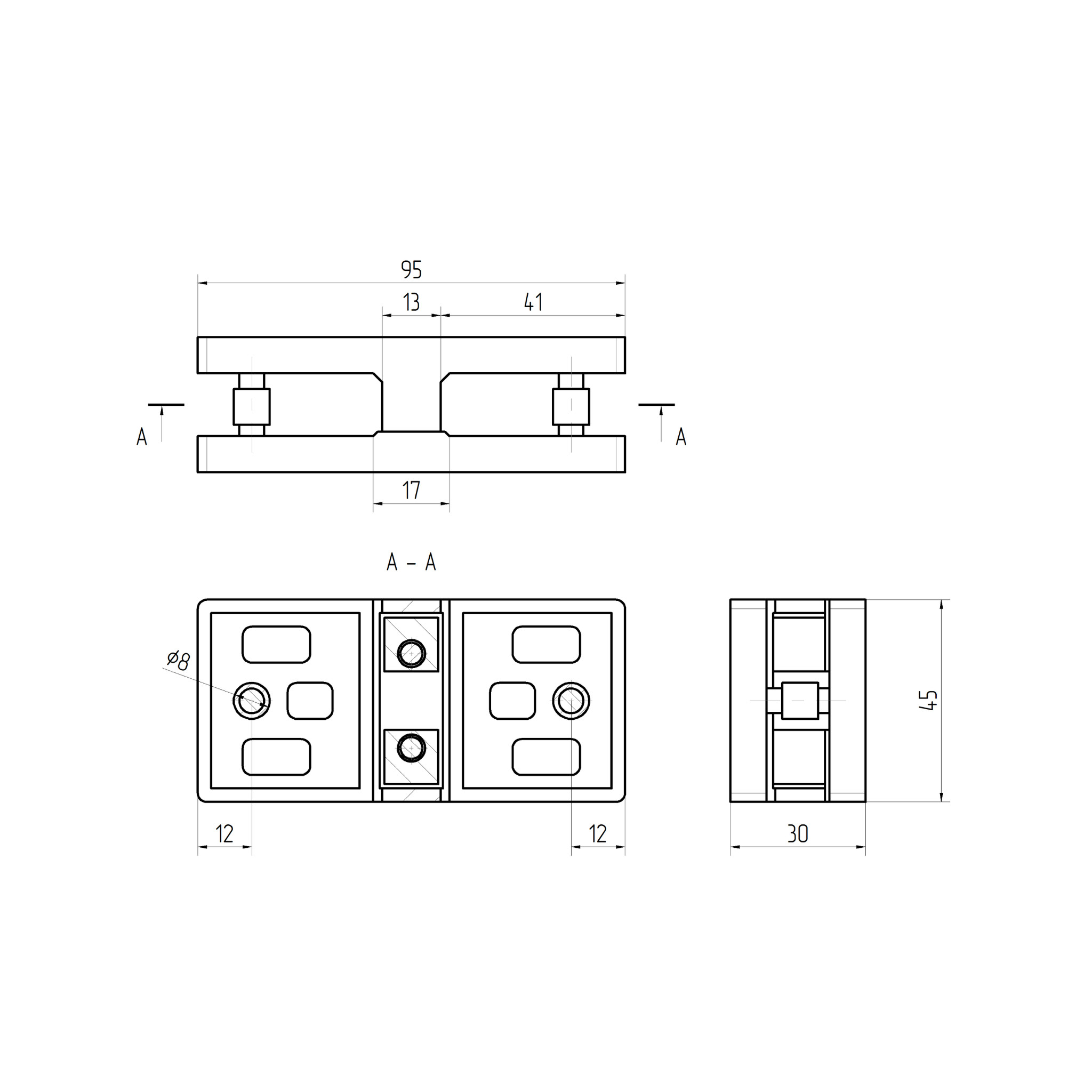

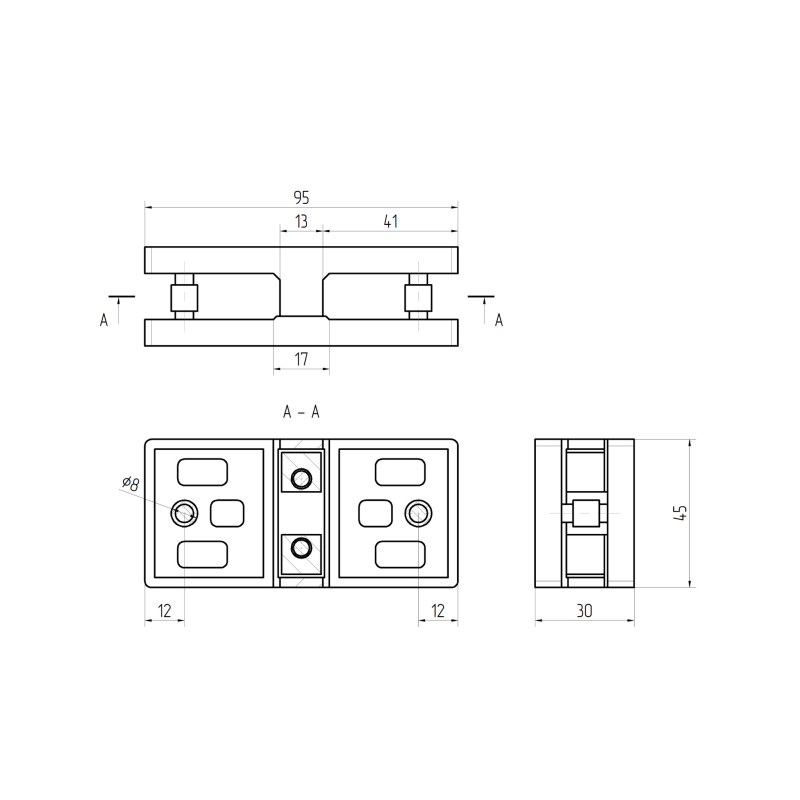

The clamp is 95 × 45 × 30 mm (L × H × depth).

What steel grade is used?

AISI 304 stainless steel with a satin finish.

What mounting surface does this fit?

The clamp has a flat back for mounting on walls, square posts, and flat-sided structural members.

Both joined panels must be the same thickness?

Yes. Both glass panels at the joint must be the same thickness for even gasket contact on both sides.

About Connector Glass Clamps

A connector glass clamp is a stainless-steel bracket that joins two glass panels at a fixed angle without requiring an intermediate post between them. It clamps two panel edges simultaneously — either in a straight 180° inline configuration or at a 90° corner — creating a continuous glass run around corners or across panel joints.

Strofix supplies connector glass clamps in many variants: 180° inline clamps, 90° corner clamps, and wall clamps. Each clamp is available to suit different panel thicknesses and installation requirements.

The correct connector clamp depends on the angle between the two panels and the body style that matches the railing layout.
