Glass clamp 45x53x25mm, 6-10.76mm, Satin, 90°

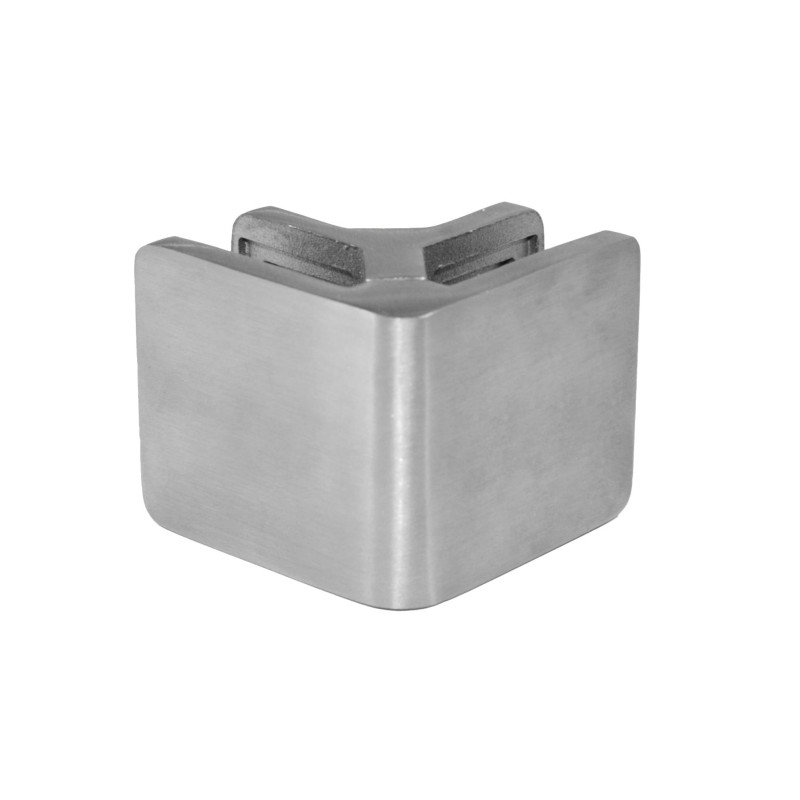

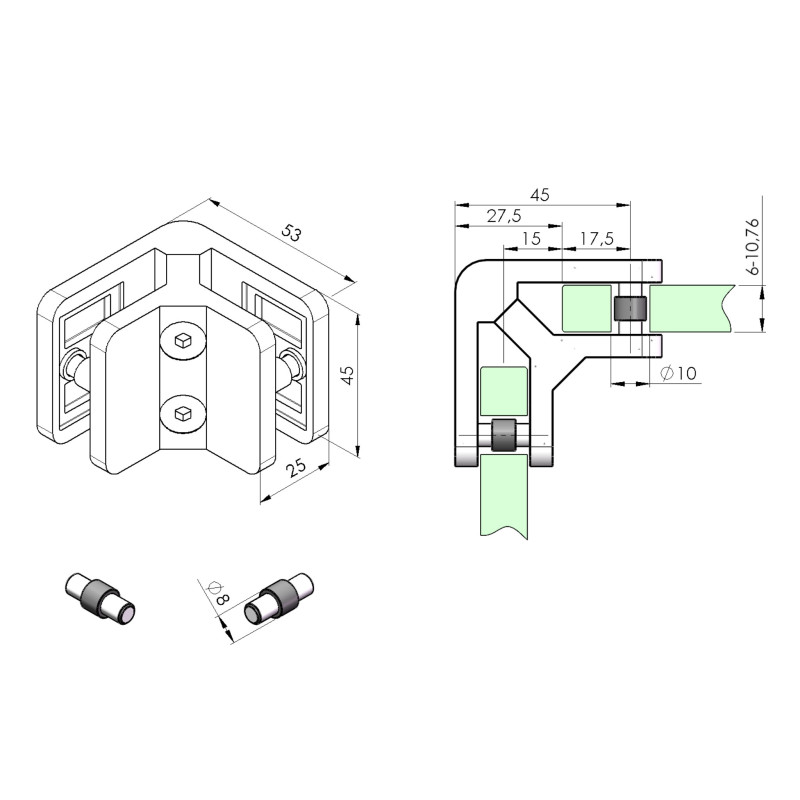

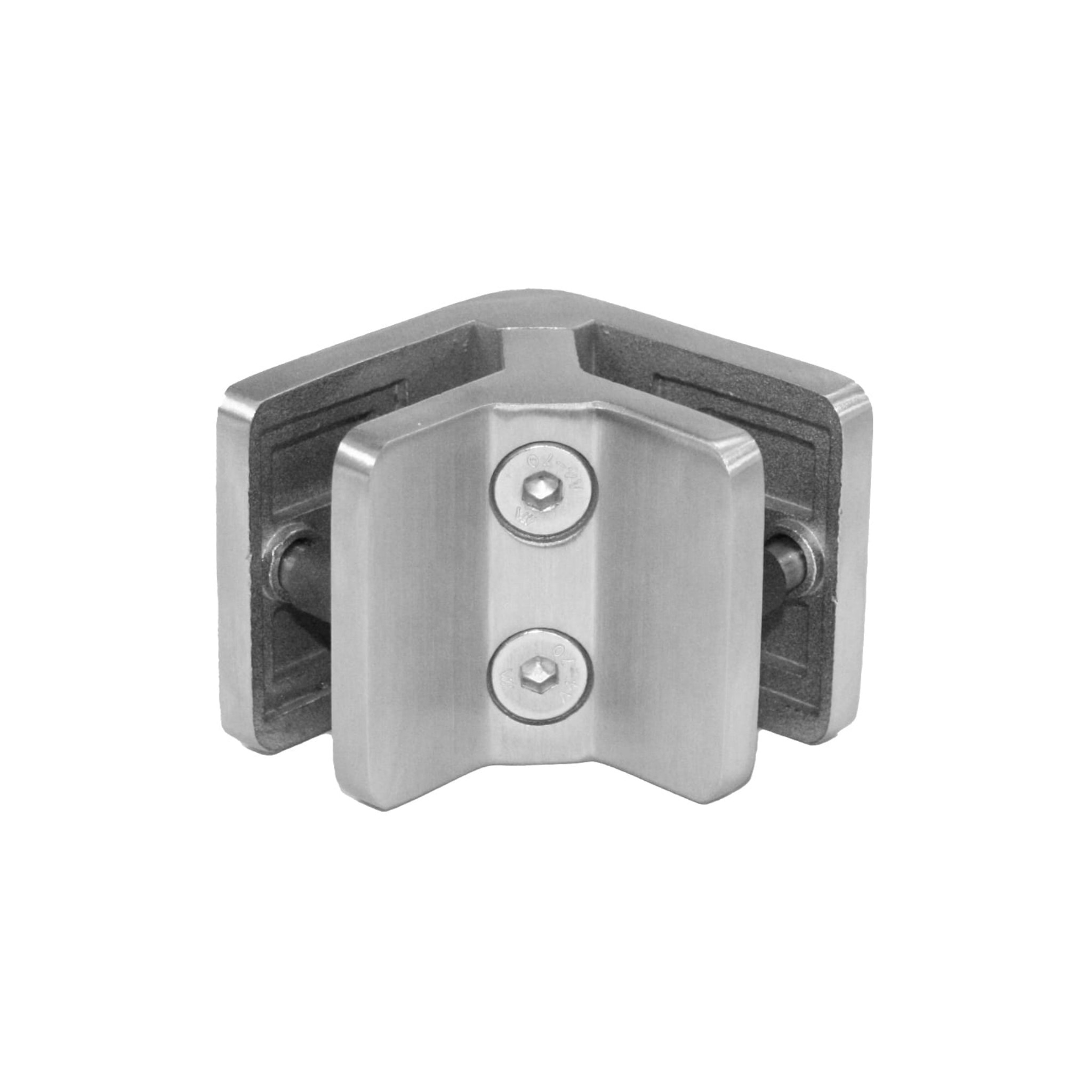

The Strofix glass clamp 45×53×25 mm, 90° is a stainless-steel glass-to-glass corner clamp for connecting two glass panels meeting at a right angle (90°) on flat mounting surfaces. The clamp measures 45 × 53 × 25 mm and holds glass panels from 6 to 10.76 mm thick. Manufactured from AISI 316 stainless steel with a satin finish. Flat mounting surface.

This clamp creates a 90° corner joint between two glass panels — used where a glass balustrade or enclosure turns a right-angle corner, with one panel meeting the next at 90°. This is distinct from the 180° clamps (which join two panels inline in a straight run) and from the standard side-clamps (which hold a single panel to a post). The clamp grips both panel edges at the corner, maintaining the right-angle alignment. Glass thickness options include 6, 8, and 10 mm single tempered glass and 8.76 and 10.76 mm laminated safety glass. A "without rubbers" option is available for ordering the clamp body only.

Select the glass thickness at order time.

Use cases:

• 90° corner joint between two glass panels in a balustrade or enclosure
• Glass balustrade runs that turn a right-angle corner
• Glass enclosure corners (e.g., balcony perimeters, terrace edges)
• Connecting two glass panels at a right angle on flat-sided posts and walls
• Marine-grade AISI 316 corner connection for coastal installations

FAQ

What does "90°" mean?

90° refers to the angle between the two glass panels — they meet at a right angle, forming a corner. The clamp holds both panel edges at the corner. This contrasts with the 180° clamps, where two panels sit in the same plane (straight line).

How does this differ from the 180° clamps and the standard side-clamps?

The standard side-clamp holds a single glass panel to a post or wall. The 180° clamp joins two panels inline (straight). This 90° clamp joins two panels at a right-angle corner — used where a glass run changes direction by 90°.

What glass thicknesses are supported?

The clamp accepts glass from 6 to 10.76 mm: single tempered glass (6, 8, 10 mm) and laminated safety glass (8.76, 10.76 mm). Both joined panels must be the same thickness.

What steel grade is used?

The specification lists AISI 316 stainless steel with a satin finish. (Note: the on-page description text mentions AISI 304; the structured specification indicates AISI 316. Confirm the grade with Strofix when ordering.)

What mounting surface does this fit?

The clamp has a flat back for mounting on walls, square posts, and flat-sided structural members.

Can this make other angles?

No. This clamp is specifically designed for 90° (right-angle) corner joints. For inline (straight) joints, use a 180° clamp.

About Connector Glass Clamps

A connector glass clamp is a stainless-steel bracket that joins two glass panels at a fixed angle without requiring an intermediate post between them. It clamps two panel edges simultaneously — either in a straight 180° inline configuration or at a 90° corner — creating a continuous glass run around corners or across panel joints.

Strofix supplies connector glass clamps in many variants: 180° inline clamps, 90° corner clamps, and wall clamps. Each clamp is available to suit different panel thicknesses and installation requirements.

The correct connector clamp depends on the angle between the two panels and the body style that matches the railing layout.
