Glass clamp 103x34x25mm, 12-15mm, Satin, 180°

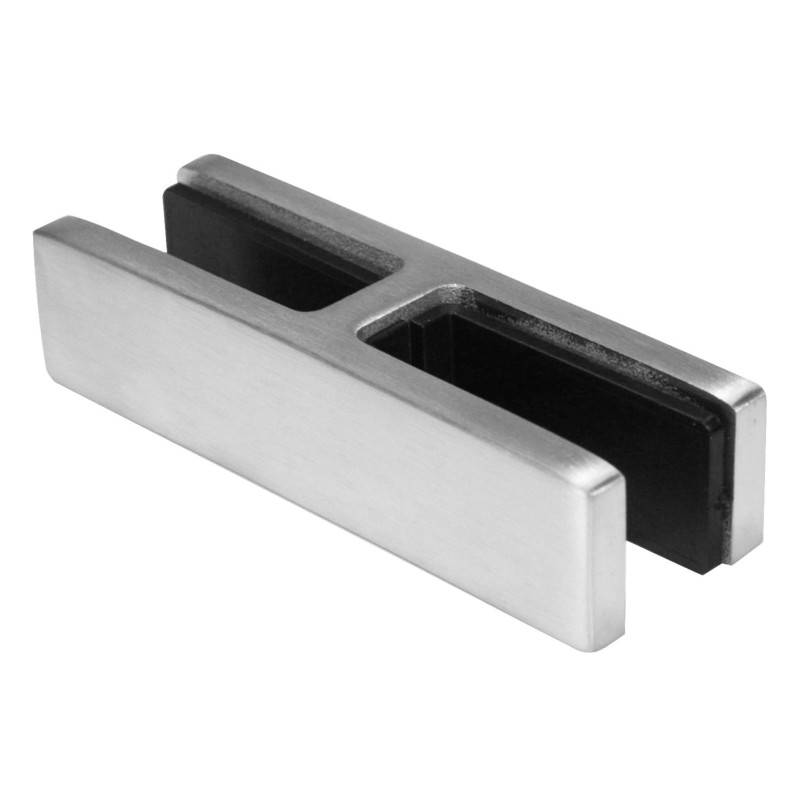

The Strofix glass clamp 103×34×25 mm, 180° is a stainless-steel glass-to-glass joint clamp with a wide low-profile bar shape for connecting two glass panels in a straight line (180° alignment) on flat mounting surfaces. The clamp measures 103 × 34 × 25 mm (L × H × depth) and holds glass panels from 12 to 15 mm thick. Manufactured from AISI 316 stainless steel with a satin finish. Flat mounting surface.

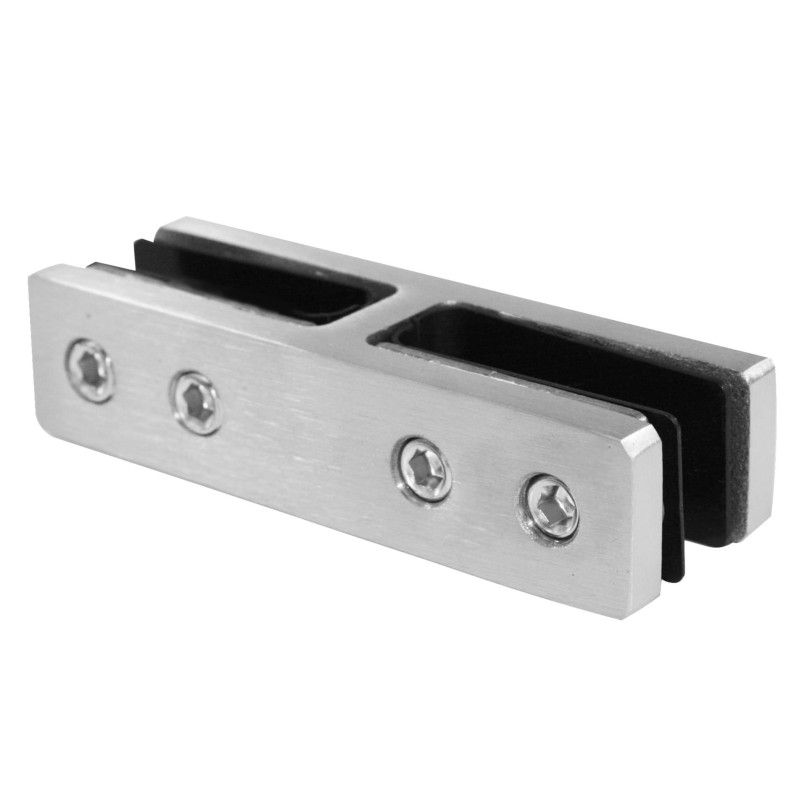

The 103 mm length creates a wide horizontal bar across the glass-to-glass joint, while the 34 mm height keeps the profile relatively low. The glass range of 12–15 mm is dedicated to thick glass panels, including heavier tempered and laminated configurations within that band. This clamp combines a wide grip area with marine-grade AISI 316 stainless steel, suitable for thick-glass balustrade joints in commercial, public-access, and coastal installations. The 25 mm depth keeps the clamp compact relative to its width.

Use cases:

• Wide low-profile glass-to-glass inline joint for thick glass (12–15 mm)
• Joining two thick glass panels in a straight line (180°) with a marine-grade clamp
• Design-led glass balustrade installations with heavy glass and a wide joint bar
• Flat-mount 180° glass joints requiring AISI 316 and 12–15 mm glass capacity
• Continuous structural glass balustrade runs in coastal or exposed environments

FAQ

What glass thicknesses are supported?

The clamp accepts glass from 12 to 15 mm, covering thick tempered and laminated glass configurations within that range. This is a dedicated thick-glass joint clamp.

How does this compare to the other low-profile 180° clamps?

The 90 × 25 mm low-profile clamp handles 10–12.76 mm glass in AISI 304. This 103 × 34 mm clamp handles thicker 12–15 mm glass in AISI 316, with a wider body and slightly taller profile. Choose this clamp for thicker glass and marine-grade steel.

What are the clamp dimensions?

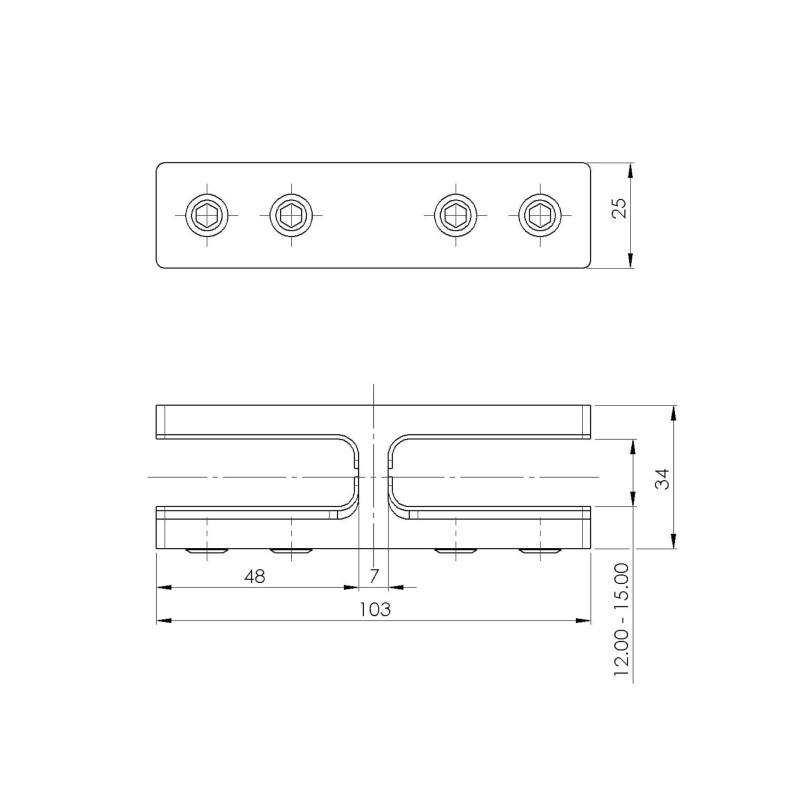

The clamp is 103 × 34 × 25 mm (L × H × depth).

What steel grade is used?

AISI 316 stainless steel with a satin finish — marine grade, suitable for coastal and high-humidity installations.

What mounting surface does this fit?

The clamp has a flat back for mounting on walls, square posts, and flat-sided structural members.

Both joined panels must be the same thickness?

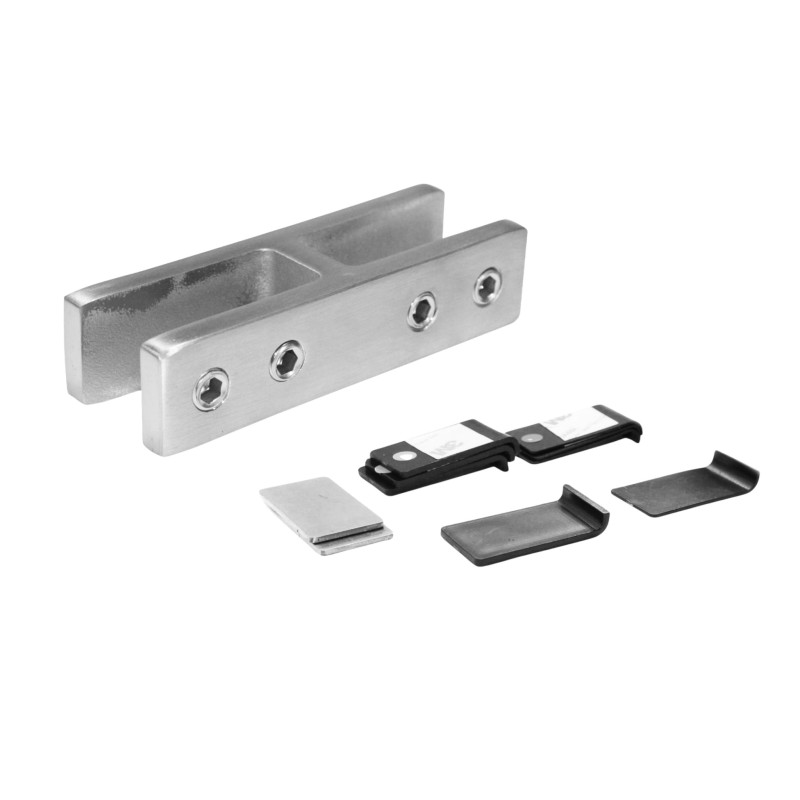

Yes. Both glass panels at the joint must be the same thickness for even gasket contact on both sides.

About Connector Glass Clamps

A connector glass clamp is a stainless-steel bracket that joins two glass panels at a fixed angle without requiring an intermediate post between them. It clamps two panel edges simultaneously — either in a straight 180° inline configuration or at a 90° corner — creating a continuous glass run around corners or across panel joints.

Strofix supplies connector glass clamps in many variants: 180° inline clamps, 90° corner clamps, and wall clamps. Each clamp is available to suit different panel thicknesses and installation requirements.

The correct connector clamp depends on the angle between the two panels and the body style that matches the railing layout.
