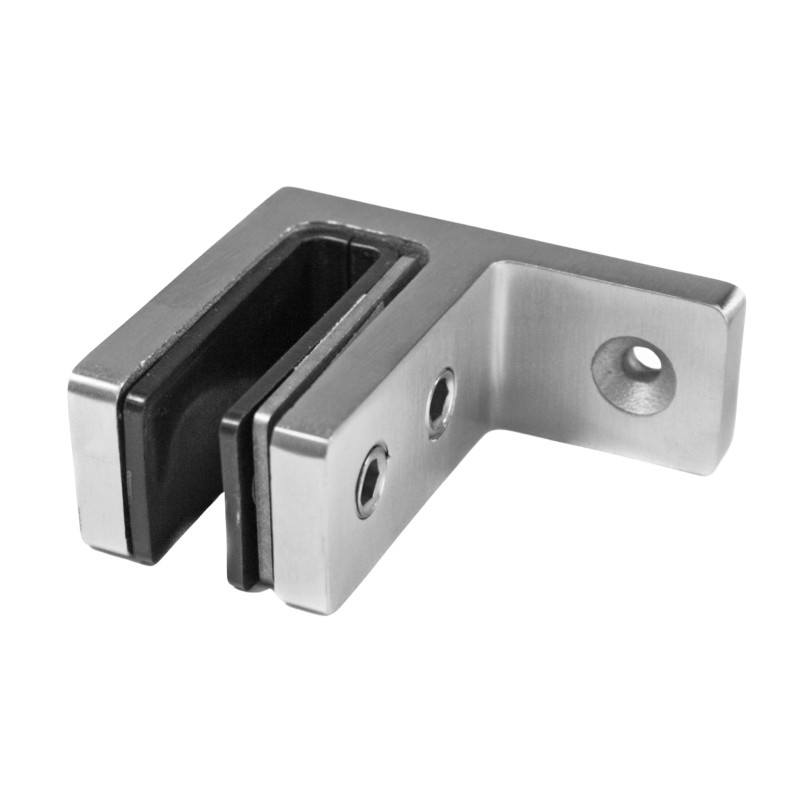

Glass clamp 48x65x34mm, 12-15mm, Satin, Wall

The Strofix glass clamp 48×65×34 mm, wall (12–15 mm) is a stainless-steel wall-mount glass clamp designed to be screwed directly to a wall to hold a single thick glass panel. The clamp measures 48 × 65 × 34 mm and holds glass panels from 12 to 15 mm thick. Manufactured from AISI 316 stainless steel with a satin finish.

This is the thicker-glass version of the 48 × 65 × 34 mm wall-mount glass clamp. It shares the same body, AISI 316 marine-grade steel, satin finish, and price as the 12–12.76 mm version, but covers a wider glass range of 12–15 mm — accommodating thicker tempered and laminated glass configurations. The clamp screws into the wall and grips the glass edge between rubber gaskets. It is used for glass partitions, wall-terminated balustrades, shower screens, and similar wall-fixed glass applications requiring thick glass.

Use cases:

• Mounting a thick glass panel (12–15 mm) directly to a wall in a balustrade or partition
• Glass balustrade runs that terminate against a wall with thick glass
• Glass partition panels with 12–15 mm glass fixed to a wall surface
• Wall-supported thick glass screens and dividers
• Marine-grade AISI 316 wall fixing for thick-glass coastal installations

FAQ

How does this differ from the 12–12.76 mm wall clamp?

Both are 48 × 65 × 34 mm AISI 316 satin wall-mount clamps at the same price. This version covers a wider 12–15 mm glass range; the companion version covers 12–12.76 mm. Choose this version for glass thicker than 12.76 mm (up to 15 mm).

What glass thicknesses are supported?

The clamp accepts glass from 12 to 15 mm, covering thick tempered and laminated configurations within that range.

What does "wall" mean for this clamp?

This clamp is designed to be screwed directly to a wall surface, holding a glass panel against or perpendicular to the wall. It differs from the side-clamps (which mount on railing posts).

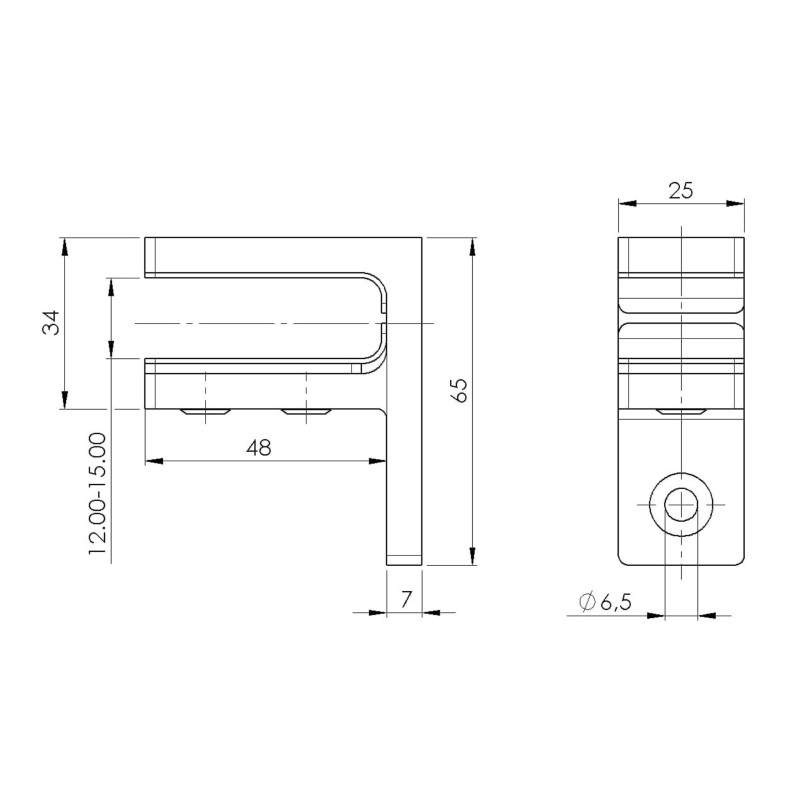

What are the clamp dimensions?

The clamp is 48 × 65 × 34 mm.

What steel grade is used?

AISI 316 stainless steel with a satin finish — marine grade, suitable for coastal and high-humidity installations.

How is it fixed?

The clamp is screwed directly to the wall using appropriate wall fixings (chemical anchors or expansion bolts) suited to the wall material and glass load.

About Connector Glass Clamps

A connector glass clamp is a stainless-steel bracket that joins two glass panels at a fixed angle without requiring an intermediate post between them. It clamps two panel edges simultaneously — either in a straight 180° inline configuration or at a 90° corner — creating a continuous glass run around corners or across panel joints.

Strofix supplies connector glass clamps in many variants: 180° inline clamps, 90° corner clamps, and wall clamps. Each clamp is available to suit different panel thicknesses and installation requirements.

The correct connector clamp depends on the angle between the two panels and the body style that matches the railing layout.
