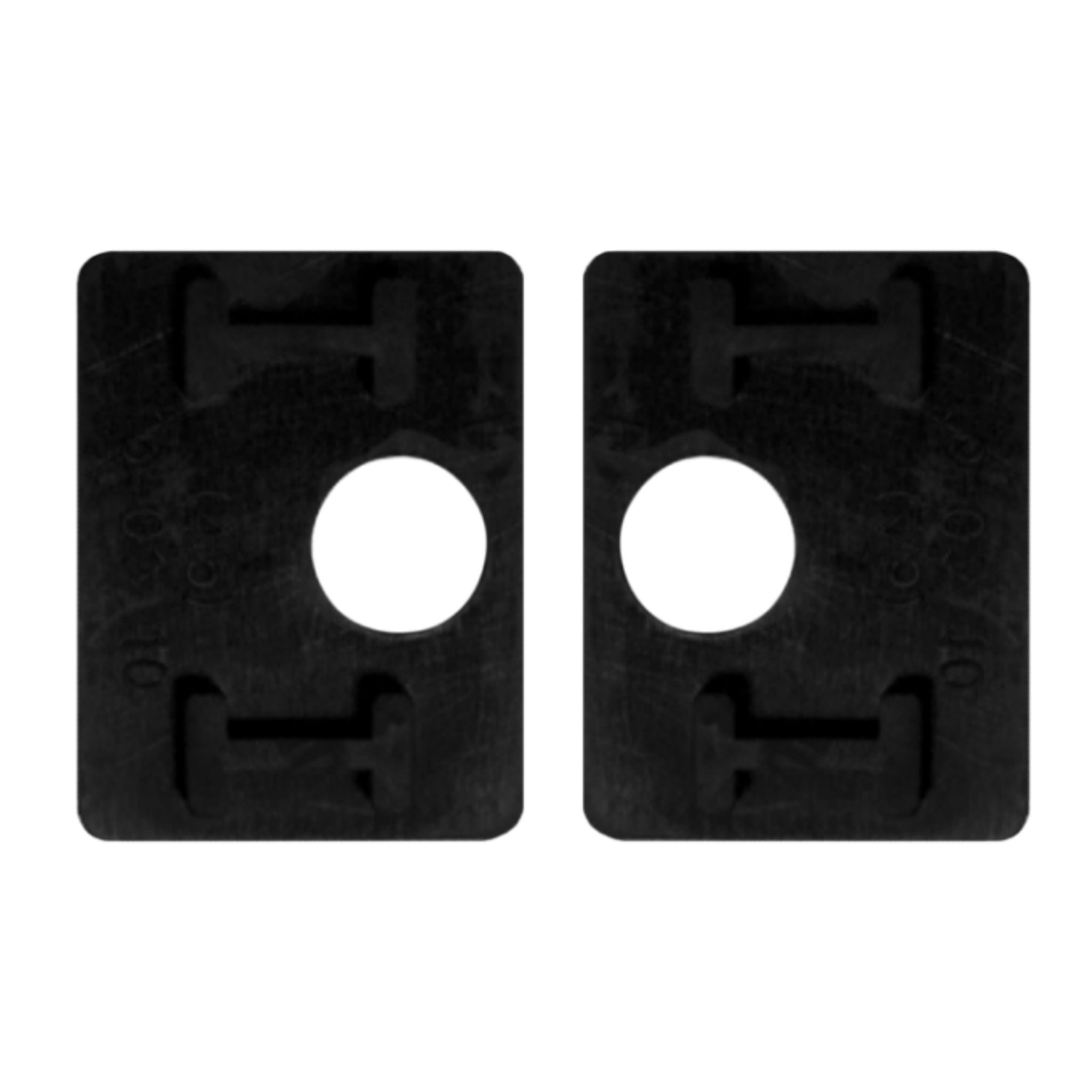

Rubber inlay for glass clamp 55x55mm

The Strofix rubber inlay for glass clamp 55×55 mm is an EPDM rubber gasket designed to fit inside the 55 × 55 mm glass clamp body, gripping the glass panel securely between two gaskets. Available for glass thicknesses of 8, 10, 12, 8.76, 10.76, or 12.76 mm (66.2). Select the glass thickness at order time. Sold individually — two inlays are required per clamp (one on each side of the glass).

The 55 × 55 mm gasket matches the glass range of the 55 × 55 glass clamp, which handles thicker glass panels starting at 8 mm. The 12.76 mm option corresponds to laminated glass designation 66.2 (6+6+0.76 PVB interlayer). This inlay is specific to the 55 × 55 mm clamp body and is not interchangeable with the 52 × 52 mm gasket, despite both sizes covering the same glass thickness range — the internal clamp geometry differs between the two sizes. EPDM rubber provides consistent clamping pressure, cushions the glass against the metal body, and is resistant to weathering, UV exposure, ozone, and temperature extremes.

Use cases:

• Replacement EPDM gasket for 55 × 55 mm glass clamps
• Changing glass thickness on an existing 55 × 55 clamp by swapping to the correct gasket
• Spare gaskets for clamps ordered in the "without rubbers" option
• Maintaining glass balustrade installations with 55 × 55 tube-mount clamps

FAQ

What glass thicknesses are available?

Six options: 8, 10, 12 mm single tempered glass and 8.76, 10.76, 12.76 mm laminated safety glass. The 12.76 mm option corresponds to laminated designation 66.2.

Can I use the 52×52 gasket in the 55×55 clamp?

No. Despite covering the same glass thickness range, the 52 × 52 and 55 × 55 gaskets have different profiles shaped to their respective clamp bodies. They are not interchangeable.

How many inlays do I need per clamp?

Two inlays per clamp — one on each side of the glass panel.

Which glass clamps does this fit?

This inlay fits the 55 × 55 mm tube-mount Ø42.4 glass clamp with support in the Strofix range.

What material is the inlay?

EPDM rubber, resistant to weathering, UV, ozone, and temperature extremes.

About Rubbers for Glass Clamps

A rubber inlay for a glass clamp is a replaceable insert that sits between the metal clamp body and the glass panel, cushioning the clamping pressure, preventing direct steel-to-glass contact and compensating for the specific panel thickness.

Each rubber pair is shaped to match a particular Strofix clamp model, ensuring a snug fit inside the clamp channel. Strofix supplies rubber inlays for all of our clamp models — with thickness options covering single-pane glass at 4, 6, 8, 10 and 12 mm and laminated glass at 12.76 mm (66.2) and 16.76 mm (88.2).

Rubbers are sold individually so that an existing clamp can be reconfigured for a different glass thickness or worn inserts can be replaced without changing the clamp body itself.
