Glass clamp 48x65x34mm, 12-12.76mm, Satin, Wall

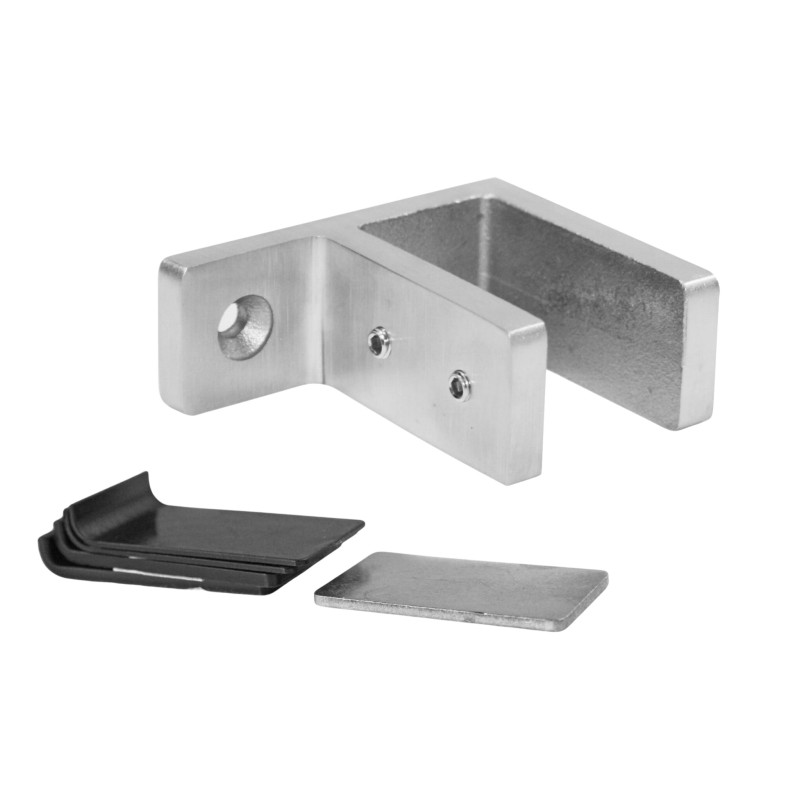

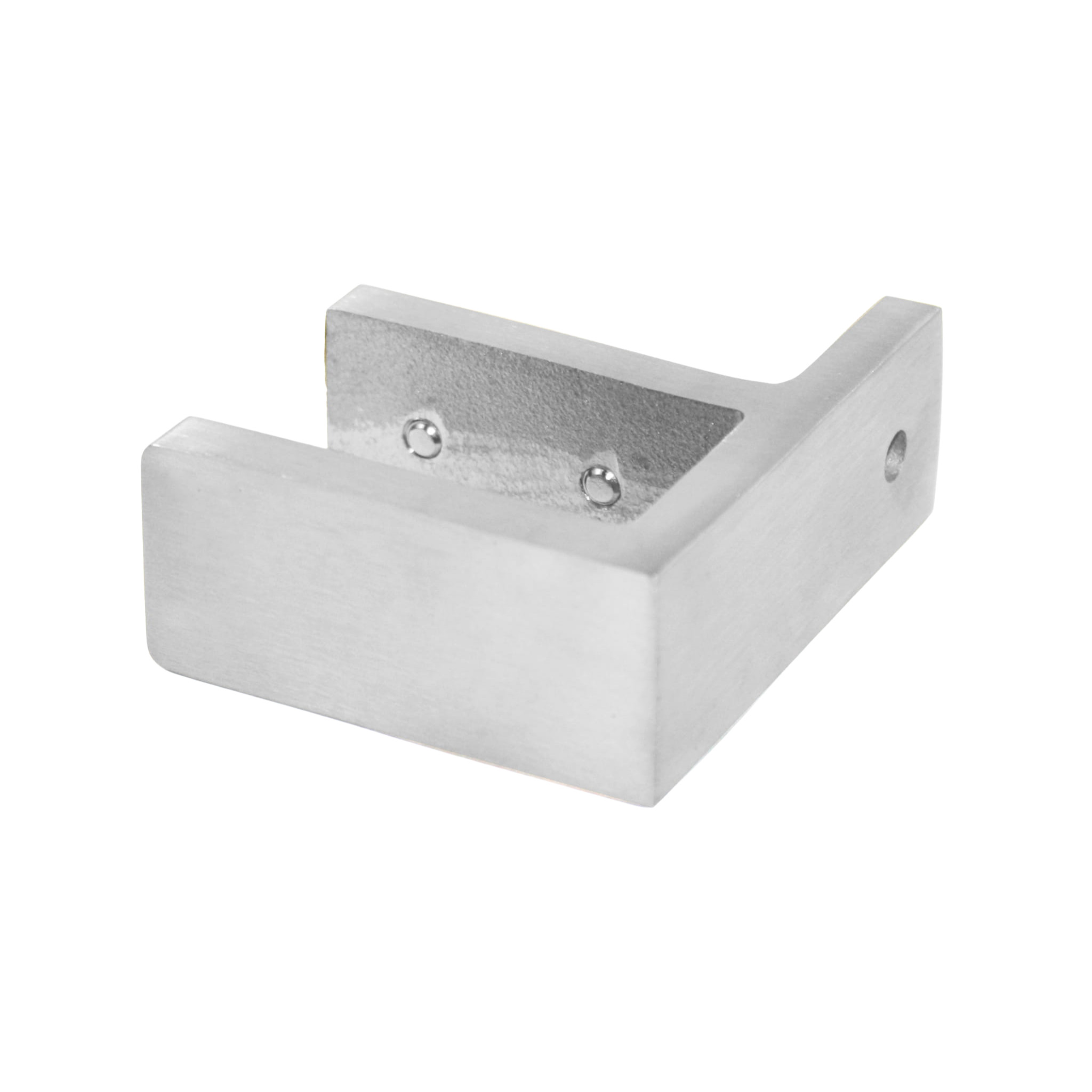

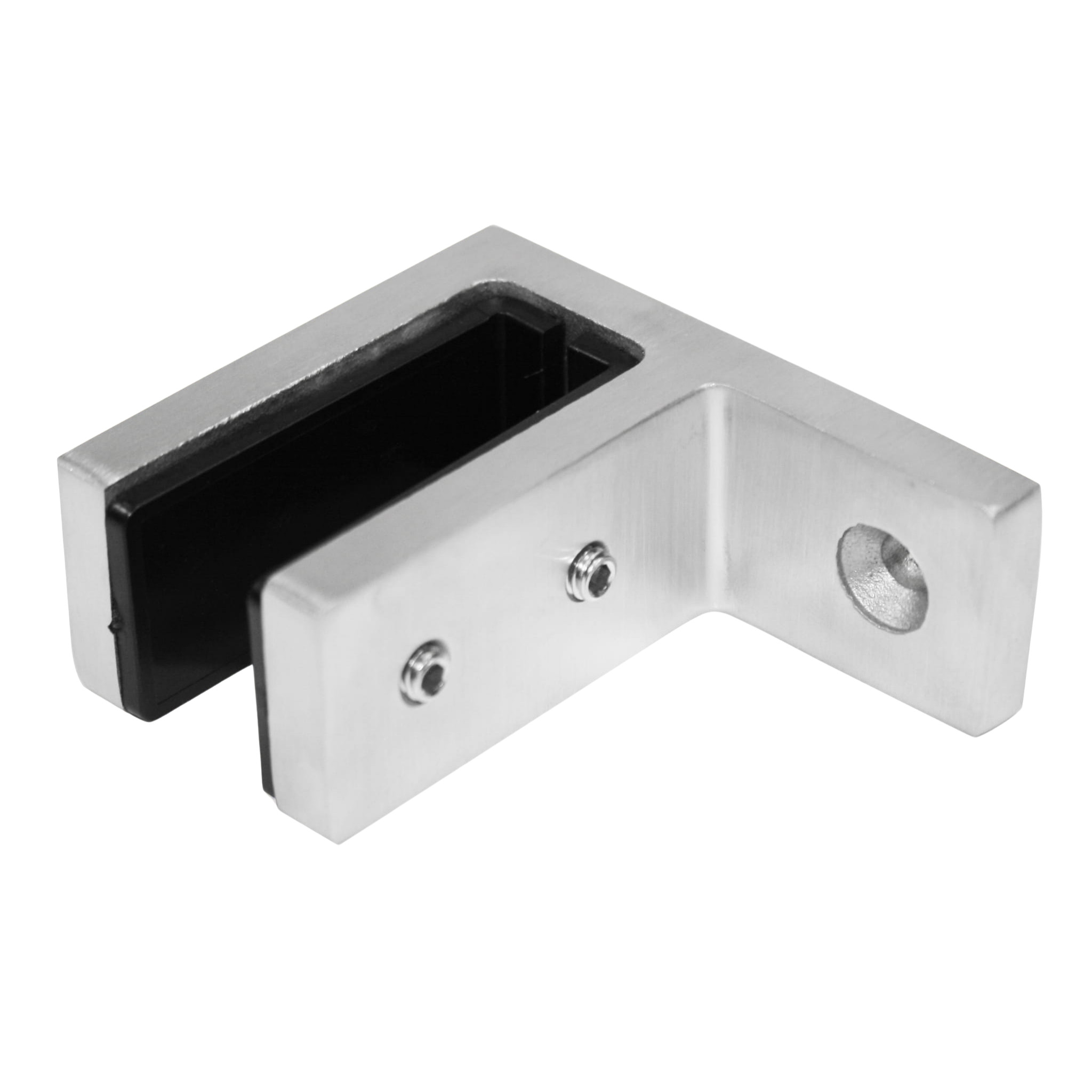

The Strofix glass clamp 48×65×34 mm, wall is a stainless-steel wall-mount glass clamp designed to be screwed directly to a wall to hold a single glass panel. The clamp measures 48 × 65 × 34 mm and holds glass panels from 12 to 12.76 mm thick. Manufactured from AISI 316 stainless steel with a satin finish.

This wall-fixing clamp attaches a glass panel directly to a flat wall surface — used for glass partitions, glass balustrades running against a wall, shower screens, and similar applications where the glass terminates at or is supported by a wall rather than a railing post. The clamp screws into the wall and grips the glass edge between rubber gaskets. The glass range is 12–12.76 mm: 12 mm single tempered glass and 12.76 mm laminated safety glass (66.2). The AISI 316 marine-grade stainless steel suits both interior and exterior, coastal, and high-humidity installations.

Use cases:

• Mounting a glass panel directly to a wall in a balustrade or partition
• Glass balustrade runs that terminate against a wall
• Glass partition panels fixed to a wall surface
• Wall-supported glass screens and dividers (12–12.76 mm glass)
• Marine-grade AISI 316 wall fixing for coastal and high-humidity glass installations

FAQ

What does "wall" mean for this clamp?

This clamp is designed to be screwed directly to a wall surface, holding a glass panel against or perpendicular to the wall. It differs from the side-clamps (which mount on railing posts) and the glass-to-glass joint clamps (which connect two panels). This clamp connects glass to a wall.

What glass thicknesses are supported?

The clamp accepts 12 mm single tempered glass and 12.76 mm laminated safety glass (66.2).

What are the clamp dimensions?

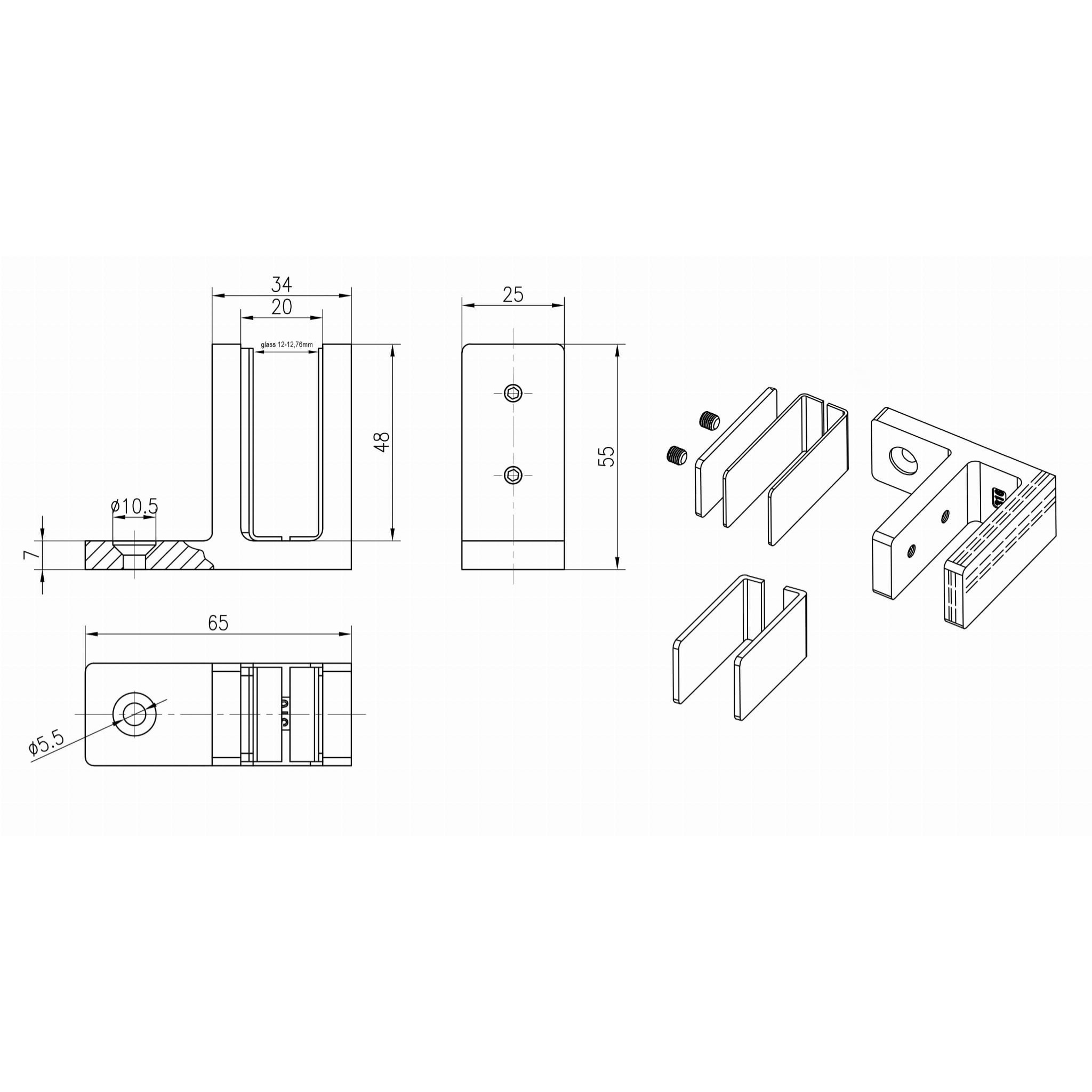

The clamp is 48 × 65 × 34 mm.

What steel grade is used?

AISI 316 stainless steel with a satin finish — marine grade, suitable for coastal and high-humidity installations.

How is it fixed?

The clamp is screwed directly to the wall. Use appropriate wall fixings (chemical anchors or expansion bolts) suited to the wall material and the glass load.

Can this be used on a post instead of a wall?

This clamp is designed for flat wall surfaces. For mounting glass on railing posts, use the side-clamp range (flat-mount or tube-mount).

About Connector Glass Clamps

A connector glass clamp is a stainless-steel bracket that joins two glass panels at a fixed angle without requiring an intermediate post between them. It clamps two panel edges simultaneously — either in a straight 180° inline configuration or at a 90° corner — creating a continuous glass run around corners or across panel joints.

Strofix supplies connector glass clamps in many variants: 180° inline clamps, 90° corner clamps, and wall clamps. Each clamp is available to suit different panel thicknesses and installation requirements.

The correct connector clamp depends on the angle between the two panels and the body style that matches the railing layout.
