Canopy fixing wall plate - rectangular for glass facade

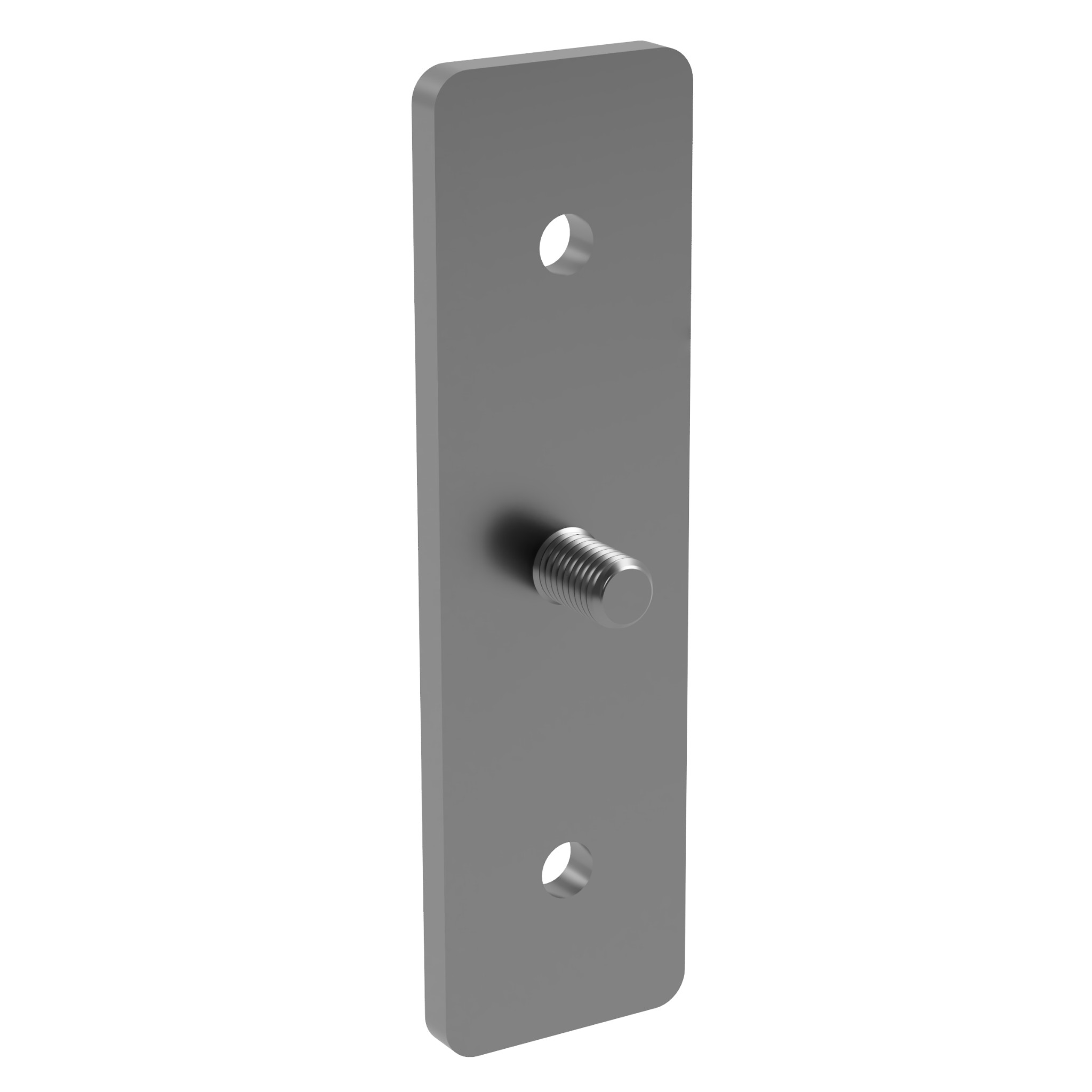

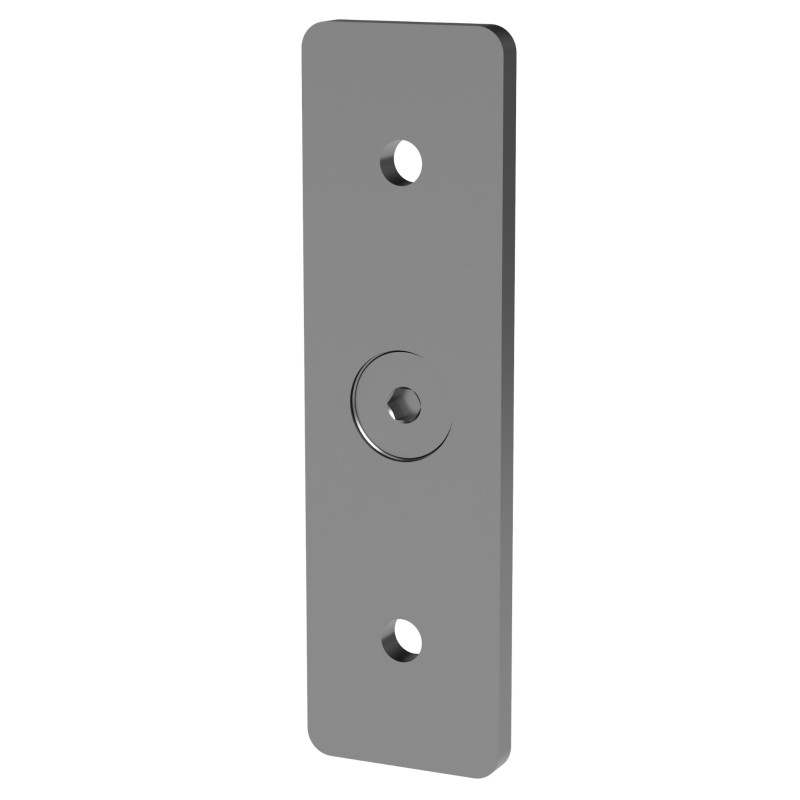

The Strofix canopy fixing wall plate – rectangular is a 140 × 40 mm decorative plate for the hanging glass canopy wall fixing point. The plate has an M10 × 15 internal thread and is manufactured from stainless steel. It provides a clean, linear appearance at the wall anchor location where the canopy tension rod system connects to the building facade.

The rectangular wall plate is the architectural alternative to the round Ø60 mm rosette plate. Both serve the same function — screwing onto the M10 threaded stud of the wall fixing to cover the anchor point — but offer different visual profiles. The rectangular 140 × 40 mm shape creates a horizontal bar detail on the wall, which suits contemporary and minimalist facade designs where linear forms are preferred over circular ones. The plate is interchangeable with the round plate on the same wall fixing.

This product is a component of the Strofix hanging glass canopy system.

Use cases:

• Contemporary linear wall detail at hanging canopy tension rod anchor points
• Architectural alternative to the round d60 rosette for a minimalist aesthetic
• Rectangular cover plate for wall fixing points on modern building facades
• Design-led canopy installations where linear forms are preferred
• Replacement rectangular wall plate for existing Strofix hanging canopy installations

FAQ:

What is this wall plate for?

The rectangular plate is the visible decorative cover that conceals the structural wall fixing at the tension rod connection point. It screws onto the M10 threaded stud of the wall fixing, presenting a 140 × 40 mm rectangular face against the wall.

What are the dimensions?

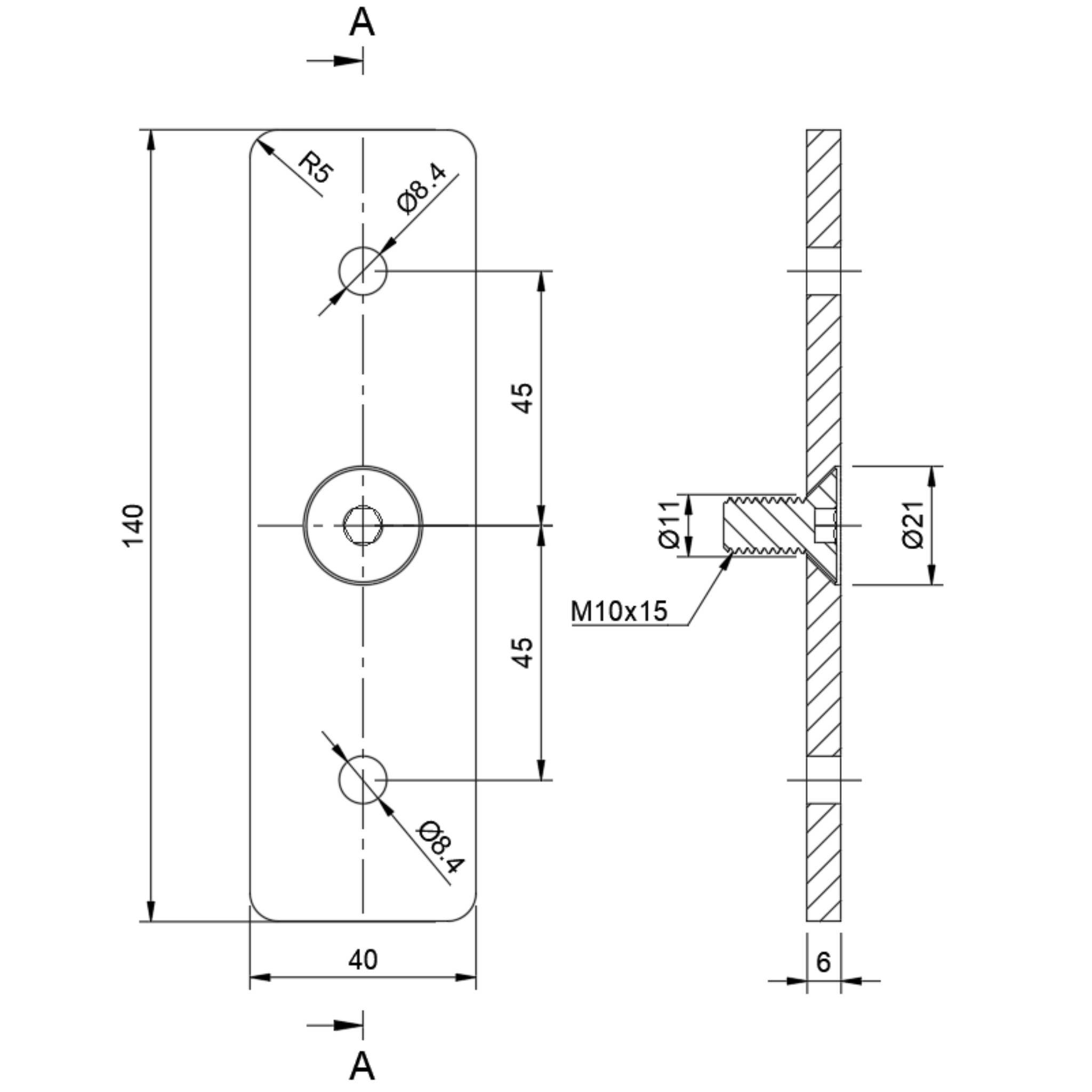

The plate is 140 × 40 mm rectangular with an M10 × 15 internal thread (M10 thread, 15 mm depth).

How does this differ from the round wall plate?

Both plates serve the same function and fit the same wall fixing. The round plate is Ø60 mm; this rectangular plate is 140 × 40 mm. The choice is purely aesthetic — round rosette for a traditional or softer appearance, rectangular bar for a contemporary or linear design.

Are the plates interchangeable?

Yes. Both the round and rectangular plates have the same M10 × 15 internal thread and fit the same wall fixing stud. The installer or architect can choose either shape without any change to the underlying wall fixing.

How is the plate attached?

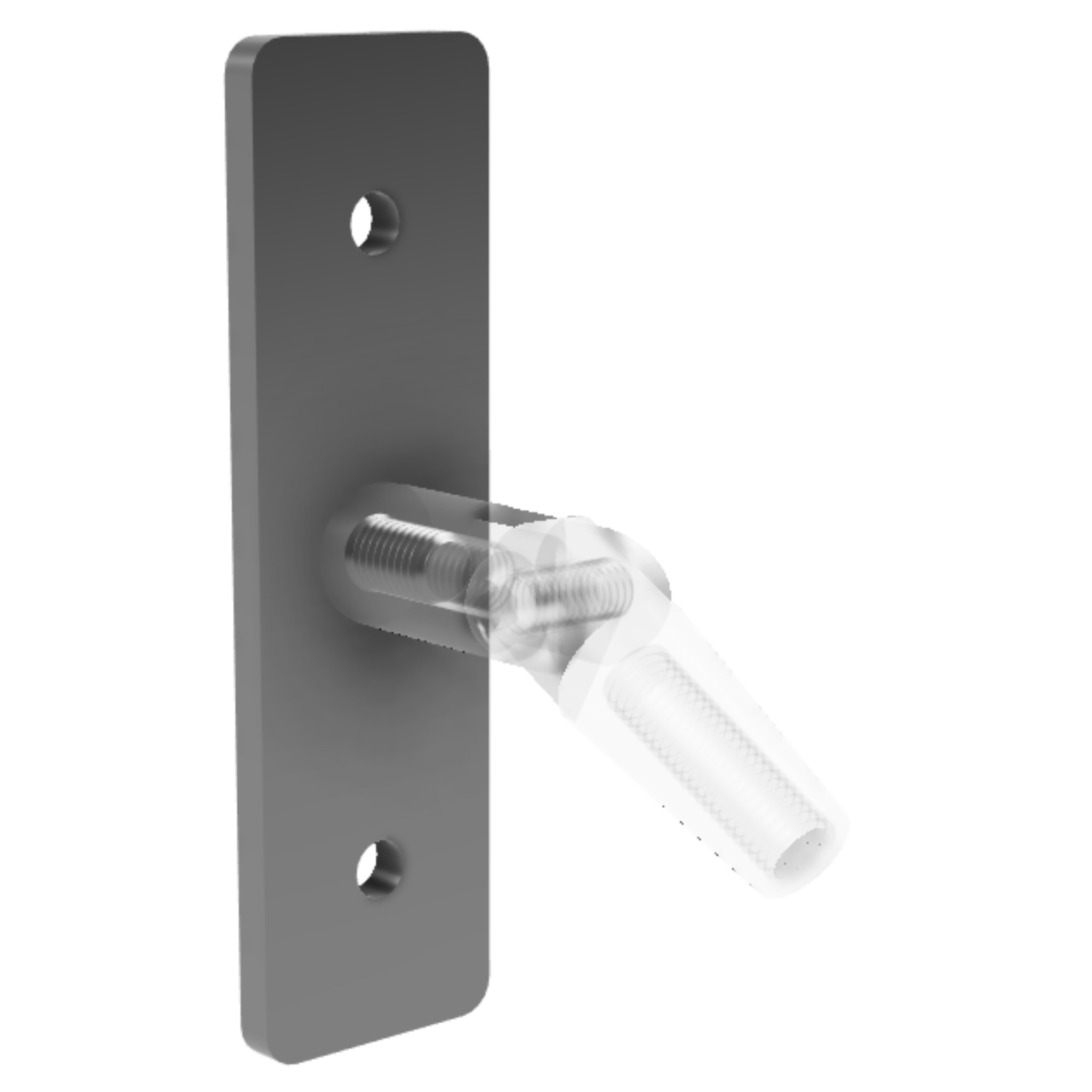

The plate screws onto the M10 threaded stud that protrudes from the structural wall fixing. No adhesive or additional tools are required.

What material is used?

The plate is manufactured from stainless steel with a satin-quality surface finish, matching other components in the Strofix hanging canopy range.

About Hanging Glass Canopies

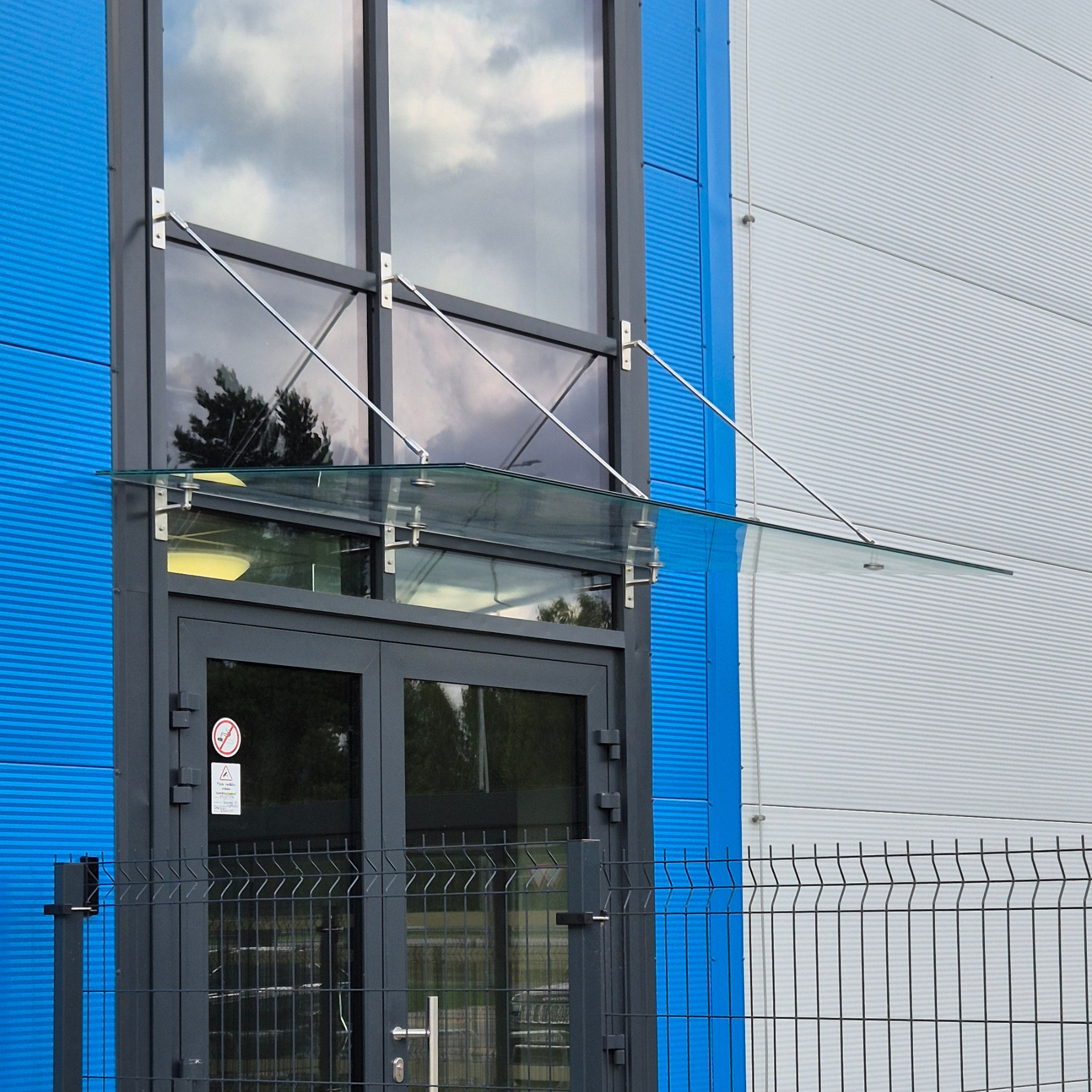

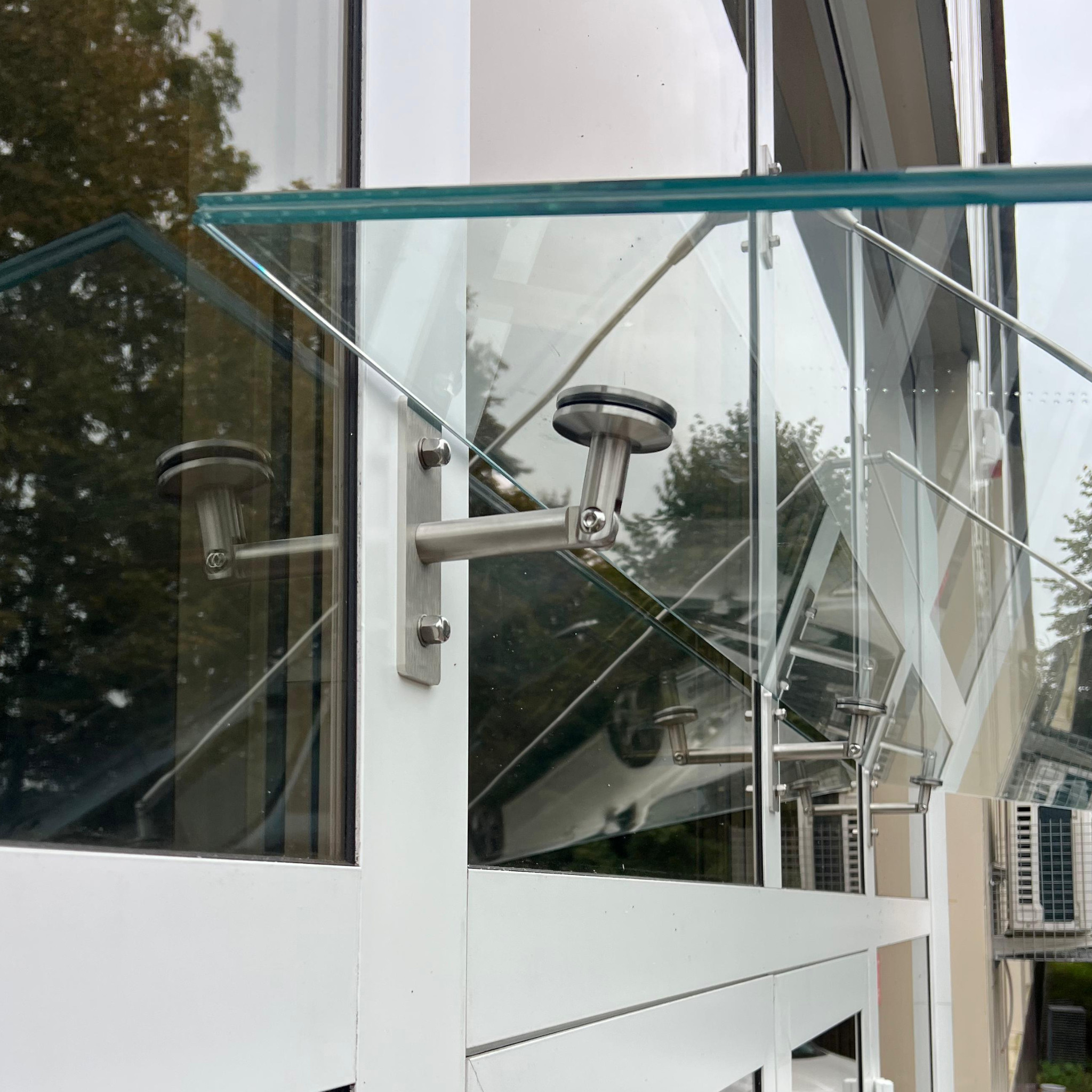

A hanging glass canopy is a wall-mounted entrance shelter in which stainless-steel tension rods suspend the glass panel from anchor points above, transferring load diagonally back to the building façade.

Strofix offers all the parts needed to build hanging canopy systems — the suspension rods, the fittings that hold the glass against the wall, the connectors that link the rods to both the glass and the wall, and complete system sets — all made in stainless steel with a satin finish.

The benefits go beyond appearance. The canopy shelters the doorway from rain and snow, keeping visitors dry as they arrive and protecting the door and threshold from constant weather exposure, which extends their working life. Because the glass is clear, daylight still reaches the entrance, so the area underneath does not feel dark or enclosed. The slim rod suspension leaves the façade largely unobstructed, which is especially valuable on buildings with detailed brickwork, stonework, or architectural features worth preserving.

The correct component selection depends on canopy span, glass weight, environment and wall structure.
