Wood screw Ø8X100, AISI316

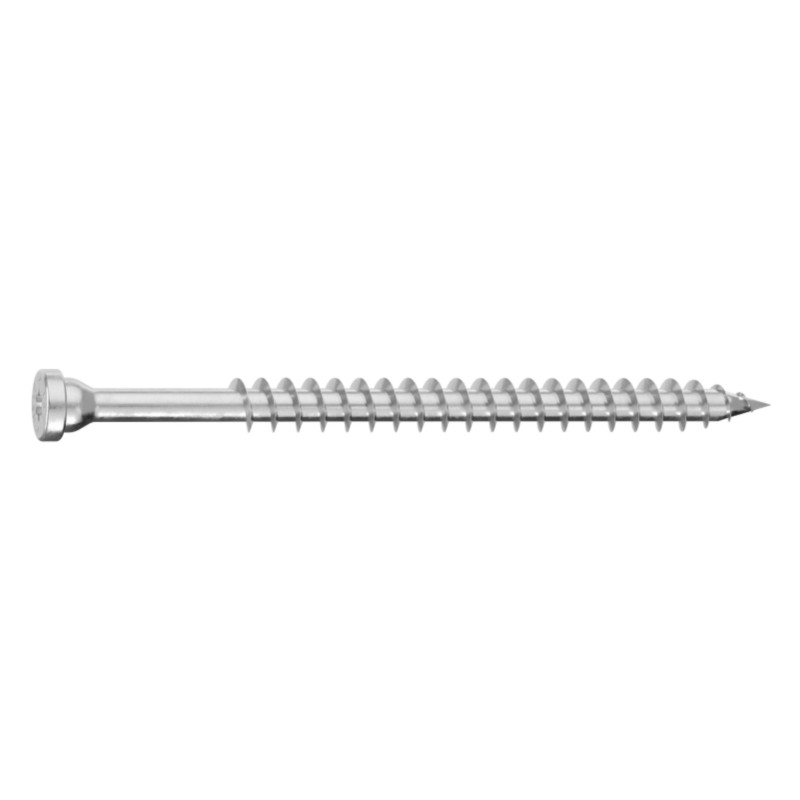

The Strofix wood screw Ø8 × 100 mm is made of solid AISI 316 stainless steel – 100 mm long, Ø8 mm, with a 75 mm thread – for fixing metal brackets and fittings to timber. It has a satin finish.

The screw goes through the bracket and straight into the timber – no nut is needed. AISI 316 contains molybdenum, which gives it higher resistance to chlorides and salt air than AISI 304, so the screw suits exterior and coastal installations. The corrosion resistance comes from the steel itself rather than from a coating, so it is not lost where the surface is scratched.

Use cases:

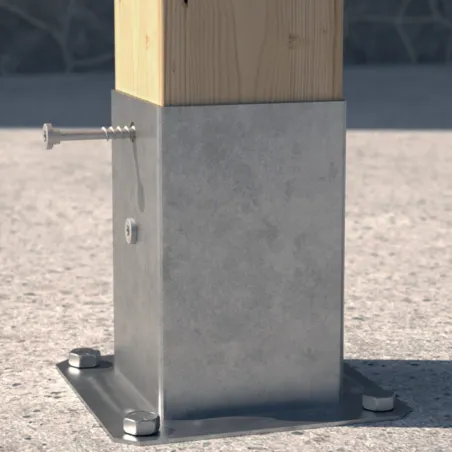

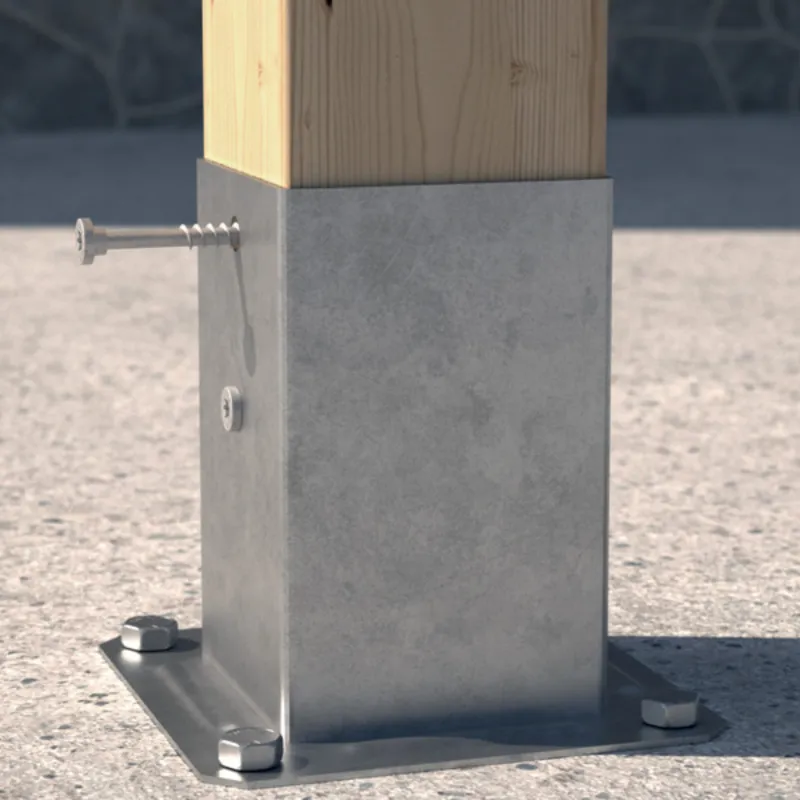

• Fixing railing and canopy brackets to timber beams, posts and frames
• Exterior and coastal timber structures
• Projects that specify AISI 316 stainless fixings
• Timber decks, terraces and balconies

FAQ:

What are the screw dimensions?

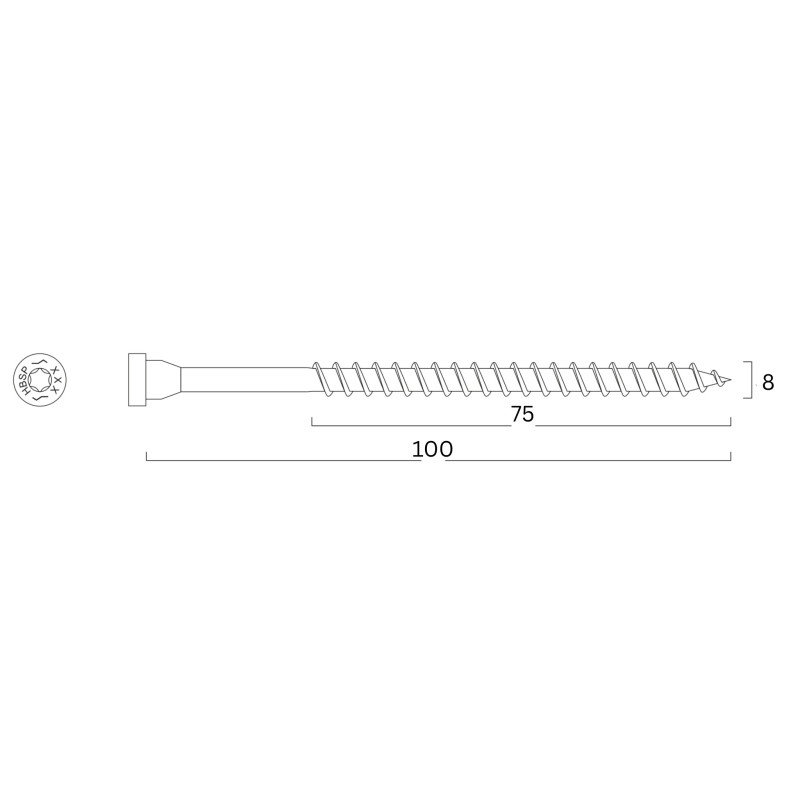

Ø8 mm, 100 mm total length, 75 mm thread.

Does it need pre-drilling?

Yes – drill a pilot hole of about 5 mm (0.6 × the screw diameter).

How does it differ from the carbon-steel Ø8 × 100 wood screw?

They are the same size. The carbon-steel version has a C4 EVO coating and is available unpainted or in RAL colours; this screw is solid AISI 316 stainless steel with a satin finish.

Which sizes are available?

In AISI 316: Ø10 × 140 mm and Ø8 × 100 mm. In coated carbon steel: Ø8 × 100, Ø10 × 140 and Ø10 × 180 mm.

About Anchors & Screws

Anchors and screws fix glass adaptors, French balcony holders, brackets, railing posts and other hardware to the building – to concrete, masonry, insulated façades or timber.

The range covers S235 steel anchor rods (Ø16 mm with an internal M8 and Ø20 mm with an internal M10 thread, 220–400 mm) for chemical anchoring, a zinc-plated anchor sleeve M10 × 80 mm, a PVC spacer sleeve for fixings through insulation, AISI 304 threaded rods and studs (M10 × 200 threaded rod, M10 × 50 set screw, M8 × 60 and M10 × 100 double threads for timber), DIN 912 screws, DIN 917 cup nuts, flat washers, and wood screws Ø8 and Ø10 mm in AISI 316 or coated carbon steel in RAL colours.

The right fastener depends on the substrate, the façade build-up, the thread size of the fitting and the load.
