Screw M8x20, AISI304

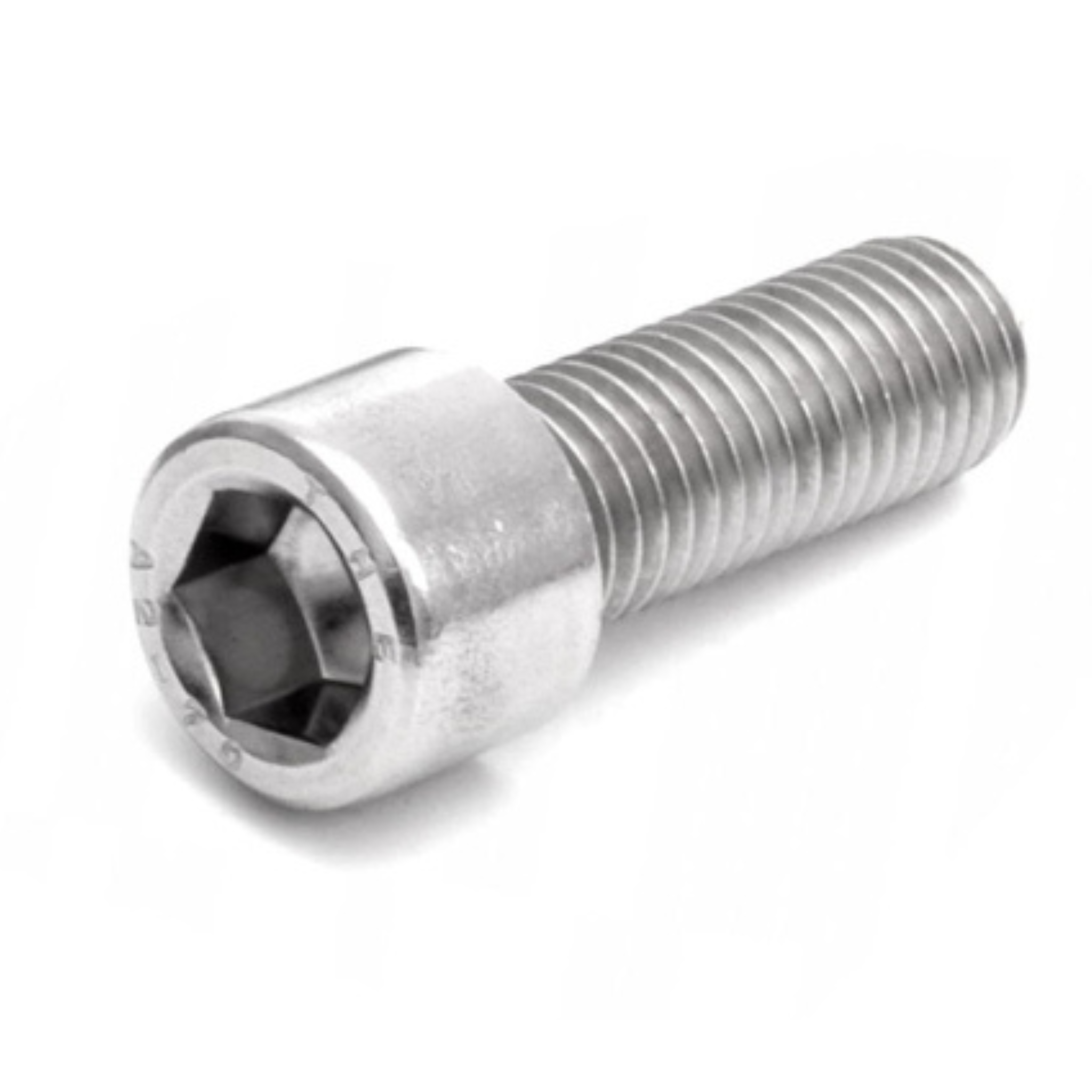

The Strofix screw M8×20 is an AISI 304 (A2) stainless-steel hex socket head cap screw manufactured to DIN 912 standard. The screw has an M8 thread and 20 mm length. It is tightened using a hex (Allen) key.

The DIN 912 hex socket cap screw is a standard fastener used in railing, balustrade, and architectural glass fixing assemblies. In a counterbored hole the cylindrical head can sit flush with the surface. The M8 thread matches the bolt pattern used in Strofix base plates with Ø8.5–9 mm bolt holes, such as the compact Ø80 mm round tube base plate and the 80 × 80 mm square tube base plates. The short 20 mm length is suited for shallow clamping applications where the bolt passes through thin components. AISI 304 (A2 grade) stainless steel provides corrosion resistance for both interior and exterior installations.

This SKU is a single fixed configuration – M8×20 mm, AISI 304 only.

Use cases:

• Glass clamp and glass adaptor bolt assemblies with M8 bolt pattern
• Securing components to base plates with Ø8.5–9 mm bolt holes
• Shallow clamping applications where a short 20 mm bolt is required
• General stainless-steel fastening in railing and balustrade systems
• Any M8 bolt application requiring a hex socket head in AISI 304

FAQ:

What are the screw dimensions?

The screw has an M8 thread and 20 mm length (M8×20 mm).

What standard does this screw conform to?

The screw is manufactured to DIN 912, which specifies hex socket head cap screws (also known as Allen bolts). This is equivalent to ISO 4762.

What tool is required?

A hex (Allen) key is required to tighten and loosen this screw. The hex socket is recessed into the bolt head.

How does this compare to the M10×45 screw?

This screw is M8 thread, 20 mm long – smaller and shorter. The M10×45 is M10 thread, 45 mm long. The M8×20 fits Ø8.5–9 mm bolt holes (compact base plates); the M10×45 fits Ø11 mm bolt holes (standard base plates). Choose based on the bolt hole size in the component being assembled.

What steel grade is used?

AISI 304, designated A2 under the European stainless-steel fastener classification.

About Anchors & Screws

Anchors and screws fix glass adaptors, French balcony holders, brackets, railing posts and other hardware to the building – to concrete, masonry, insulated façades or timber.

The range covers S235 steel anchor rods (Ø16 mm with an internal M8 and Ø20 mm with an internal M10 thread, 220–400 mm) for chemical anchoring, a zinc-plated anchor sleeve M10 × 80 mm, a PVC spacer sleeve for fixings through insulation, AISI 304 threaded rods and studs (M10 × 200 threaded rod, M10 × 50 set screw, M8 × 60 and M10 × 100 double threads for timber), DIN 912 screws, DIN 917 cup nuts, flat washers, and wood screws Ø8 and Ø10 mm in AISI 316 or coated carbon steel in RAL colours.

The right fastener depends on the substrate, the façade build-up, the thread size of the fitting and the load.
