Glass-mounted handrail bracket - D50mm, Flat, Satin, Adjustable

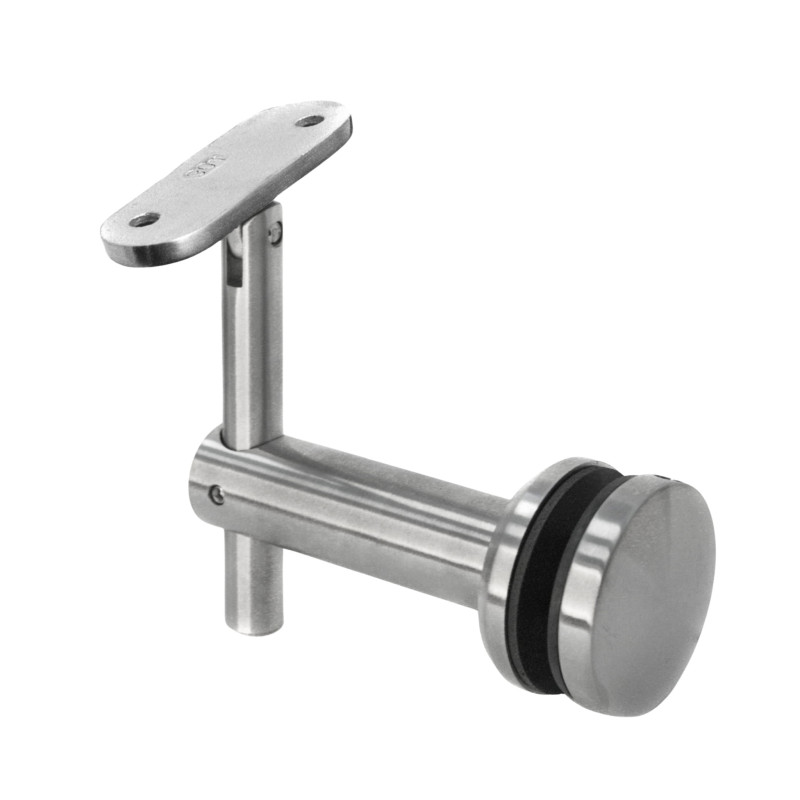

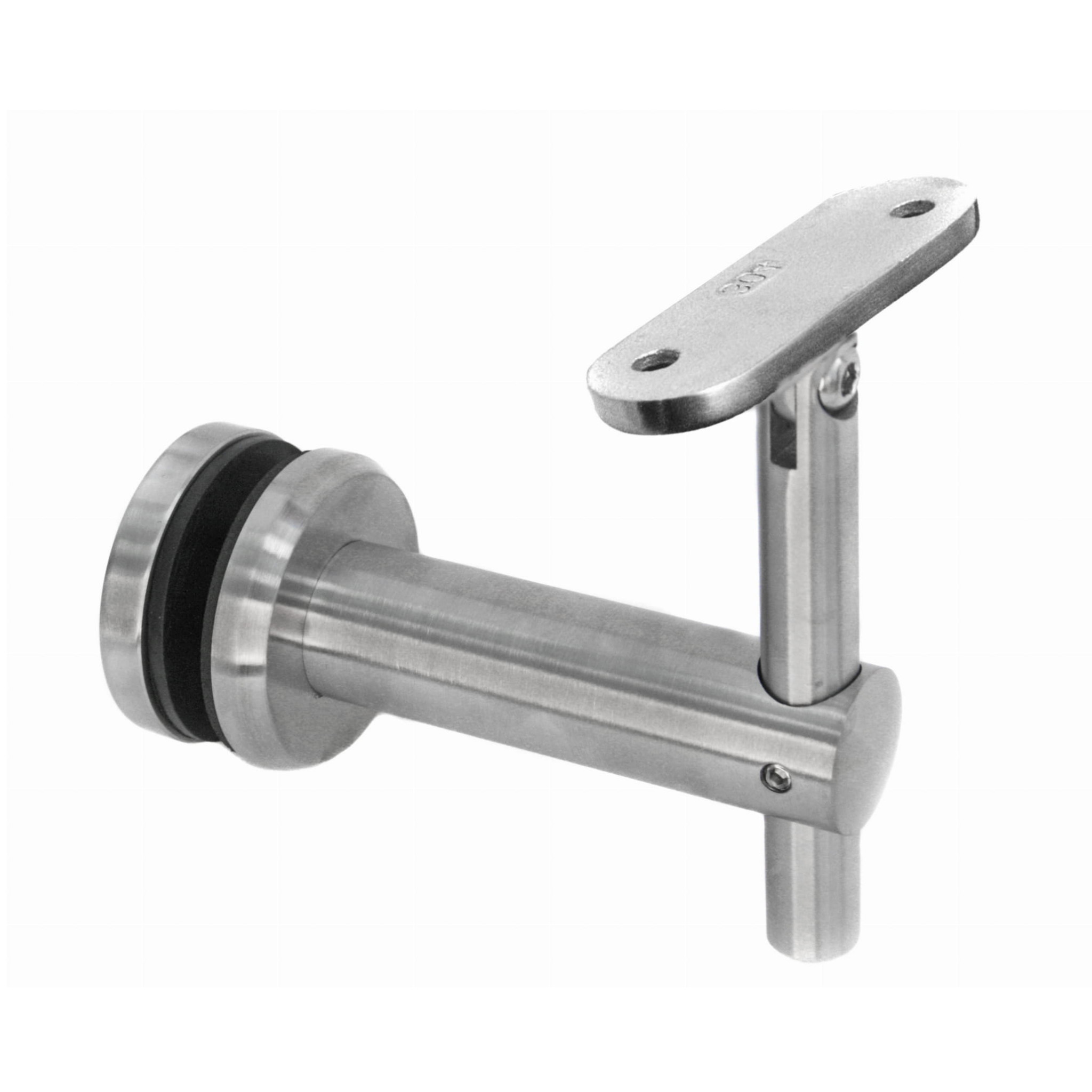

The Strofix glass-mounted handrail bracket D50, flat, adjustable is a stainless-steel bracket that fixes a handrail to a glass panel. The bracket attaches to a drilled glass panel and supports a handrail rail above it, with the flat saddle suited to flat-topped or cap rails. The base disc is ø50 mm. Manufactured from AISI 304 stainless steel with a satin finish. Both the height and the support plate angle are adjustable.

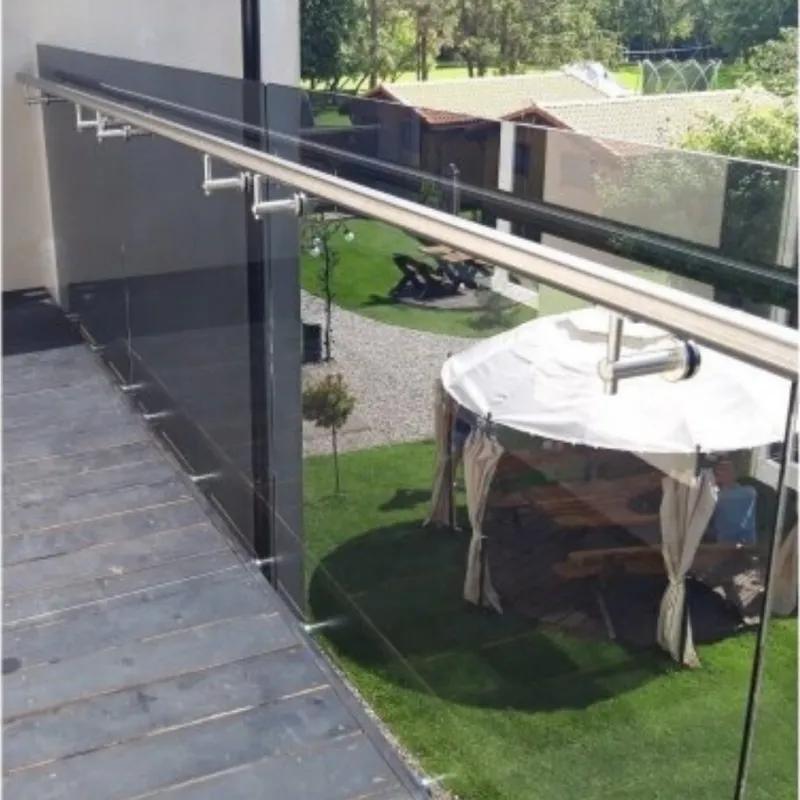

This bracket is part of the glass-mounted handrail support range, used to mount a continuous handrail along the top edge of a glass balustrade panel. The adjustable height lets the installer set the rail at the correct level above the glass, and the adjustable support plate compensates for raked or sloped runs (such as alongside a staircase), keeping the rail aligned while the glass follows the incline. The ø50 mm base provides a clean, substantial contact disc against the glass. AISI 304 stainless steel suits standard interior and sheltered exterior installations.

Use cases:

• Mounting a handrail to the top edge of a glass balustrade panel
• Glass-panel staircases requiring an adjustable bracket for the raked rail angle
• Continuous handrail support along frameless glass balustrades
• Handrail brackets where height adjustment is needed during installation
• Flat-saddle handrail fixing on glass for flat or capped rail profiles

FAQ

What does "adjustable" mean on this bracket?

Two things are adjustable: the height (the distance the rail sits above the glass) and the support plate angle. The angle adjustment is particularly useful on staircases and sloped runs, where the rail follows a rake while the bracket base stays fixed to the glass.

What does "flat" refer to?

The flat saddle — the top surface of the bracket that contacts the rail. The flat version suits flat-topped or capped rails. For a round ø42.4 mm pipe rail, use the "42.4" version, which has a curved saddle to cradle the round tube.

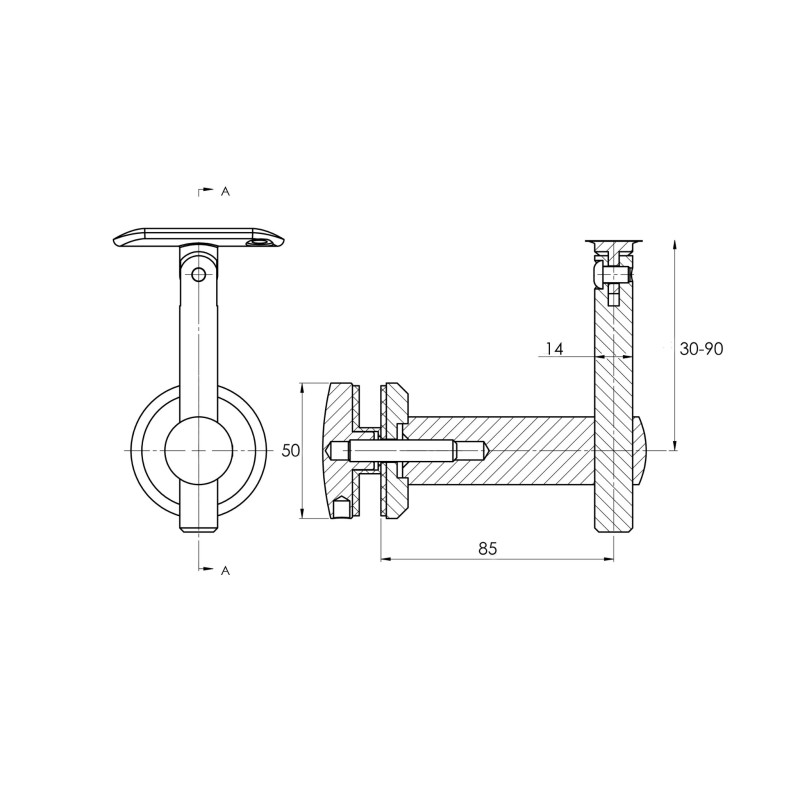

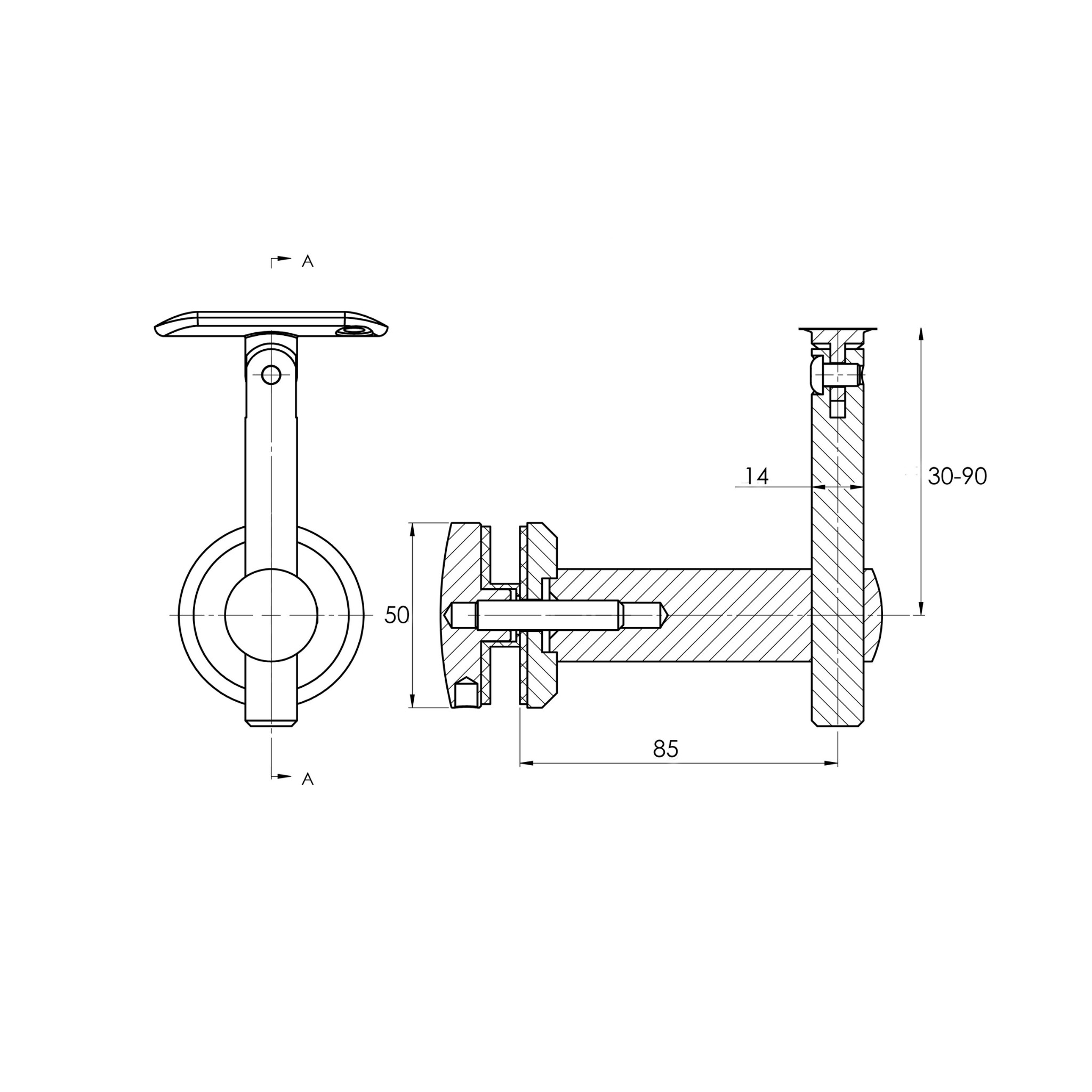

What is the ø50 mm dimension?

ø50 mm is the diameter of the bracket's base disc that contacts the glass. The range also includes ø30 mm and ø40 mm base sizes.

How does the bracket attach to the glass?

The bracket fixes to a drilled hole in the glass panel. The glass must be pre-drilled to the manufacturer's specification before installation.

What steel grade is used?

AISI 304 stainless steel with a satin finish, suitable for standard interior and sheltered exterior installations.
