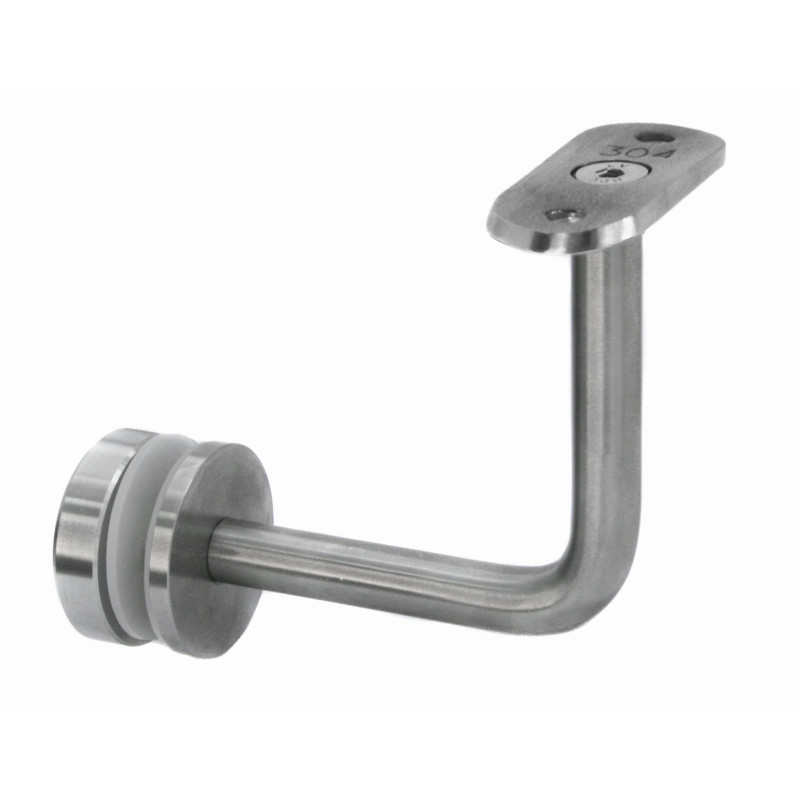

Glass-mounted handrail bracket - D40mm, Flat, Satin

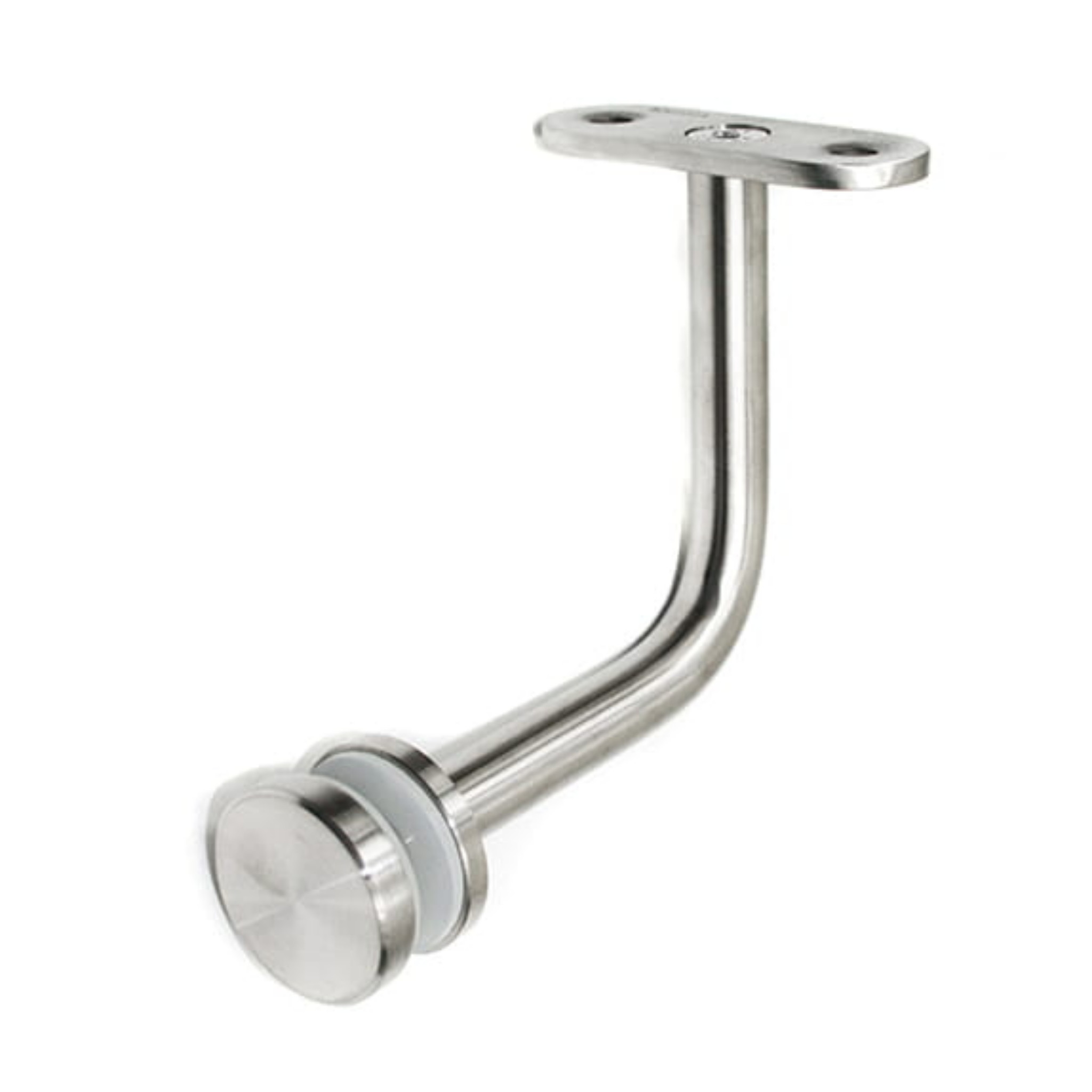

The Strofix glass-mounted handrail bracket D40, flat is a stainless-steel bracket that fixes a handrail to a glass panel. The bracket attaches to a drilled glass panel and supports a handrail above it, with the flat saddle suited to flat-topped or capped rails. The base disc is ø40 mm. Manufactured from AISI 304 stainless steel with a satin finish. This is a fixed (non-adjustable) bracket.

This bracket is the mid-size, fixed option in the glass-mounted handrail support range. The ø40 mm base is more compact than the ø50 mm version, giving a lighter visual footprint on the glass while still providing a solid handrail fixing. As a fixed bracket, it sets the rail at a defined height and angle — suitable for level (horizontal) handrail runs where adjustable angle compensation is not required. For raked or sloped runs such as staircases, the adjustable D50 version is recommended.

Use cases:

• Mounting a handrail to a glass balustrade panel on level (horizontal) runs
• Compact ø40 mm base fixing for a lighter visual footprint on glass

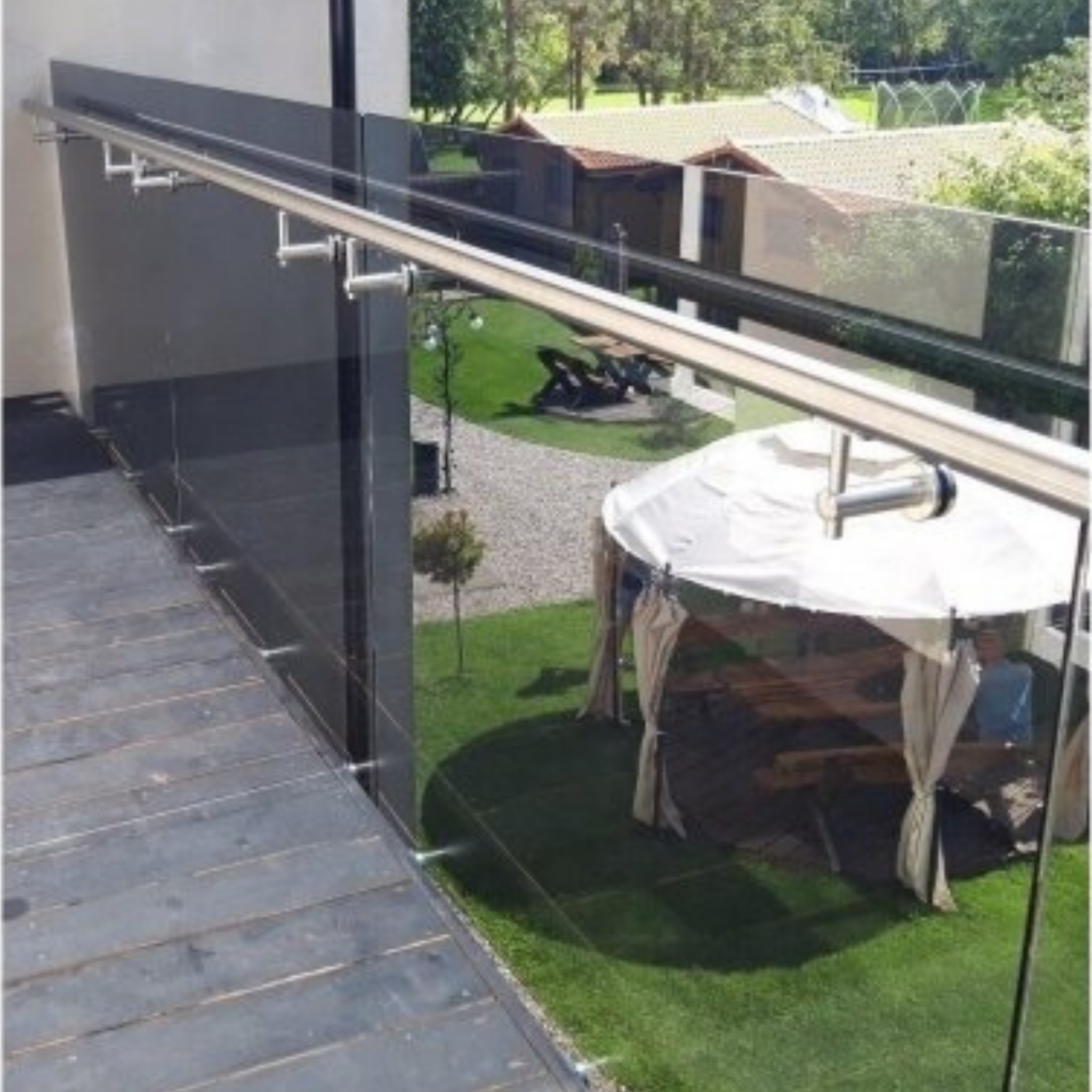

• Continuous handrail support along frameless glass balustrades
• Flat-saddle handrail fixing on glass for flat or capped rail profiles
• Fixed-angle handrail brackets for straight, horizontal glass balustrade runs

FAQ

Is this bracket adjustable?

No. This is a fixed bracket — the rail height and angle are set by the bracket's geometry. For adjustable height and support plate angle (useful on staircases and sloped runs), choose the adjustable D50 version.

What does "flat" refer to?

The flat saddle — the top surface that contacts the rail. The flat version suits flat-topped or capped rails. For a round ø42.4 mm pipe rail, use the D40 "42.4" version with a curved saddle.

What is the ø40 mm dimension?

ø40 mm is the diameter of the bracket's base disc that contacts the glass. The range also includes ø30 mm and ø50 mm base sizes.

How does this compare to the D50 and D30 brackets?

The D40 is the mid-size base between the compact ø30 mm and the larger ø50 mm. The D50 versions are adjustable; the D30 and D40 are fixed. Choose the base size for the desired visual proportion and the adjustability needed.

What steel grade is used?

AISI 304 stainless steel with a satin finish.

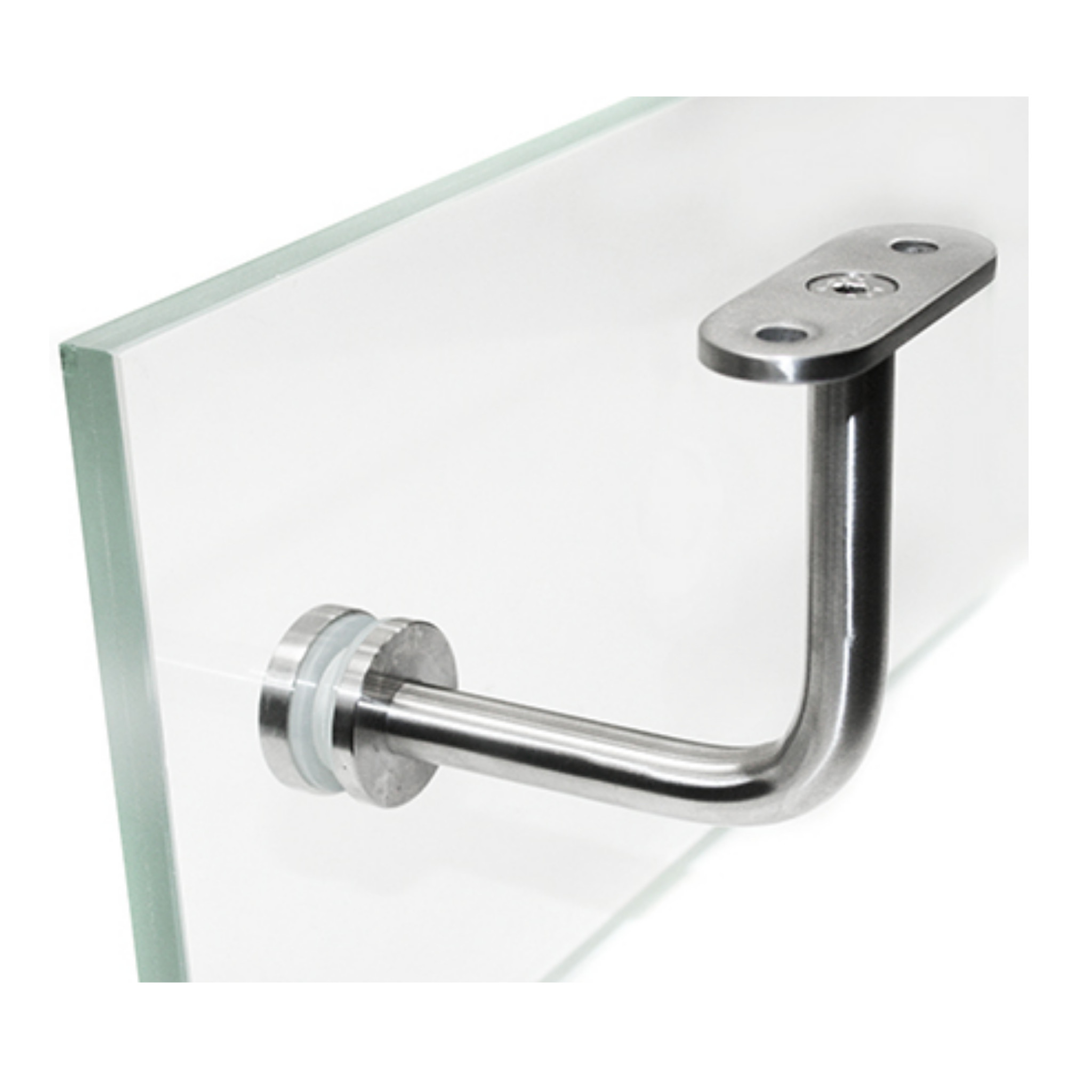

How does the bracket attach to the glass?

The bracket fixes to a pre-drilled hole in the glass panel, drilled to the manufacturer's specification before installation.
