Glass-mounted handrail bracket - D40mm, 42.4, Satin

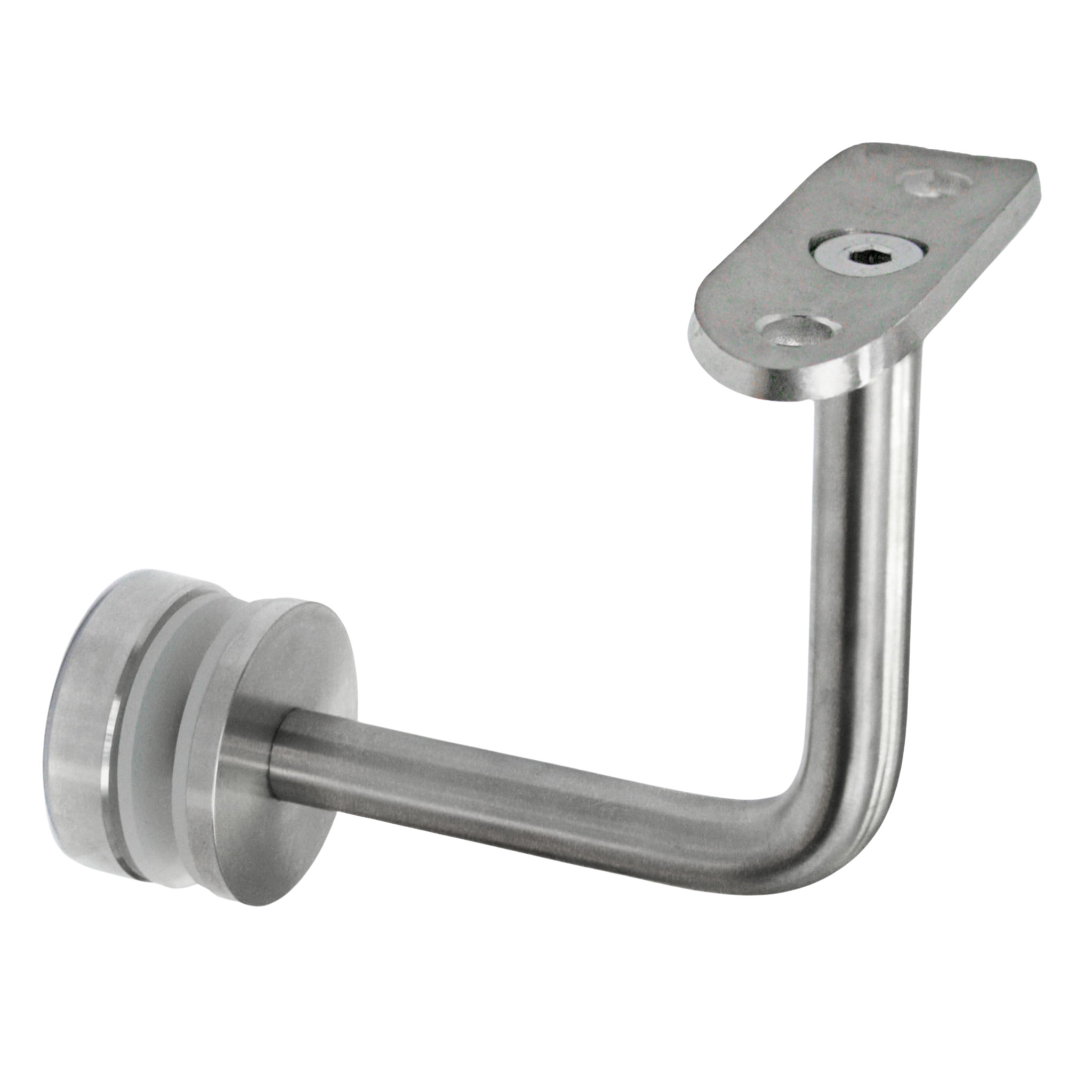

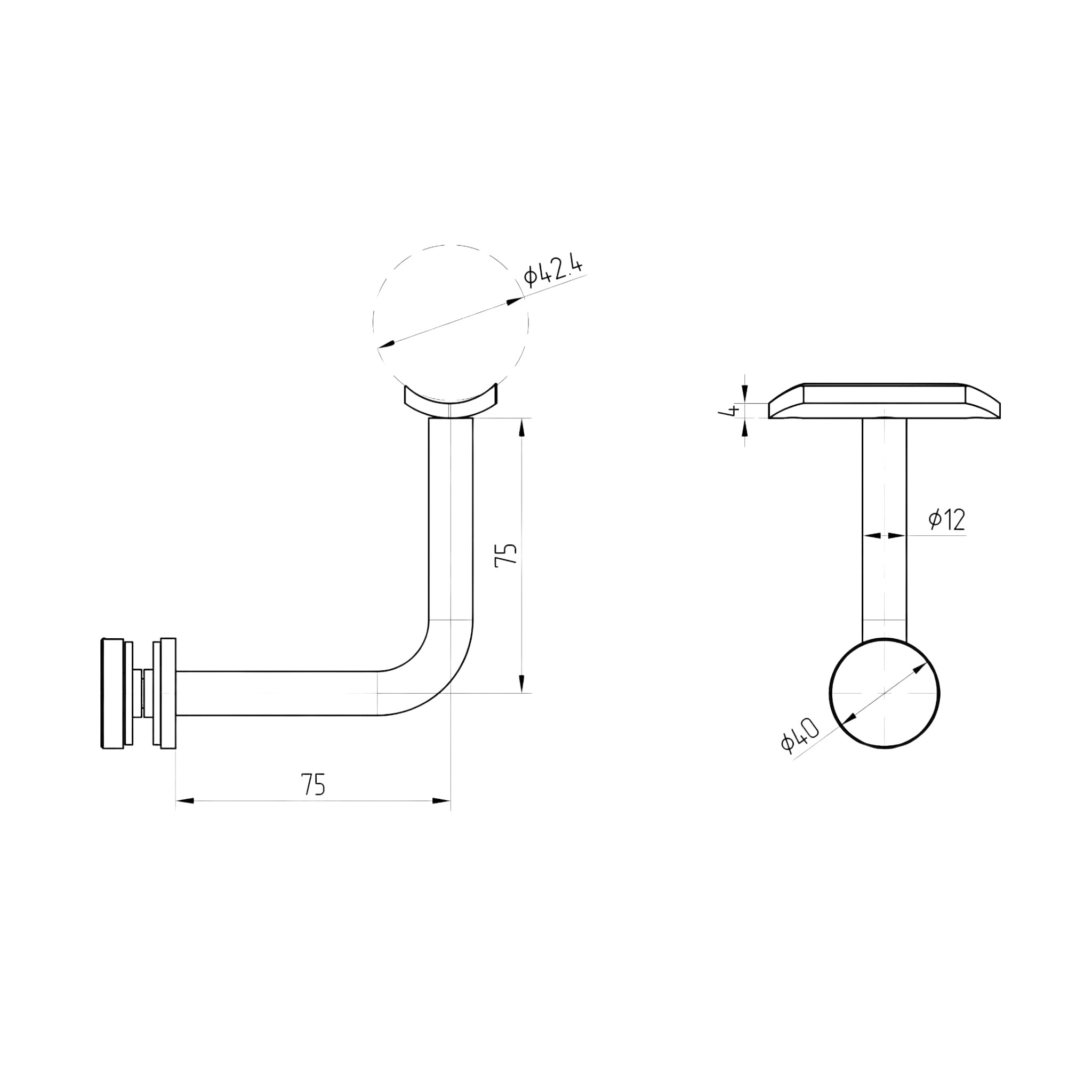

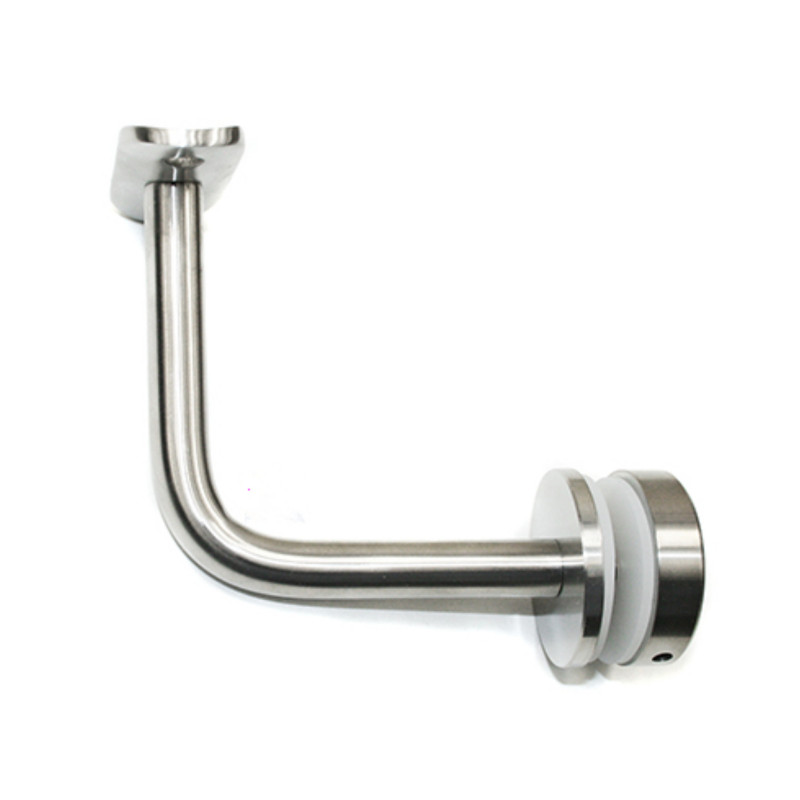

The Strofix glass-mounted handrail bracket D40, 42.4 is a stainless-steel bracket that fixes a round handrail pipe to a glass panel. The bracket attaches to a drilled glass panel, and its curved 42.4 saddle cradles a round ø42.4 mm handrail tube above it. The base disc is ø40 mm. Manufactured from AISI 304 stainless steel with a satin finish. This is a fixed (non-adjustable) bracket.

This is the round-pipe version of the fixed D40 glass-mounted handrail bracket. The curved saddle is shaped to seat a ø42.4 mm tube — the standard round handrail pipe size — whereas the companion "flat" D40 version suits flat-topped or capped rails. As a fixed bracket, it sets the rail at a defined height and angle, suitable for level (horizontal) handrail runs. For raked or sloped runs such as staircases, the adjustable D50 version is recommended. The ø40 mm base gives a compact, light visual footprint on the glass.

Use cases:

• Mounting a round ø42.4 mm handrail pipe to a glass balustrade panel on level runs
• Compact ø40 mm base fixing for round handrail tube on glass

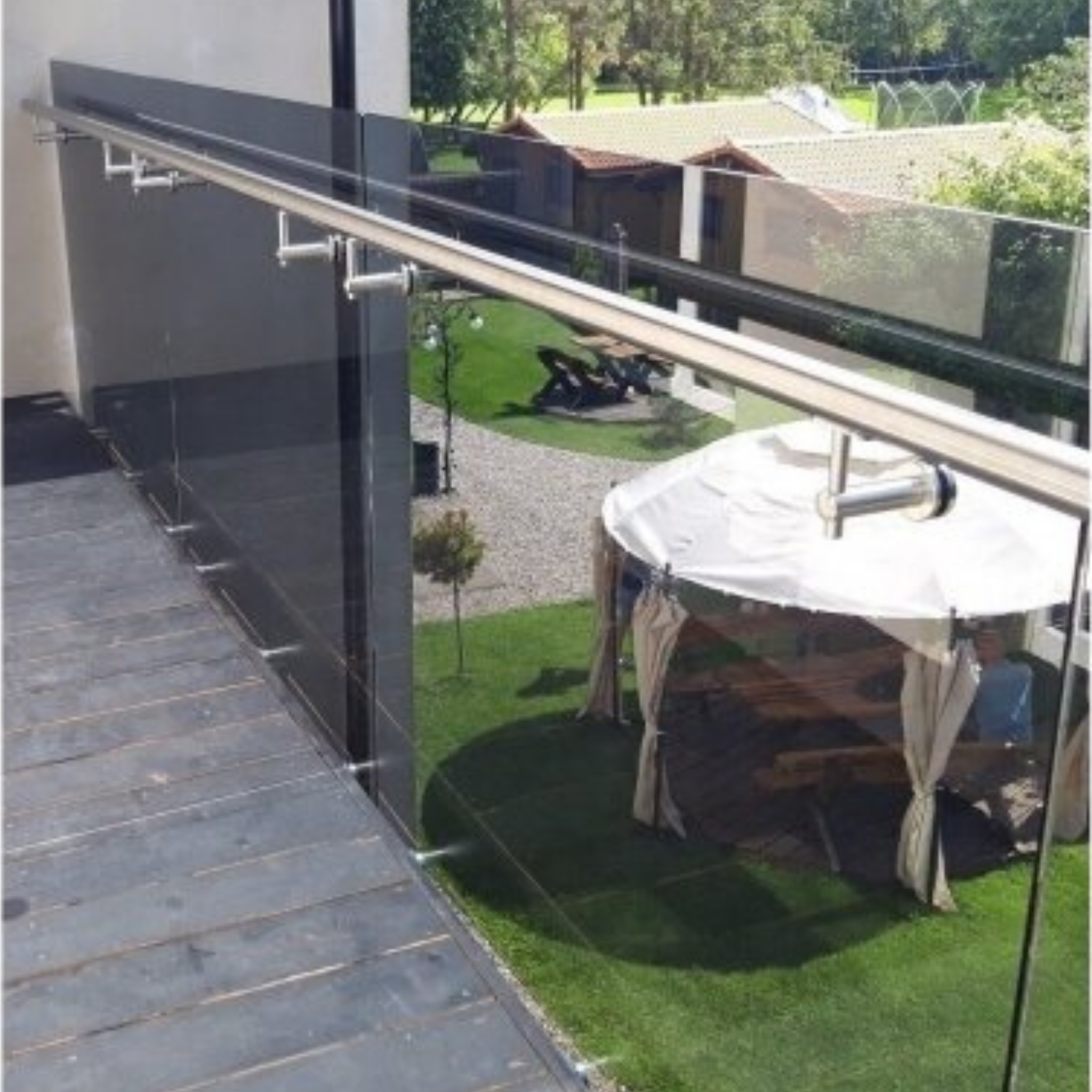

• Continuous round handrail support along frameless glass balustrades
• Curved-saddle handrail fixing on glass for ø42.4 mm tube rails
• Fixed-angle round handrail brackets for straight, horizontal glass balustrade runs

FAQ

Is this bracket adjustable?

No. This is a fixed bracket. For adjustable height and support plate angle (useful on staircases), choose the adjustable D50 version.

How does this differ from the "flat" D40 bracket?

Both are ø40 mm AISI 304 satin fixed brackets at the same price. This version has a curved "42.4" saddle to cradle a round ø42.4 mm pipe; the flat version has a flat saddle for flat-topped or capped rails.

What handrail pipe does the saddle fit?

A round ø42.4 mm tube — the standard round handrail pipe size.

What is the ø40 mm dimension?

ø40 mm is the diameter of the bracket's base disc that contacts the glass. The range also includes ø30 mm and ø50 mm base sizes.

What steel grade is used?

AISI 304 stainless steel with a satin finish.

How does the bracket attach to the glass?

The bracket fixes to a pre-drilled hole in the glass panel, drilled to the manufacturer's specification before installation.
