Glass-mounted handrail bracket - D30mm, Flat, Satin

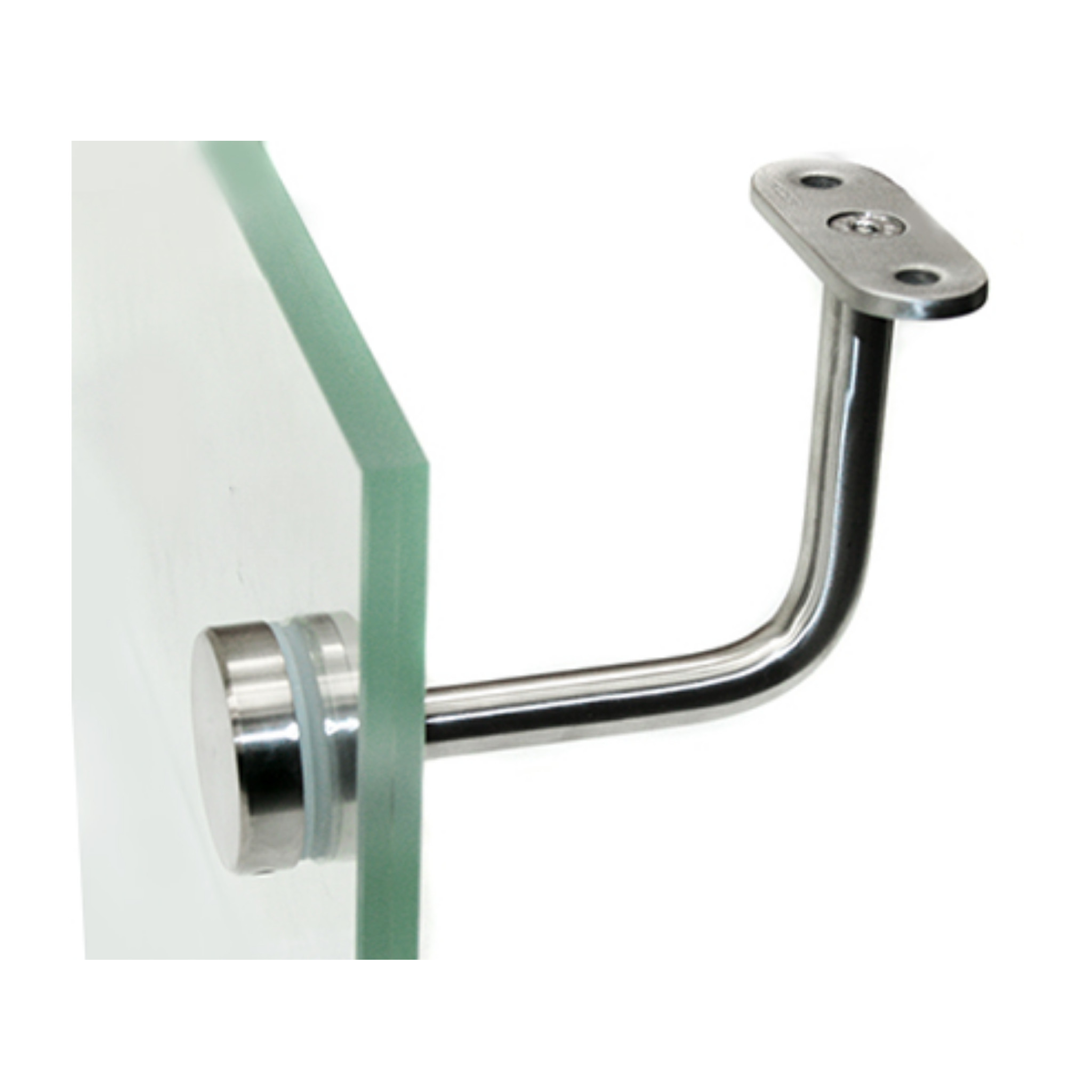

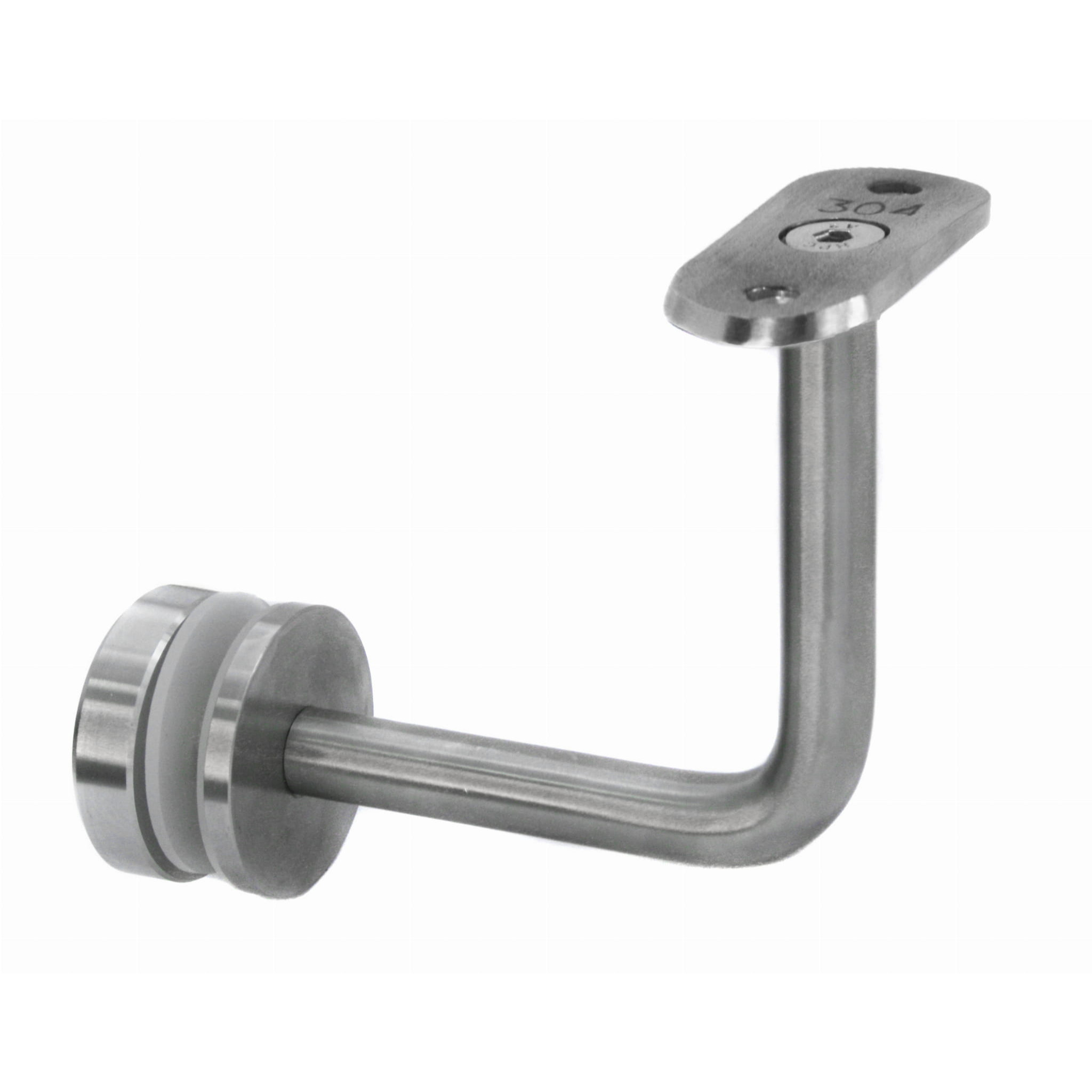

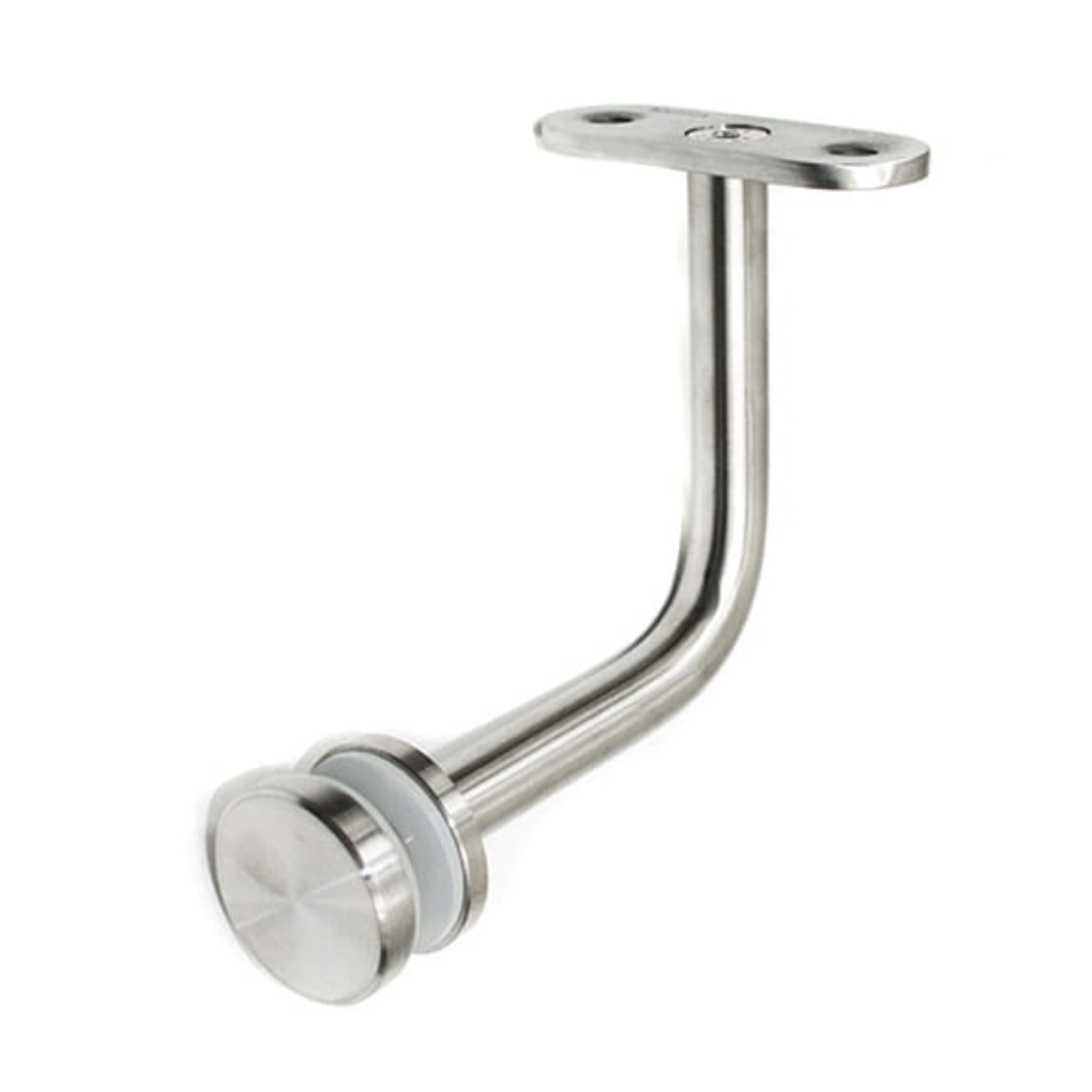

The Strofix glass-mounted handrail bracket D30, flat is a stainless-steel bracket that fixes a handrail to a glass panel. The bracket attaches to a drilled glass panel and supports a handrail above it, with the flat saddle suited to flat-topped or capped rails. The base disc is ø30 mm. Manufactured from AISI 304 stainless steel with a satin finish. This is a fixed (non-adjustable) bracket.

This bracket is the most compact, fixed option in the glass-mounted handrail support range. The ø30 mm base gives the smallest, most discreet visual footprint on the glass, suited to minimalist installations where the bracket should recede visually. As a fixed bracket, it sets the rail at a defined height and angle, suitable for level (horizontal) handrail runs. For raked or sloped runs such as staircases, the adjustable D50 version is recommended.

Use cases:

• Mounting a handrail to a glass balustrade panel with the most discreet base
• Minimalist installations where the bracket should recede visually

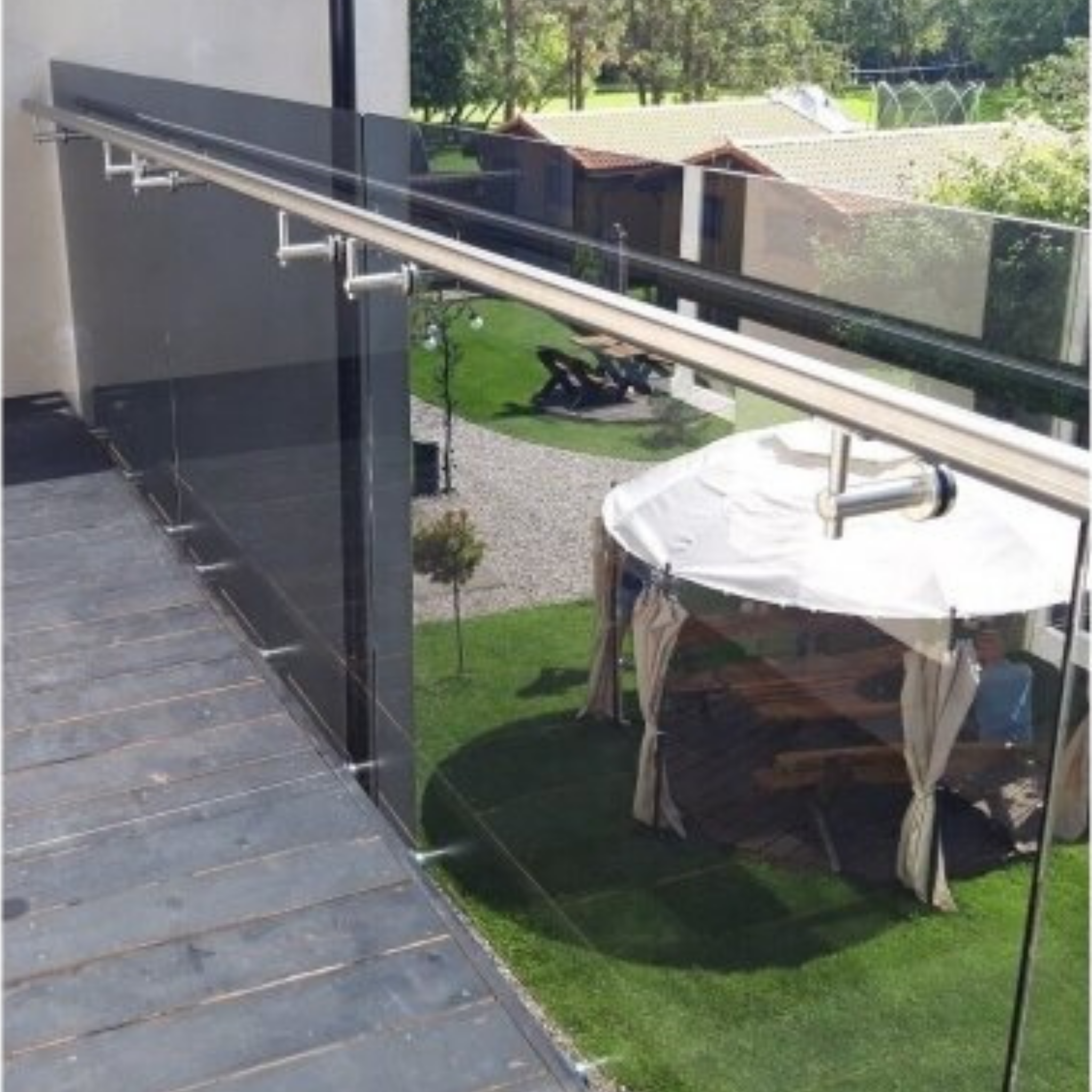

• Continuous handrail support along frameless glass balustrades on level runs
• Flat-saddle handrail fixing on glass for flat or capped rail profiles
• Compact fixed-angle handrail brackets for straight, horizontal glass balustrades

FAQ

Is this bracket adjustable?

No. This is a fixed bracket. For adjustable height and support plate angle (useful on staircases and sloped runs), choose the adjustable D50 version.

What does "flat" refer to?

The flat saddle — the top surface that contacts the rail. The flat version suits flat-topped or capped rails. For a round ø42.4 mm pipe rail, use the D30 "42.4" version with a curved saddle.

What is the ø30 mm dimension?

ø30 mm is the diameter of the bracket's base disc that contacts the glass — the smallest in the range. The range also includes ø40 mm and ø50 mm base sizes.

How does this compare to the D40 and D50 brackets?

The D30 is the most compact base, giving the lightest visual footprint. The D40 is mid-size; the D50 is the largest and is adjustable. The D30 and D40 are fixed brackets.

What steel grade is used?

AISI 304 stainless steel with a satin finish.

How does the bracket attach to the glass?

The bracket fixes to a pre-drilled hole in the glass panel, drilled to the manufacturer's specification before installation.
