Glass-mounted handrail bracket - D50mm, 42.4, Satin, Adjustable

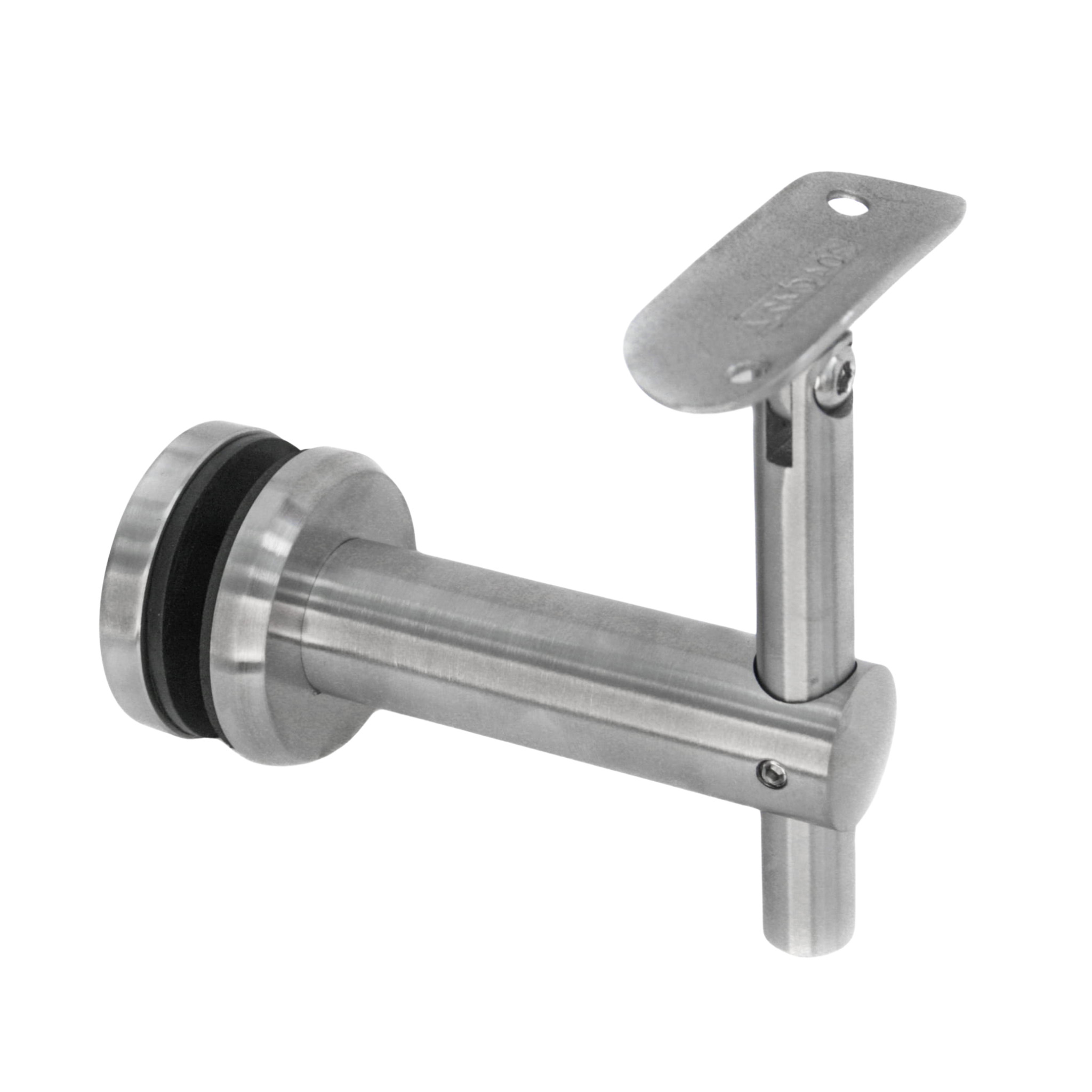

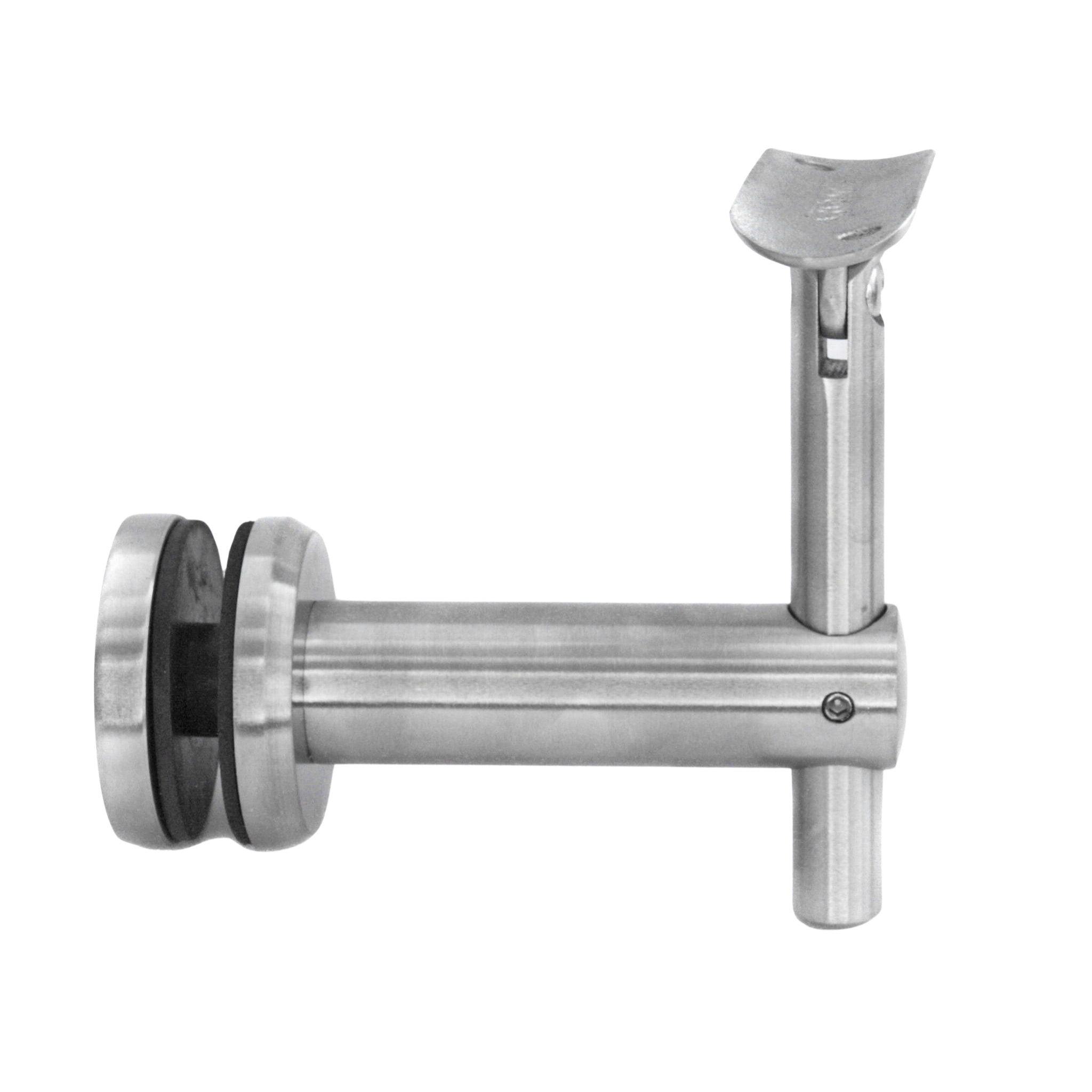

The Strofix glass-mounted handrail bracket D50, 42.4, adjustable is a stainless-steel bracket that fixes a round handrail pipe to a glass panel. The bracket attaches to a drilled glass panel, and its curved 42.4 saddle cradles a round ø42.4 mm handrail tube above it. The base disc is ø50 mm. Manufactured from AISI 304 stainless steel with a satin finish. Both the height and the support plate angle are adjustable.

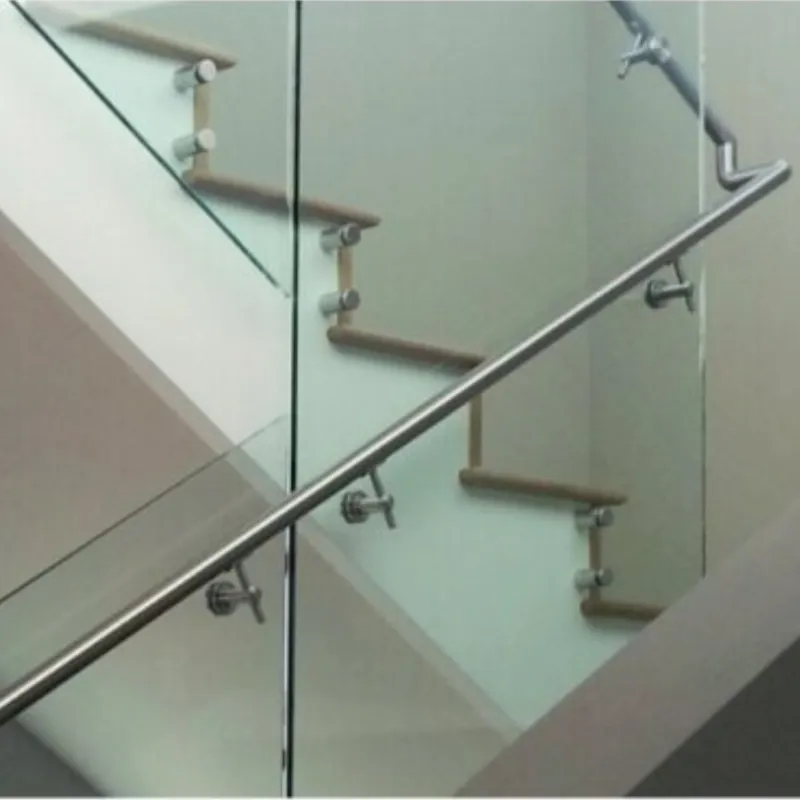

This is the round-pipe version of the adjustable D50 glass-mounted handrail bracket. The curved saddle is shaped to seat a ø42.4 mm tube — the standard round handrail pipe size — whereas the companion "flat" version suits flat-topped or capped rails. The adjustable height sets the rail level above the glass, and the adjustable support plate compensates for raked or sloped runs such as staircases, keeping the round rail aligned while the glass follows the incline. The ø50 mm base provides a substantial contact disc against the glass.

Use cases:

• Mounting a round ø42.4 mm handrail pipe to a glass balustrade panel
• Glass-panel staircases with a round tube rail requiring adjustable angle
• Continuous round handrail support along frameless glass balustrades
• Round-pipe handrail brackets where height adjustment is needed during installation
• Curved-saddle handrail fixing on glass for ø42.4 mm tube rails

FAQ

How does this differ from the "flat" D50 adjustable bracket?

Both are ø50 mm AISI 304 satin adjustable glass-mounted handrail brackets. This version has a curved "42.4" saddle to cradle a round ø42.4 mm pipe; the flat version has a flat saddle for flat-topped or capped rails. Choose this version when the handrail is a round ø42.4 mm tube.

What does "adjustable" mean?

Both the height (rail level above the glass) and the support plate angle are adjustable. The angle adjustment suits staircases and sloped runs, where the rail follows a rake while the bracket base stays fixed to the glass.

What handrail pipe does the saddle fit?

A round ø42.4 mm tube — the standard round handrail pipe size.

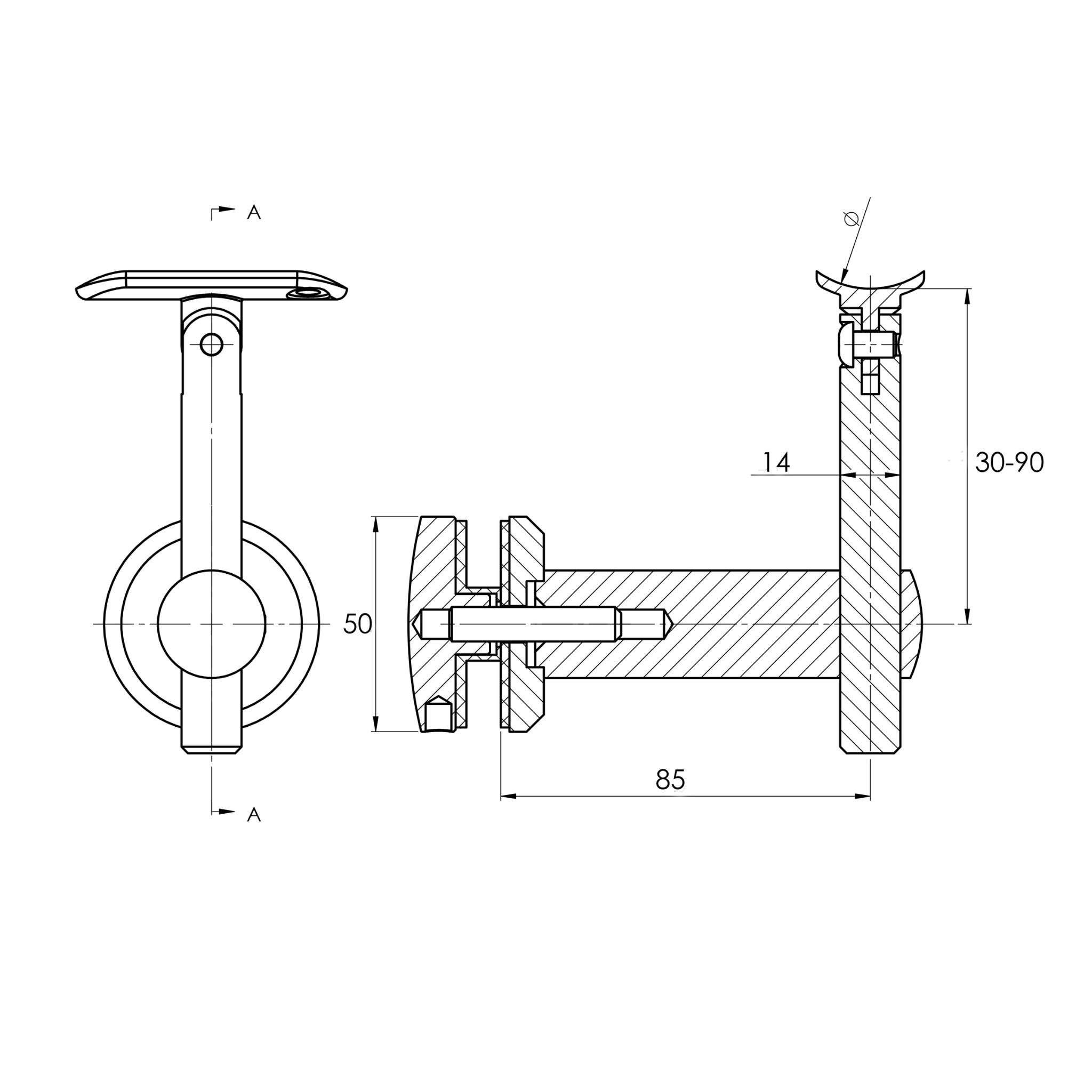

What is the ø50 mm dimension?

ø50 mm is the diameter of the bracket's base disc that contacts the glass. The range also includes ø30 mm and ø40 mm base sizes.

What steel grade is used?

AISI 304 stainless steel with a satin finish.

How does the bracket attach to the glass?

The bracket fixes to a pre-drilled hole in the glass panel, drilled to the manufacturer's specification before installation.
