Glass-mounted handrail bracket - D30mm, 42.4, Satin

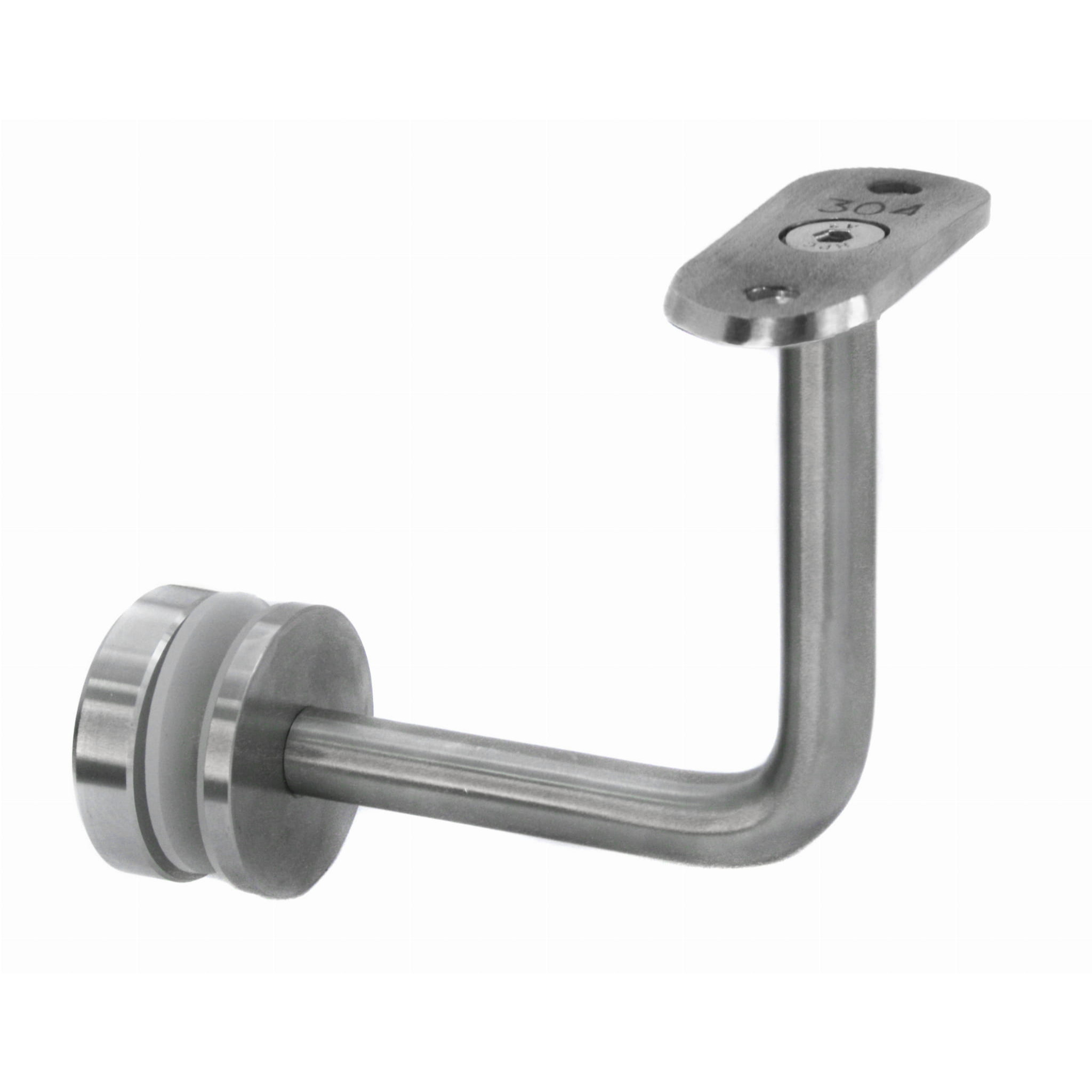

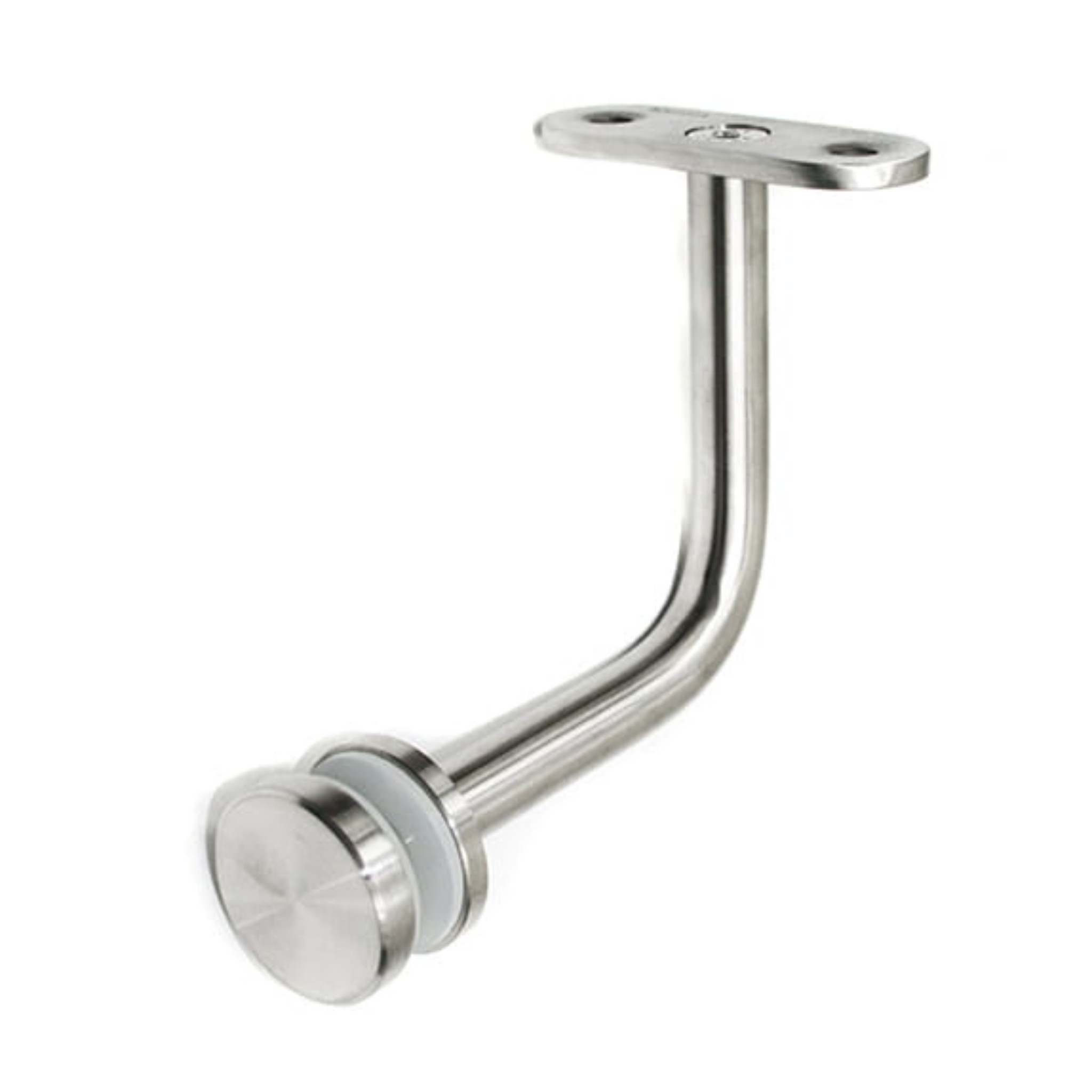

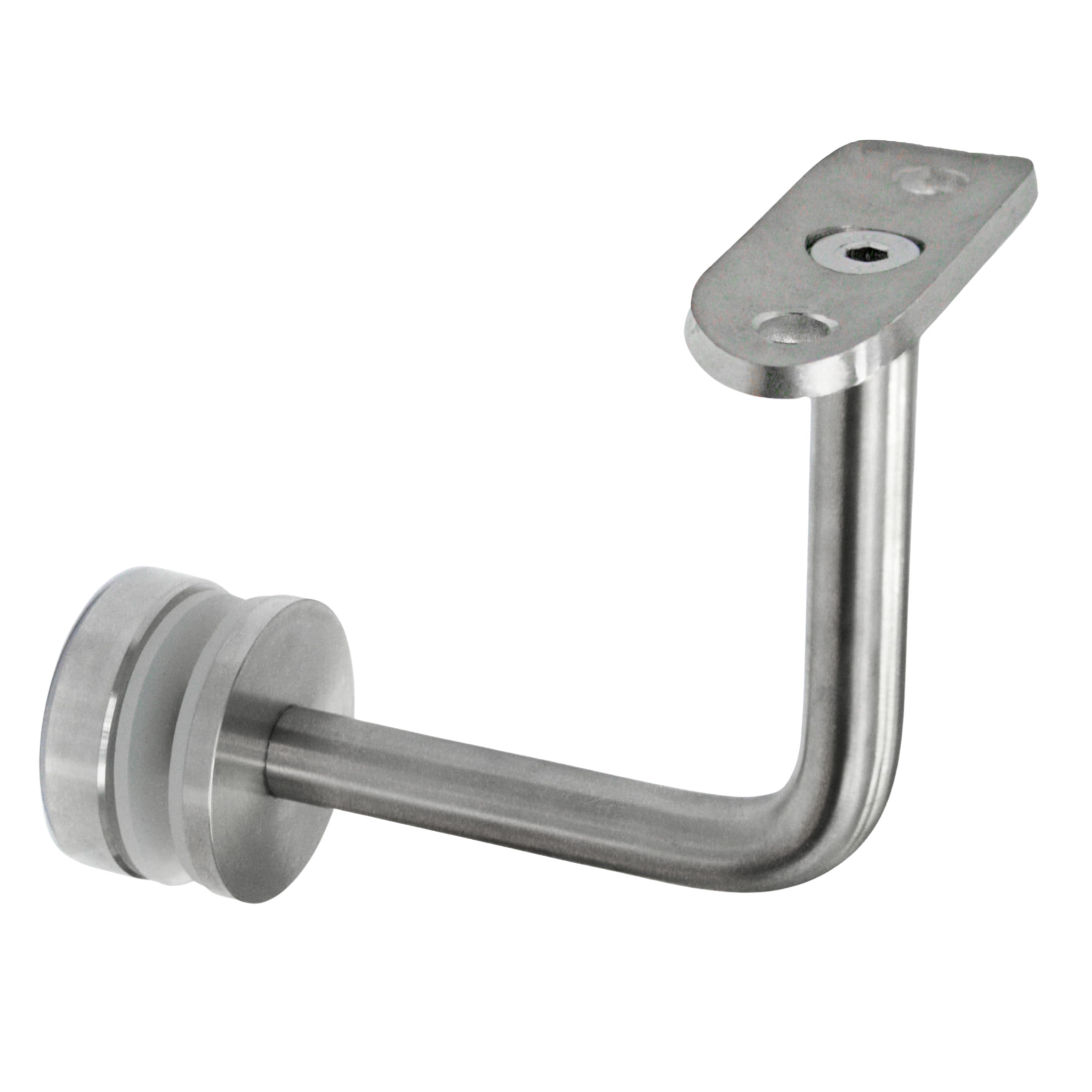

The Strofix glass-mounted handrail bracket D30, 42.4 is a stainless-steel bracket that fixes a round handrail pipe to a glass panel. The bracket attaches to a drilled glass panel, and its curved 42.4 saddle cradles a round ø42.4 mm handrail tube above it. The base disc is ø30 mm. Manufactured from AISI 304 stainless steel with a satin finish. This is a fixed (non-adjustable) bracket.

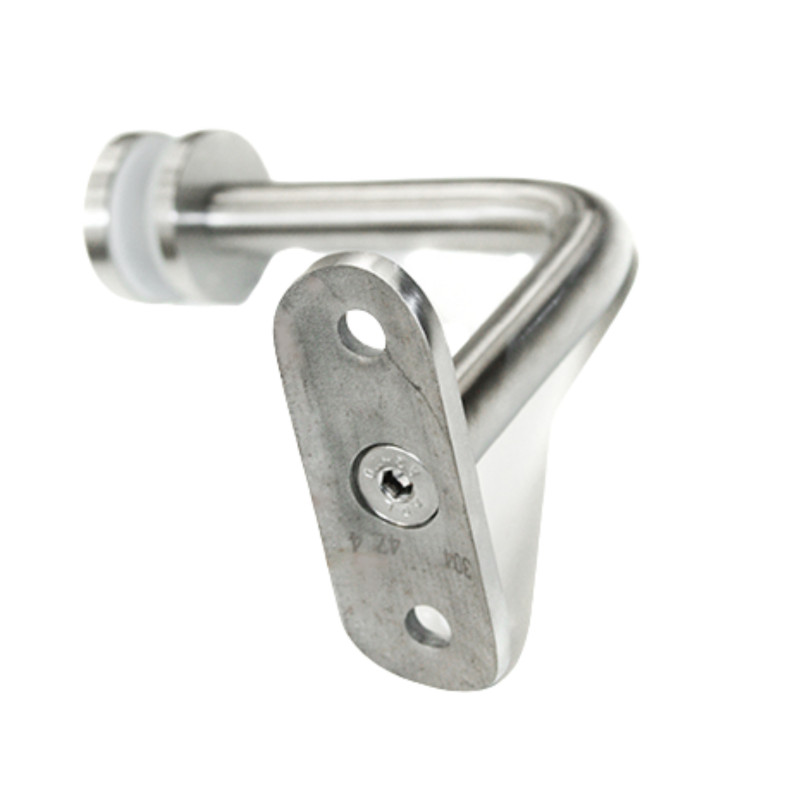

This is the round-pipe version of the most compact glass-mounted handrail bracket. The curved saddle is shaped to seat a ø42.4 mm tube — the standard round handrail pipe size — whereas the companion "flat" D30 version suits flat-topped or capped rails. The ø30 mm base gives the smallest, most discreet visual footprint on the glass. As a fixed bracket, it sets the rail at a defined height and angle, suitable for level (horizontal) handrail runs. For raked or sloped runs such as staircases, the adjustable D50 version is recommended.

Use cases:

• Mounting a round ø42.4 mm handrail pipe to a glass balustrade panel with the most discreet base
• Minimalist installations with a round handrail tube where the bracket should recede visually

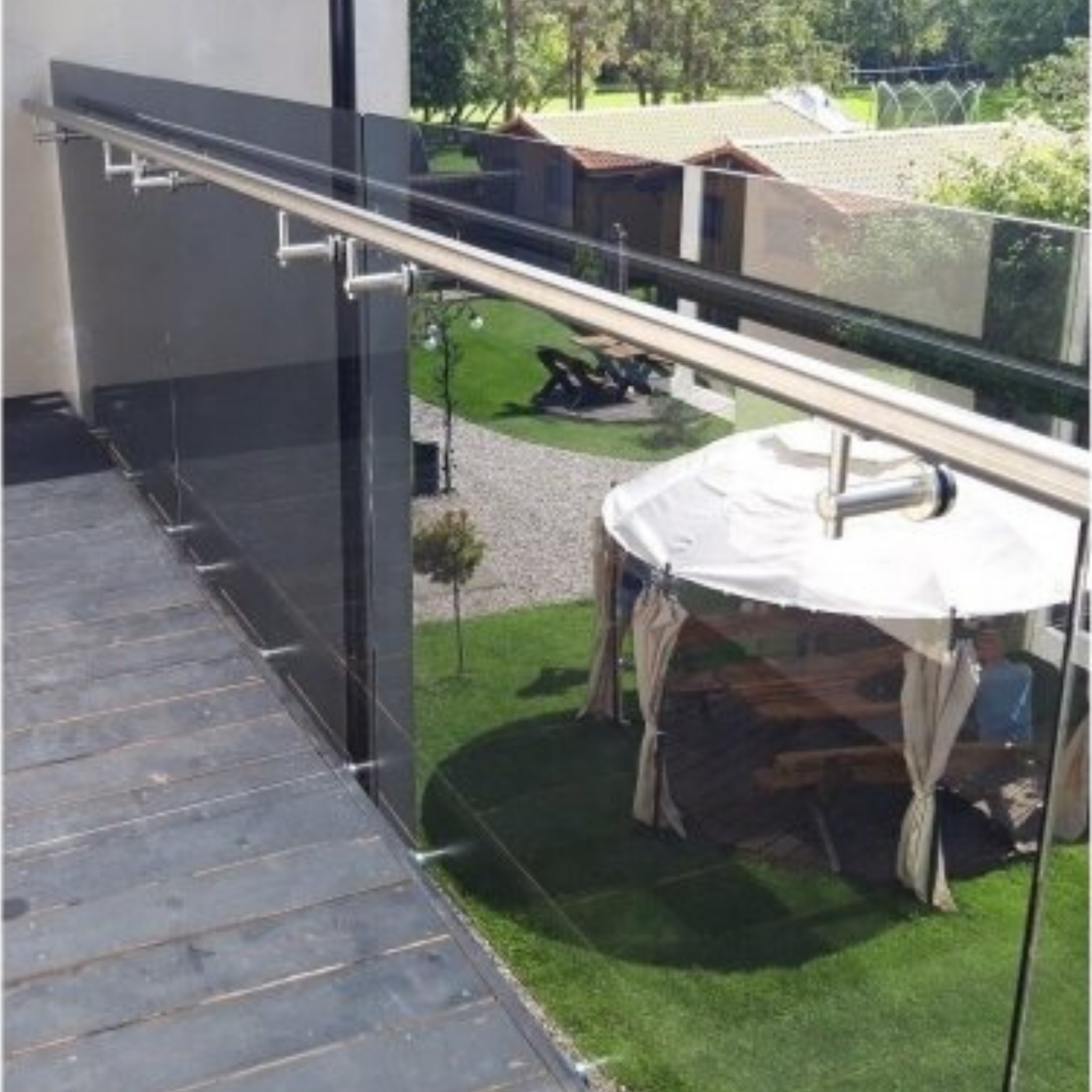

• Continuous round handrail support along frameless glass balustrades on level runs
• Curved-saddle handrail fixing on glass for ø42.4 mm tube rails
• Compact fixed-angle round handrail brackets for straight, horizontal glass balustrades

FAQ

Is this bracket adjustable?

No. This is a fixed bracket. For adjustable height and support plate angle (useful on staircases), choose the adjustable D50 version.

How does this differ from the "flat" D30 bracket?

Both are ø30 mm AISI 304 satin fixed brackets at the same price. This version has a curved "42.4" saddle to cradle a round ø42.4 mm pipe; the flat version has a flat saddle for flat-topped or capped rails.

What handrail pipe does the saddle fit?

A round ø42.4 mm tube — the standard round handrail pipe size.

What is the ø30 mm dimension?

ø30 mm is the diameter of the bracket's base disc that contacts the glass — the smallest in the range. The range also includes ø40 mm and ø50 mm base sizes.

What steel grade is used?

AISI 304 stainless steel with a satin finish.

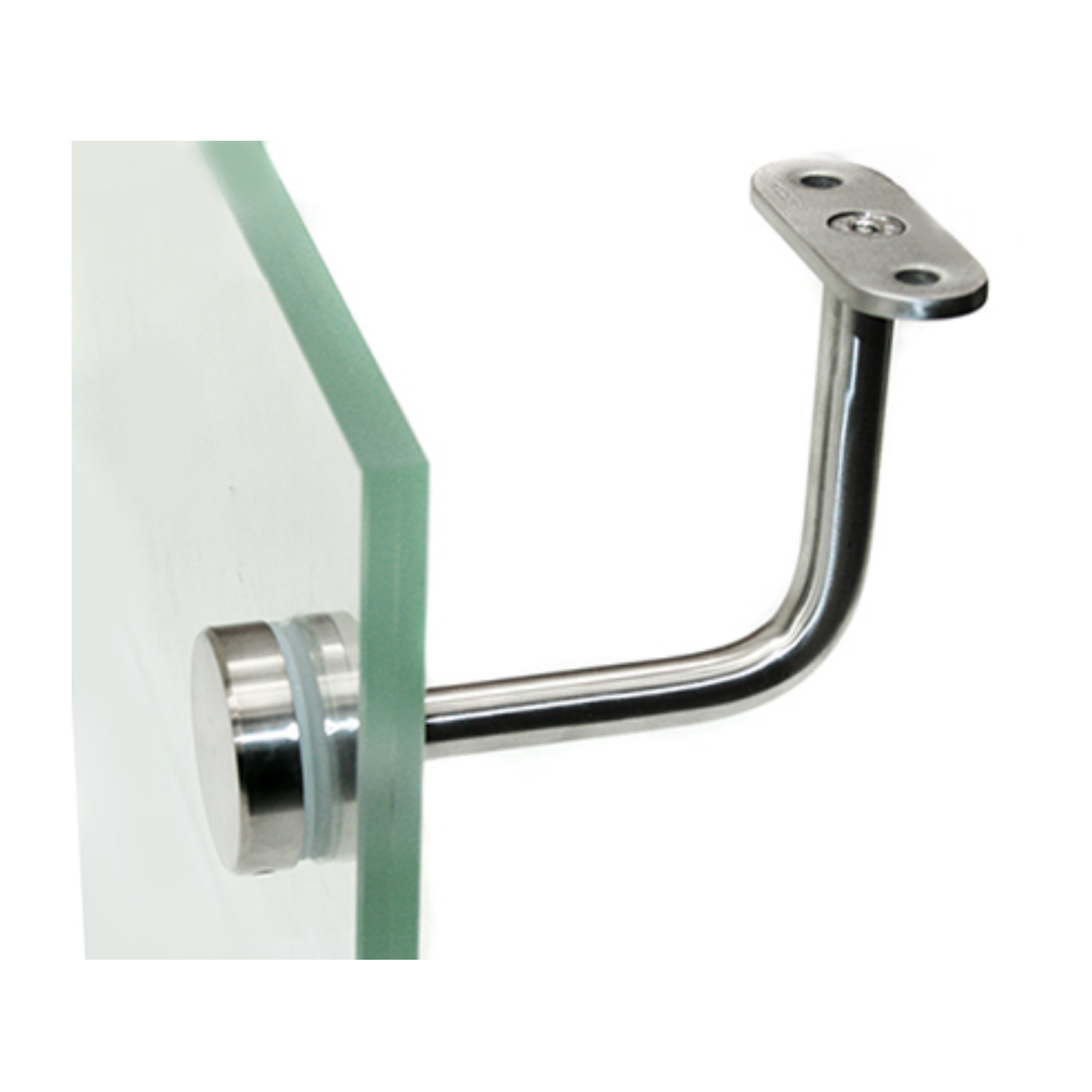

How does the bracket attach to the glass?

The bracket fixes to a pre-drilled hole in the glass panel, drilled to the manufacturer's specification before installation.
