Glass clamp 60x60mm 180°, Satin, 42.4

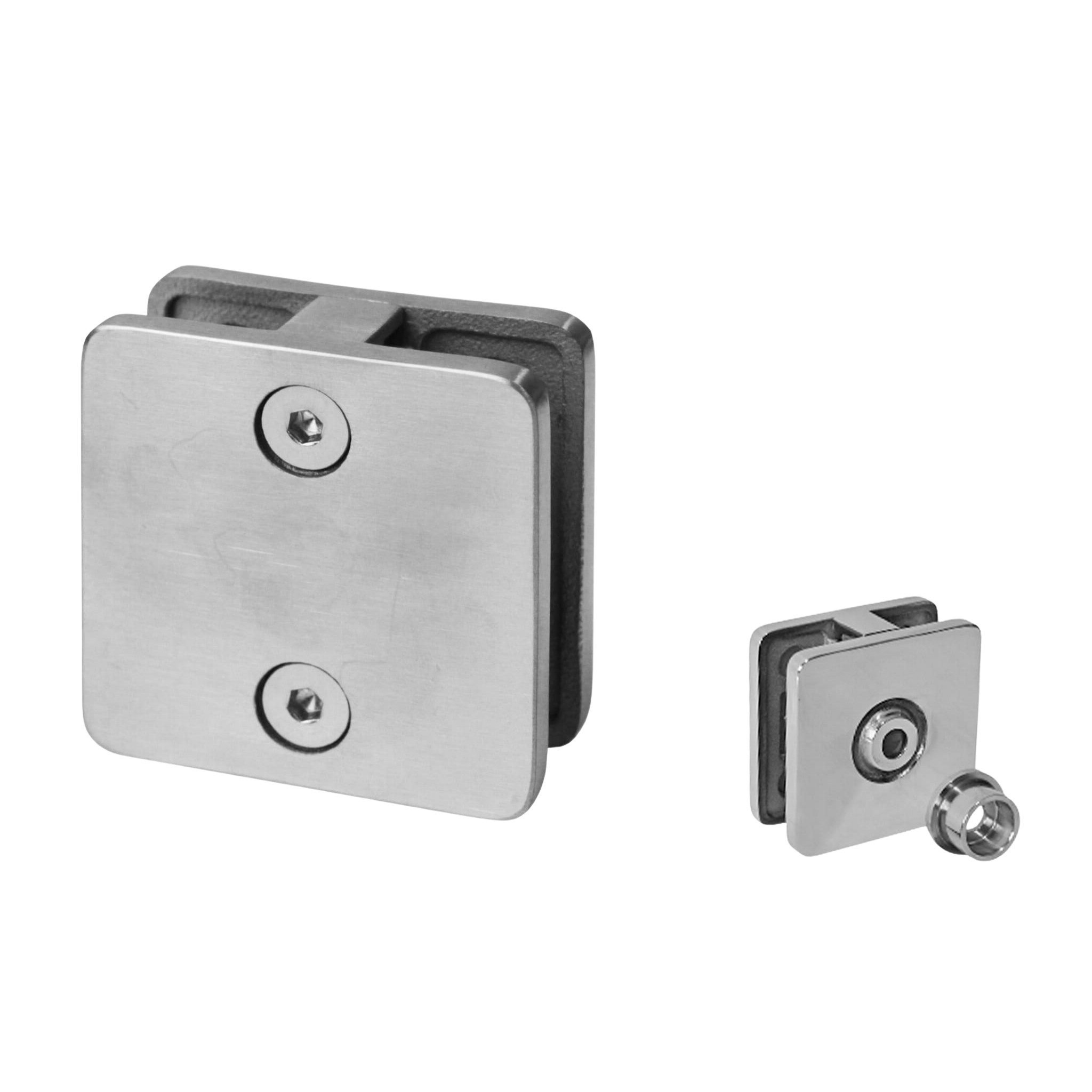

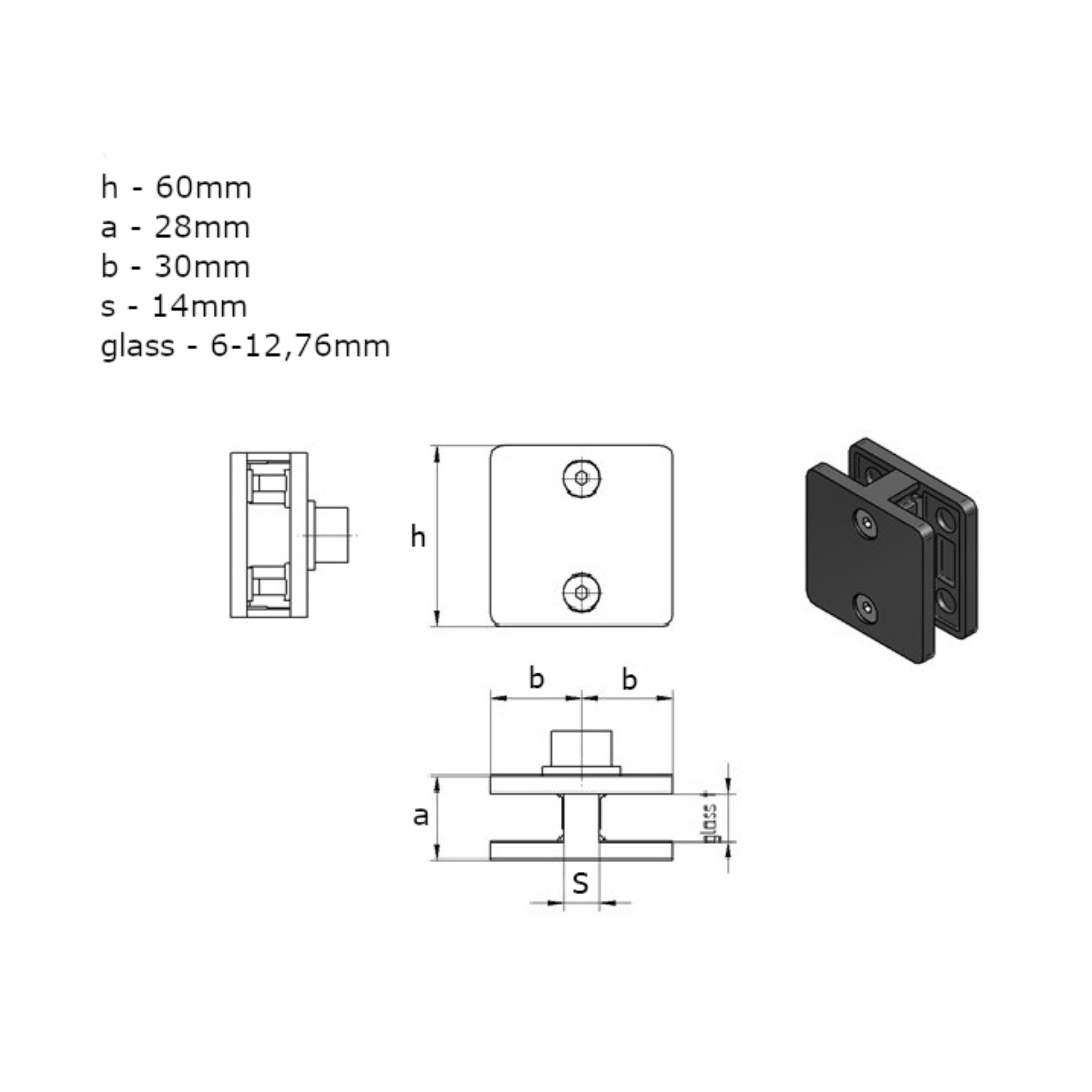

The Strofix glass clamp 60×60 mm 180° for Ø42.4 tube is a stainless-steel glass-to-glass joint clamp for connecting two glass panels in a straight line (180° alignment) on Ø42.4 mm round railing post tubes. The clamp joins the meeting edges of two adjacent glass panels that sit in the same plane, creating a continuous glass balustrade run from multiple panels. The clamp measures 60 × 60 mm and holds glass panels from 6 to 12.76 mm thick. Manufactured exclusively from AISI 316 stainless steel with a satin finish. Mounts on Ø42.4 mm tube. Secured with M8 screws.

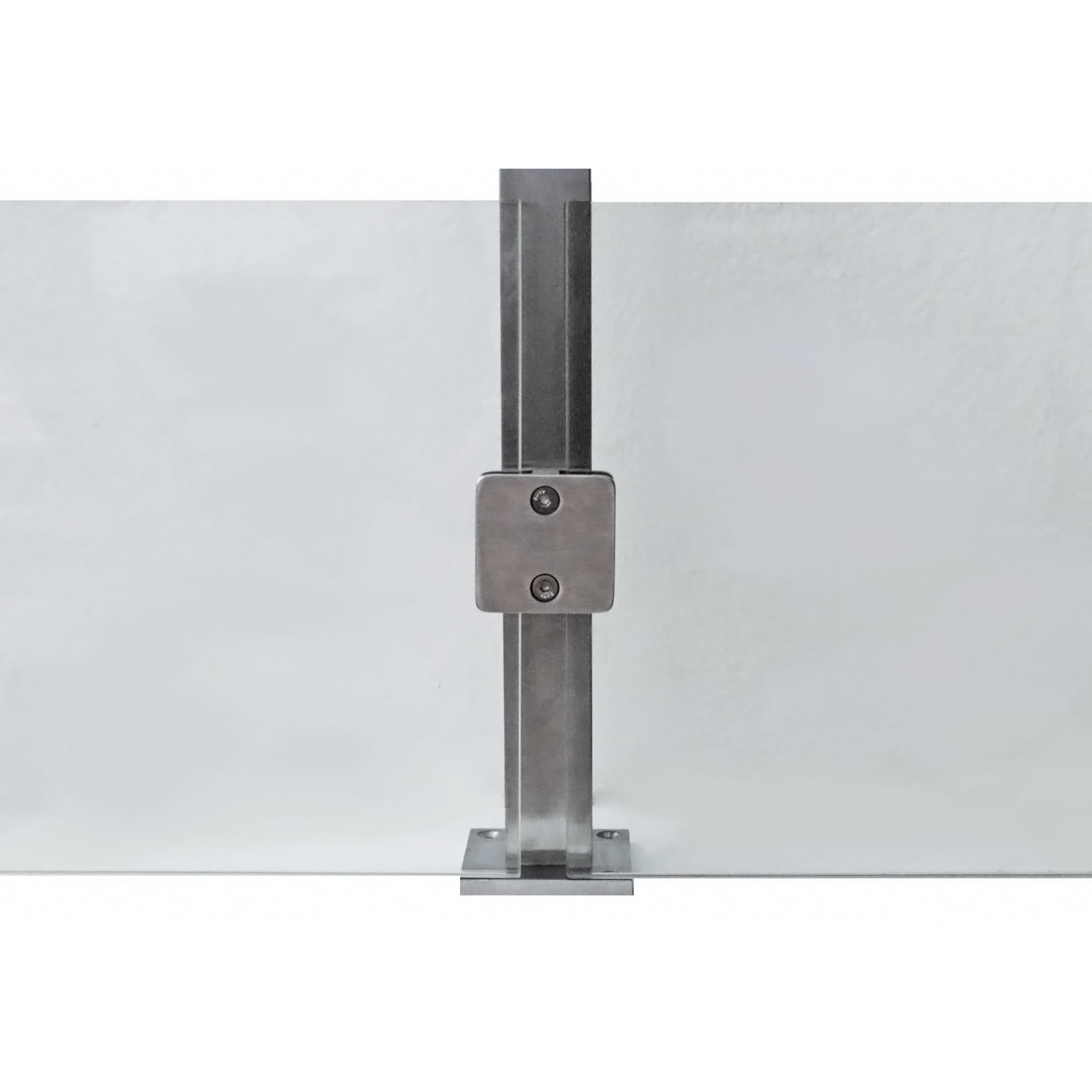

This is the tube-mount counterpart to the flat-mount 180° clamp (SKU ST-060600). When a glass balustrade run on round tube posts is longer than a single glass panel, multiple panels are placed side by side and this 180° clamp sits at the joint between them, gripping both panel edges simultaneously. The curved back face wraps around the Ø42.4 mm tube surface. Glass thickness options include 6, 8, 10, and 12 mm single tempered glass and 8.76, 10.76, and 12.76 mm laminated safety glass (66.2). AISI 316 provides marine-grade corrosion resistance. A "without rubbers" option is available for ordering the clamp body only.

Select the glass thickness at order time.

Use cases:

• Joining two glass panels inline (180°) on Ø42.4 mm round tube railing posts
• Long balustrade sections on round tube posts requiring multiple glass panels side by side
• Glass-to-glass connection point on round tube post systems
• Continuous glass railing runs on round posts where the glass line must remain uninterrupted
• Marine-grade AISI 316 glass-to-glass tube-mount connection for coastal installations

FAQ

What does "180°" mean?

180° refers to the angle between the two glass panels — they sit in the same plane, forming a straight line. The clamp connects their meeting edges on the round tube post.

How does this compare to the flat-mount 180° clamp?

Both are 60 × 60 mm AISI 316 satin 180° glass-to-glass joint clamps with the same glass range (6–12.76 mm) and M8 screws. The flat version mounts on walls and square posts; this version has a curved back for Ø42.4 round tubes. The tube version is priced higher.

What glass thicknesses are supported?

The clamp accepts glass from 6 to 12.76 mm: single tempered glass (6, 8, 10, 12 mm) and laminated safety glass (8.76, 10.76, 12.76 mm / 66.2). Both joined panels must be the same thickness.

Why is this AISI 316 only?

Glass-to-glass joint clamps are used in higher-specification installations and bear the load of two panel edges, warranting marine-grade stainless steel.

What tube does this mount on?

The clamp mounts on the Ø42.4 mm round railing post tube with a curved back face.

How does this relate to the final (end) clamp for Ø42.4?

The final clamp (SKU ST-460600F) terminates a single panel at the end of a run. This 180° clamp connects two panels where they meet mid-run. Both are 60 × 60 mm AISI 316 for Ø42.4 tube.
