Glass clamp 60x60mm, Flat, Satin, lateral fixing

The Strofix lateral glass clamp is a 60x60x28 mm stainless-steel clamp that grips a glass panel from the side and fixes it to a flat surface. AISI 304/316, satin finish.

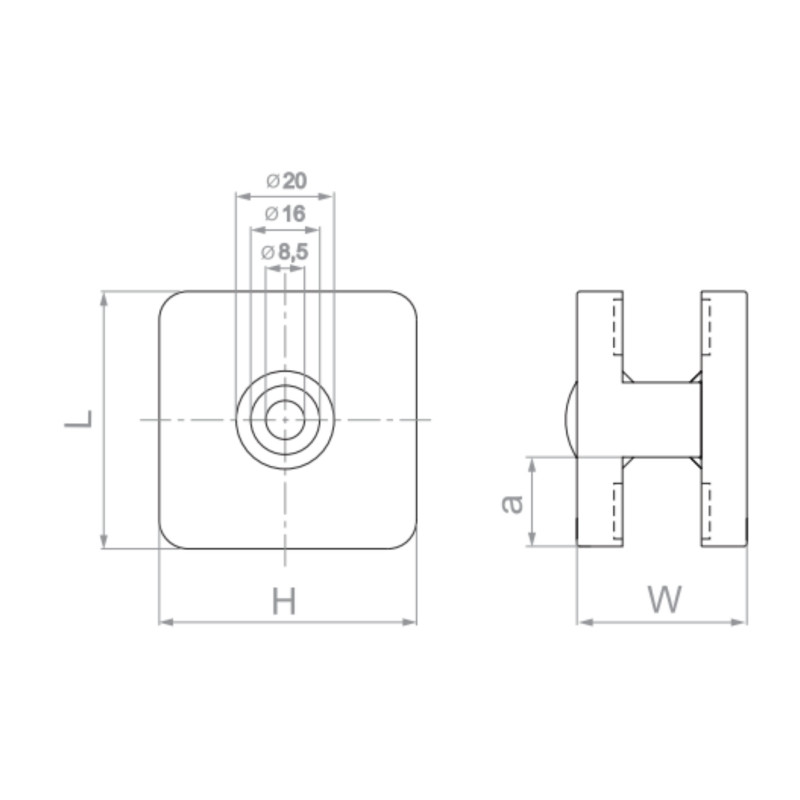

The body measures L 60 mm × H 60 mm. Lateral fixing means the clamp bolts to the face of the supporting surface and holds the glass alongside it, rather than clamping from below – useful where the glass line must sit clear of the floor or fascia.

Rubber inlays grip the glass without metal-to-glass contact and take up the tolerance in the panel thickness.

Use cases:

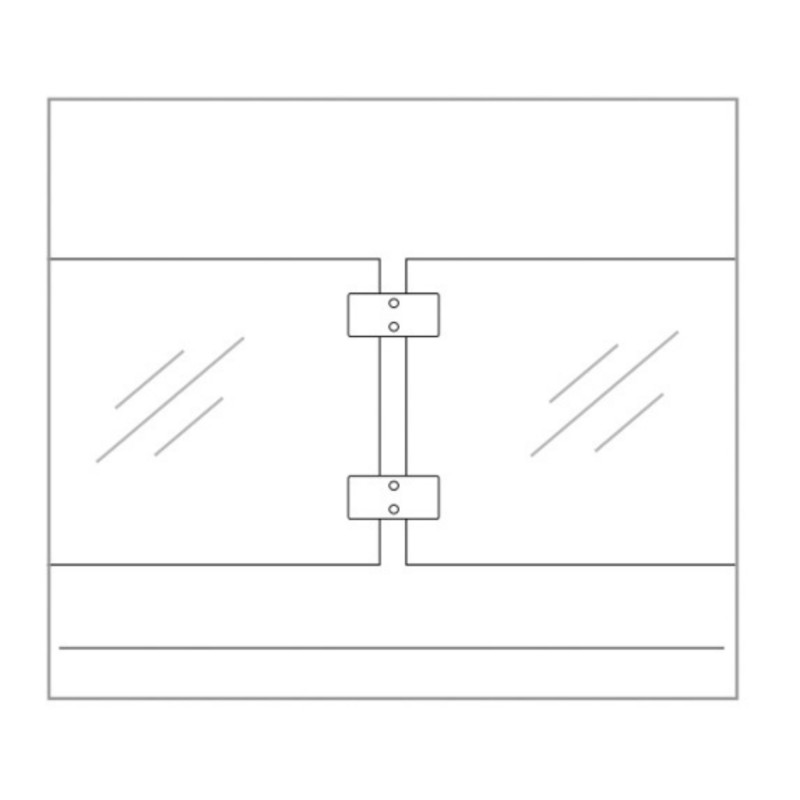

• Side-fixing a glass panel to a wall, fascia or steel structure
• Frameless balustrades where the glass sits clear of the floor
• Balcony edge protection fixed to the slab face
• Interior glass screens fixed to a side wall
• Retrofit glazing where floor fixing is not possible

FAQ:

What are the clamp dimensions?

60x60x28 mm – L 60 mm × H 60 mm.

What does it mount to?

It mounts to a flat surface.

What steel grade is used?

AISI 304/316 stainless steel with a satin finish.

Does it need rubber inlays?

Yes. The inlays match the glass thickness and prevent metal-to-glass contact. They are ordered separately to suit the panel.

Does the glass need drilling?

No. The clamp grips the panel edge, so the glass does not need to be drilled.
