Glass clamp 48x65x34mm, 16,76-17,52mm, Satin, Wall

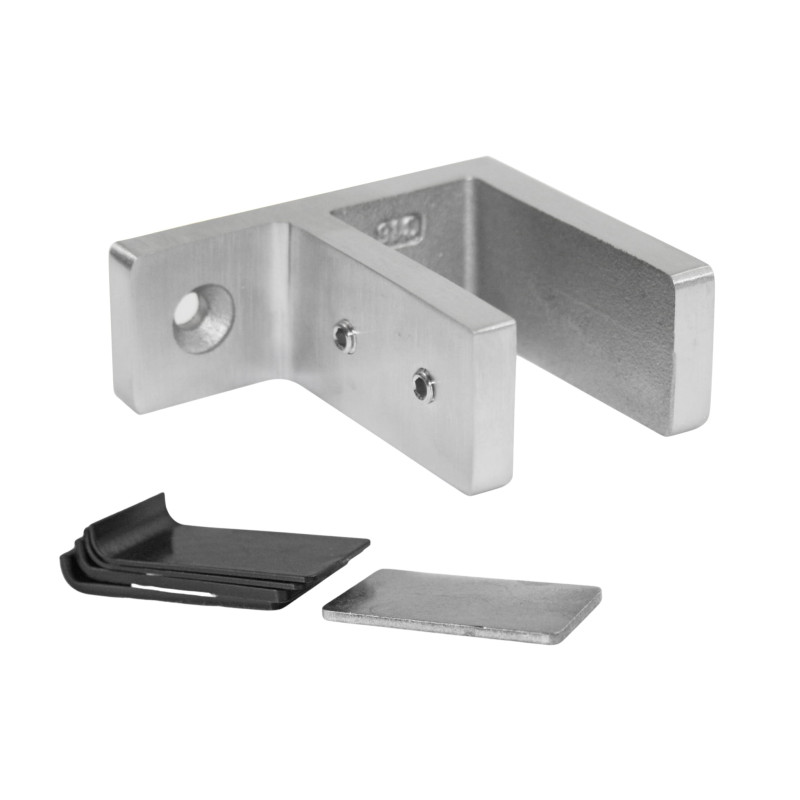

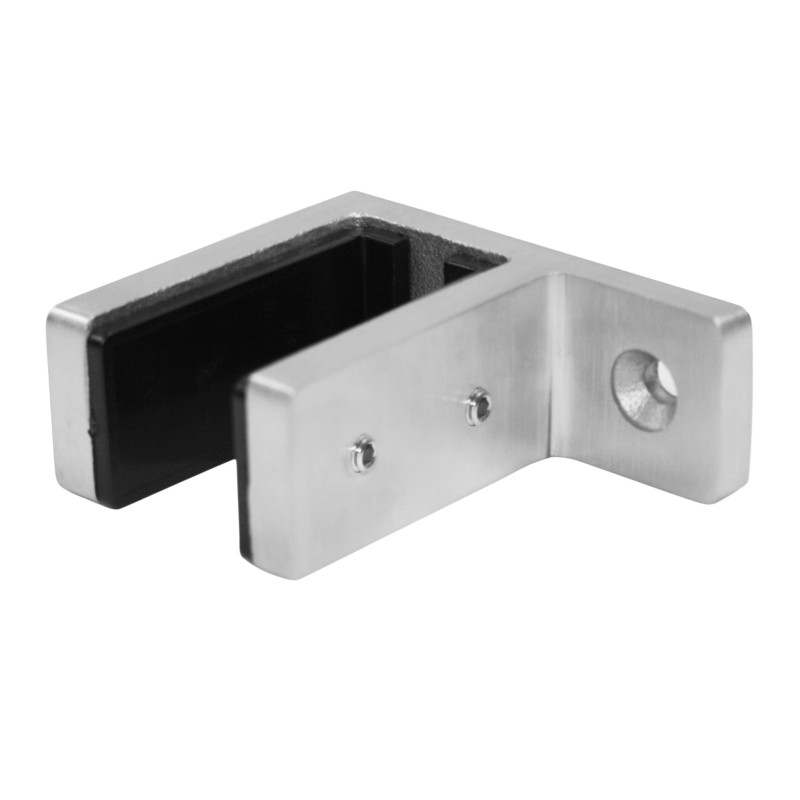

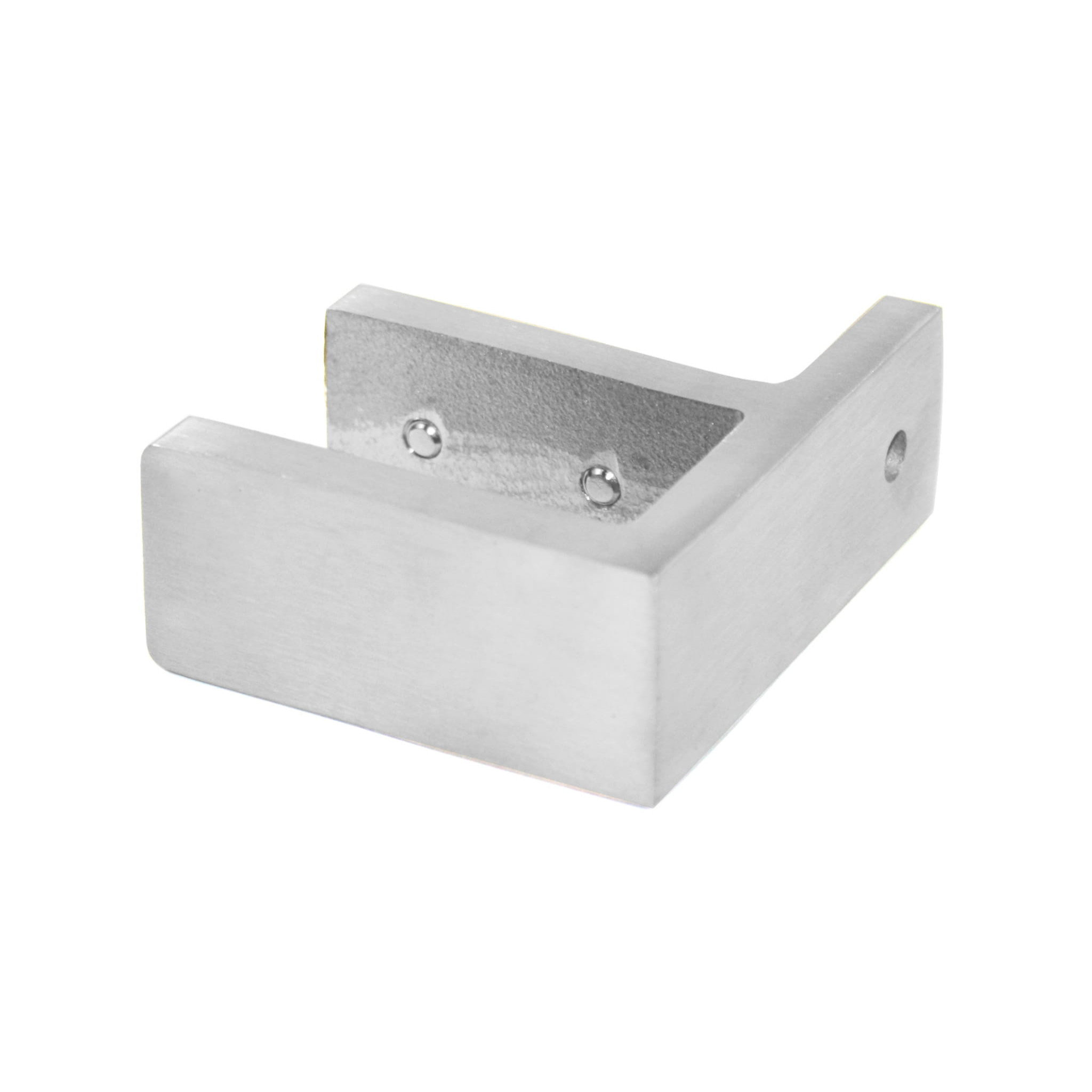

The Strofix glass clamp 48×65×34 mm, wall (16.76–17.52 mm) is a stainless-steel wall-mount glass clamp designed to be screwed directly to a wall to hold a single thick laminated glass panel. The clamp measures 48 × 65 × 34 mm and holds glass panels from 16.76 to 17.52 mm thick. Manufactured from AISI 316 stainless steel with a satin finish.

This is the thickest-glass version of the 48 × 65 × 34 mm wall-mount glass clamp, dedicated to heavy laminated safety glass — 16.76 mm (88.2 designation, two 8 mm panes with 0.76 mm PVB) and 17.52 mm. It shares the same body, AISI 316 marine-grade steel, satin finish, and price as the thinner-glass wall clamps. The clamp screws into the wall and grips the thick glass edge between rubber gaskets. It is used for structural glass partitions, wall-terminated balustrades, and similar wall-fixed applications requiring the heaviest glass.

Use cases:

• Mounting the thickest laminated glass (16.76–17.52 mm) directly to a wall
• Structural glass balustrade runs terminating against a wall with heavy glass
• Glass partition panels with 88.2 laminated glass fixed to a wall surface
• Wall-supported structural glass screens under high loading
• Marine-grade AISI 316 wall fixing for the thickest glass in coastal installations

FAQ

How does this differ from the other wall-mount clamps?

All three 48 × 65 × 34 mm wall clamps share the same body, AISI 316 steel, satin finish, and price. They differ only in glass range: 12–12.76 mm, 12–15 mm, and this version at 16.76–17.52 mm. Choose this version for the thickest laminated glass.

What glass thicknesses are supported?

Two options: 16.76 mm (88.2 laminated, two 8 mm panes with 0.76 mm PVB) and 17.52 mm laminated safety glass.

What does "wall" mean for this clamp?

This clamp is designed to be screwed directly to a wall surface, holding a glass panel against or perpendicular to the wall. It differs from the side-clamps (which mount on railing posts).

What are the clamp dimensions?

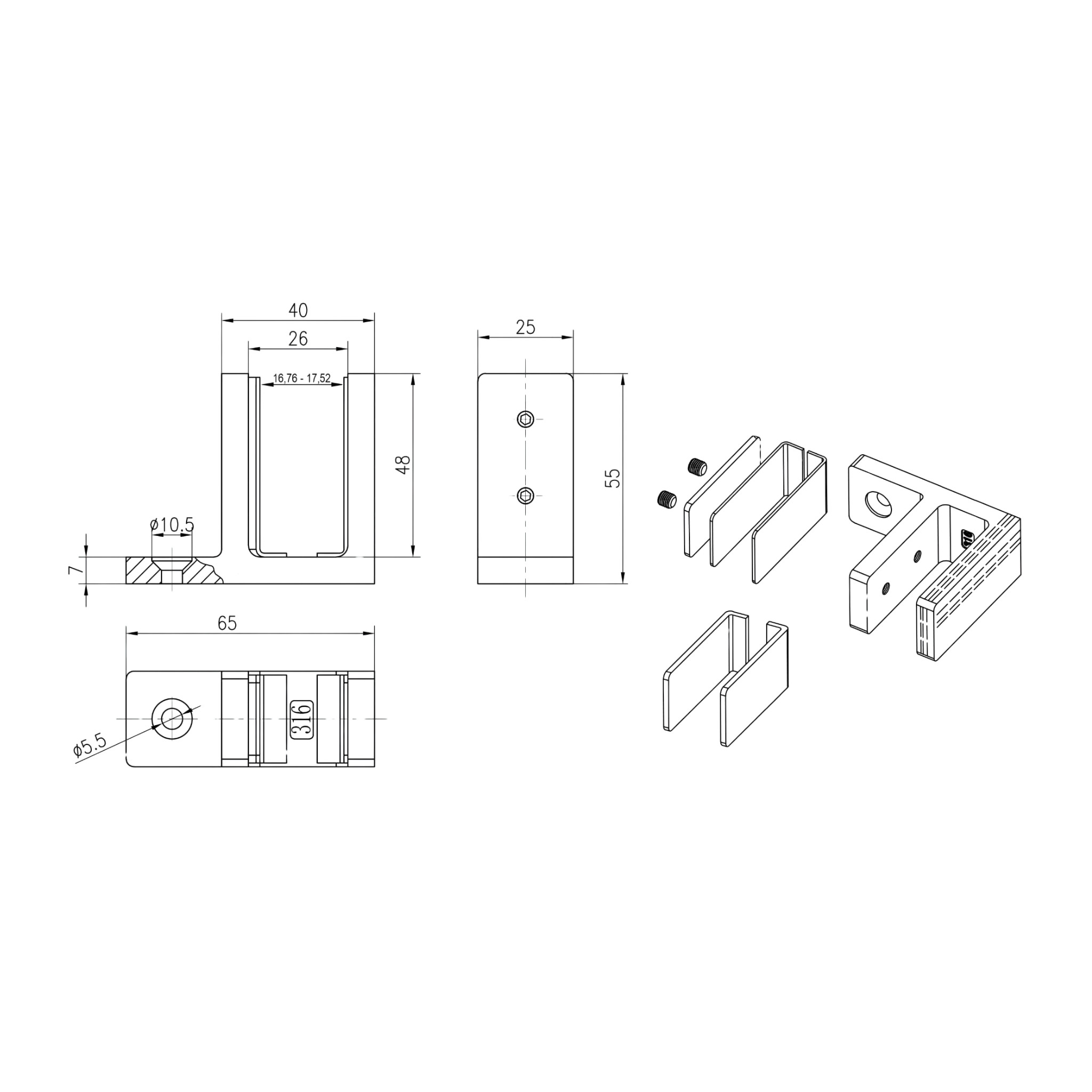

The clamp is 48 × 65 × 34 mm.

What steel grade is used?

AISI 316 stainless steel with a satin finish — marine grade, suitable for coastal and high-humidity installations.

How is it fixed?

The clamp is screwed directly to the wall using appropriate wall fixings (chemical anchors or expansion bolts) suited to the wall material and the heavy glass load.

About Connector Glass Clamps

A connector glass clamp is a stainless-steel bracket that joins two glass panels at a fixed angle without requiring an intermediate post between them. It clamps two panel edges simultaneously — either in a straight 180° inline configuration or at a 90° corner — creating a continuous glass run around corners or across panel joints.

Strofix supplies connector glass clamps in many variants: 180° inline clamps, 90° corner clamps, and wall clamps. Each clamp is available to suit different panel thicknesses and installation requirements.

The correct connector clamp depends on the angle between the two panels and the body style that matches the railing layout.
