Wire rope stopper Ø 3mm, Satin

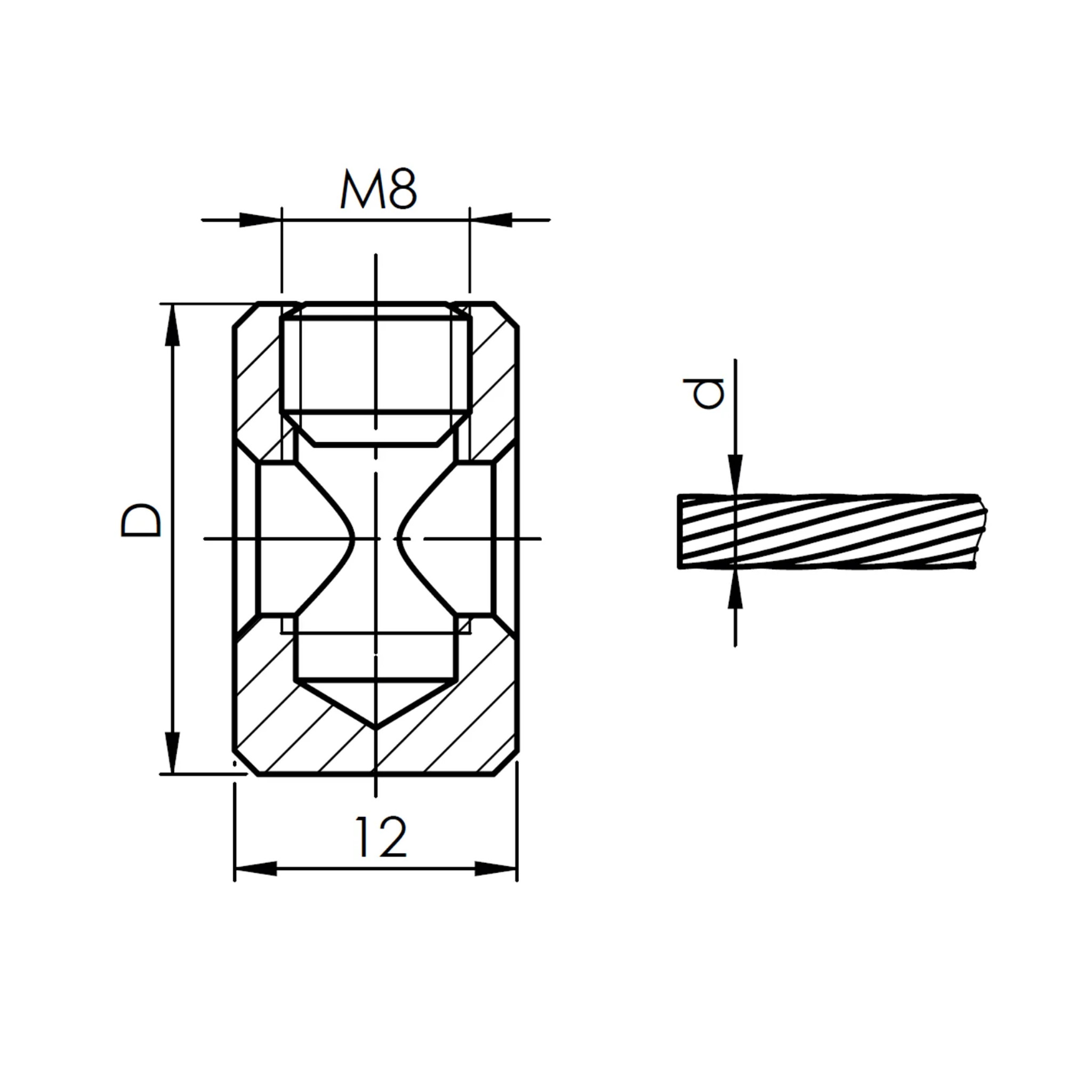

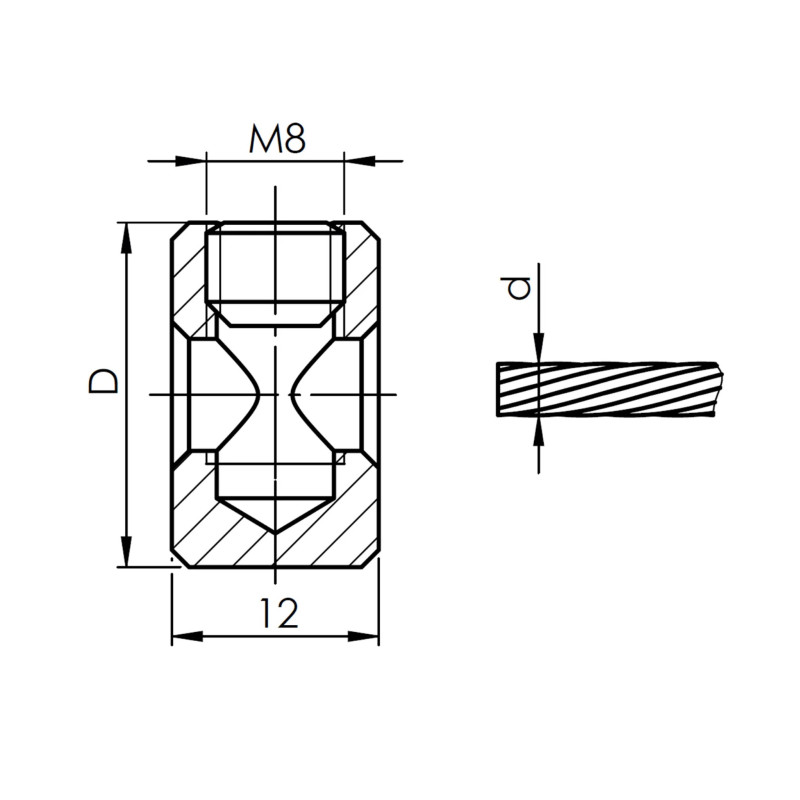

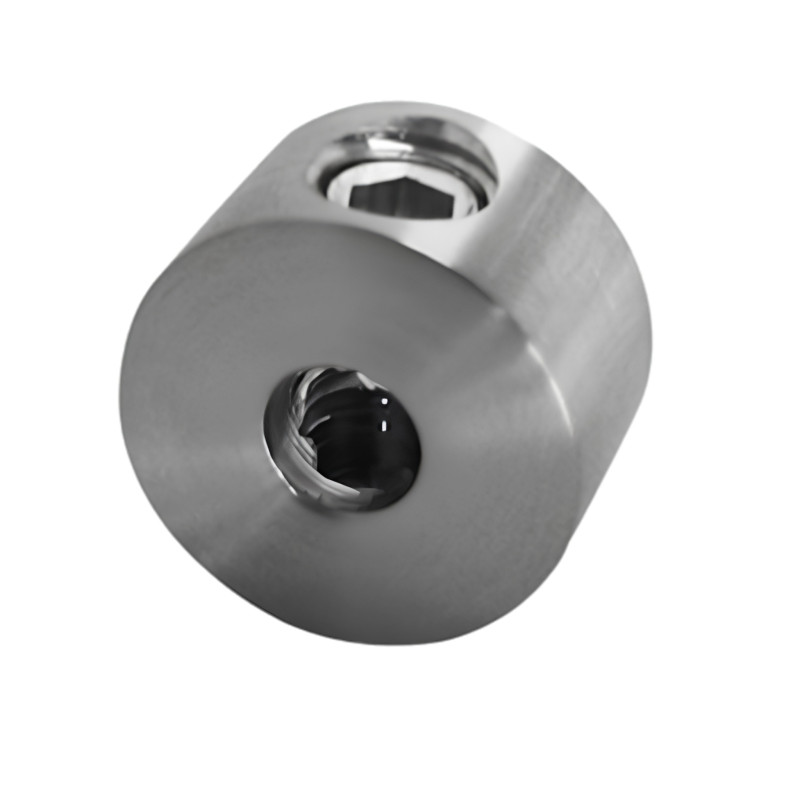

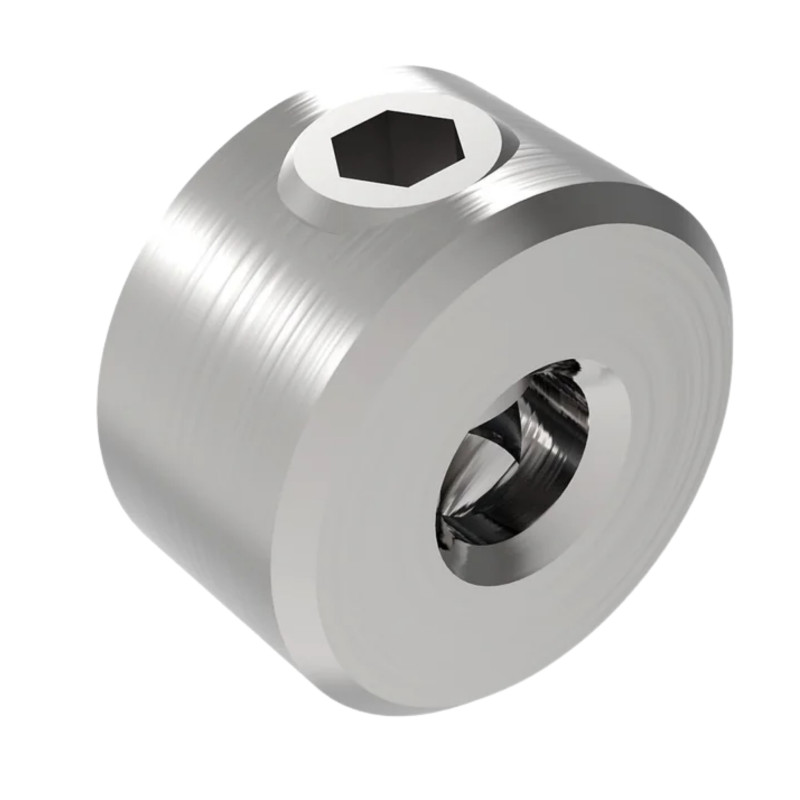

The Strofix wire rope stopper Ø 3mm, Satin is a round Ø18 mm stopper for Ø3 mm stainless-steel wire rope, made from AISI 316. The rope runs through the body and is locked in place with an M8 set screw.

The stopper secures the cable at a post – typically at the end of a run, where it holds the tensioned rope against the post. It does not tension the rope itself: the cable is pulled taut first and then locked with the set screw. AISI 316 contains molybdenum, which gives it higher resistance to chlorides and salt air than AISI 304 and makes it suitable for exterior, coastal and high-humidity installations. It works with the Strofix Ø3 mm rope and the other wire rope system components.

Use cases:

• Locking a Ø3 mm wire rope at the end post
• Holding the cable in position where it must not slide
• Exterior and coastal wire rope railings (AISI 316)

FAQ

What does it do?

It locks the Ø3 mm rope in place with a set screw. It does not tension the rope.

What size is it?

A Ø18 mm body for Ø3 mm rope.

What screw does it use?

An M8 set screw.

What material and finish is it?

AISI 316 stainless steel with a satin finish.

Is it suitable for outdoor and coastal use?

Yes – AISI 316 has higher resistance to chlorides and salt air than AISI 304, so it suits exterior, coastal and high-humidity environments.

About Wire Rope Systems

A wire rope system is a stainless-steel cable infill for balustrades: horizontal ropes are tensioned between the railing posts to form a light, open infill that keeps the view and lets air through – for balconies, terraces and staircases.

Strofix supplies the components for a Ø3 mm rope system: AISI 316 rope sold by the metre, rope holders for intermediate posts, eye anchors, tensioners, threaded terminals, rope stoppers and crimping pliers.

The rope and tensioning parts are AISI 316 and the rope holders AISI 304, for 40 × 40 mm and Ø42.4 mm posts. The correct set depends on the post profile, the number of rope runs and the length of the run.
