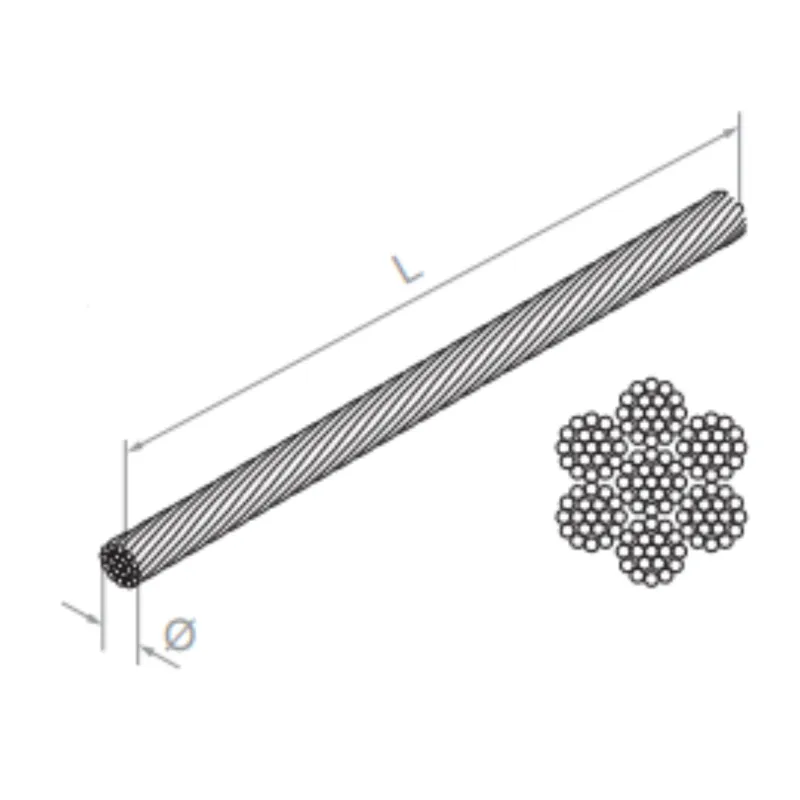

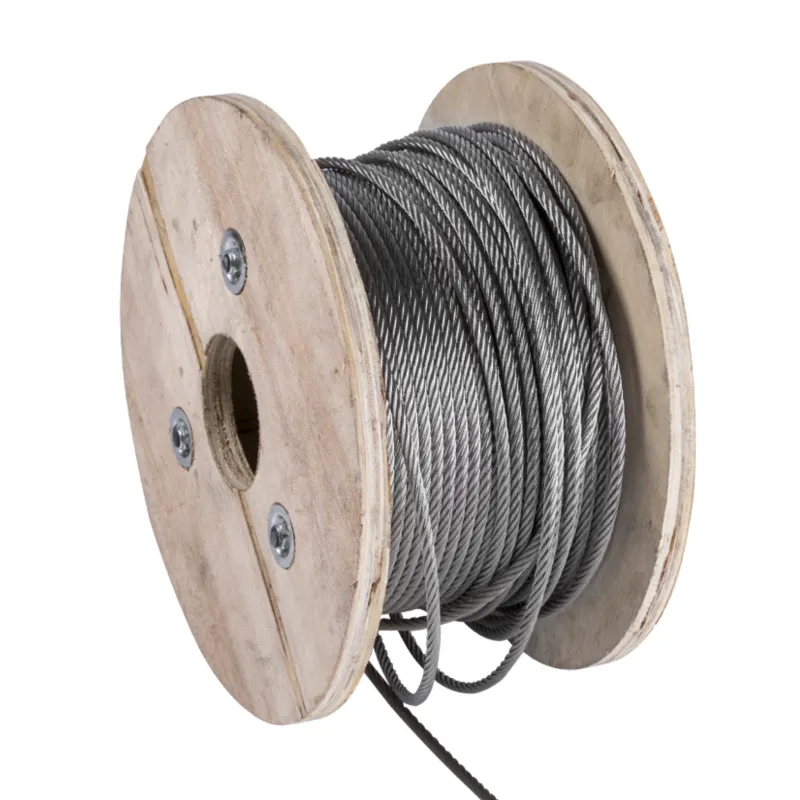

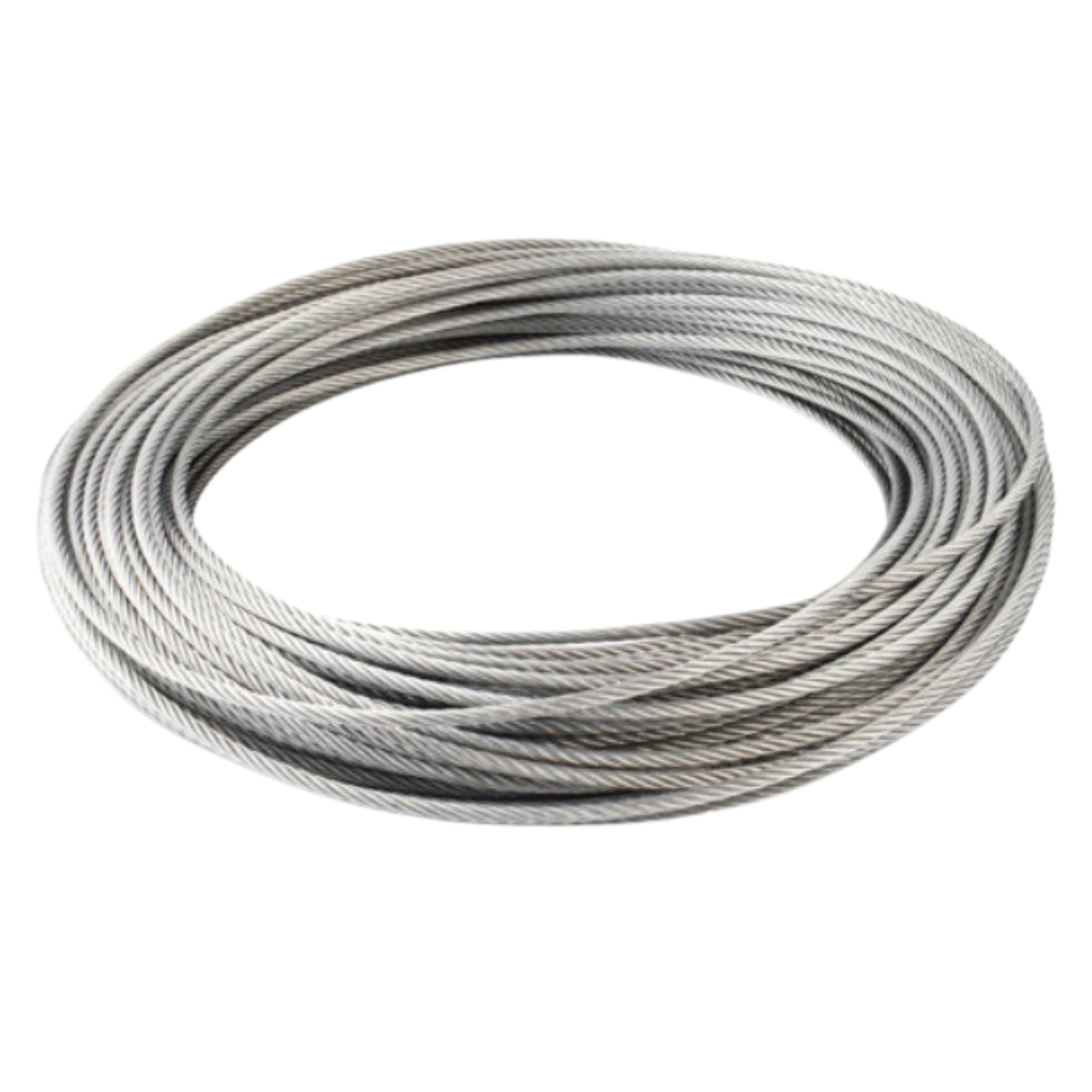

Stainless steel rope Ø 3mm, 1m
€1.11 Tax excluded
€1.34 Tax included
€1.34 Tax included
Tax included
Quantity
| Steel grade | AISI316 |
|---|---|
| Additional information | Price for 1m |
| Diameter | ø 3mm |
The Strofix stainless steel rope Ø 3mm is an AISI 316 wire rope used as the tensioned cable infill in wire rope railing and balustrade systems. It has a 3 mm diameter and is made from AISI 316 stainless steel.
Wire rope forms the horizontal infill of a cable balustrade, running between posts and tensioned to create an open, minimal railing. This rope is AISI 316 stainless steel, which contains added molybdenum for higher resistance to chlorides and salt air, making it suited to exterior, coastal, and high-humidity installations as well as interiors. It works with the Strofix wire rope system components, including rope holders, tensioners and threaded terminals.
Use cases:
- Tensioned cable infill for a wire rope railing
- Horizontal wire rope balustrades between posts
- Balcony, terrace, and stair cable railings
- Minimal, open-view railing infill
- Coastal and poolside cable railings (AISI 316)
FAQ
What diameter is this rope?
It is Ø3 mm.
What material is it?
AISI 316 stainless steel.
Is it suitable for outdoor and coastal use?
Yes – AISI 316 stainless steel resists chlorides and salt air in exterior, coastal, and high-humidity environments.
What is it used for?
As the tensioned horizontal cable infill in wire rope railing and balustrade systems.
What components hold the rope?
It works with the Strofix wire rope system components, such as rope holders, tensioners and threaded terminals.
About Wire Rope Systems
A wire rope system is a stainless-steel cable infill for balustrades: horizontal ropes are tensioned between the railing posts to form a light, open infill that keeps the view and lets air through – for balconies, terraces and staircases.
Strofix supplies the components for a Ø3 mm rope system: AISI 316 rope sold by the metre, rope holders for intermediate posts, eye anchors, tensioners, threaded terminals, rope stoppers and crimping pliers.
The rope and tensioning parts are AISI 316 and the rope holders AISI 304, for 40 × 40 mm and Ø42.4 mm posts. The correct set depends on the post profile, the number of rope runs and the length of the run.
Strofix quality
Strofix designs and supplies stainless-steel fastening systems for architectural glass, including glass adaptors, railing components, handrails, and structural fixings. We also serve architects, installers, and building contractors on residential and commercial projects.
The products we sell are designed by us, and manufactured under strict quality guidelines so that we can be sure our customers are getting exactly what they ordered.
All of our products meet EU quality standards. Our shipping partners provide convenient delivery times. For more on our return & warranty policy read here. Secure payments are provided by MakeCommerce.
