Wire rope holder M6, Satin
€2.50 Tax excluded
€3.03 Tax included
€3.03 Tax included
Tax included
Quantity
| Steel grade | AISI304 |
|---|---|
| Surface finish | Satin |
| Tube size | 40x40mm ø 42,4mm |
| Screw size | M6 |

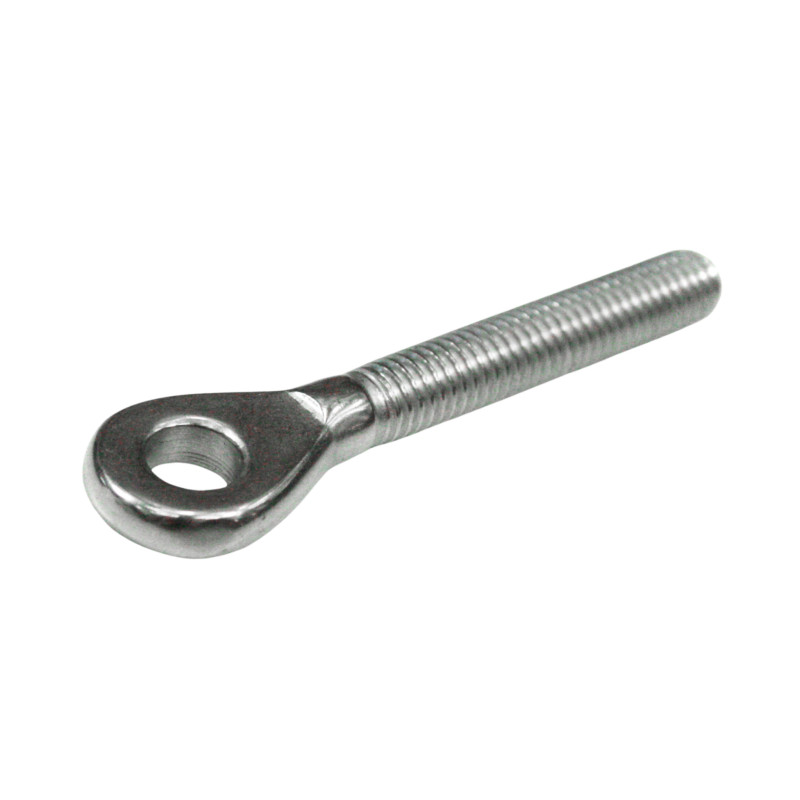

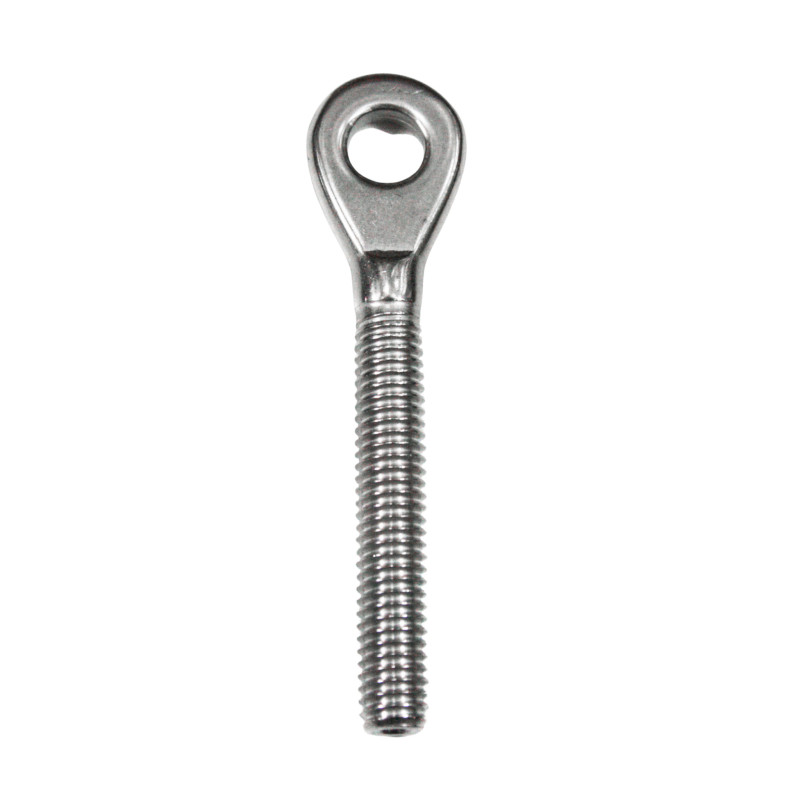

The Strofix wire rope holder M6, Satin is an AISI 304 stainless-steel rope holder that secures the wire rope to the railing post in a wire rope balustrade system. It has an M6 thread and fits 40 × 40 mm and Ø42.4 mm posts, with a satin finish.
In a wire rope balustrade, the horizontal cables run between posts and are held to each post along the run; this rope holder clamps and guides the Ø3 mm stainless-steel rope at the post via its M6 thread. It is made from AISI 304 stainless steel with a satin finish, matching the other Strofix wire rope system components. It works alongside the range's rope, tensioners, eye anchors and threaded terminals.
Use cases:
- Holding the wire rope to the post in a cable railing
- Intermediate cable support along a wire rope balustrade run
- Balcony, terrace, and stair cable railings
- Wire rope railings on 40 × 40 or Ø42.4 mm posts
- Stainless-steel rope holder for wire rope systems
FAQ
What does this rope holder do?
It secures the wire rope to the railing post along a wire rope balustrade run.
What thread does it have?
An M6 thread.
What posts does it fit?
It is designed for 40 × 40 mm and Ø42.4 mm posts.
What material and finish is it?
AISI 304 stainless steel with a satin finish.
What rope does it work with?
The Strofix Ø3 mm stainless-steel wire rope and the other wire rope system components.
About Wire Rope Systems
A wire rope system is a stainless-steel cable infill for balustrades: horizontal ropes are tensioned between the railing posts to form a light, open infill that keeps the view and lets air through – for balconies, terraces and staircases.
Strofix supplies the components for a Ø3 mm rope system: AISI 316 rope sold by the metre, rope holders for intermediate posts, eye anchors, tensioners, threaded terminals, rope stoppers and crimping pliers.
The rope and tensioning parts are AISI 316 and the rope holders AISI 304, for 40 × 40 mm and Ø42.4 mm posts. The correct set depends on the post profile, the number of rope runs and the length of the run.
