Wire rope tensioner Ø 3mm, 150-210mm, Satin

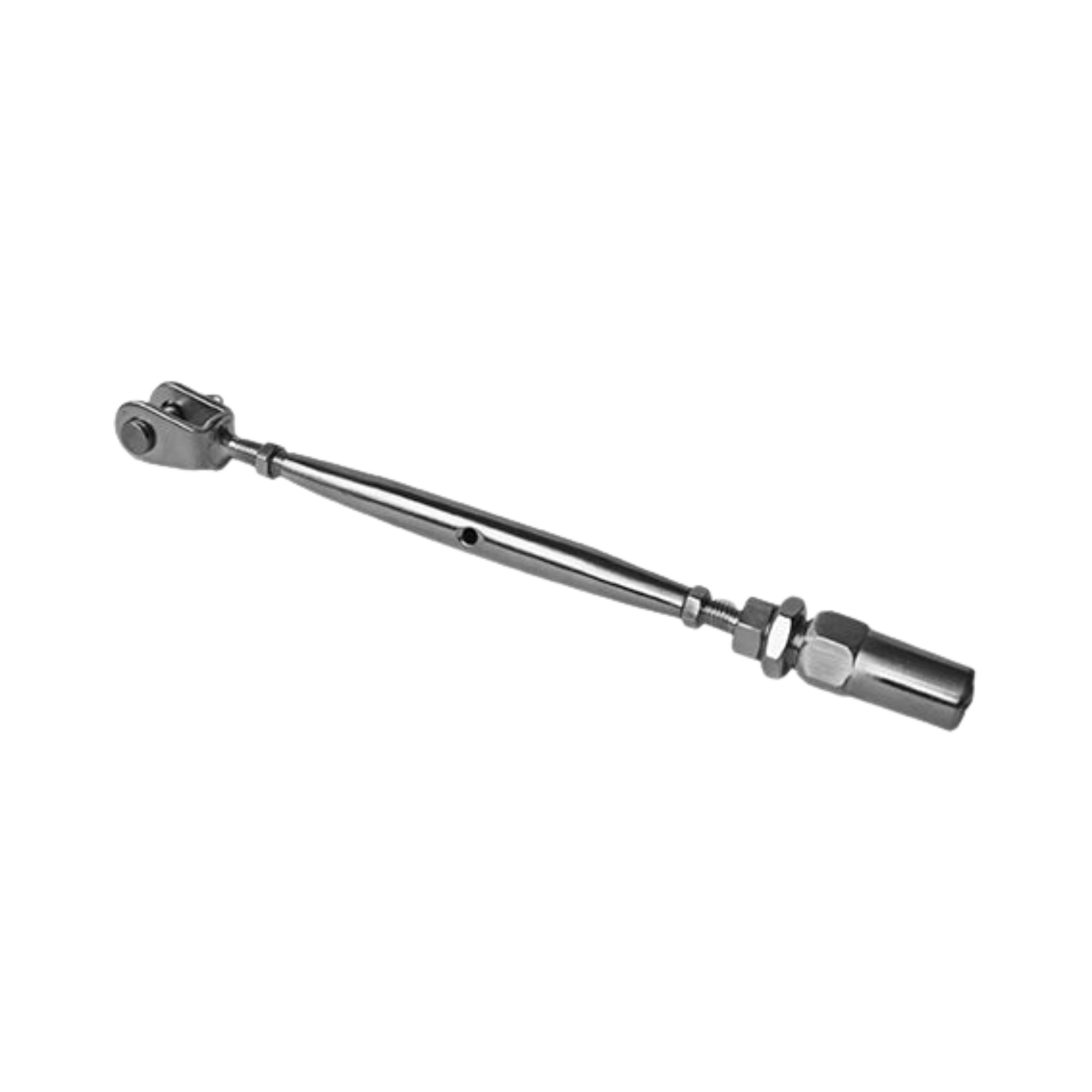

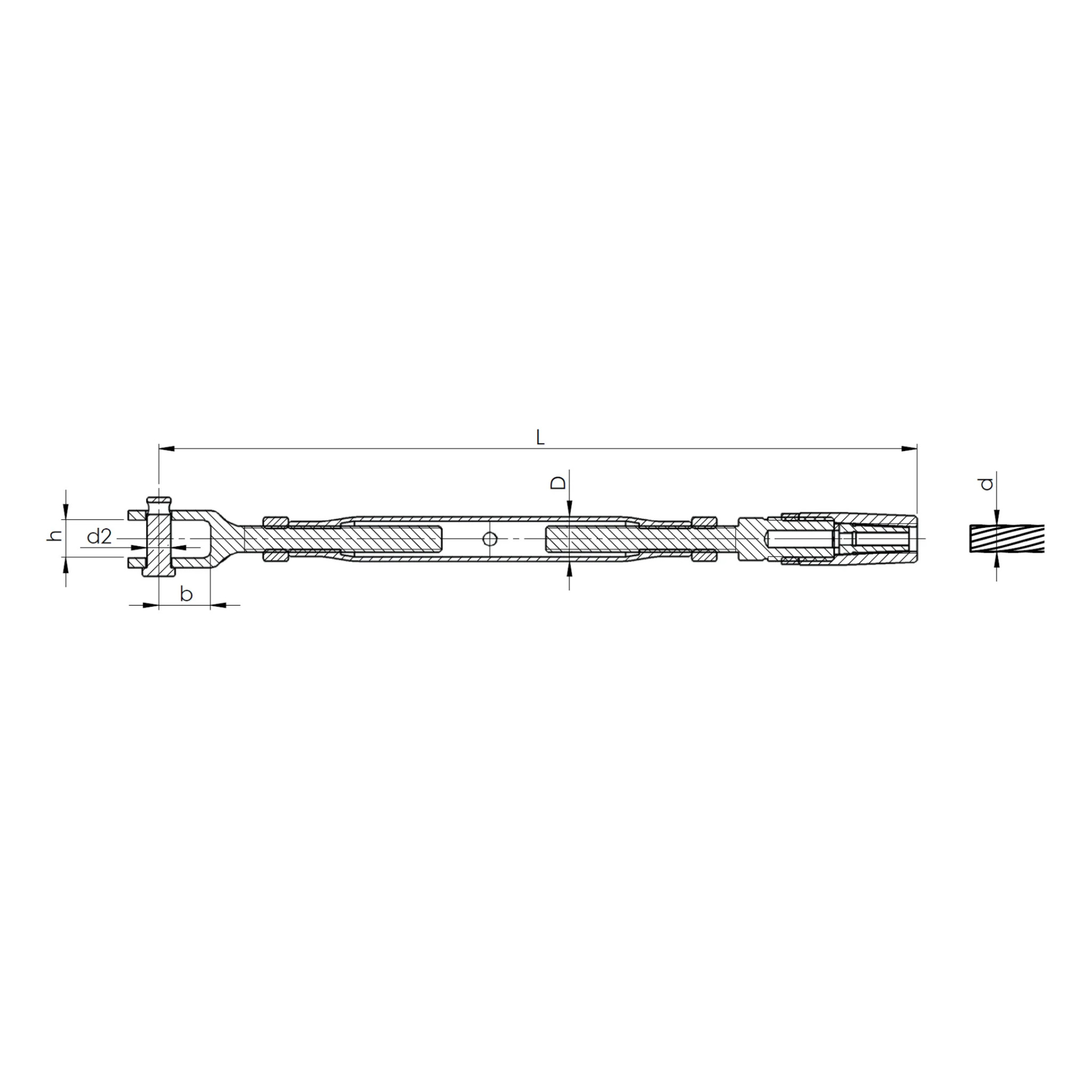

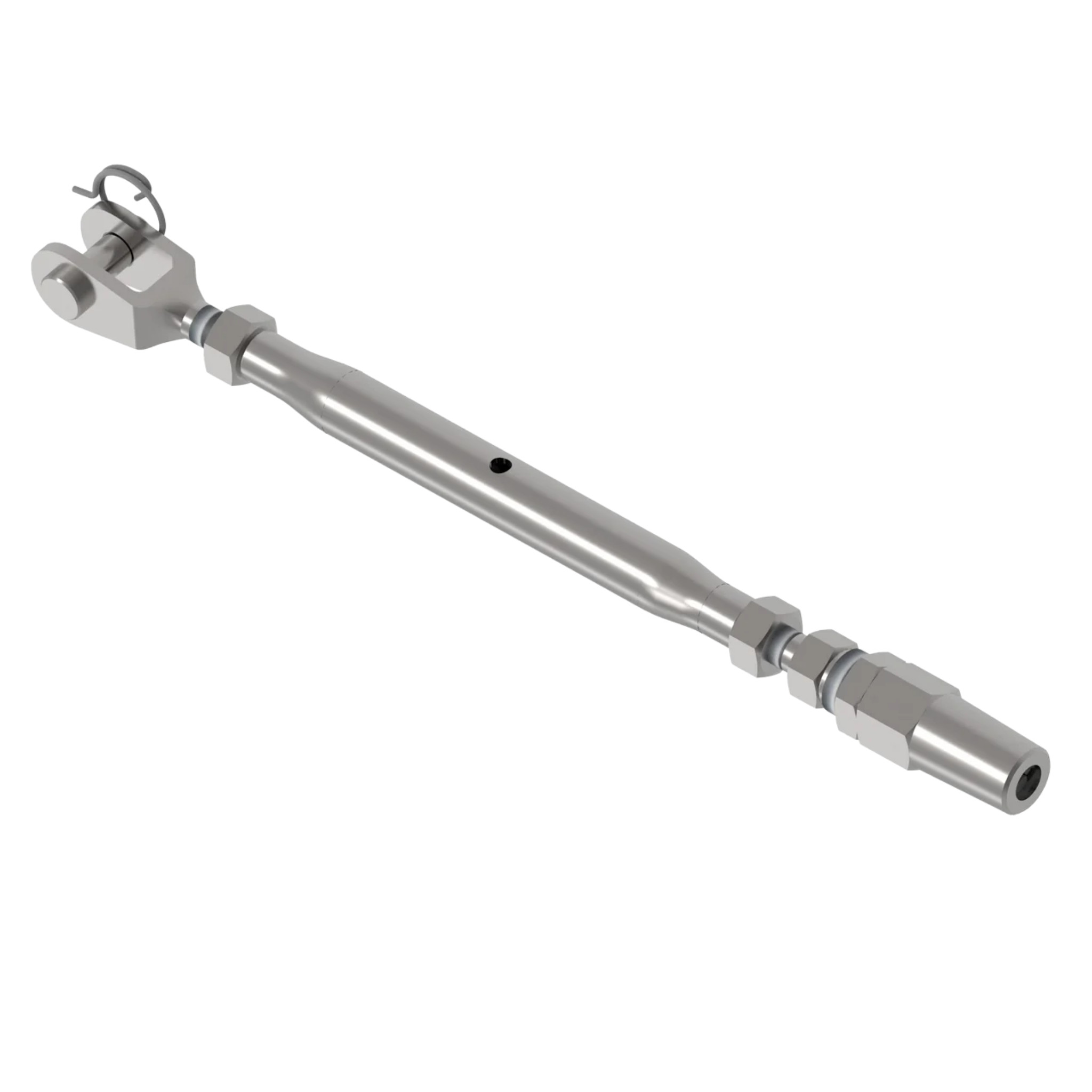

The Strofix wire rope tensioner Ø 3mm, 150-210mm, Satin is an adjustable AISI 316 turnbuckle for Ø3 mm stainless-steel wire rope. One end has a fork and pin for attaching to an eye anchor or post plate; the other has a sleeve for the rope. The length adjusts from 150 to 210 mm.

The sleeve is crimped onto the rope end with the Strofix crimping pliers. Turning the centre body shortens the fitting and pulls the cable taut, so the tension can be set after the rope is installed and re-adjusted later. AISI 316 contains molybdenum, which gives it higher resistance to chlorides and salt air than AISI 304 and makes it suitable for exterior, coastal and high-humidity installations. It works with the Strofix Ø3 mm rope, the eye anchor and the other wire rope system components.

Use cases:

• Tensioning a Ø3 mm wire rope at the end of a cable run
• Fixing the rope to an eye anchor or post plate with the fork and pin
• Re-adjusting the cable tension after installation
• Exterior and coastal wire rope railings (AISI 316)

FAQ

What does the 150–210 mm mean?

It is the length of the fitting: turning the body sets it anywhere from 150 mm to 210 mm, which tensions or loosens the rope.

How is the rope fixed?

The sleeve is crimped onto the Ø3 mm rope end with crimping pliers.

How is it attached to the post?

With the fork and pin – to an eye anchor or a plate on the post.

What material and finish is it?

AISI 316 stainless steel with a satin finish.

Is there a shorter version?

Yes – the compact 51 mm tensioner.

About Wire Rope Systems

A wire rope system is a stainless-steel cable infill for balustrades: horizontal ropes are tensioned between the railing posts to form a light, open infill that keeps the view and lets air through – for balconies, terraces and staircases.

Strofix supplies the components for a Ø3 mm rope system: AISI 316 rope sold by the metre, rope holders for intermediate posts, eye anchors, tensioners, threaded terminals, rope stoppers and crimping pliers.

The rope and tensioning parts are AISI 316 and the rope holders AISI 304, for 40 × 40 mm and Ø42.4 mm posts. The correct set depends on the post profile, the number of rope runs and the length of the run.
