Wire rope tensioner Ø 3mm, 51mm, Satin

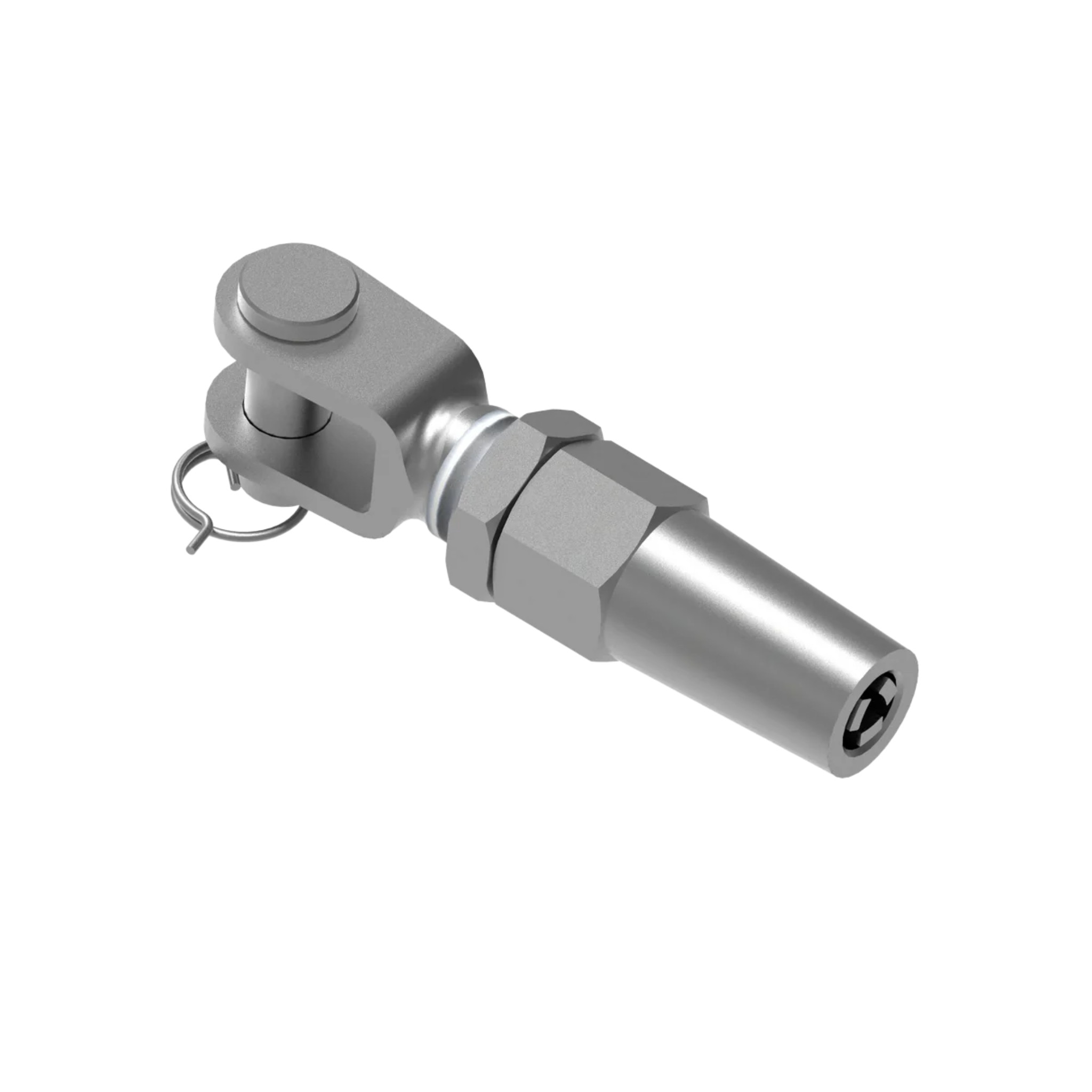

The Strofix wire rope tensioner Ø 3mm, 51mm, Satin is a compact AISI 316 fitting for tensioning Ø3 mm stainless-steel wire rope. It has a fork and pin for attaching to an eye anchor or post plate; the fitting is 51 mm long.

It holds the end of the cable at the post and allows the rope tension to be adjusted, while taking up less space than the 150–210 mm turnbuckle. AISI 316 contains molybdenum, which gives it higher resistance to chlorides and salt air than AISI 304 and makes it suitable for exterior, coastal and high-humidity installations. It works with the Strofix Ø3 mm rope, the eye anchor and the other wire rope system components.

Use cases:

• Tensioning a Ø3 mm wire rope at the end of a cable run

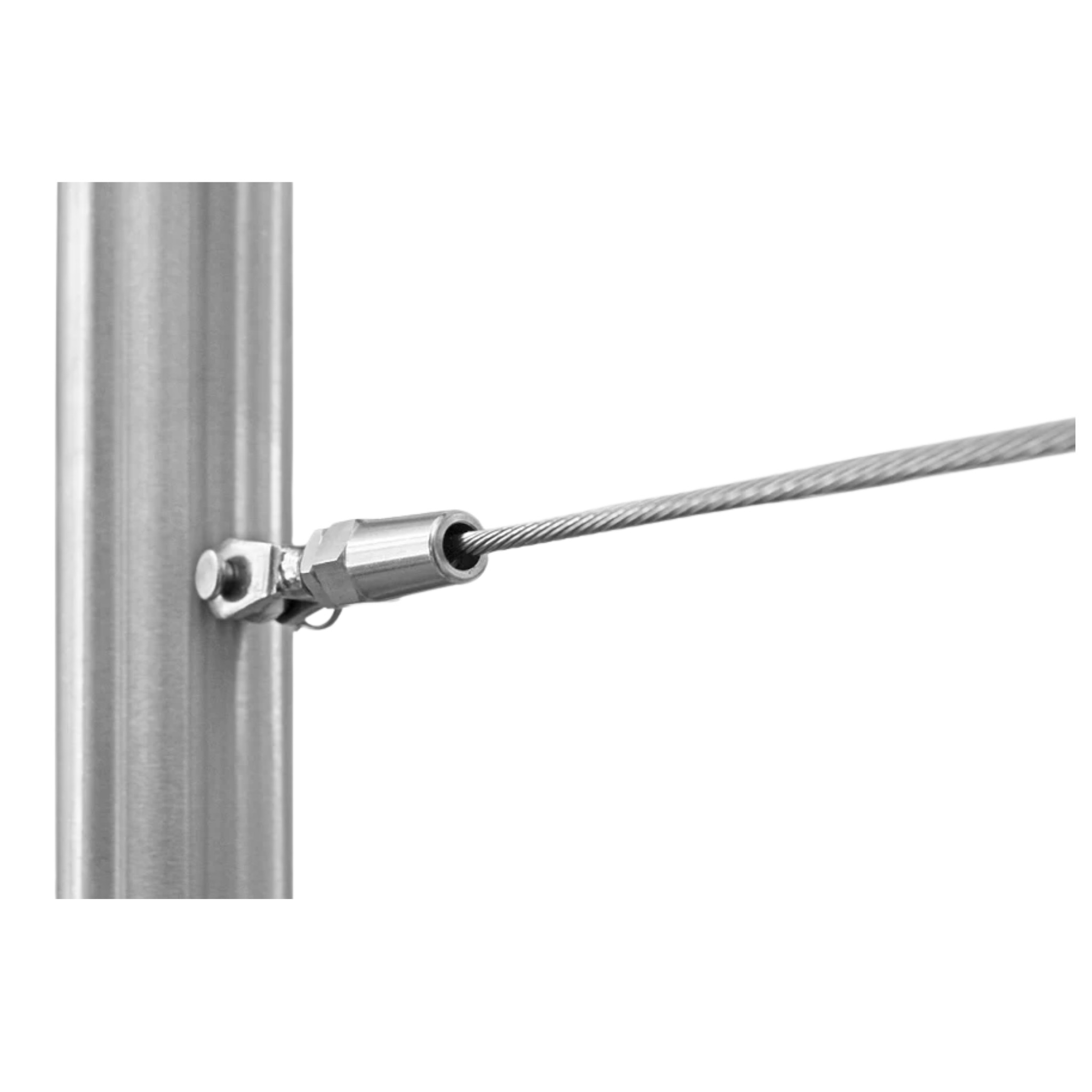

• Fixing the cable end to an eye anchor or post plate with the fork and pin
• Short end fittings where there is little room at the post
• Exterior and coastal wire rope railings (AISI 316)

FAQ

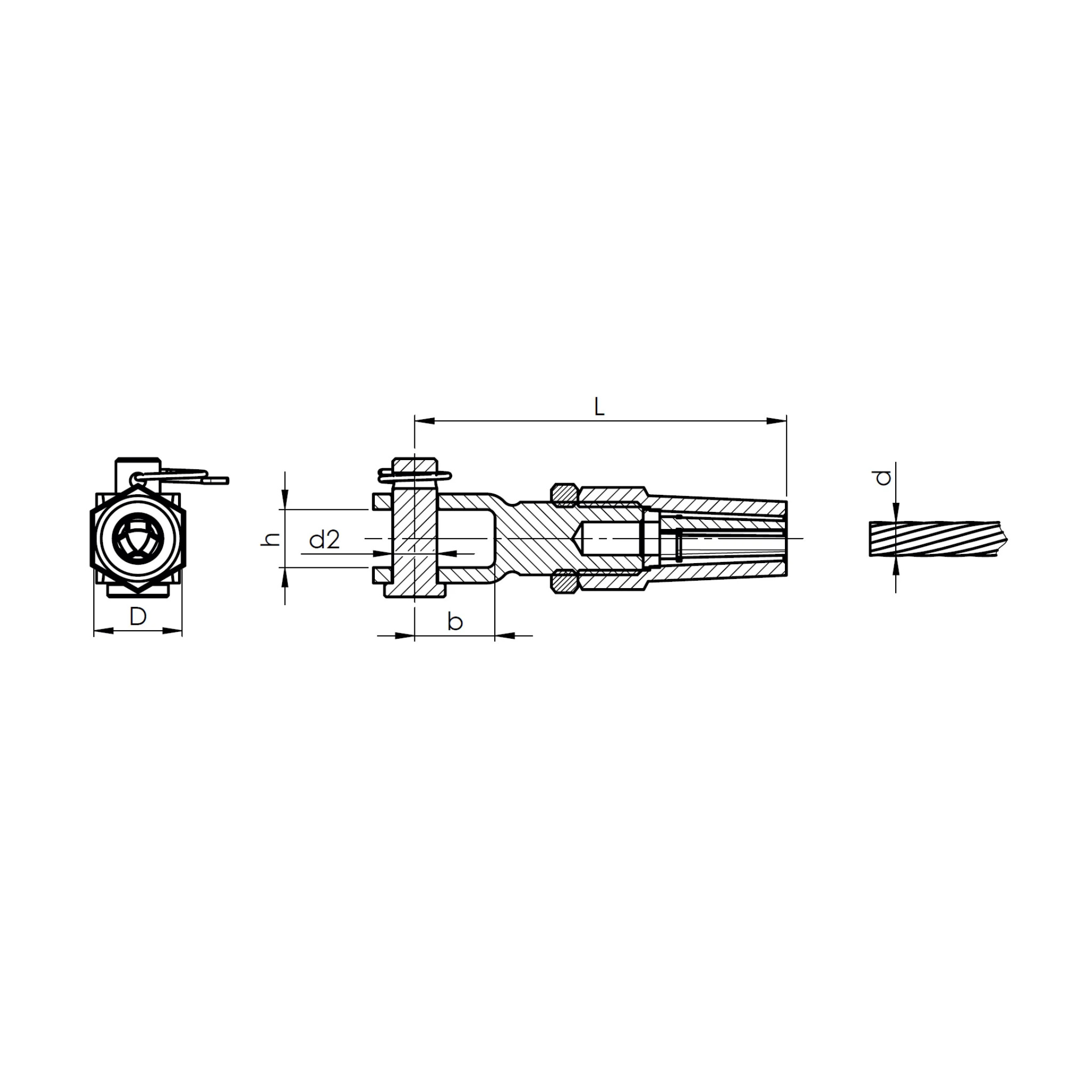

What is the 51 mm dimension?

The overall length of the fitting.

How is it attached?

With the fork and pin – to an eye anchor or a plate on the post.

What rope does it fit?

The Ø3 mm wire rope.

What material and finish is it?

AISI 316 stainless steel with a satin finish.

Is there a longer version?

Yes – the adjustable 150–210 mm turnbuckle.

About Wire Rope Systems

A wire rope system is a stainless-steel cable infill for balustrades: horizontal ropes are tensioned between the railing posts to form a light, open infill that keeps the view and lets air through – for balconies, terraces and staircases.

Strofix supplies the components for a Ø3 mm rope system: AISI 316 rope sold by the metre, rope holders for intermediate posts, eye anchors, tensioners, threaded terminals, rope stoppers and crimping pliers.

The rope and tensioning parts are AISI 316 and the rope holders AISI 304, for 40 × 40 mm and Ø42.4 mm posts. The correct set depends on the post profile, the number of rope runs and the length of the run.
