Profile for glass 8mm, Satin, 2500mm

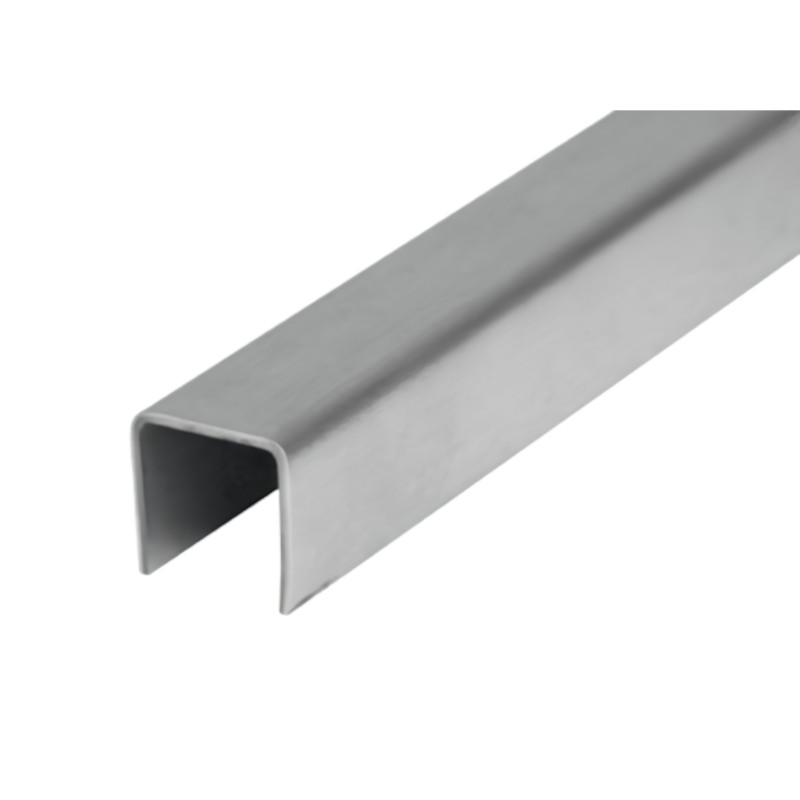

The Strofix profile for glass 8mm, Satin, 2500mm is an AISI 304 stainless-steel U-profile channel bar for glass-top handrails, sized for 8 mm glass. It is 2500 mm long with a satin finish, and forms the channel that fixes an applied handrail to the top edge of a glass panel. Installation is without a gasket, using silicone.

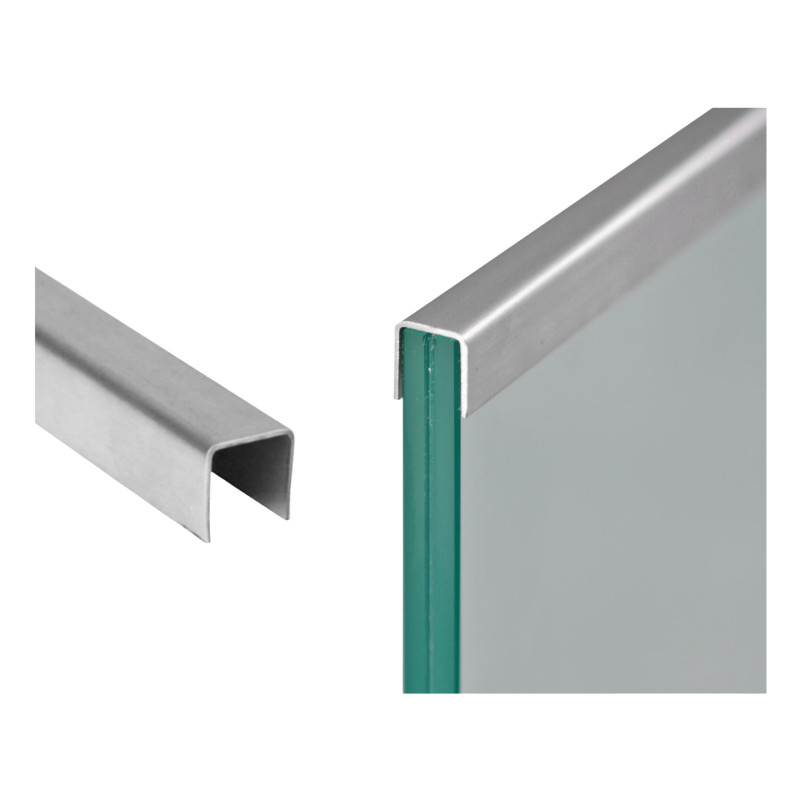

The channel profile (channel bar) is the structural link between the glass panel and the applied handrail. It receives the top edge of the glass panel and carries the handrail profile above it, transferring load from the rail into the glass. This 8 mm version is sized to the glass thickness and is bonded to the glass with silicone — no clamping rubber is used with this profile. It pairs with the applied handrails and, for other glass thicknesses, the range includes matching profiles from 8 mm to 21.52 mm, as well as "SET" versions and an anodized aluminium option.

Use cases:

• Fixing an applied handrail to the top edge of an 8 mm glass panel
• Structural channel bar in a post-free glass-top handrail
• Silicone-bonded glass-to-handrail connection for 8 mm glass
• Frameless glass balustrade handrail assembly
• Stainless-steel channel profile for glass-top handrails

FAQ

What does the channel profile do?

It receives the top edge of the glass panel and carries the applied handrail above it, forming the structural link between the glass and the rail.

What glass thickness does it fit?

8 mm glass. Matching profiles are available for other thicknesses up to 21.52 mm.

How is it installed?

Without a gasket, using silicone — the profile is bonded to the glass. (A "SET" version and other thicknesses are also offered.)

What length is it?

2500 mm.

What is the steel grade and finish?

AISI 304 stainless steel with a satin finish.

What else do I need for a glass-top handrail?

The applied handrail profile that sits on this channel, plus end caps and fittings for the run.

About Handrails

A handrail is the graspable top rail of a balustrade system, running along the upper edge of railing posts or the top of a glass panel to provide a secure handhold. The handrail profile sits on handrail supports or is fixed directly to the glass via a channel bar, and fittings at each joint — elbows, end caps and axial connectors — allow the rail to follow corners, stair pitches and direction changes.

Strofix supplies handrails and handrail components in two profile systems: a 40×40 mm flat square profile and a Ø42.4 × 15 mm oval (D-shaped) profile for glass-top mounting, both in AISI 304 stainless steel with a satin finish.

The range includes applied handrail lengths (2500 mm), channel bars in AISI 304 and aluminium for glass-top fixing, clamping rubbers for glass thicknesses from 8 to 21.52 mm, end caps, axial fastenings, handrail fittings, horizontal and vertical 90° fittings, and flush adjustable elbows. The correct components depend on handrail profile, mounting method (post-top or glass-top) and the railing layout.
