Handrail mounting flange 40x40mm, Satin

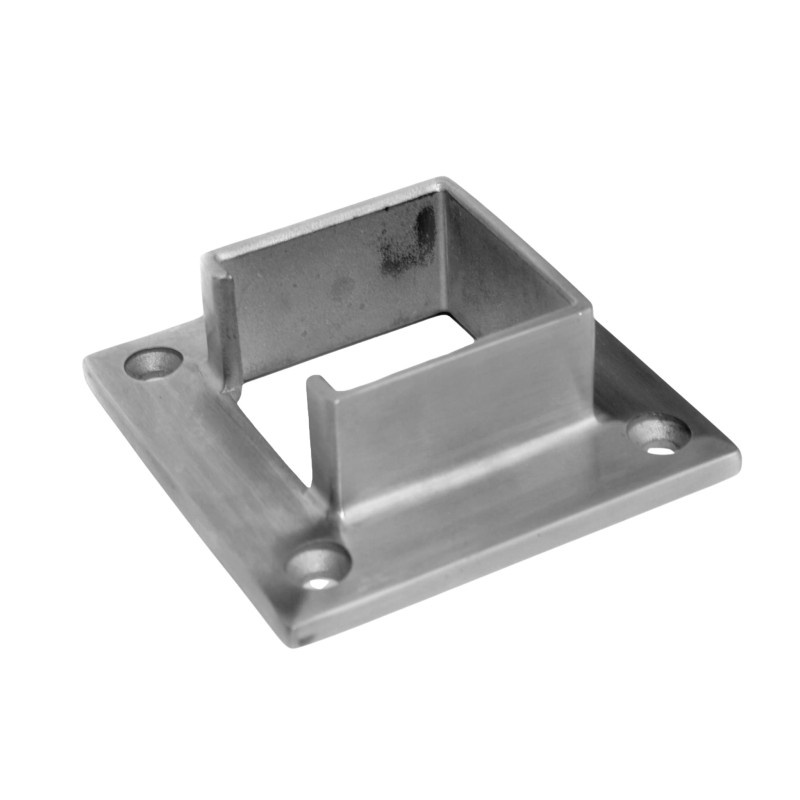

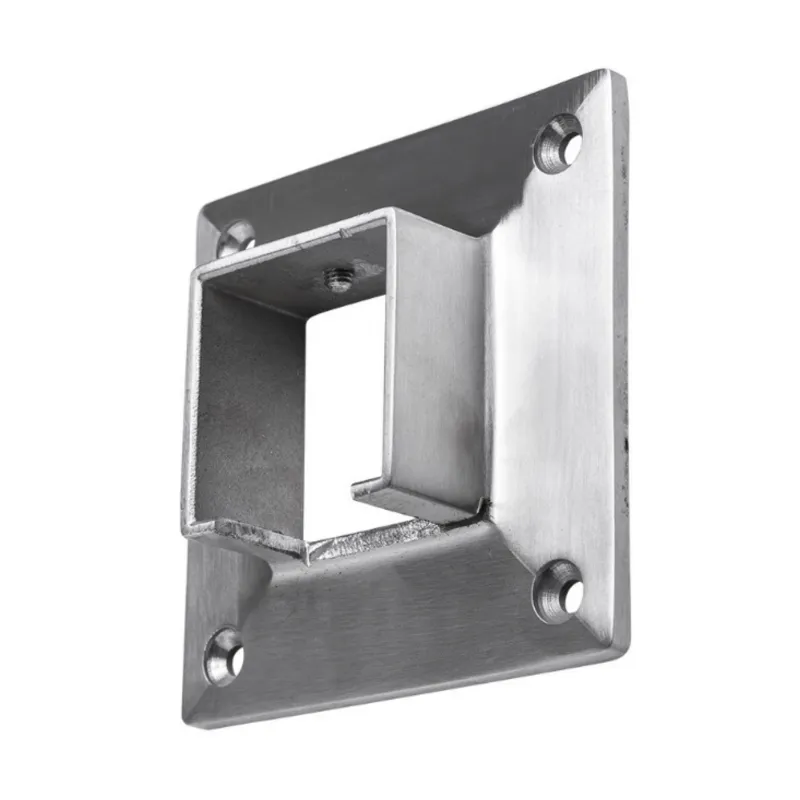

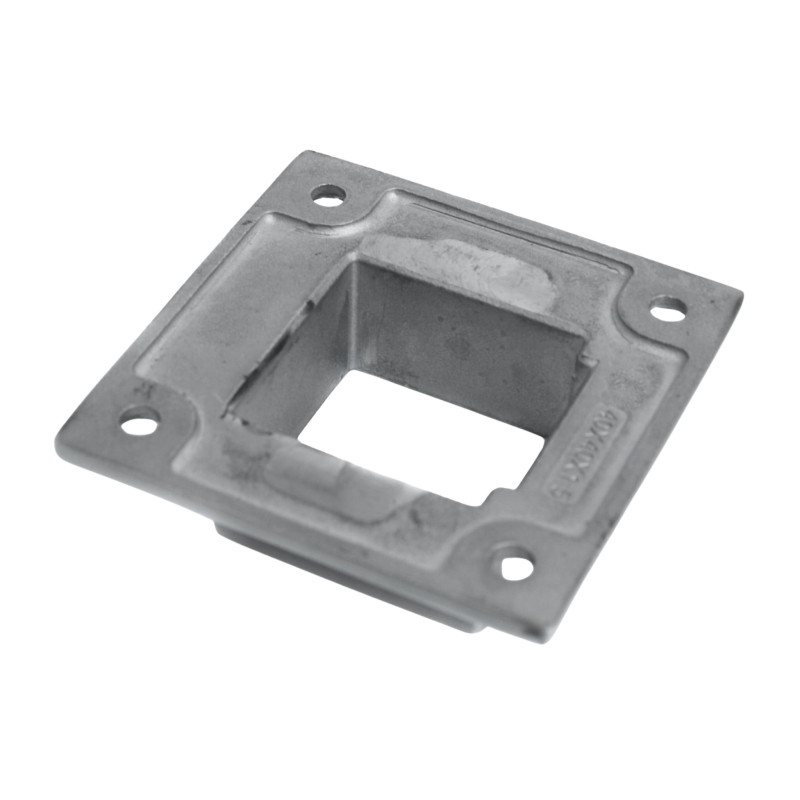

The Strofix handrail mounting flange 40x40mm, Satin is a stainless-steel axial handrail fastening that anchors the end of a 40 × 40 mm handrail to a wall or surface, available in AISI 304 or AISI 316. It fixes to the surface through an 80 × 80 mm base plate (D = 80 × 80 mm) and receives the handrail axially – in line with the rail – with a fitting height of 30 mm. Made for 40 × 40 × 1.5 mm tube, in a satin finish.

A handrail mounting flange terminates and supports the end of a handrail run where it meets a wall. The rail meets the flange end-on (axially), and the 80 × 80 mm plate spreads the load into the wall or surface. It is used at the start or finish of a handrail run – for example, where a stair or ramp handrail begins or ends at a wall. It is a more compact alternative to the 95 × 95 mm axial fastening. Choose the steel grade (AISI 304 or AISI 316) at order time. It is used with the 40 × 40 mm handrail profile in post-top or glass-top handrail systems.

Use cases:

• Anchoring the end of a 40 × 40 mm handrail to a wall or surface
• Wall termination at the start or finish of a handrail run
• Axial (in-line) end support for a stair or ramp handrail
• Compact end flange with an 80 × 80 mm base plate
• Marine-grade AISI 316 handrail mounting flange for coastal handrail runs

FAQ

What does a handrail mounting flange do?

It anchors the end of a handrail to a wall or surface, receiving the rail axially (in line) and spreading the load through an 80 × 80 mm base plate.

What handrail profile does it fit?

The 40 × 40 mm handrail profile (40 × 40 × 1.5 mm tube).

What are the base plate and height dimensions?

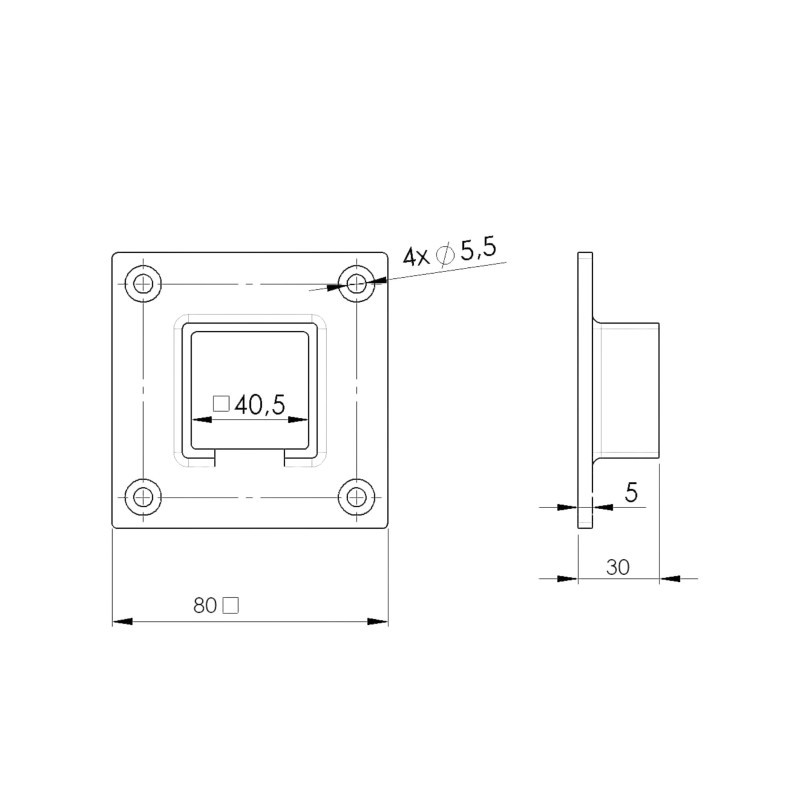

The base plate is 80 × 80 mm (D = 80 × 80 mm) and the fitting height is 30 mm.

How does it differ from the 95 × 95 axial fastening?

Both anchor the rail end to a wall through a base plate. This flange has a more compact 80 × 80 mm plate; the other has a 95 × 95 mm plate.

Which steel grades are available?

AISI 304 or AISI 316. Choose AISI 316 for coastal, pool, or high-humidity installations.

About Handrails

A handrail is the graspable top rail of a balustrade system, running along the upper edge of railing posts or the top of a glass panel to provide a secure handhold. The handrail profile sits on handrail supports or is fixed directly to the glass via a channel bar, and fittings at each joint – elbows, end caps and axial connectors – allow the rail to follow corners, stair pitches and direction changes.

Strofix supplies handrails and handrail components in two profile systems: a 40×40 mm flat square profile and a Ø42.4 × 15 mm oval (D-shaped) profile for glass-top mounting, both in AISI 304 stainless steel with a satin finish.

The range includes applied handrail lengths (2500 mm), channel bars in AISI 304 and aluminium for glass-top fixing, clamping rubbers for glass thicknesses from 8 to 21.52 mm, end caps, axial fastenings, handrail fittings, horizontal and vertical 90° fittings, and flush adjustable elbows. The correct components depend on handrail profile, mounting method (post-top or glass-top) and the railing layout.
