Vertical elbow for handrail 40x40mm, Satin, 90°

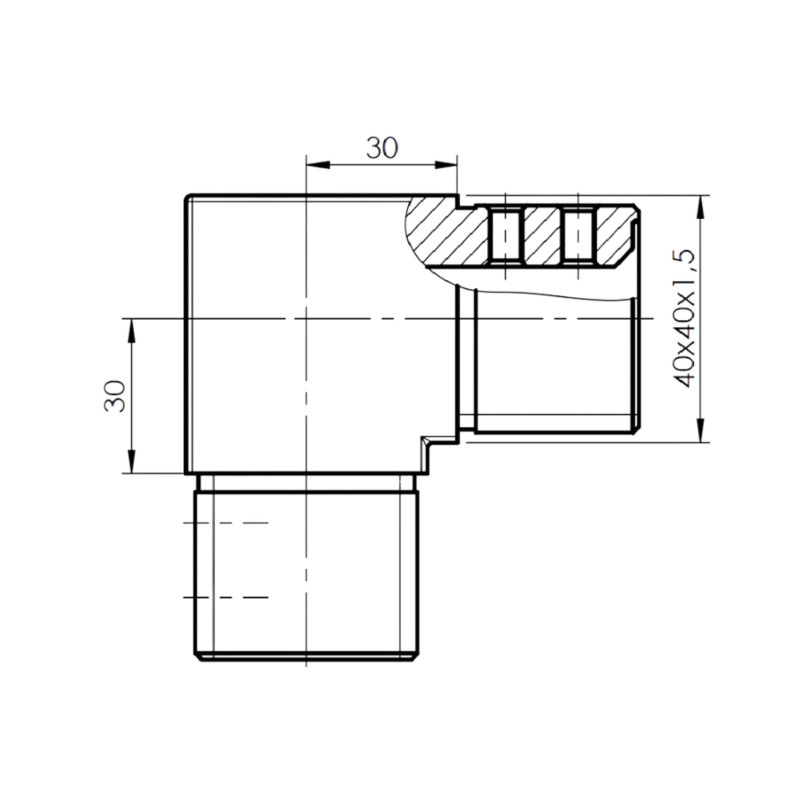

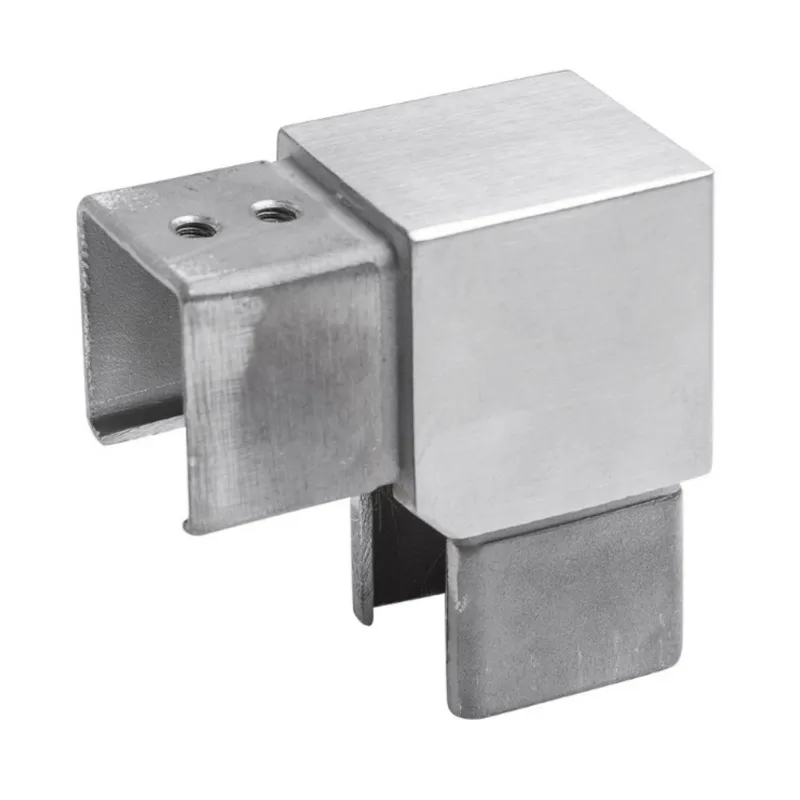

The Strofix vertical elbow for handrail 40x40mm, Satin, 90° is an AISI 316 stainless-steel vertical 90° fitting for the 40 × 40 mm handrail profile. It turns the handrail through a right angle in the vertical plane, joining a horizontal rail to a vertical rail section. It is made for 40 × 40 × 1.5 mm tube with a fitting height of 50 mm, in a satin finish.

A vertical 90° fitting carries the handrail up or down through a right angle – for example, where a rail rises vertically to meet a wall, turns up an upstand, or steps between two levels. Unlike the adjustable elbows, which set a variable pitch, this fitting forms a fixed vertical 90° turn. It is made from marine-grade AISI 316 stainless steel, suited to coastal, pool, and high-humidity installations, and is used with the 40 × 40 mm handrail profile in post-top or glass-top handrail systems.

Use cases:

• Turning a 40 × 40 mm handrail through a vertical 90° angle
• Joining a horizontal rail to a vertical rail section
• Carrying a handrail up an upstand or to a wall termination
• Fixed vertical right-angle turn in a handrail run
• Marine-grade AISI 316 vertical fitting for coastal handrail installations

FAQ

What does a vertical 90° elbow do?

It turns the handrail through a right angle in the vertical plane – joining a horizontal rail to a vertical section, such as where a rail rises to a wall or steps between levels.

What handrail profile does it fit?

The 40 × 40 mm handrail profile (40 × 40 × 1.5 mm tube).

What is the fitting height?

50 mm (h = 50 mm).

How does it differ from the adjustable elbows?

The adjustable elbows set a variable pitch for stair transitions; this fitting forms a fixed vertical 90° turn.

What steel grade and finish are used?

Marine-grade AISI 316 stainless steel with a satin finish.

About Handrails

A handrail is the graspable top rail of a balustrade system, running along the upper edge of railing posts or the top of a glass panel to provide a secure handhold. The handrail profile sits on handrail supports or is fixed directly to the glass via a channel bar, and fittings at each joint – elbows, end caps and axial connectors – allow the rail to follow corners, stair pitches and direction changes.

Strofix supplies handrails and handrail components in two profile systems: a 40×40 mm flat square profile and a Ø42.4 × 15 mm oval (D-shaped) profile for glass-top mounting, both in AISI 304 stainless steel with a satin finish.

The range includes applied handrail lengths (2500 mm), channel bars in AISI 304 and aluminium for glass-top fixing, clamping rubbers for glass thicknesses from 8 to 21.52 mm, end caps, axial fastenings, handrail fittings, horizontal and vertical 90° fittings, and flush adjustable elbows. The correct components depend on handrail profile, mounting method (post-top or glass-top) and the railing layout.
