Profile for glass 10mm SET, Satin, 2500mm

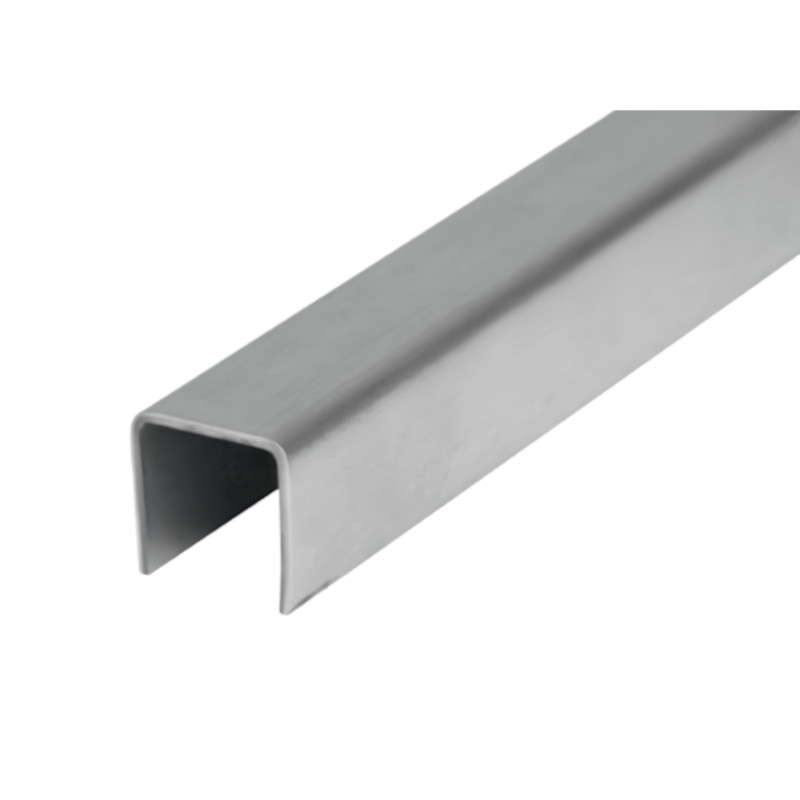

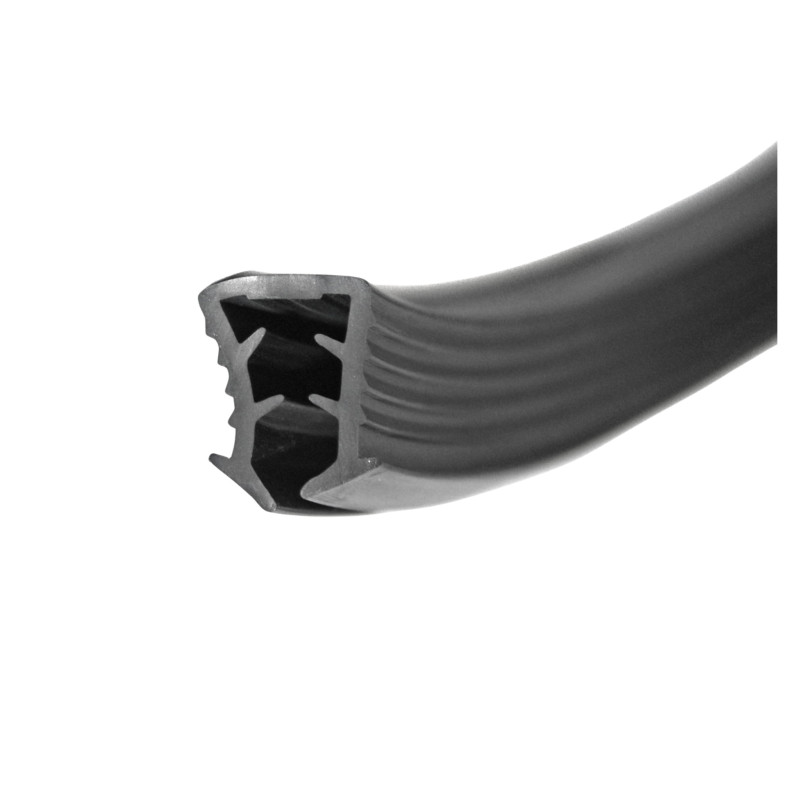

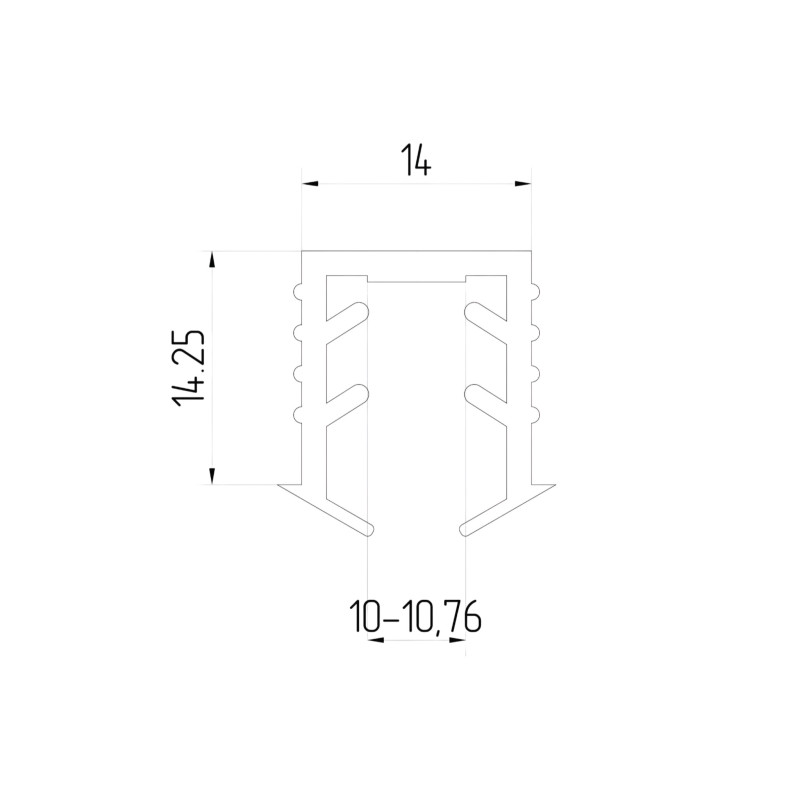

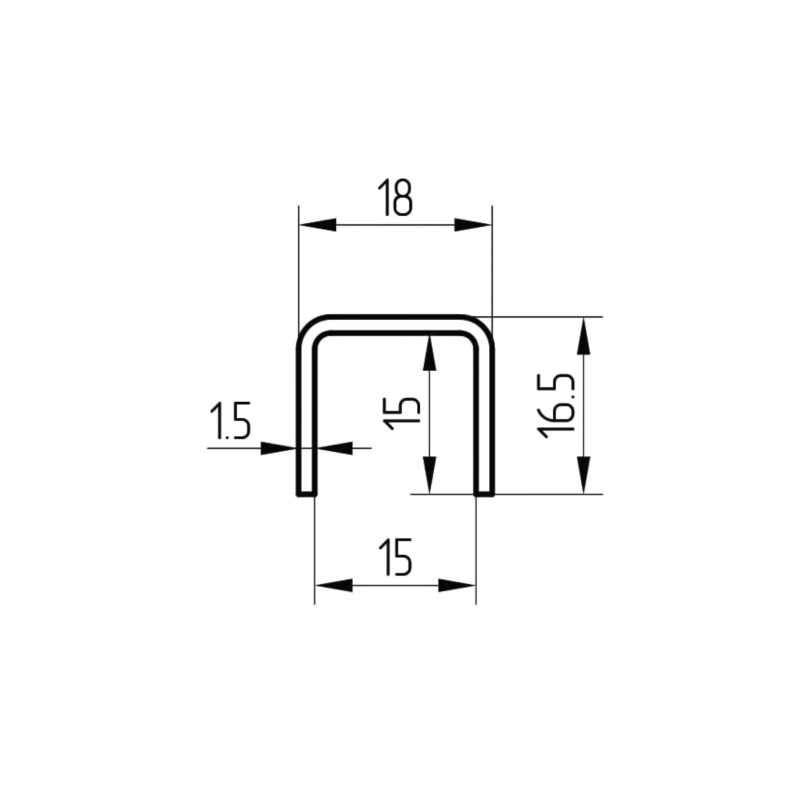

The Strofix profile for glass 10mm SET, Satin, 2500mm is a complete kit for fixing an applied handrail to a 10 mm glass panel: an AISI 304 stainless-steel U-profile channel bar together with a black EPDM gasket. It is 2500 mm long with a satin finish. The kit supplies both the channel and the glazing gasket needed for the glass-to-handrail connection.

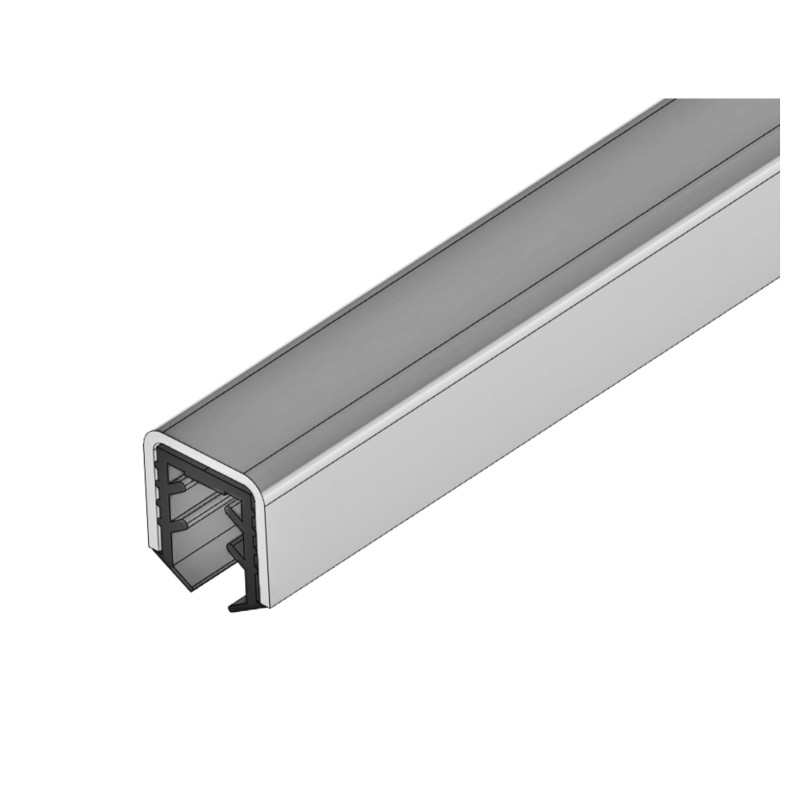

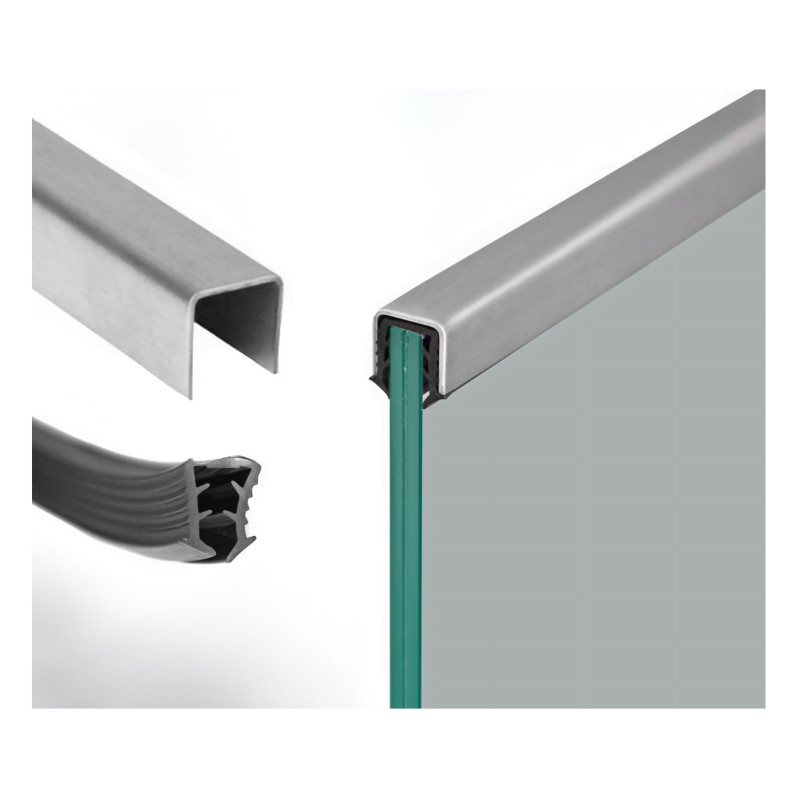

The channel profile (channel bar) is the structural link between the glass panel and the applied handrail — it receives the top edge of the glass and carries the handrail above it. This SET version includes the black EPDM gasket sized for 10 mm glass, so the glass is held mechanically by the gasket within the channel rather than bonded with silicone. It gives a gasket-based glass fixing supplied as a single kit, and pairs with the applied handrails. Matching profiles and kits are available for other glass thicknesses in the range.

Use cases:

• Complete channel-and-gasket kit for fixing an applied handrail to 10 mm glass
• Gasket-based (mechanical) glass fixing for a glass-top handrail
• Structural channel bar with EPDM gasket for 10 mm glass panels
• Frameless glass balustrade handrail assembly supplied as a kit
• Stainless-steel channel profile set for glass-top handrails

FAQ

What is included in the SET?

A U-profile channel bar and a black EPDM gasket for 10 mm glass — the channel plus the glazing gasket.

How does the SET differ from a plain profile?

A plain profile is installed with silicone and no gasket. This SET includes the EPDM gasket, so the glass is held mechanically by the gasket within the channel.

What glass thickness does it fit?

10 mm glass.

What length is it?

2500 mm.

What is the steel grade and finish?

AISI 304 stainless steel with a satin finish (the EPDM gasket is black).

What else do I need for a glass-top handrail?

The applied handrail profile that sits on this channel, plus end caps and fittings for the run.

About Handrails

A handrail is the graspable top rail of a balustrade system, running along the upper edge of railing posts or the top of a glass panel to provide a secure handhold. The handrail profile sits on handrail supports or is fixed directly to the glass via a channel bar, and fittings at each joint — elbows, end caps and axial connectors — allow the rail to follow corners, stair pitches and direction changes.

Strofix supplies handrails and handrail components in two profile systems: a 40×40 mm flat square profile and a Ø42.4 × 15 mm oval (D-shaped) profile for glass-top mounting, both in AISI 304 stainless steel with a satin finish.

The range includes applied handrail lengths (2500 mm), channel bars in AISI 304 and aluminium for glass-top fixing, clamping rubbers for glass thicknesses from 8 to 21.52 mm, end caps, axial fastenings, handrail fittings, horizontal and vertical 90° fittings, and flush adjustable elbows. The correct components depend on handrail profile, mounting method (post-top or glass-top) and the railing layout.
