Elbow adjustable for slot handrail 42,4mm, Satin, Upper

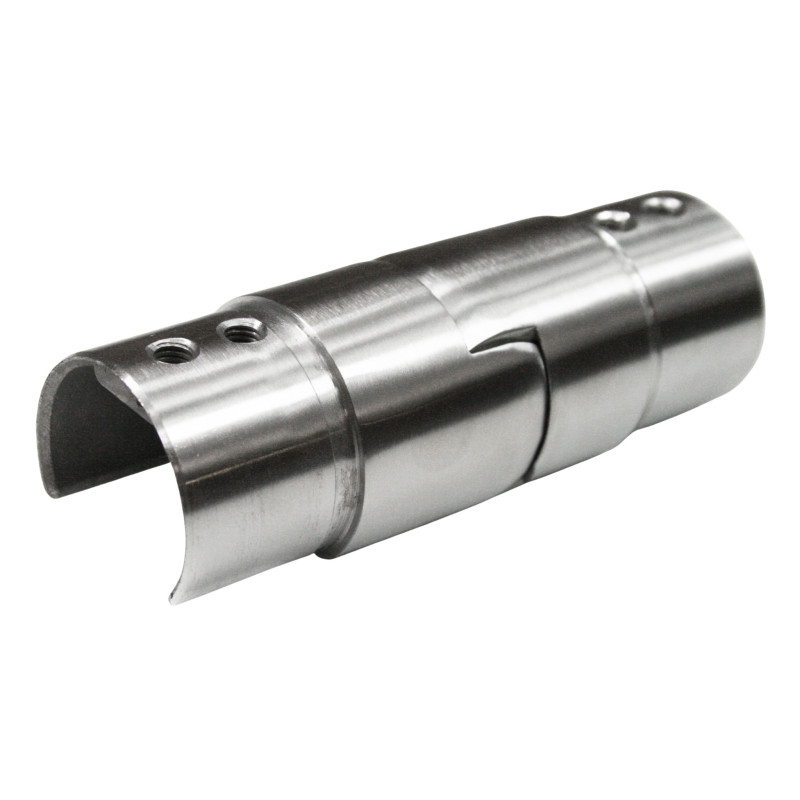

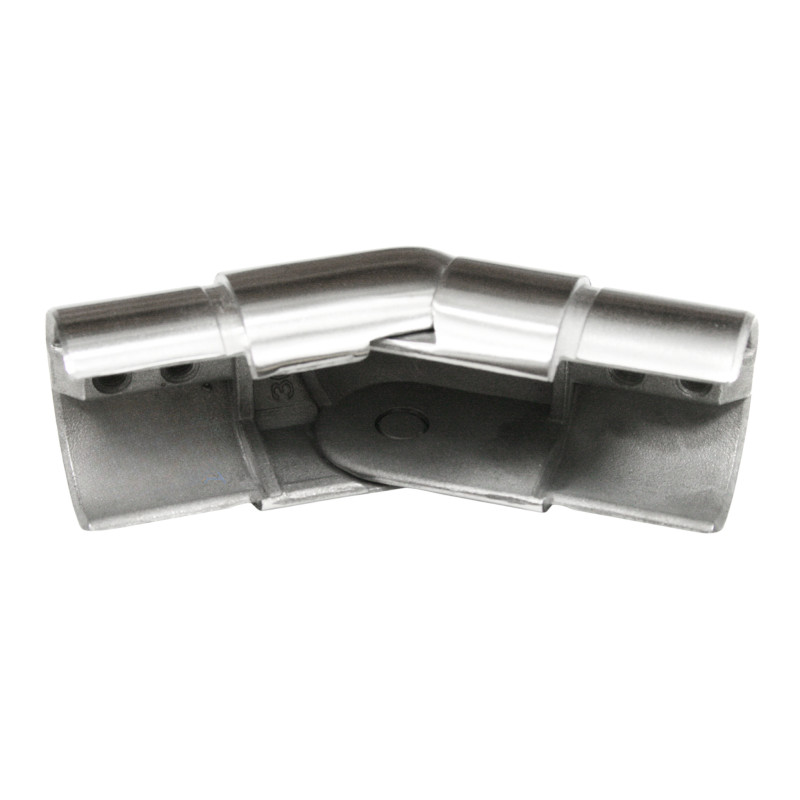

The Strofix elbow adjustable for slot handrail 42,4mm, Satin, Upper is an AISI 304 stainless-steel adjustable flush elbow for the Ø42.4 mm slot (glass-top) handrail profile. It joins two handrail sections at a variable angle, adjustable across a 0–70° range, giving a smooth flush joint where the rail changes pitch or direction. Satin finish.

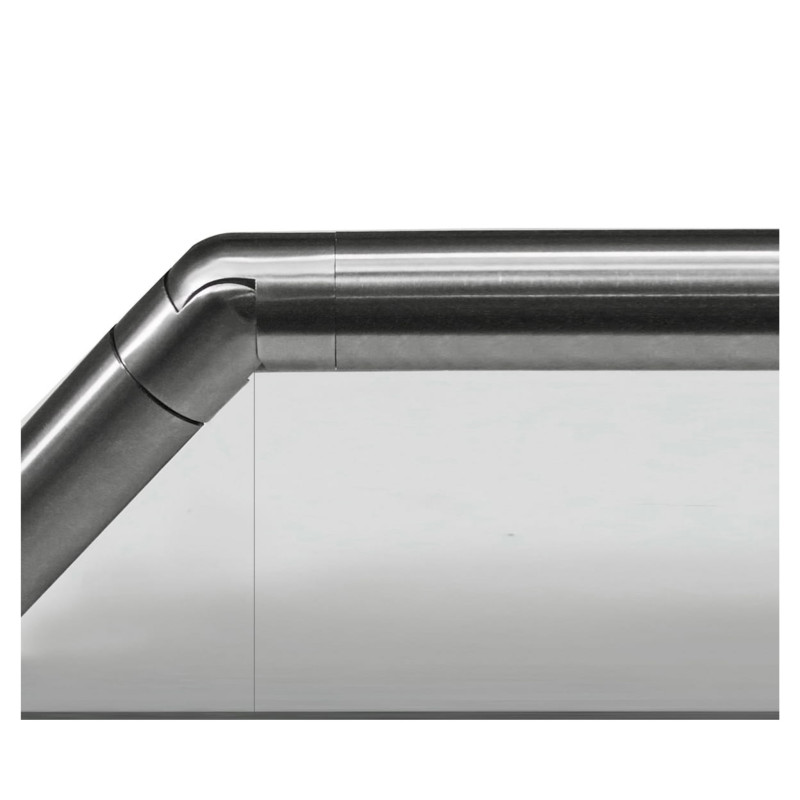

An adjustable elbow lets the handrail follow a change of pitch – most often at the top or bottom of a staircase, where the raking rail meets a level rail or a landing. This is the "Upper" version, suited to the upper transition of a stair run; a "Bottom" version handles the lower transition. The flush design keeps the joint smooth and continuous along the handrail surface. It is used with the Ø42.4 mm slot handrail profile in a glass-top handrail system.

Use cases:

• Joining two Ø42.4 mm slot handrail sections at a variable angle
• Upper pitch transition at the top of a staircase handrail
• Smooth flush angle where a raking rail meets a level rail
• Adjustable-angle handrail joint on a glass-top balustrade
• Stainless-steel adjustable flush elbow for slot handrail

FAQ

What angle range does it cover?

It is adjustable across a 0–70° range, for the upper transition of a stair run.

What handrail profile does it fit?

The Ø42.4 mm slot (glass-top) handrail profile.

What does "flush" mean?

The elbow creates a smooth, continuous joint along the handrail surface, without a protruding bracket.

What does "Upper" mean?

It is the version for the upper transition of a stair run; a "Bottom" version is available for the lower transition.

What is the steel grade and finish?

AISI 304 stainless steel with a satin finish.

About Handrails

A handrail is the graspable top rail of a balustrade system, running along the upper edge of railing posts or the top of a glass panel to provide a secure handhold. The handrail profile sits on handrail supports or is fixed directly to the glass via a channel bar, and fittings at each joint – elbows, end caps and axial connectors – allow the rail to follow corners, stair pitches and direction changes.

Strofix supplies handrails and handrail components in two profile systems: a 40×40 mm flat square profile and a Ø42.4 × 15 mm oval (D-shaped) profile for glass-top mounting, both in AISI 304 stainless steel with a satin finish.

The range includes applied handrail lengths (2500 mm), channel bars in AISI 304 and aluminium for glass-top fixing, clamping rubbers for glass thicknesses from 8 to 21.52 mm, end caps, axial fastenings, handrail fittings, horizontal and vertical 90° fittings, and flush adjustable elbows. The correct components depend on handrail profile, mounting method (post-top or glass-top) and the railing layout.
