Elbow adjustable for slot handrail 42,4mm, Satin, Bottom

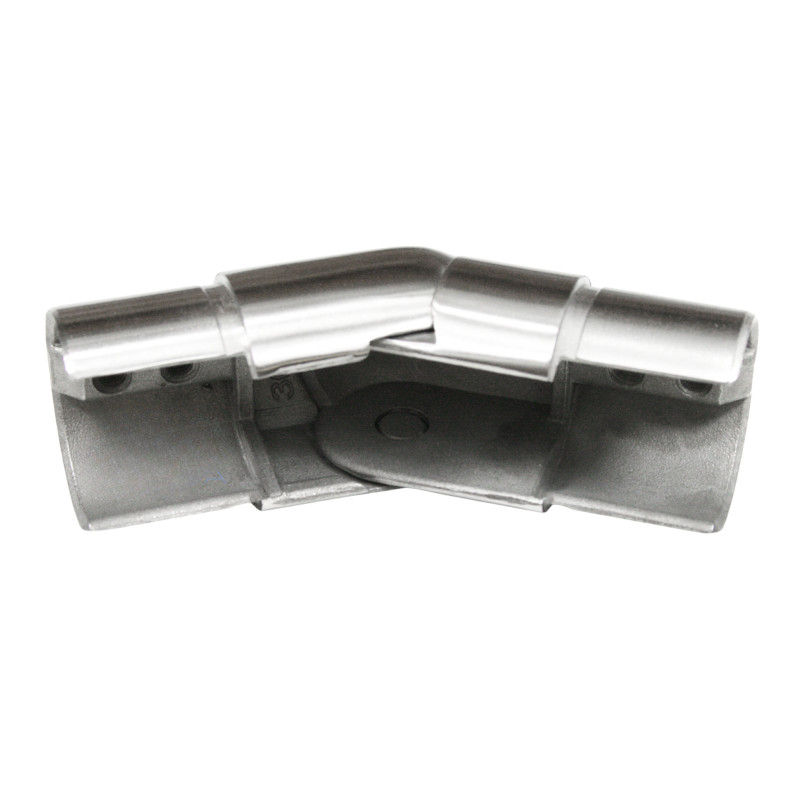

The Strofix elbow adjustable for slot handrail 42,4mm, Satin, Bottom is an AISI 304 stainless-steel adjustable flush elbow for the Ø42.4 mm slot (glass-top) handrail profile. It joins two handrail sections at a variable angle, adjustable across a 0–70° range, giving a smooth flush joint where the rail changes pitch or direction. Satin finish.

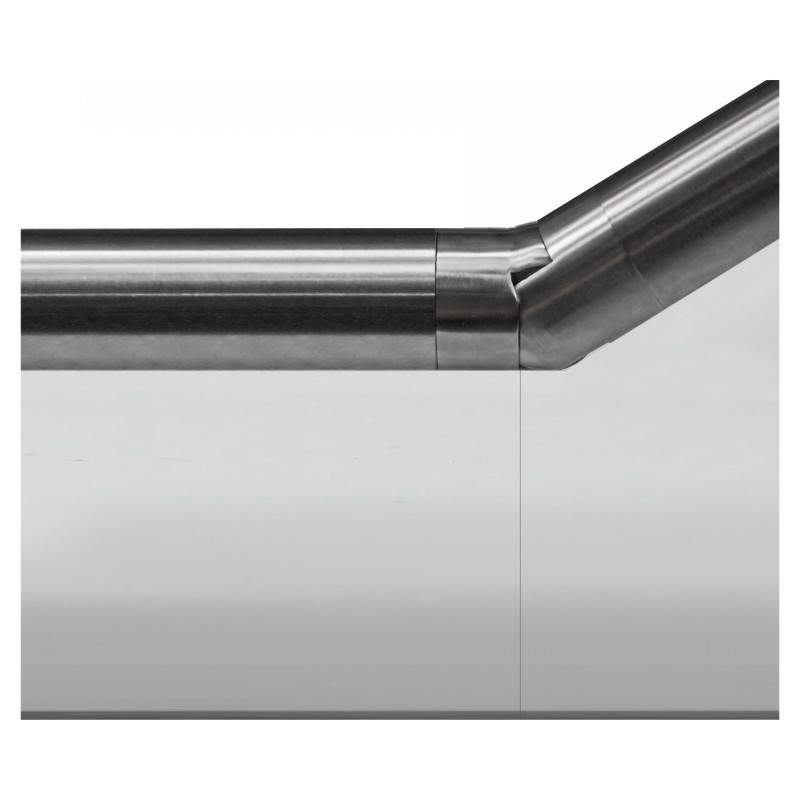

An adjustable elbow lets the handrail follow a change of pitch – most often at the top or bottom of a staircase, where the raking rail meets a level rail or a landing. This is the "Bottom" version, oriented for the lower transition of a stair run, where the raking handrail meets the level rail at the foot of the stairs; the "Upper" version handles the top transition. The flush design keeps the joint smooth and continuous along the handrail surface. It is used with the Ø42.4 mm slot handrail profile in a glass-top handrail system.

Use cases:

• Joining two Ø42.4 mm slot handrail sections at a variable angle
• Lower pitch transition at the foot of a staircase handrail
• Smooth flush angle where a raking rail meets a level rail
• Adjustable-angle handrail joint on a glass-top balustrade
• Stainless-steel adjustable flush elbow for slot handrail

FAQ

What angle range does it cover?

It is adjustable across a 0–70° range, for the lower transition of a stair run.

What handrail profile does it fit?

The Ø42.4 mm slot (glass-top) handrail profile.

What does "flush" mean?

The elbow creates a smooth, continuous joint along the handrail surface, without a protruding bracket.

What does "Bottom" mean?

It is the version for the lower transition of a stair run – the foot of the stairs, where the raking rail meets the level rail. An "Upper" version is available for the top transition.

What is the steel grade and finish?

AISI 304 stainless steel with a satin finish.

About Handrails

A handrail is the graspable top rail of a balustrade system, running along the upper edge of railing posts or the top of a glass panel to provide a secure handhold. The handrail profile sits on handrail supports or is fixed directly to the glass via a channel bar, and fittings at each joint – elbows, end caps and axial connectors – allow the rail to follow corners, stair pitches and direction changes.

Strofix supplies handrails and handrail components in two profile systems: a 40×40 mm flat square profile and a Ø42.4 × 15 mm oval (D-shaped) profile for glass-top mounting, both in AISI 304 stainless steel with a satin finish.

The range includes applied handrail lengths (2500 mm), channel bars in AISI 304 and aluminium for glass-top fixing, clamping rubbers for glass thicknesses from 8 to 21.52 mm, end caps, axial fastenings, handrail fittings, horizontal and vertical 90° fittings, and flush adjustable elbows. The correct components depend on handrail profile, mounting method (post-top or glass-top) and the railing layout.
