Axial handrail fastening 42,4, Satin

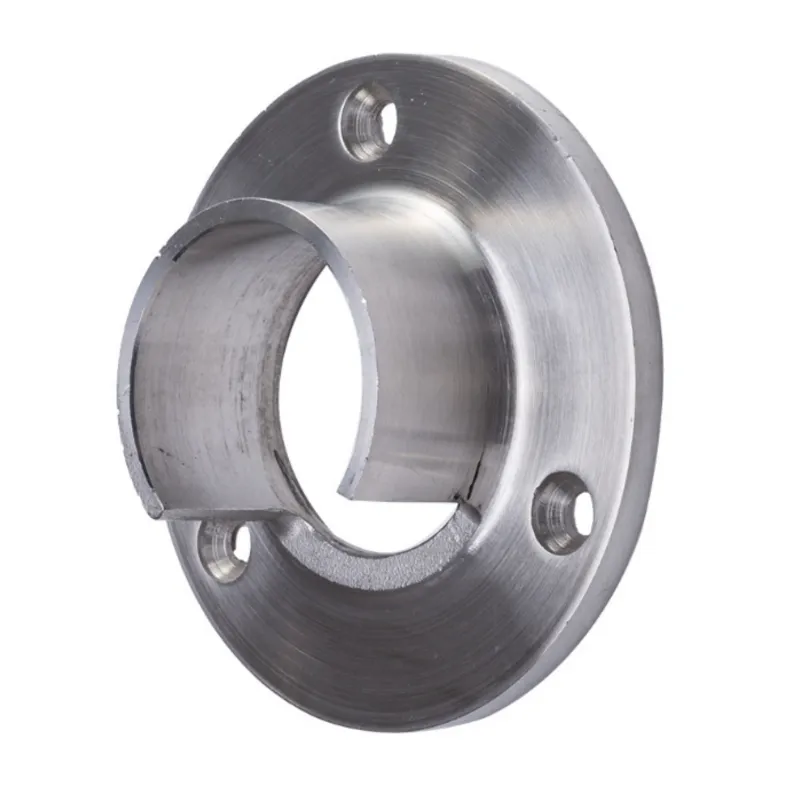

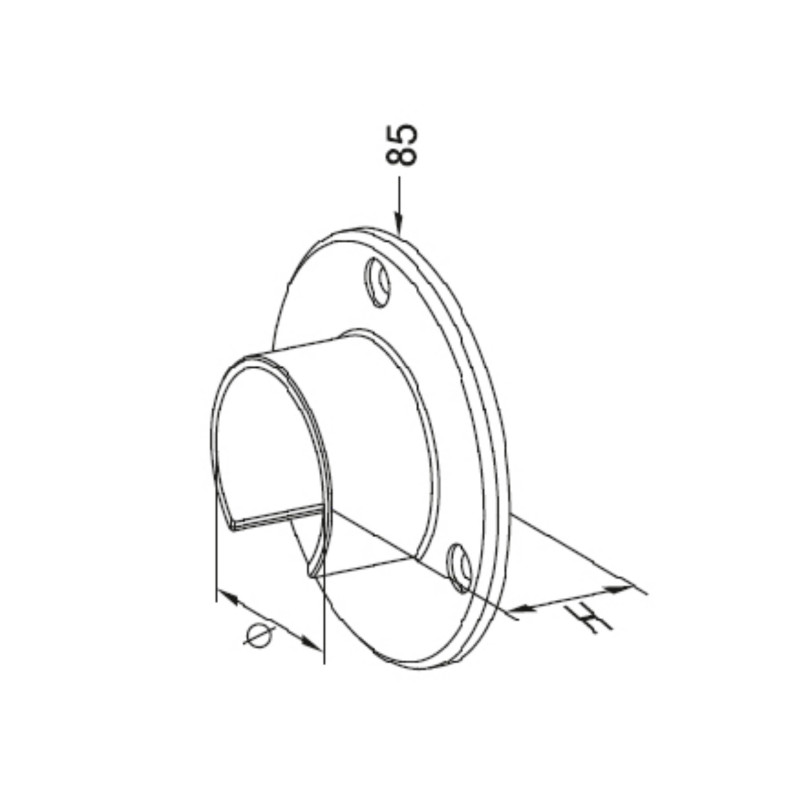

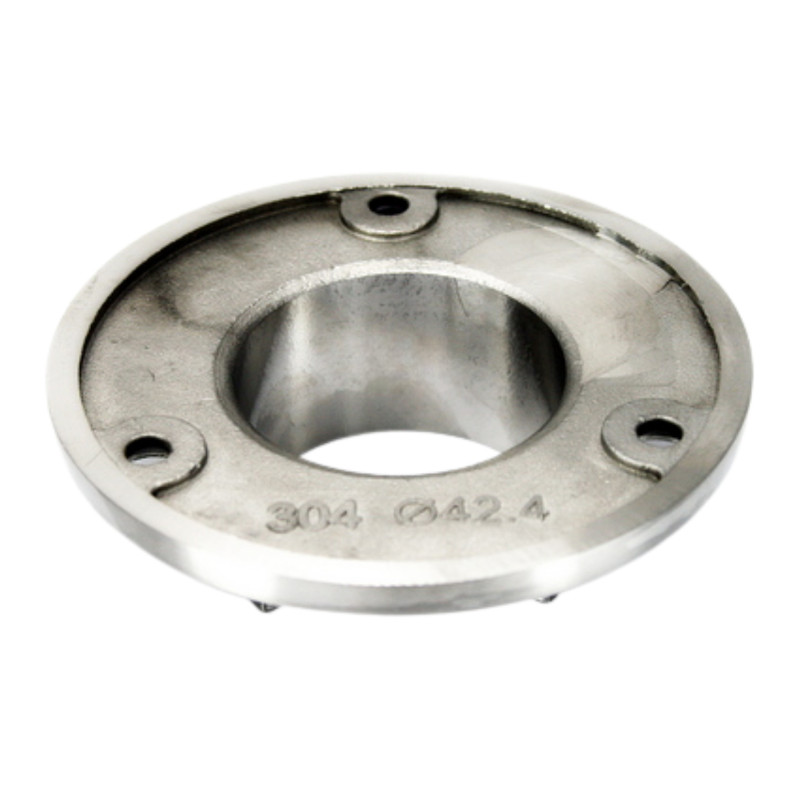

The Strofix axial handrail fastening 42,4, Satin is a stainless-steel end fixing that secures the end of a Ø42.4 mm slot (glass-top) handrail axially to a wall. It suits a Ø42.4 × 1.5 mm tube and has a height of h=30 mm. Available in AISI 304 or AISI 316 grade with a satin finish.

An axial fastening fixes the handrail end-on, along the tube axis, so the rail can terminate cleanly against a wall or run into a fixed point. It provides the anchor at the end of a handrail run, working together with the range's elbows, end caps, and 90° fittings to complete the rail. AISI 304 suits interior and standard exterior installations; AISI 316 contains added molybdenum for higher resistance to chlorides and salt air, making it the choice for coastal and high-humidity environments. It is used with the Ø42.4 mm slot handrail profile in a glass-top handrail system.

Use cases:

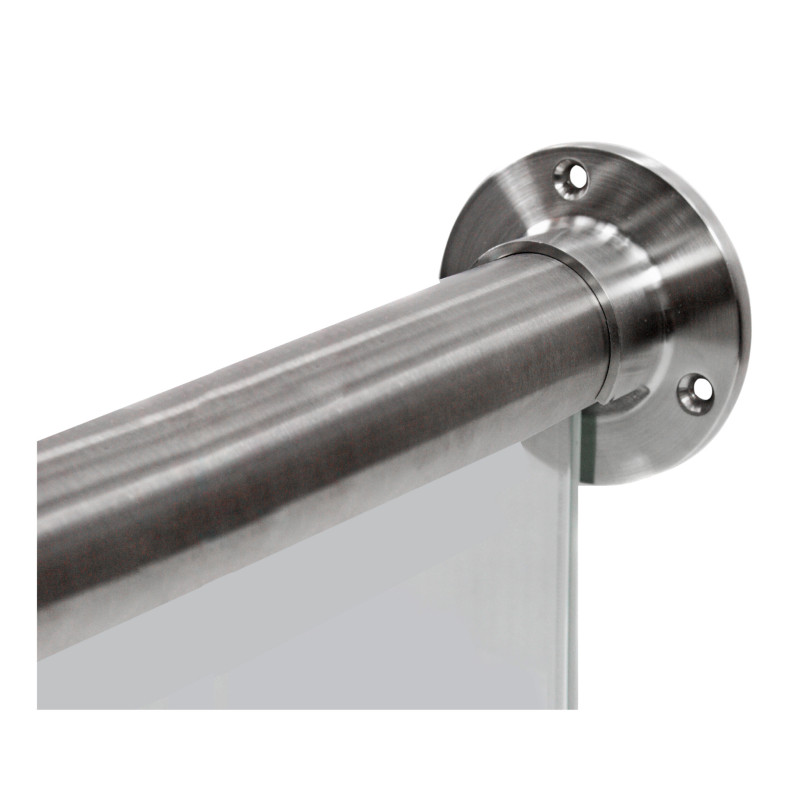

• Terminating a Ø42.4 mm slot handrail run against a wall
• Wall-end anchor for a glass-top handrail
• Fixing the handrail end where a stair rail meets a wall
• End support for a Ø42.4 handrail on a landing or stairwell
• Pool and seafront handrail wall terminations (AISI 316 recommended)

FAQ

What does this fastening do?

It fixes the end of a Ø42.4 mm handrail axially – end-on, along the tube axis – to a wall.

What handrail profile does it fit?

The Ø42.4 mm slot (glass-top) handrail profile, sized for a Ø42.4 × 1.5 mm tube.

What is the height of the fitting?

The fitting has a height of h=30 mm.

What is the difference between AISI 304 and AISI 316?

AISI 316 contains added molybdenum for higher resistance to chlorides and salt air. Choose AISI 316 for coastal, pool, and high-humidity installations; AISI 304 is sufficient for interiors and standard outdoor conditions.

Where does it fit in the handrail system?

It anchors the end of a handrail run, alongside the range's elbows, end caps, and horizontal and vertical 90° fittings.

About Handrails

A handrail is the graspable top rail of a balustrade system, running along the upper edge of railing posts or the top of a glass panel to provide a secure handhold. The handrail profile sits on handrail supports or is fixed directly to the glass via a channel bar, and fittings at each joint – elbows, end caps and axial connectors – allow the rail to follow corners, stair pitches and direction changes.

Strofix supplies handrails and handrail components in two profile systems: a 40×40 mm flat square profile and a Ø42.4 × 15 mm oval (D-shaped) profile for glass-top mounting, both in AISI 304 stainless steel with a satin finish.

The range includes applied handrail lengths (2500 mm), channel bars in AISI 304 and aluminium for glass-top fixing, clamping rubbers for glass thicknesses from 8 to 21.52 mm, end caps, axial fastenings, handrail fittings, horizontal and vertical 90° fittings, and flush adjustable elbows. The correct components depend on handrail profile, mounting method (post-top or glass-top) and the railing layout.
