Side mounting of the post 42,4mm 150mm, Satin

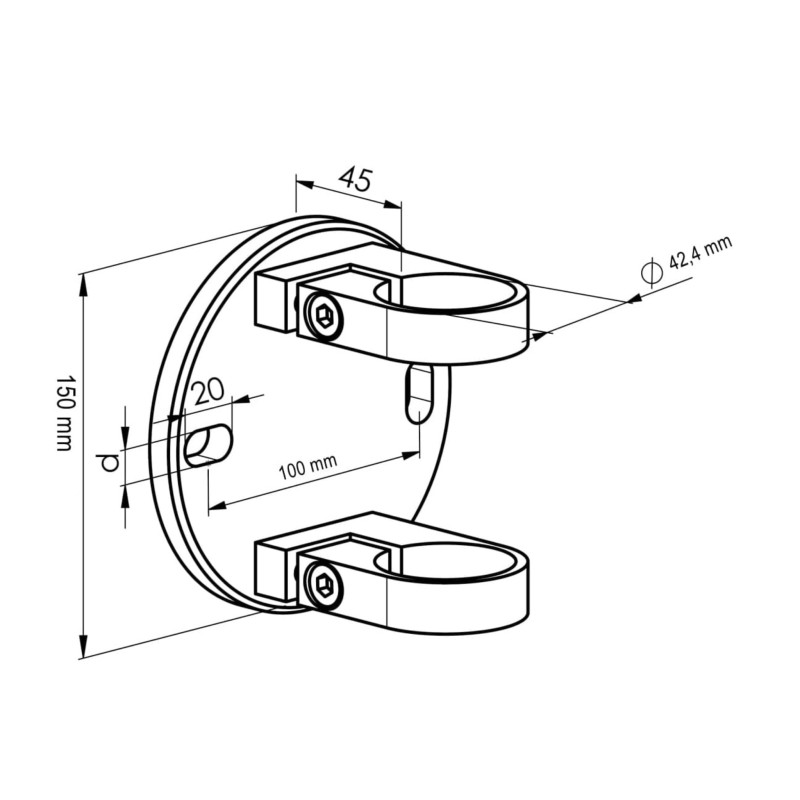

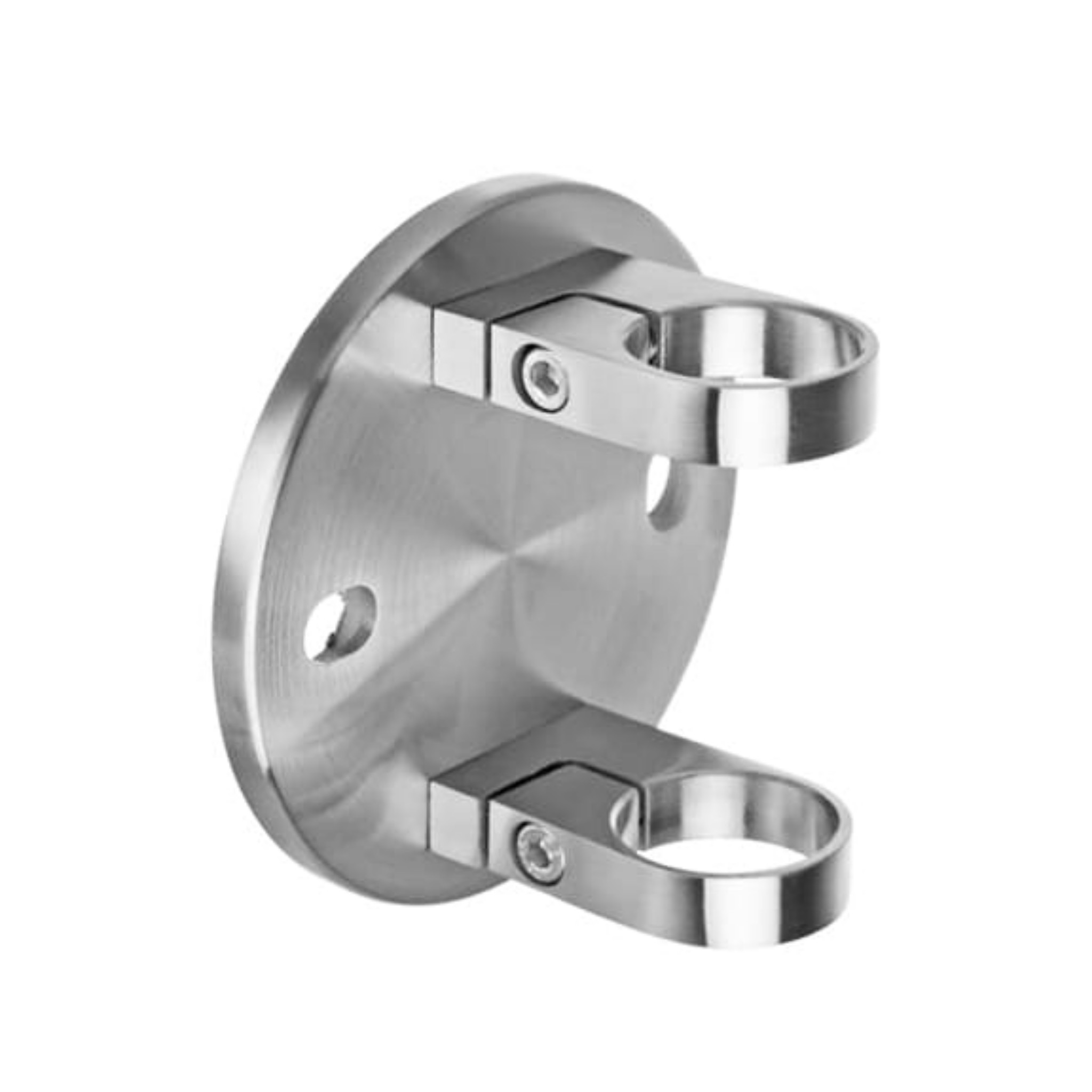

The Strofix side mounting of the post 42.4mm, 150mm, Satin is a stainless-steel side fastening with a large round D150 plate that anchors a Ø42.4 mm railing post to a vertical face. The round Ø150 mm plate bolts to the side of a fascia, edge beam, or wall, holding the post alongside the structure. Available in AISI 304 or AISI 316 with a satin finish. The post is attached by welding.

This is the largest round-plate side fastening, with a Ø150 mm plate versus the Ø100 mm version. The wider plate spreads the load over a larger area and provides more anchor points, suited to taller posts, higher loads, or substrates where the maximum bearing area is wanted. It is used where a railing post is fixed to a vertical surface — a balcony slab edge, stair stringer, or fascia beam — instead of being floor-mounted, keeping the floor surface clear. The AISI 316 grade option provides marine-grade corrosion resistance for coastal installations.

Use cases:

• Side-mounting a Ø42.4 mm railing post to a vertical face with maximum bearing area
• Higher-load or taller post side-fixings needing a wider plate
• Compact circular side-fixing footprint on a slab edge or fascia
• Marine-grade AISI 316 side fastening for coastal installations
• Stainless-steel large round-plate side fastening for round railing posts

FAQ

How does this differ from the D100 side fastening?

This version has a larger Ø150 mm plate (versus Ø100 mm), spreading the load over a wider area for taller posts or higher loads. Both side-mount the Ø42.4 mm post to a vertical face.

What post does it fit?

The Ø42.4 mm round post tube, attached by welding.

Which steel grades are available?

AISI 304 or AISI 316. Choose AISI 316 for coastal, pool, or high-humidity installations.

What are the plate dimensions?

A round D150 mm plate — the largest round side-fastening plate in the range.

Why is it more expensive than the smaller side fastenings?

The larger Ø150 mm plate uses more material and provides a higher load capacity, which is reflected in the price.

What steel grade and finish are used?

AISI 304 or AISI 316 stainless steel with a satin finish.
