Side mounting of the post 120x50mm, Satin

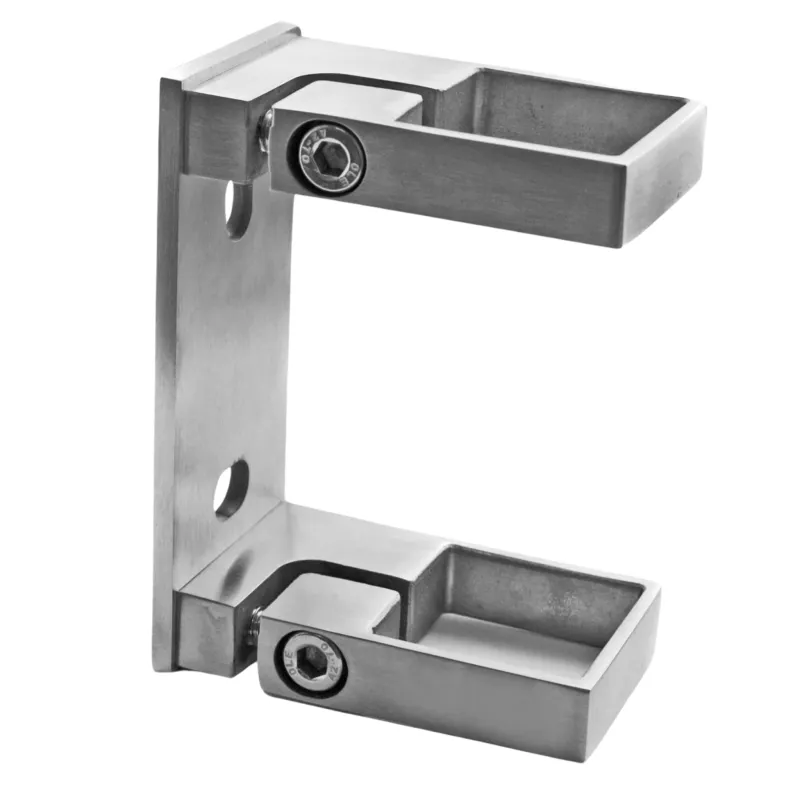

The Strofix side mounting of the post 120×50mm, Satin is an AISI 304 stainless-steel side fastening that anchors a 40 × 40 mm square railing post to a vertical face. The 120 × 50 mm plate bolts to the side of a fascia, edge beam, or wall, holding the square post alongside the structure. Finished in satin. The post is attached by welding.

This 120 × 50 mm side fastening is a heavier-duty square-post side fixing. It is used where a 40 × 40 mm square railing post is fixed to a vertical surface — a balcony slab edge, stair stringer, or fascia beam — instead of being floor-mounted, keeping the floor surface clear. The tall plate resists the leverage loads imposed by a side-mounted post.

Use cases:

• Side-mounting a 40 × 40 mm square railing post to a vertical face
• Heavier-duty square-post side fixings on slab edges or fascia beams
• Keeping the floor/deck surface clear with edge-mounted square-post railings
• Stair stringer or edge-beam square post fixings
• Stainless-steel side fastening for square railing posts

FAQ

What is side mounting?

Side mounting fixes the railing post to a vertical surface (the side of a slab, beam, or fascia) rather than on top of the floor, keeping the floor surface clear.

What post does it fit?

The 40 × 40 mm square post tube, attached by welding.

What are the plate dimensions?

120 × 50 mm. The tall plate resists the leverage loads of a side-mounted post.

How does this compare to the 120×60 square side fastening?

Both side-mount a 40 × 40 mm post to a vertical face. This 120 × 50 mm version is a heavier-duty fixing at a higher price; confirm the load requirements and plate specification for your installation.

What steel grade and finish are used?

AISI 304 stainless steel with a satin finish.
