Assembly plate 135x56mm, Satin

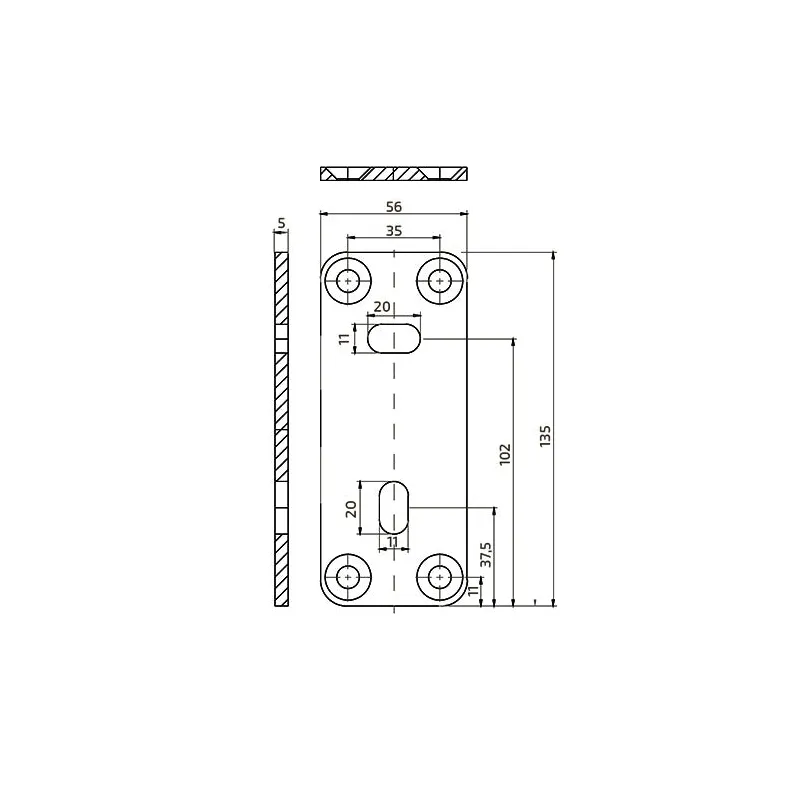

The Strofix assembly plate 135×56mm, Satin is an AISI 304 stainless-steel flat plate for railing post clamps. It measures 135 × 56 mm with a flat mounting surface and works with both 40 × 40 mm square and Ø42.4 mm round posts. Finished in satin.

This assembly plate provides a flat mounting surface for railing post clamps and auxiliary connections — it is the interface plate between a post clamp and the structure, giving a larger, finished bearing surface than the clamp alone. The 135 × 56 mm rectangular plate accommodates the fixing pattern of the assembly clamps and works across both post profiles in the range (40 × 40 square and Ø42.4 round). Supplied in a satin finish for a finished appearance.

Use cases:

• Flat mounting surface for railing post assembly clamps
• Interface plate between a post clamp and the building structure
• Auxiliary connection plate in clamp-based (no-weld) railing assemblies
• Mounting plate compatible with both 40 × 40 square and Ø42.4 round posts
• Stainless-steel satin assembly plate for railing post fixings

FAQ

What is an assembly plate for?

It provides a flat mounting surface for railing post clamps and auxiliary connections, acting as the interface between the clamp and the structure with a larger, finished bearing surface.

Which posts does it work with?

Both 40 × 40 mm square and Ø42.4 mm round posts — it works across both post profiles in the range.

What are the plate dimensions?

135 × 56 mm, with a flat mounting surface.

What finish is it supplied in?

Satin — a finished appearance.

What steel grade is used?

AISI 304 stainless steel.
