Side mounting of the post 42,4mm 135°, Satin
€49.99 Tax excluded
€60.49 Tax included
€60.49 Tax included
Tax included
Quantity
| Steel grade | AISI304 |
|---|---|
| Surface finish | Satin |
| Mounting surface type | Tube ø 42,4mm |
| Tube size | ø 42,4mm |

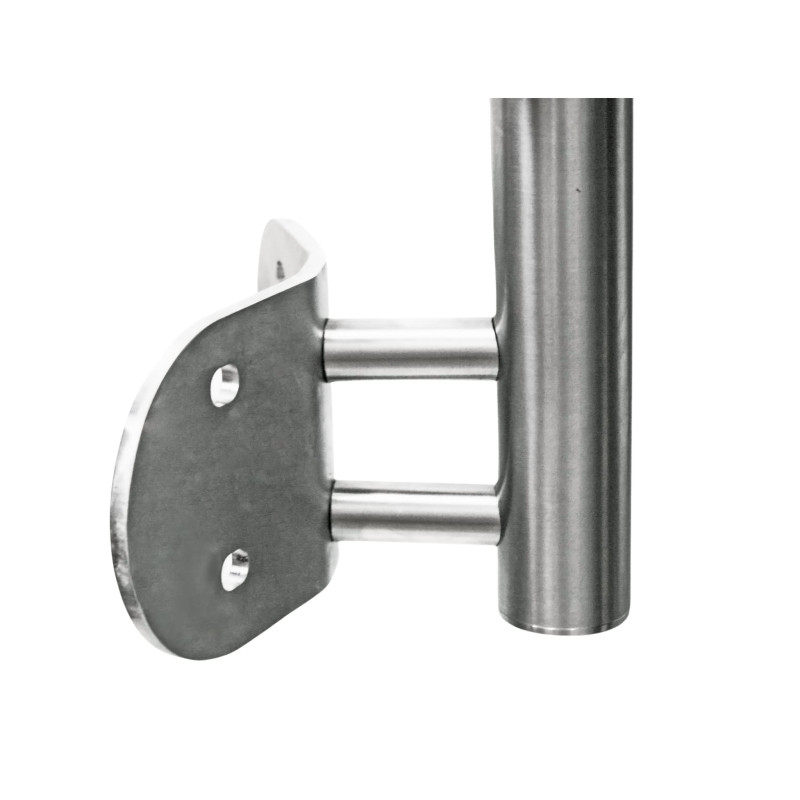

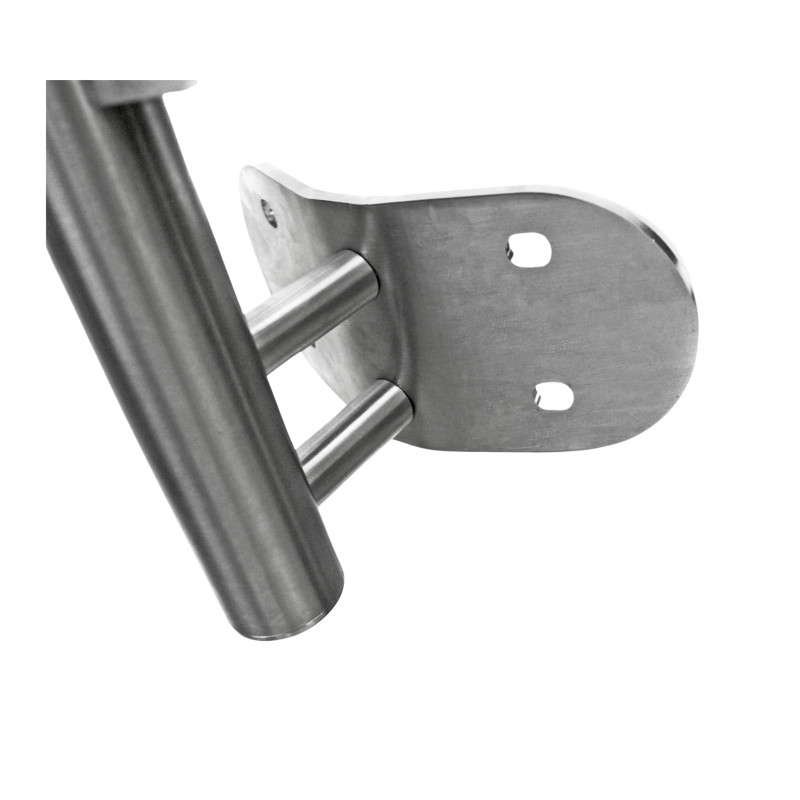

The Strofix side mounting of the post 42.4mm, 135°, Satin is an AISI 304 stainless-steel angled side fastening that anchors a Ø42.4 mm railing post at a 135° corner. Its plate is formed to a 135° angle to follow an obtuse corner — a splayed or chamfered slab edge where two faces meet at 135° rather than a square 90°. Finished in satin. The post is attached by welding.
This is the 135° angle version of the side fastening, for railings that turn an obtuse corner. Where the external corner fitting handles a 90° outside corner, this fitting is shaped for the wider 135° angle common on chamfered balconies, bay layouts, and octagonal or splayed slab edges. The angled plate bears against the obtuse-angled face, transferring the post load around the corner. It is the most substantial fitting in the side-mounting range, reflecting the specialised geometry. It side-mounts the post, keeping the floor surface clear.
Use cases:
- Side-mounting a Ø42.4 mm railing post at a 135° (obtuse) corner
- Chamfered, splayed, or bay-shaped slab edges where faces meet at 135°
- Turning a side-mounted railing around an obtuse corner
- Octagonal or angled balcony layouts
- Stainless-steel 135° angle side fastening for round railing posts
FAQ
What is the 135° angle for?
It allows a railing post to be side-mounted at an obtuse 135° corner — a chamfered or splayed slab edge where two faces meet at 135° rather than a right angle. The external corner fitting handles 90° corners instead.
What post does it fit?
The Ø42.4 mm round post tube, attached by welding.
Where is a 135° corner found?
On chamfered balconies, bay windows, octagonal layouts, and splayed slab edges, where a straight or 90° corner fitting would not follow the geometry.
Why is it the most expensive side fastening?
The specialised 135° angled geometry requires more fabrication and carries the post load around an obtuse corner.
What steel grade and finish are used?
AISI 304 stainless steel with a satin finish.
Strofix quality
Strofix designs and supplies stainless-steel fastening systems for architectural glass, including glass adaptors, railing components, handrails, and structural fixings. We also serve architects, installers, and building contractors on residential and commercial projects.
The products we sell are designed by us, and manufactured under strict quality guidelines so that we can be sure our customers are getting exactly what they ordered.
All of our products meet EU quality standards. Our shipping partners provide convenient delivery times. For more on our return & warranty policy read here. Secure payments are provided by MakeCommerce.
