Side mounting of the post 42,4mm 100mm, Polished
€11.74 Tax excluded
€14.21 Tax included
€14.21 Tax included
Tax included
Quantity
| Steel grade | AISI304 |
|---|---|
| Surface finish | Polished |
| Mounting surface type | Flat |
| Tube size | ø 42,4mm |

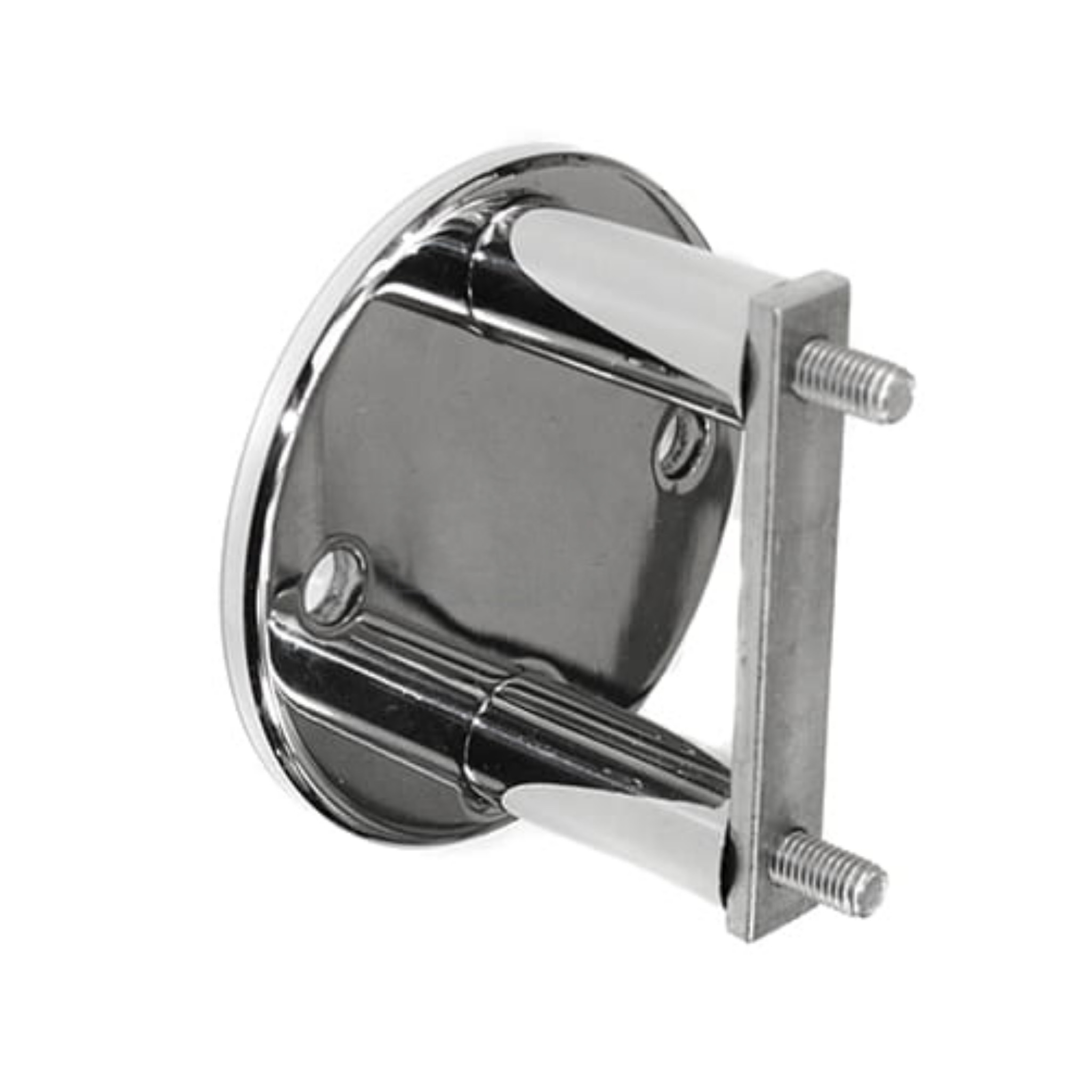

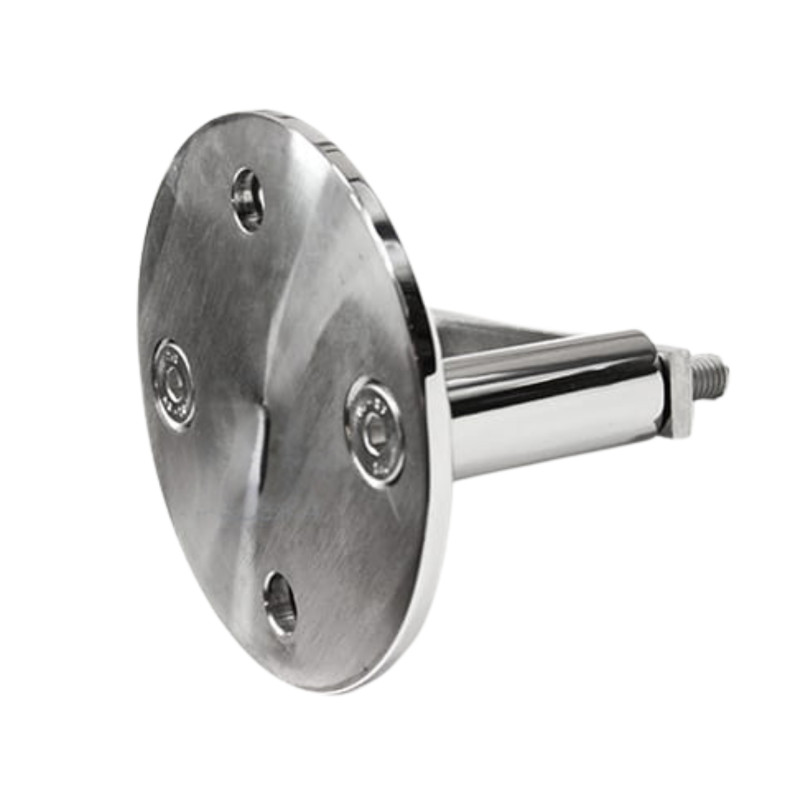

The Strofix side mounting of the post 42.4mm, 100mm, Polished is an AISI 304 stainless-steel side fastening with a round D100 plate that anchors a Ø42.4 mm railing post to a vertical face. The round Ø100 mm plate bolts to the side of a fascia, edge beam, or wall, holding the post alongside the structure. Manufactured from AISI 304 stainless steel with a polished (mirror) finish. The post is attached by welding.
This is the polished-finish version of the round D100 side fastening. It is identical in form and function to the satin version but has a mirror-polished surface, suited to installations matching polished posts and fittings. It is used where a railing post is fixed to a vertical surface — a balcony slab edge, stair stringer, or fascia beam — instead of being floor-mounted, keeping the floor surface clear. The circular D100 plate gives a compact, symmetrical footprint on the vertical face.
Use cases:
- Side-mounting a Ø42.4 mm railing post to a vertical face with a polished round plate
- Polished-finish side fixings matching polished posts and fittings
- Compact circular side-fixing footprint on a slab edge or fascia
- Keeping the floor/deck surface clear with edge-mounted railings
- Stainless-steel polished round-plate side fastening for round railing posts
FAQ
How does this differ from the satin version?
Both are AISI 304 round D100 side fastenings for the Ø42.4 mm post. This version has a polished (mirror) finish at a higher price; the satin version has a brushed matte finish and an AISI 316 grade option.
What is side mounting?
Side mounting fixes the railing post to a vertical surface (the side of a slab, beam, or fascia) rather than on top of the floor, keeping the floor surface clear.
What post does it fit?
The Ø42.4 mm round post tube, attached by welding.

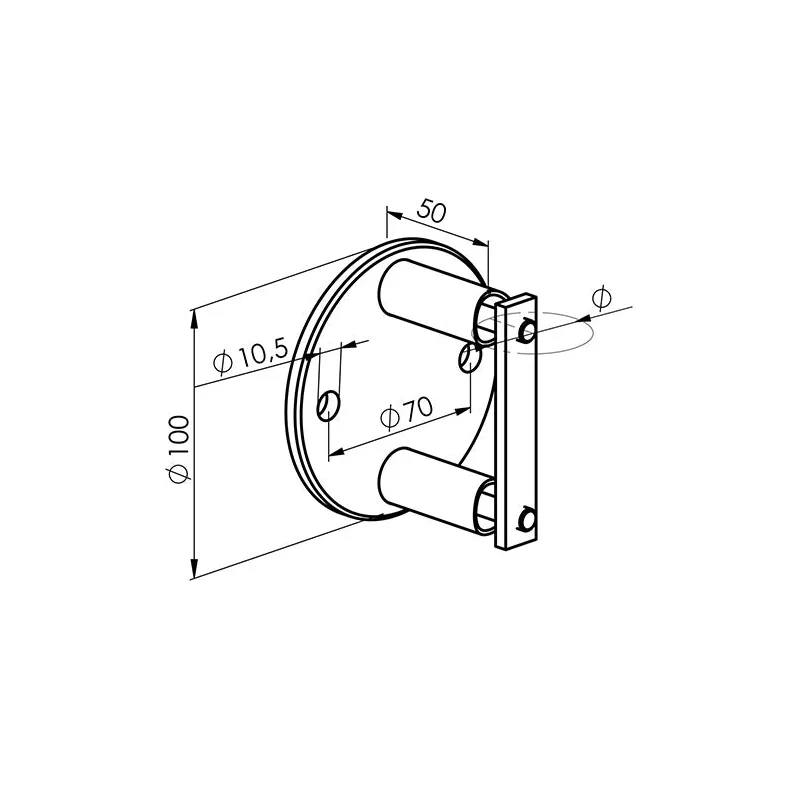

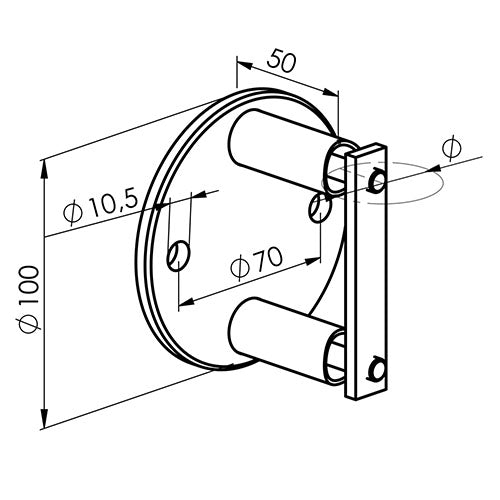

What are the plate dimensions?
A round D100 mm plate.
What steel grade and finish are used?
AISI 304 stainless steel with a polished (mirror) finish.
