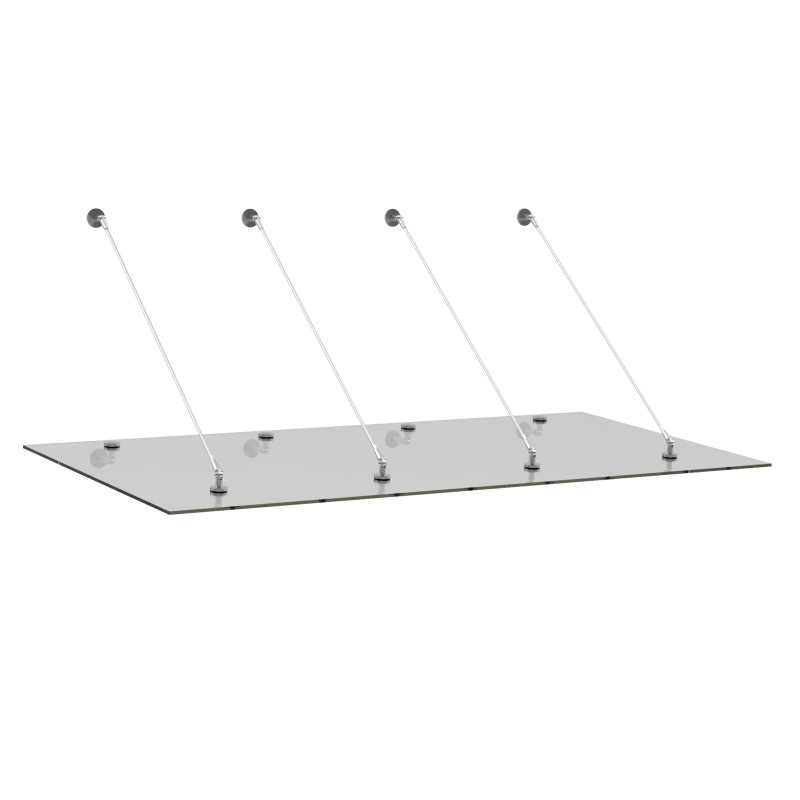

Hanging glass canopy with 4 rods, 900-1100

The Strofix hanging glass canopy with 4 rods is a complete, ready-to-install glass canopy system for the widest building entrances, commercial frontages, and large facade openings. The kit includes a 12.76 mm (66.2) laminated safety glass panel and all AISI 304 stainless-steel hardware required for a 4-rod suspension installation. Select the glass panel dimensions and finish at order time.

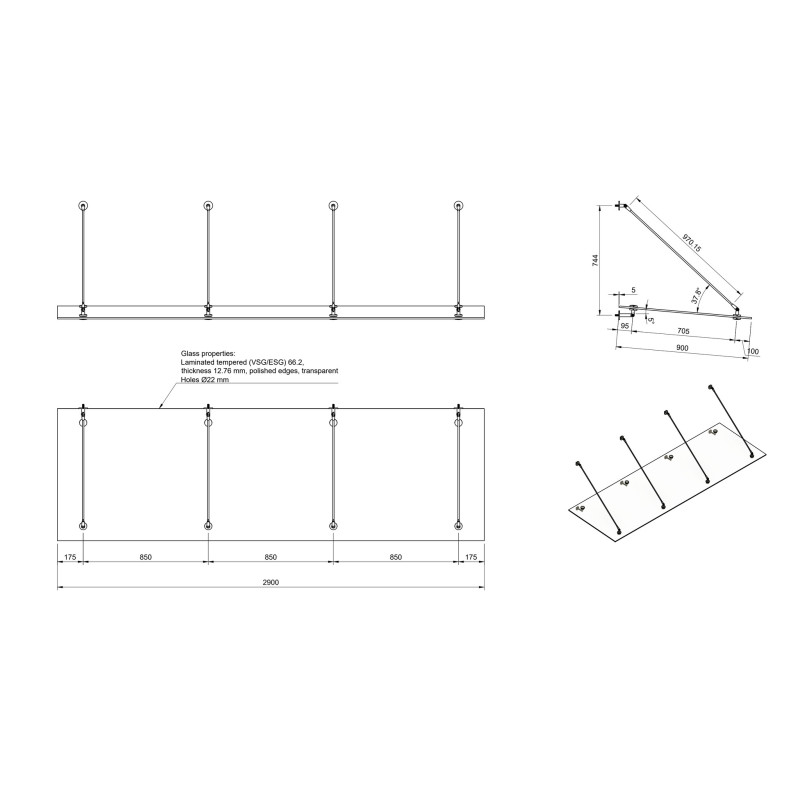

The 4-rod configuration is the widest canopy in the Strofix range, designed for glass panels from 2900 to 3500 mm wide. The glass panel is available in three widths (2900, 3200, or 3500 mm) and three depths (900, 1000, or 1100 mm), providing nine size combinations. The four suspension rods — evenly spaced across the glass panel — distribute the load and prevent deflection across the wide span. The hardware finish is selectable from four options: satin stainless steel, or three RAL painted finishes — RAL 7016 (gray-anthracite), RAL 8019 (brown), and RAL 9005 MAT (matte black). The 12.76 mm glass is 66.2 laminated safety glass (two 6 mm tempered panes with 0.76 mm PVB interlayer). The glass requires a minimum ø22 mm hole for the fixing points. The four tension rods are 1000 mm each with turnbuckle adjustment.

This is a quote-based product — contact Strofix for pricing based on the selected configuration.

Use cases:

• Extra-wide entrance canopy for large commercial frontages and multi-door openings
• Building entrances wider than 2600 mm where the 3-rod canopy cannot span
• Shopping centres, hotels, and public building entrance weather protection
• Ready-to-install extra-wide canopy kit for 2900–3500 mm entrance widths
• Facade-mounted large glass canopy in painted RAL finish or satin stainless steel

FAQ

What is included in the kit?

The kit includes the 12.76 mm (66.2) laminated safety glass panel in the selected dimensions, four 1000 mm tension rods with turnbuckle adjustment, all wall fixings, glass fixings, and decorative wall plates in the selected finish.

Why 4 rods?

The 4-rod configuration is required for the widest glass panels (2900–3500 mm). Four evenly spaced rods distribute the load and maintain structural stability across the extra-wide span. The 2-rod version covers 1400–1800 mm; the 3-rod version covers 2000–2600 mm.

What glass panel sizes are available?

Three widths: 2900, 3200, or 3500 mm. Three depths (projection from wall): 900, 1000, or 1100 mm. Nine size combinations.

What finishes are available?

Four options: satin stainless steel, RAL 7016 gray-anthracite, RAL 8019 brown, and RAL 9005 MAT matte black.

How do I choose between the 2-rod, 3-rod, and 4-rod canopy?

Choose based on the entrance width. The 2-rod covers 1400–1800 mm (standard residential). The 3-rod covers 2000–2600 mm (wide residential or narrow commercial). The 4-rod covers 2900–3500 mm (large commercial). All three share the same depth options, glass specification, and finish choices.

How much does it cost?

This is a quote-based product. Contact Strofix for a quotation based on the selected configuration.

About Hanging Glass Canopies

A hanging glass canopy is a wall-mounted entrance shelter in which stainless-steel tension rods suspend the glass panel from anchor points above, transferring load diagonally back to the building façade.

Strofix offers all the parts needed to build hanging canopy systems — the suspension rods, the fittings that hold the glass against the wall, the connectors that link the rods to both the glass and the wall, and complete system sets — all made in stainless steel with a satin finish.

Why choose hanging glass canopy? The benefits go beyond appearance. The canopy shelters the doorway from rain and snow, keeping visitors dry as they arrive and protecting the door and threshold from constant weather exposure, which extends their working life. Because the glass is clear, daylight still reaches the entrance, so the area underneath does not feel dark or enclosed. The slim rod suspension leaves the façade largely unobstructed, which is especially valuable on buildings with detailed brickwork, stonework, or architectural features worth preserving.

The correct component selection depends on canopy span, glass weight, environment and wall structure.
