Handrail wall support - 60mm, 42.4, Satin

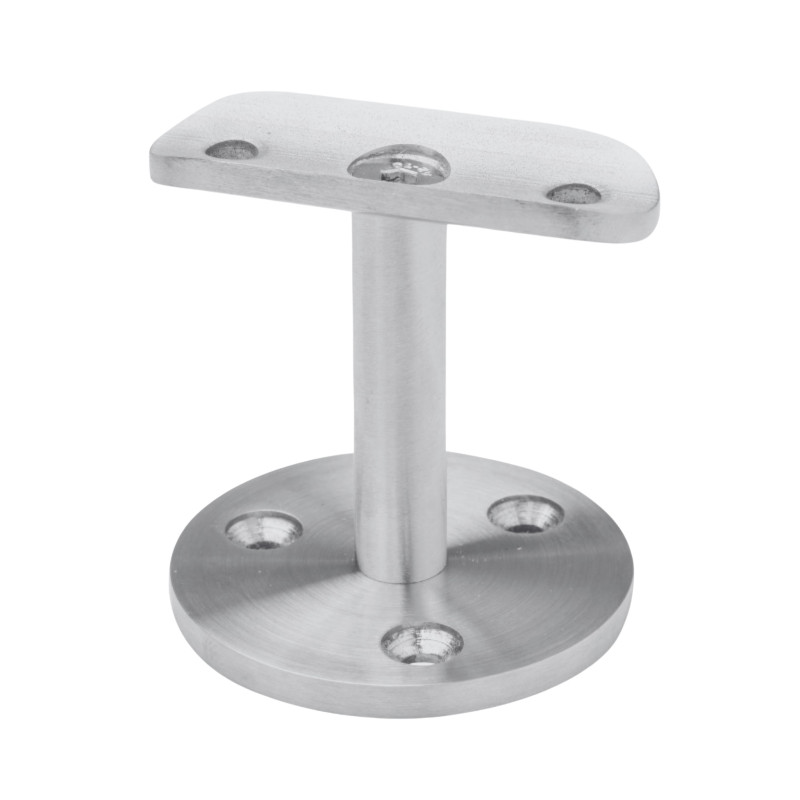

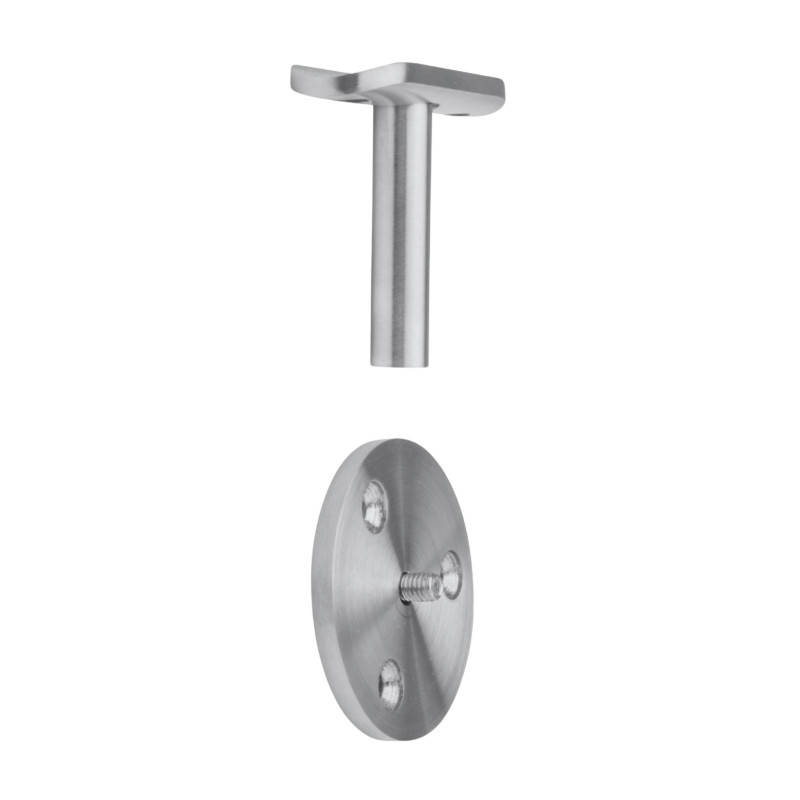

The Strofix handrail wall support 60mm, 42.4 is a stainless-steel wall-mounted bracket that supports a round handrail along a wall. It is secured with three screws to a ø60 mm base, and has a curved saddle shaped for round ø42.4 mm pipe. Manufactured from AISI 304 stainless steel with a satin finish. This is a fixed (non-adjustable) support.

This bracket carries a continuous round handrail along a wall — for example, beside a staircase or corridor — holding the rail at a set distance from the wall. It is the round-pipe version of the fixed ø60 mm wall support: the curved saddle cradles the standard ø42.4 mm tube, whereas the companion flat version suits flat-topped or capped rails. The three-screw ø60 mm base provides a secure, stable fixing. As a fixed support, it holds a defined geometry suited to level (horizontal) handrail runs.

Use cases:

• Supporting a round ø42.4 mm handrail along a wall on level runs
• Wall-mounted round handrail with a secure three-screw fixing
• Continuous round wall handrail support beside staircases and corridors
• Cost-effective fixed wall handrail bracket for round tube
• Stainless-steel wall handrail support with a ø60 mm three-screw base

FAQ

How does this differ from the 60mm flat version?

Both are fixed ø60 mm three-screw AISI 304 satin wall supports. This version has a curved saddle for round ø42.4 mm pipe; the flat version has a flat saddle for flat-topped or capped rails.

What handrail pipe does it fit?

A round ø42.4 mm tube, via its curved saddle.

Is it adjustable?

No. This is a fixed support, suited to level (horizontal) handrail runs. For adjustable height and angle, choose the ø50 mm adjustable wall supports.

How is it fixed to the wall?

With three screws to a ø60 mm base. Use appropriate wall fixings for the substrate and the handrail load.

What steel grade is used?

AISI 304 stainless steel with a satin finish.
