Handrail plate - 42.4

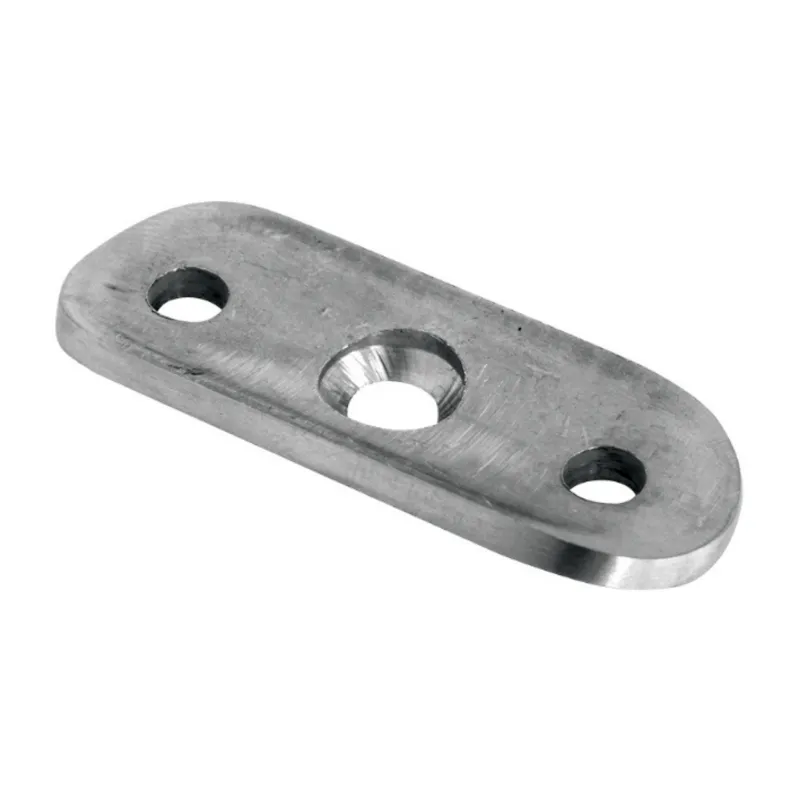

The Strofix handrail plate 42.4 (fixed) is a stainless-steel saddle plate that connects a round ø42.4 mm handrail pipe to a post or support. The plate measures 64 × 24 mm with a curved profile shaped to seat the round tube. Manufactured from AISI 304 stainless steel with a satin finish. This is a fixed (non-adjustable) plate.

This is the fixed version of the round-pipe straight handrail plate. It shares the same 64 × 24 mm body, AISI 304 steel, and satin finish as the adjustable 42.4 version, but holds a fixed angle and is offered at a lower price. The plate seats the rail and is screwed to the post-mounted handrail fitting or supporting element, suited to level (horizontal) handrail runs.

Use cases:

• Connecting a round ø42.4 mm handrail pipe to a post fitting on level runs
• Fixed-angle saddle plate for round handrail tube
• Cost-effective handrail plate for straight, horizontal round tube runs on posts
• Round handrail seating on post railing systems
• Stainless-steel handrail plate for ø42.4 mm tube railings

FAQ

How does this differ from the adjustable 42.4 handrail plate?

Both are 64 × 24 mm AISI 304 satin curved handrail plates. This version is fixed (non-adjustable) and lower priced; the adjustable version allows the plate angle to follow an inclined rail. Choose this fixed version for level, horizontal runs.

What handrail pipe does it fit?

Round ø42.4 mm tube — the standard round handrail pipe size.

Is it adjustable?

No. This is a fixed plate. For angle adjustment, choose the adjustable 42.4 handrail plate.

What steel grade is used?

AISI 304 stainless steel with a satin finish.

What are the plate dimensions?

64 × 24 mm, with a curved profile for ø42.4 mm pipe.
