Handrail fitting - 40x40mm, for welding

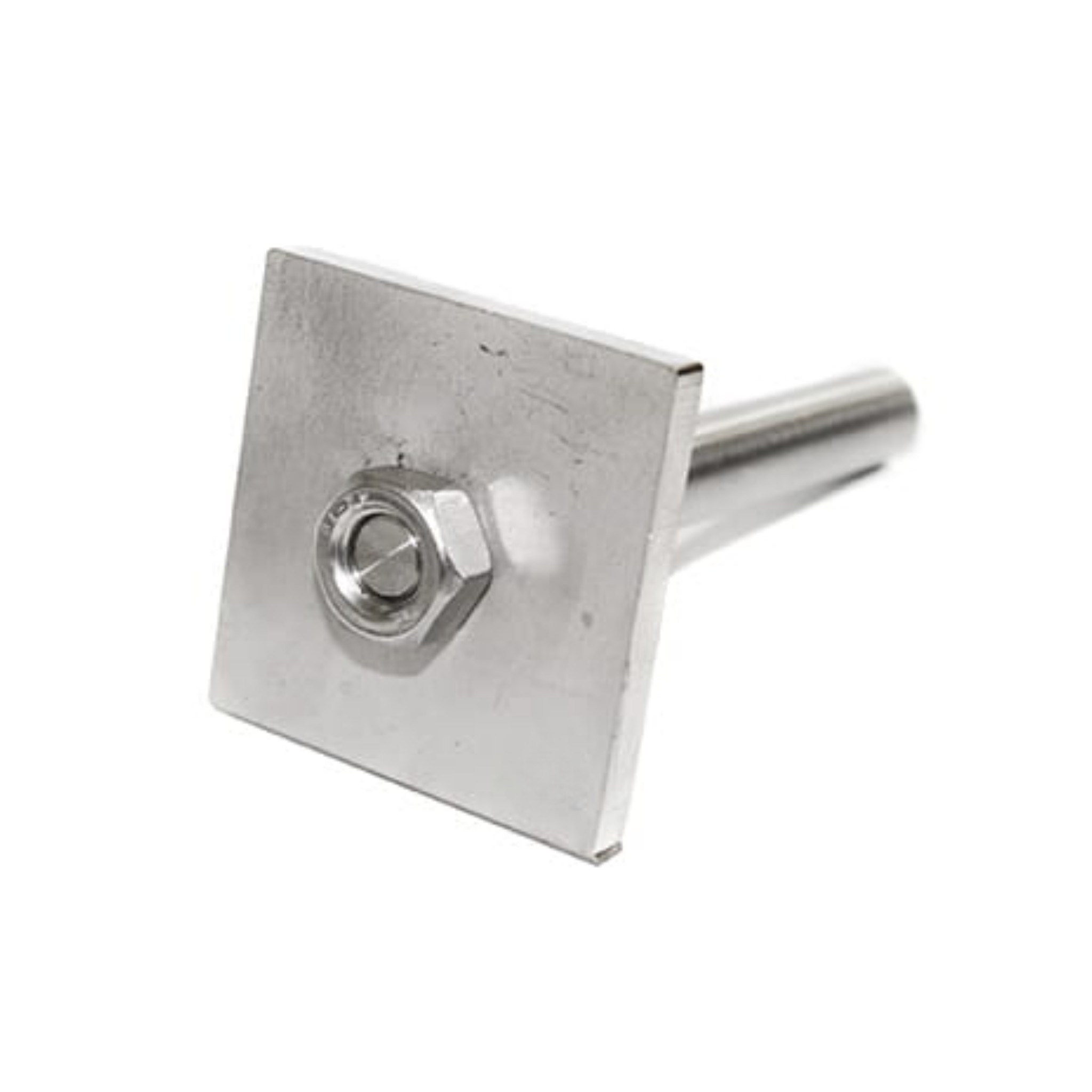

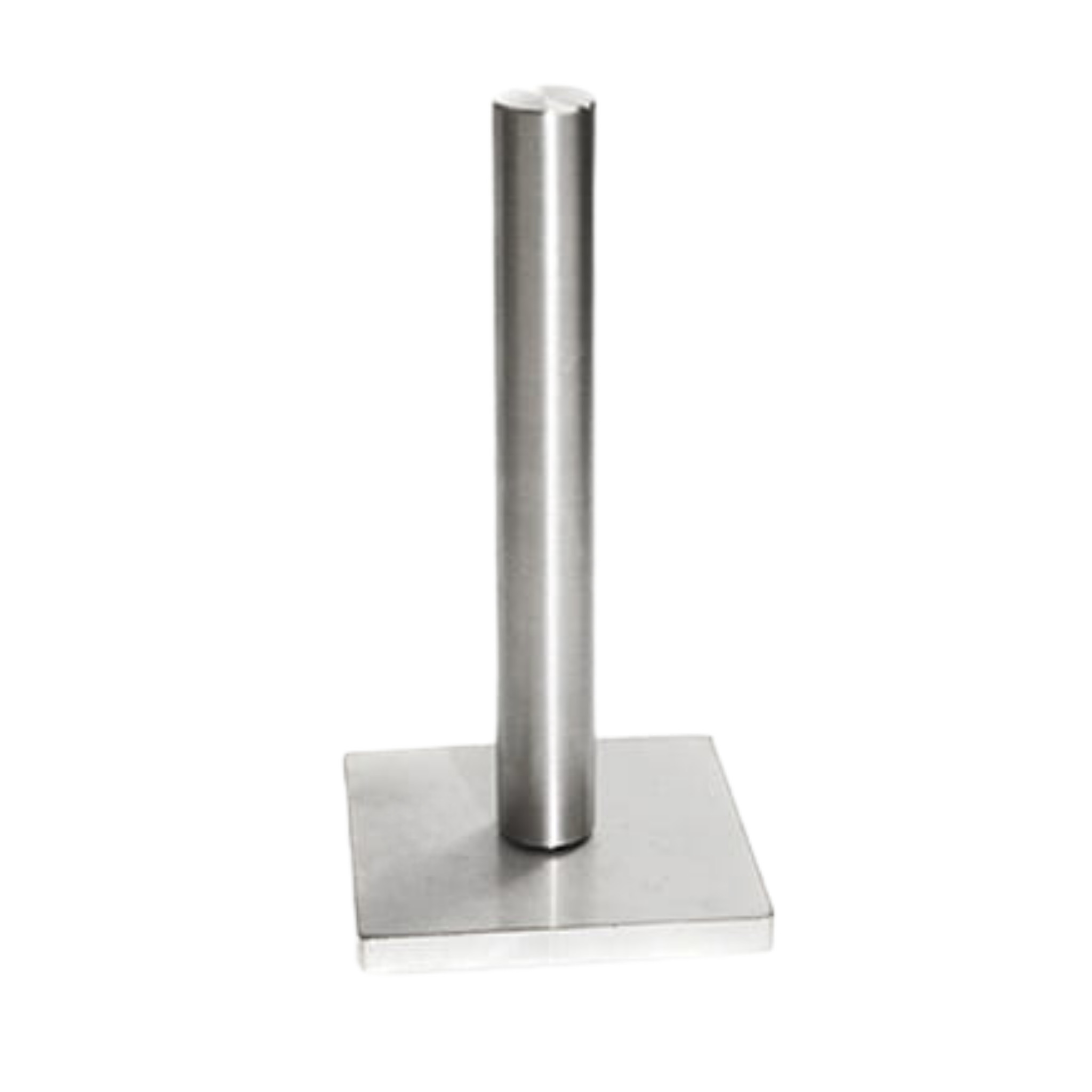

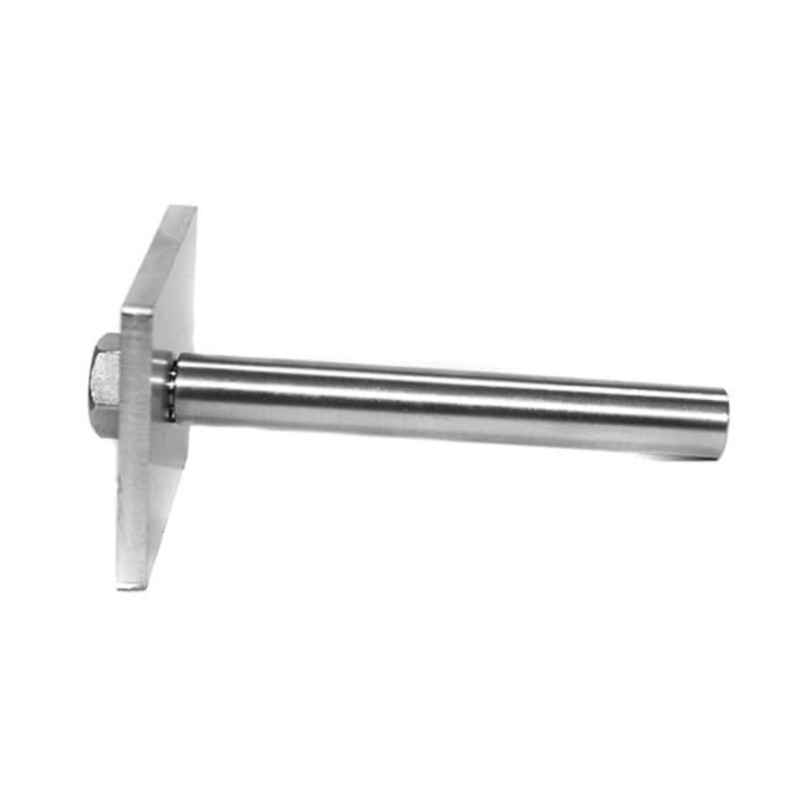

The Strofix handrail support for welding is an AISI 304 stainless-steel fitting that carries the handrail on a railing post. It consists of a flat square saddle plate on a round stem, with an M8 connection. Supplied with a raw (unfinished) surface.

This is the 40 × 40 mm square version – the saddle plate profile matches the handrail it carries. The fitting is welded in place, which gives a permanent connection with no visible fixing on the finished rail. It is the fixed version: the saddle angle is not adjustable, so it is intended for level handrail runs rather than raked or stair sections.

The raw surface is standard for welded fittings, because the weld and the surrounding surface are ground and finished together after installation. AISI 304 stainless steel is suitable for standard interior and exterior installations.

Use cases:

• Carrying 40 × 40 mm square handrail on railing posts
• Level handrail runs on balconies, terraces and landings
• Welded post-to-handrail connection in prefabricated railing assemblies
• Workshop fabrication of railing systems before site delivery
• Installations where a concealed, welded joint is preferred over a bolted fitting

FAQ:

What handrail profile does this fitting suit?

The 40 × 40 mm square profile. The saddle plate is square to match it.

Is the angle adjustable?

No. This is the fixed version, intended for level handrail runs. Strofix also supplies adjustable handrail fittings with a movable support plate for raked or stair runs.

How is it fitted?

It is welded. TIG or MIG welding is required, and the weld is ground and finished after installation.

What is the M8 connection for?

The M8 element secures the saddle plate to the stem.

Is a version for the other handrail profile available?

Yes. The same fitting is available for a Ø42.4 mm round handrail.
