Corner handrail fitting - 42.4 / 42.4, Polished, 90º

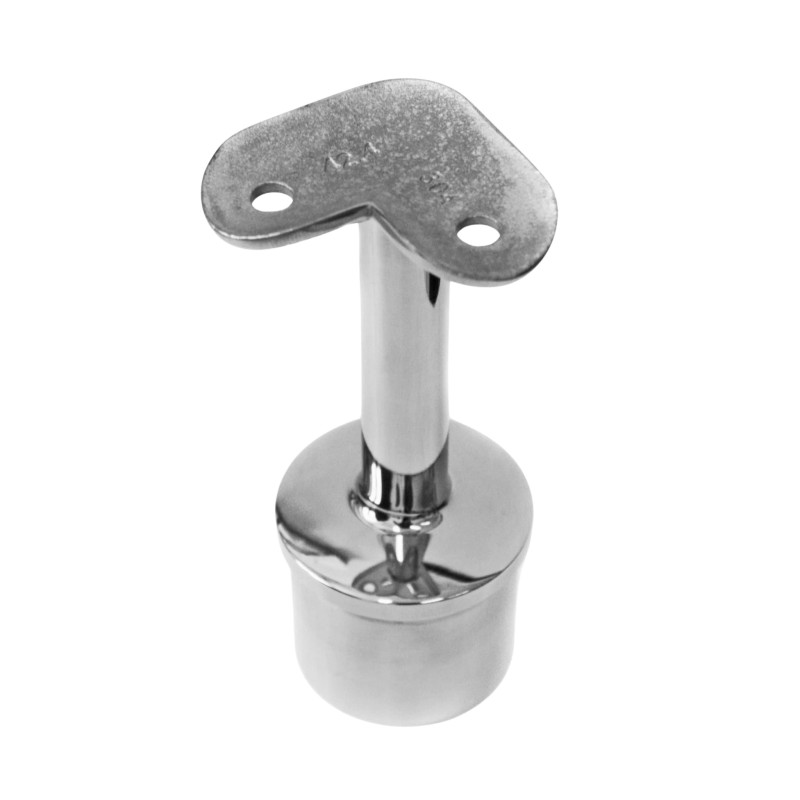

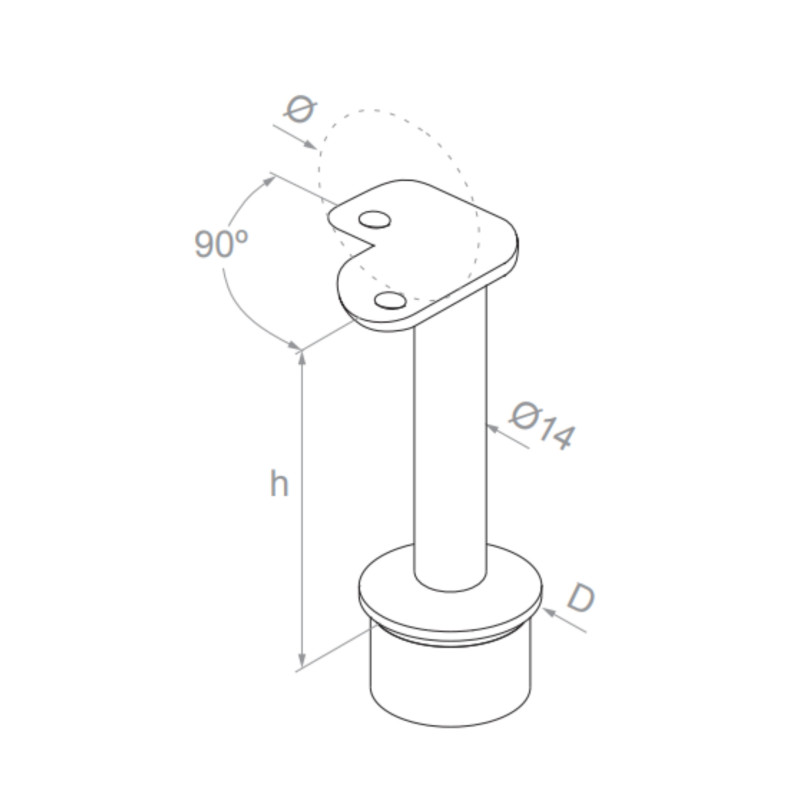

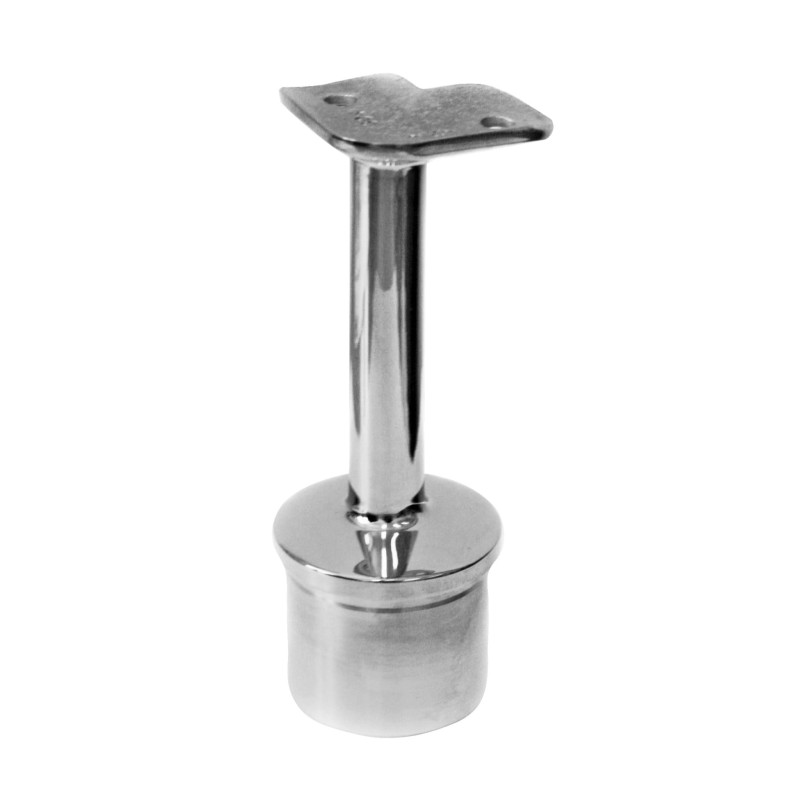

The Strofix corner handrail fitting (90°), 42.4 / 42.4, polished is a stainless-steel corner connector that joins round handrail sections at a 90° corner. It is made from round ø42.4 × 2 mm section to match a round ø42.4 mm handrail pipe, forming the right-angle turn within the rail line. Manufactured from AISI 304 stainless steel with a polished (mirror) finish. This is a fixed (non-adjustable) fitting.

This is the polished-finish version of the round-section corner handrail fitting. It is identical in form and function to the satin version but has a mirror-polished surface, suited to installations matching polished round handrail tube. Both the fitting body and the rail are round ø42.4 mm, giving a continuous round profile through the corner. It is supplied as a bonded/pasted element for joining the rail sections at 90°.

Use cases:

• Forming a 90° corner in a continuous polished round ø42.4 mm handrail run
• Polished-finish corner connector matching polished round handrail tube
• Round-profile corner joint where a continuous mirror-finish tube is wanted
• Right-angle direction change in a polished round pipe handrail line
• Stainless-steel polished round corner handrail fitting for ø42.4 mm pipe

FAQ

How does this differ from the satin version?

Both are round ø42.4 × 2 mm section AISI 304 corner fittings at the same price. This version has a polished (mirror) finish; the satin version has a brushed matte finish.

What handrail pipe does it fit?

A round ø42.4 mm tube on both sides of the corner.

What section is the fitting made from?

Round ø42.4 × 2 mm tube section, giving a continuous round profile through the corner.

Is it adjustable?

No. This is a fixed fitting holding the 90° corner geometry.

How is it joined to the rail?

It is supplied as a bonded/pasted element for joining the handrail sections at the corner.

What steel grade and finish are used?

AISI 304 stainless steel with a polished (mirror) finish.
