Glass clamp 45x45mm, Polished, 42.4

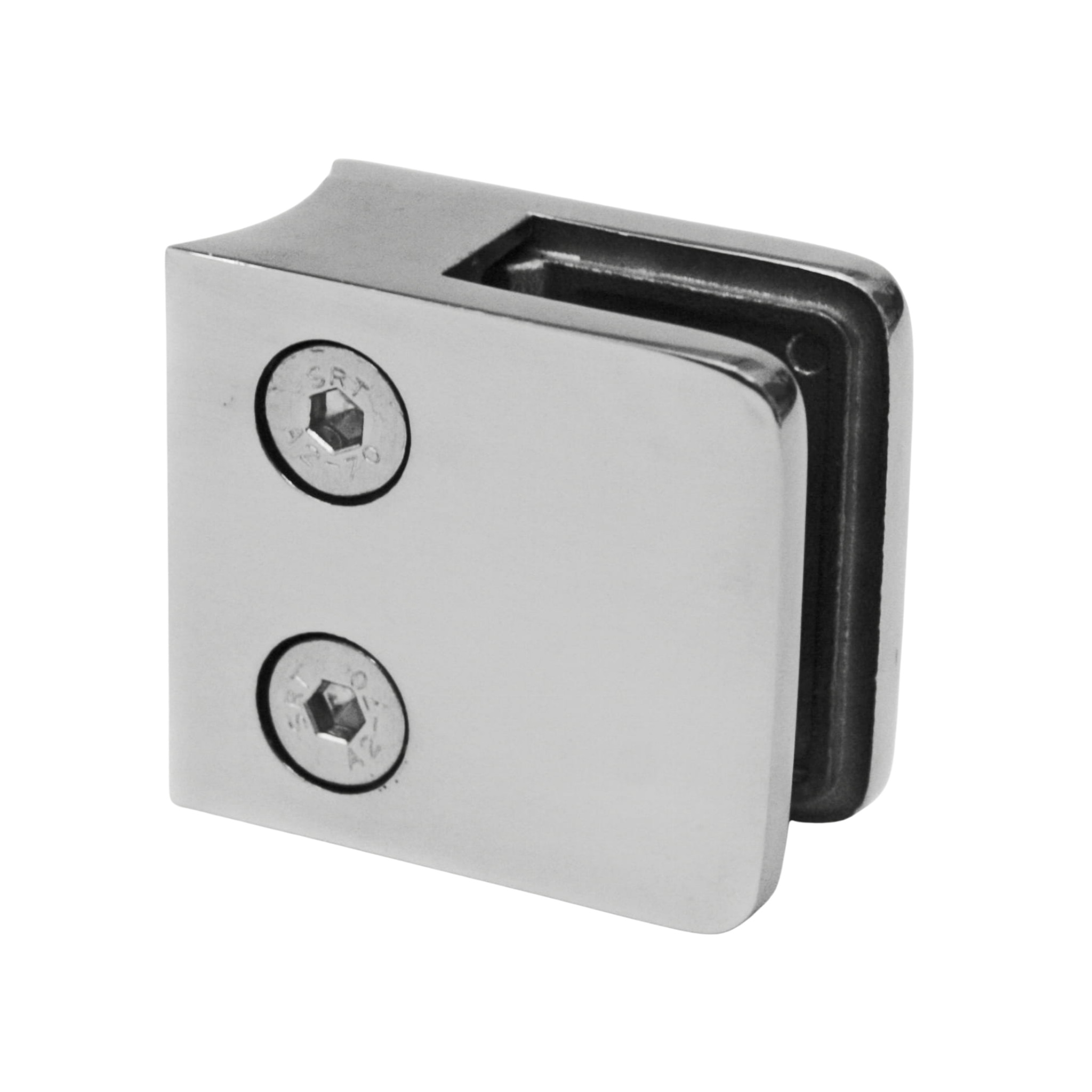

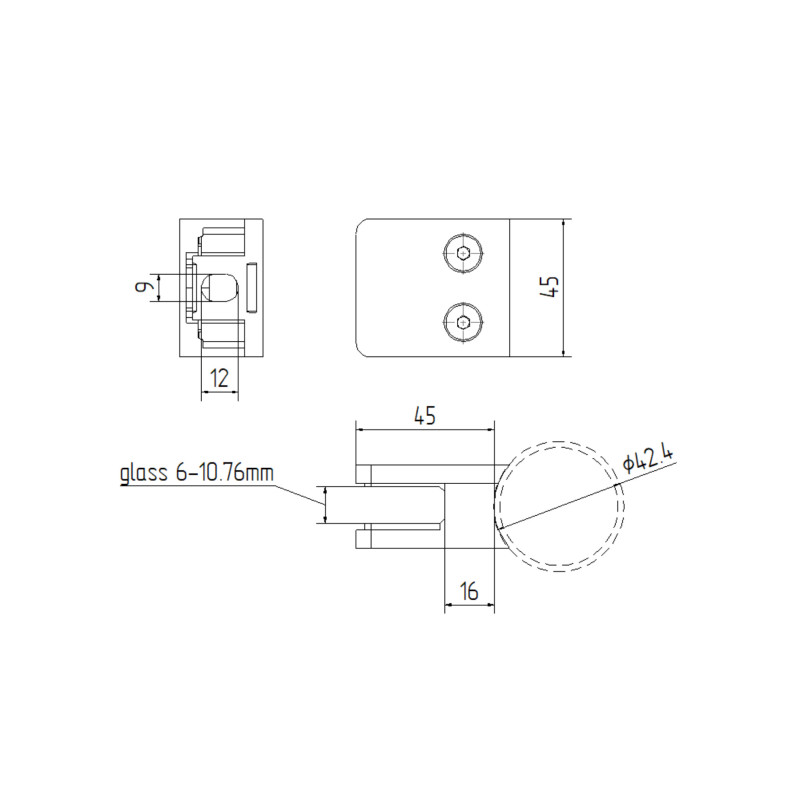

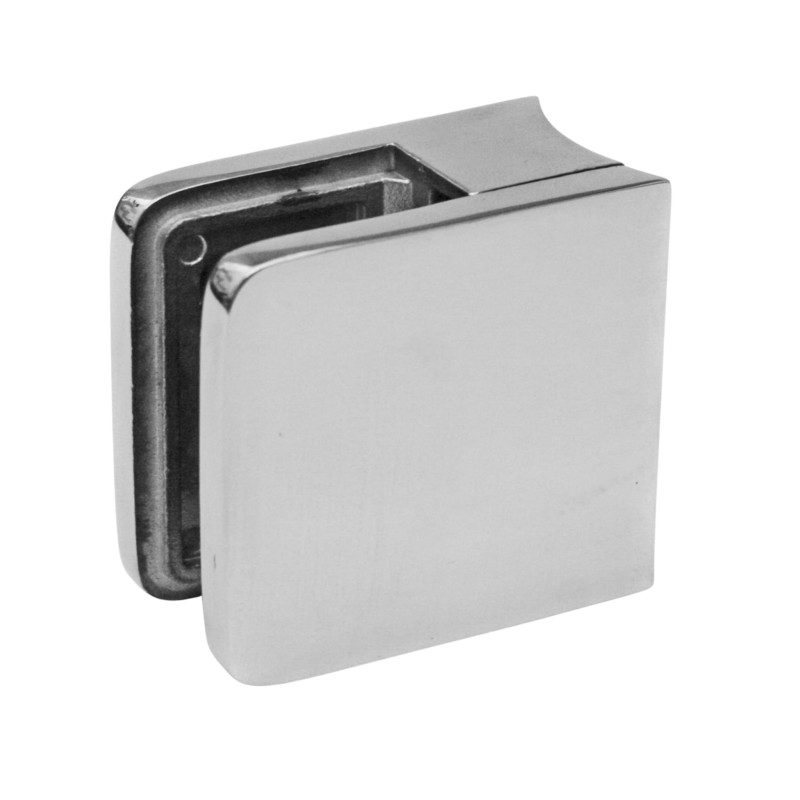

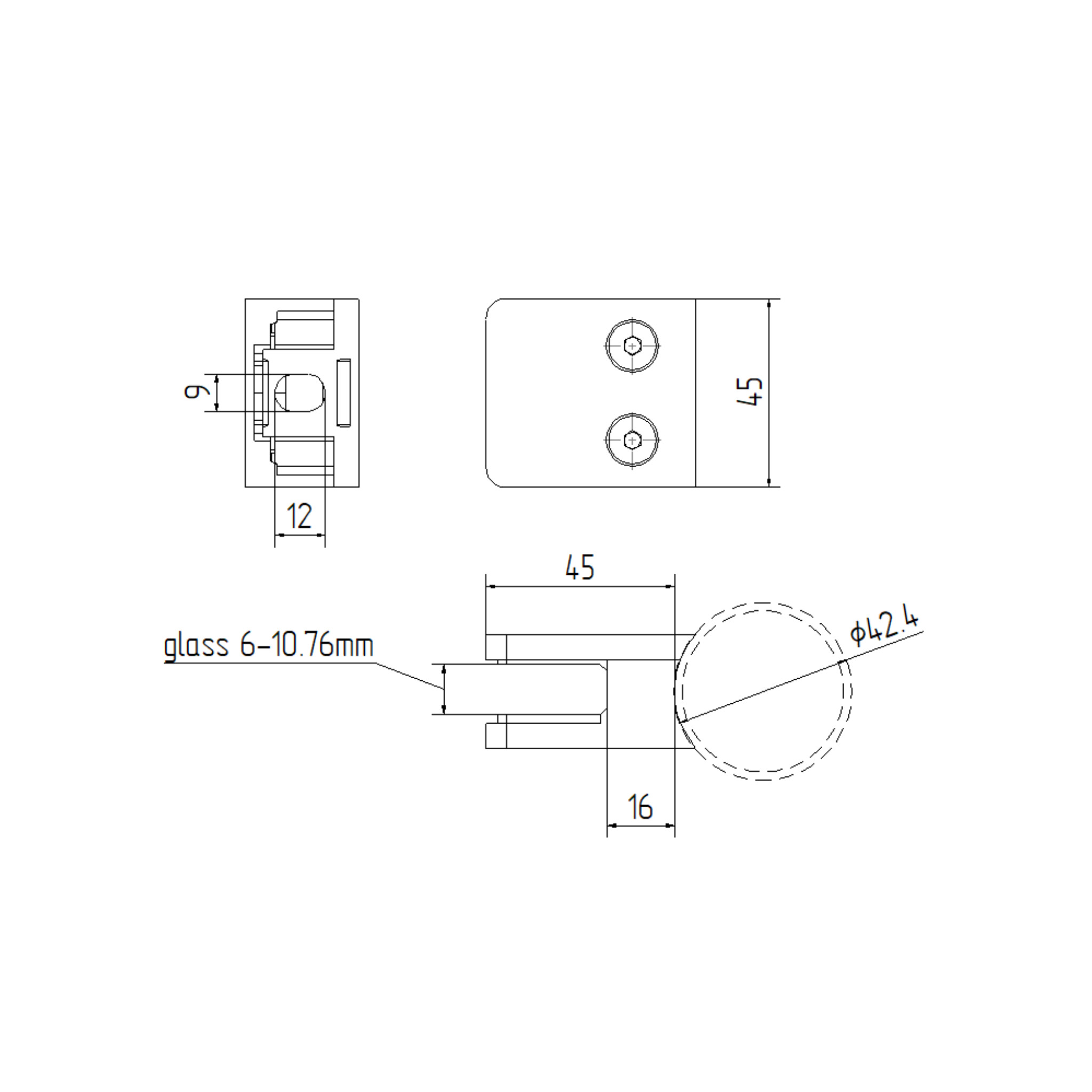

The Strofix glass clamp 45×45 mm polished for Ø42.4 tube is a stainless-steel glass panel holder designed for mounting on Ø42.4 mm round railing post tubes. The clamp measures 45 × 45 mm and holds glass panels from 6 to 10.76 mm thick. The distance between the mounting surface and the glass panel is 20 mm. Manufactured from AISI 304 with a mirror-polished finish. Without supporter. Attached by screwing.

The polished finish provides a high-gloss, mirror-like appearance for premium glass railing installations on round tube posts. This is the aesthetic upgrade from the satin version of the same tube-mount clamp — the dimensions, glass range, mounting type, and standoff distance are identical apart from the surface finish and the glass range starting at 6 mm (the satin version also accepts 4 mm). The curved back face wraps around the Ø42.4 mm tube surface. Glass thickness options cover single tempered glass (6, 8, 10 mm) and laminated safety glass (8.76, 10.76 mm). This product is available in AISI 304 only.

Select the glass thickness in the dropdown at order time.

Use cases:

• Premium polished glass clamp on Ø42.4 mm round railing post tubes
• High-gloss contemporary glass railing designs with round tube posts
• Mirror-finish tube-mount installations where polished hardware is specified
• Interior and exterior glass balustrades on round posts requiring polished clamps
• Design-led railing projects where the clamp finish must match other polished components

FAQ

How does this differ from the satin Ø42.4 tube version?

Both are 45 × 45 mm tube-mount clamps for Ø42.4 without supporter. The differences are surface finish (polished vs satin), grade (AISI 304 only vs 304/316 on the satin), glass range (6–10.76 vs 4–10.76 mm on satin), and price. Choose polished for mirror-finish aesthetics; choose satin for a brushed look, AISI 316 availability, or 4 mm glass support.

What glass thicknesses are supported?

The clamp accepts glass from 6 to 10.76 mm: single tempered glass (6, 8, 10 mm) and laminated safety glass (8.76, 10.76 mm).

What tube does this clamp mount on?

The clamp mounts on the Ø42.4 mm round railing post tube with a curved back face.

Is AISI 316 available?

No. This polished version is AISI 304 only. For AISI 316, use the satin version (SKU ST-445450-4S).

Does this include support?

No. For the tube-mount version with support, see the 45 × 45 with support for Ø42.4 in the Strofix Glass clamps category.

Does the polished finish require special maintenance?

Polished stainless steel shows fingerprints more readily than satin. Regular cleaning with a stainless-steel cleaner maintains the mirror appearance.

About Glass Clamps for Pipe

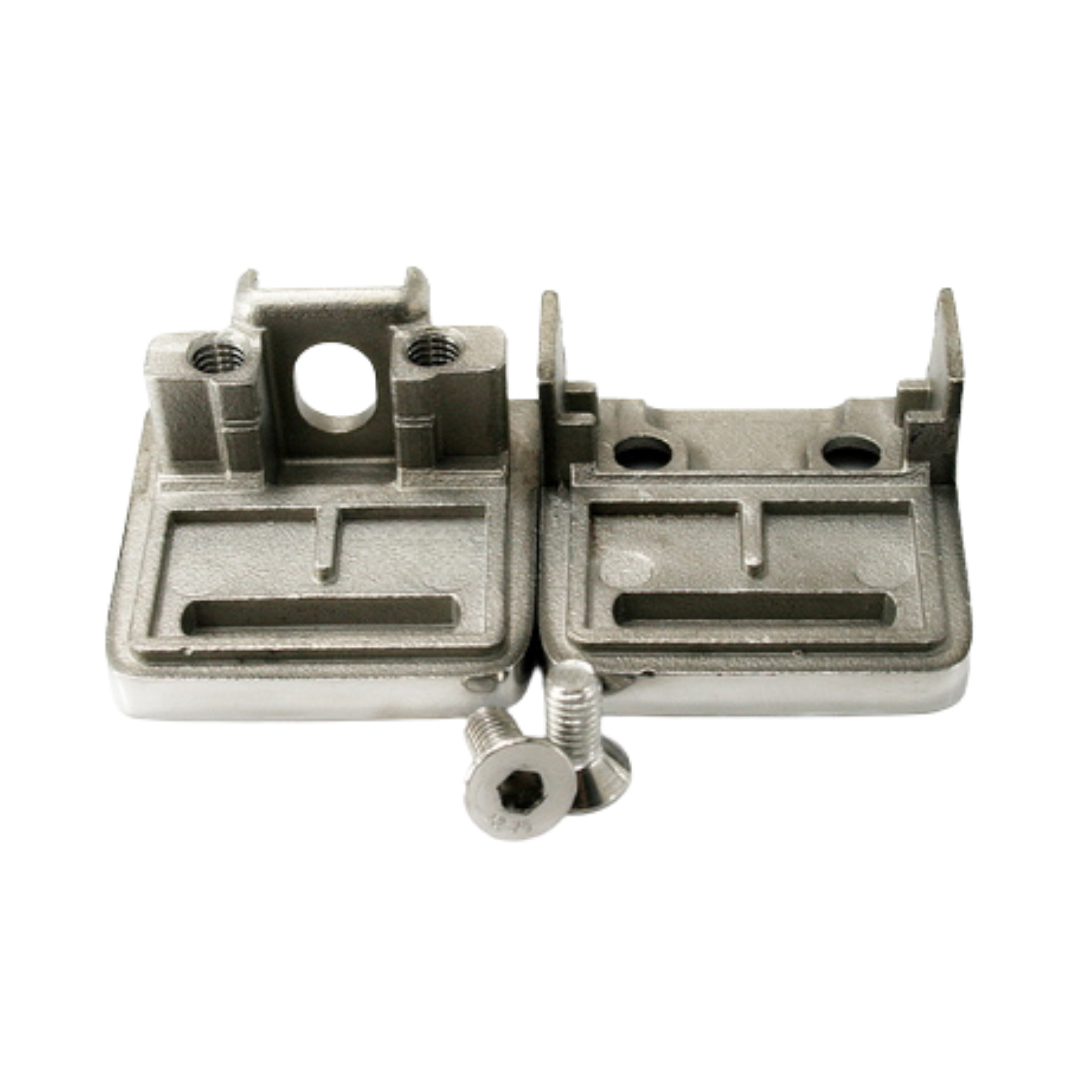

A glass clamp for pipe is a stainless-steel bracket with a curved back profiled to sit flush against a round post, gripping a glass panel along its edge without requiring a drilled hole. The curved saddle wraps around the tube circumference, and the front half clamps the glass with rubber inserts that cushion the contact and accommodate the panel thickness.

Strofix supplies pipe-mount glass clamps in eight body variants — from compact 45×45 mm and 40×50 mm bodies to larger 52×52 mm, 55×67 mm and 45×63 mm bodies with glass-edge overhangs up to 18 mm — profiled for Ø42.4 mm and Ø48.3 mm round pipe, in AISI 304 or AISI 316 stainless steel with satin or polished finishes.

Most variants include an integrated glass support shelf; one compact variant is supplied without a supporter. The correct clamp depends on body size, pipe diameter, steel grade and whether a built-in glass support is needed.
