Rod railing system for stairs, End Left - 42.4

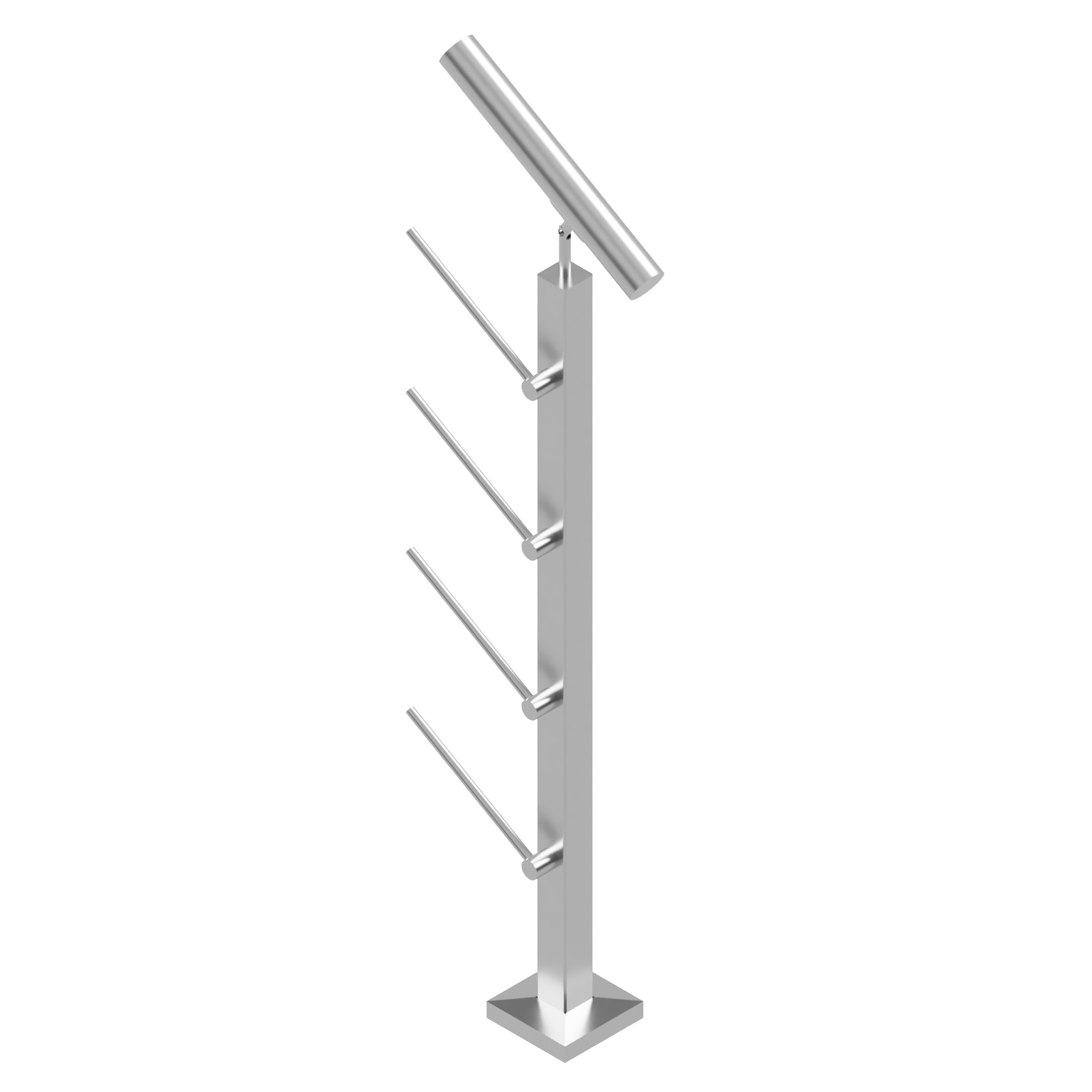

The Strofix rod railing system for stairs, End Left - 42.4 is a complete end (terminal) railing post for stairs, supplied with 4 crossbar holders for the horizontal rod (bar) infill. It has a 40 × 40 × 2 mm post standing H=960 mm on a 108 × 108 mm base, with its top configured for a round Ø42.4 mm tube handrail, and is made for stair (inclined) installation. Available in AISI 304 or AISI 316 grade with a satin finish.

This is the end configuration for a staircase: the post sits at the left-hand end of a stair railing run, carrying 4 crossbar holders to secure the horizontal rods where the rod (bar) balustrade terminates, so the railing follows the pitch of the stairs. The "End Left" designation places the post at the left end of the run; a matching "End Right" version is available for the opposite end. The "42.4" designation is the version for the round Ø42.4 mm tube handrail; a "Flat" version for the flat 40 × 40 handrail is also available. AISI 304 suits interior and standard exterior installations; AISI 316 contains added molybdenum for higher resistance to chlorides and salt air, making it the choice for coastal and high-humidity environments. It is a finished post system from the Strofix For Rod railing range, made for stairs rather than flat surfaces.

Use cases:

• End post for a rod (bar) infill railing on a staircase
• Left-hand termination of a stair rod railing that follows the flight's pitch, topped with a round Ø42.4 handrail
• Residential and commercial stair balustrades
• Rod railing on stairs, not level ground
• Coastal and poolside stair railings (AISI 316 recommended)

FAQ

What is included?

The system is an end (terminal) stair railing post supplied with 4 crossbar holders for the horizontal rods.

What surface is it for?

It is made for stairs — an inclined, stepped run. A separate For a flat surface version is available for level ground.

Which end of the railing does it go on?

It is the left-hand end post; a matching "End Right" version is available for the opposite end of the run.

What handrail does the "42.4" version take?

Its top is configured for a round Ø42.4 mm tube handrail. A "Flat" version for the flat 40 × 40 handrail is also available.

What are the post dimensions?

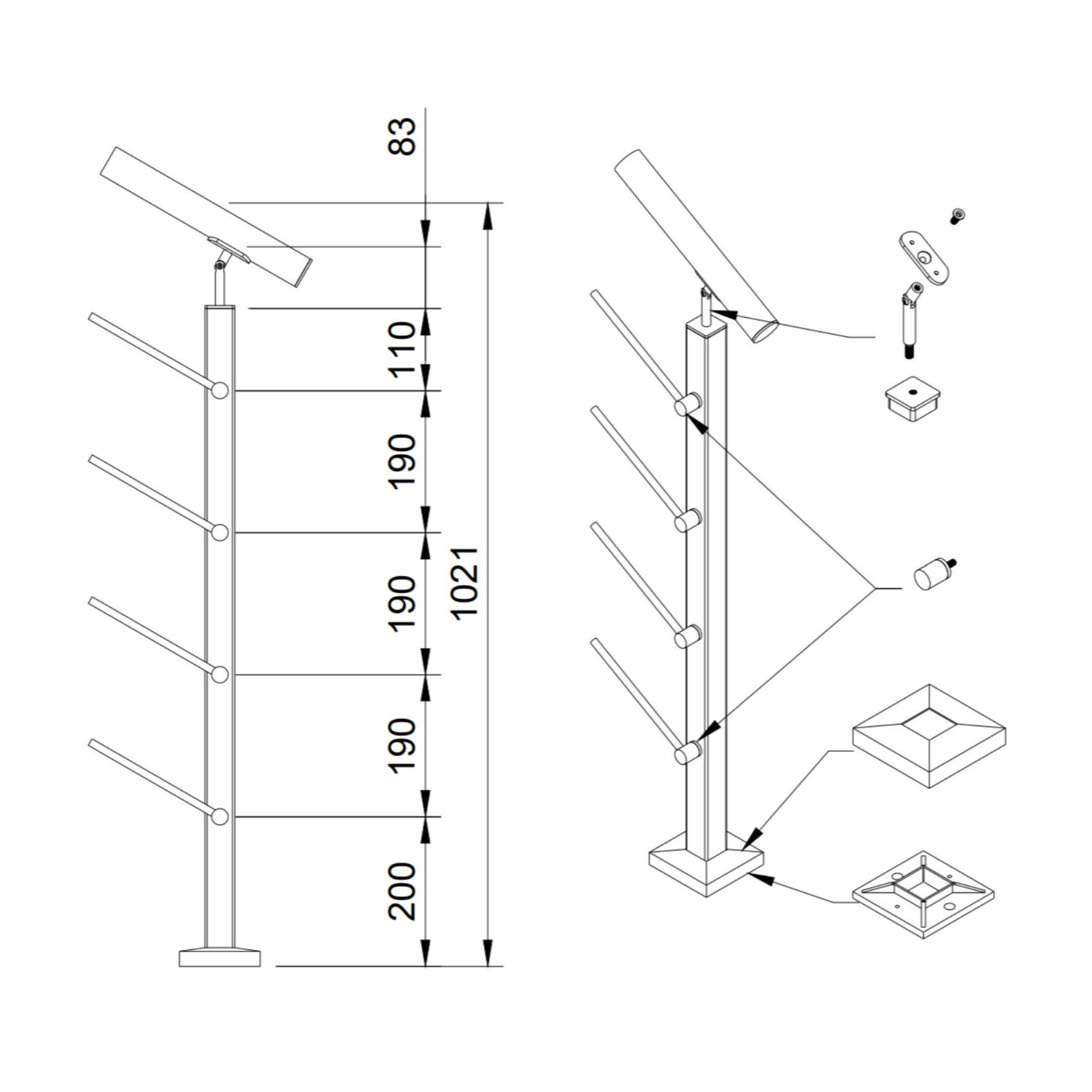

The post is 40 × 40 × 2 mm, H=960 mm, on a 108 × 108 mm base.

What is the difference between AISI 304 and AISI 316?

AISI 316 contains added molybdenum for higher resistance to chlorides and salt air. Choose AISI 316 for coastal, pool, and high-humidity installations; AISI 304 is sufficient for interiors and standard outdoor conditions.

About Rod Railing Posts

A rod railing post is a stainless-steel vertical upright designed to carry horizontal rod crossbars between posts, forming a balustrade with an open, linear infill. The rods pass through pre-drilled holes or fittings in the post, and a handrail sits on top, creating a lightweight barrier that maintains visibility while providing fall protection on balconies, terraces, mezzanines and staircases.

Strofix supplies rod railing post systems in four configurations — flat surface with flat (40×40 mm) post, flat surface with round (Ø42.4 mm) post, stairs with flat post, and stairs with round post — all in AISI 304 or AISI 316 stainless steel with a satin finish.

A standard fitting accessory for the rod-to-post connection is also available separately. The correct system depends on installation surface (flat or stairs), post profile (flat or round) and the required steel grade.
